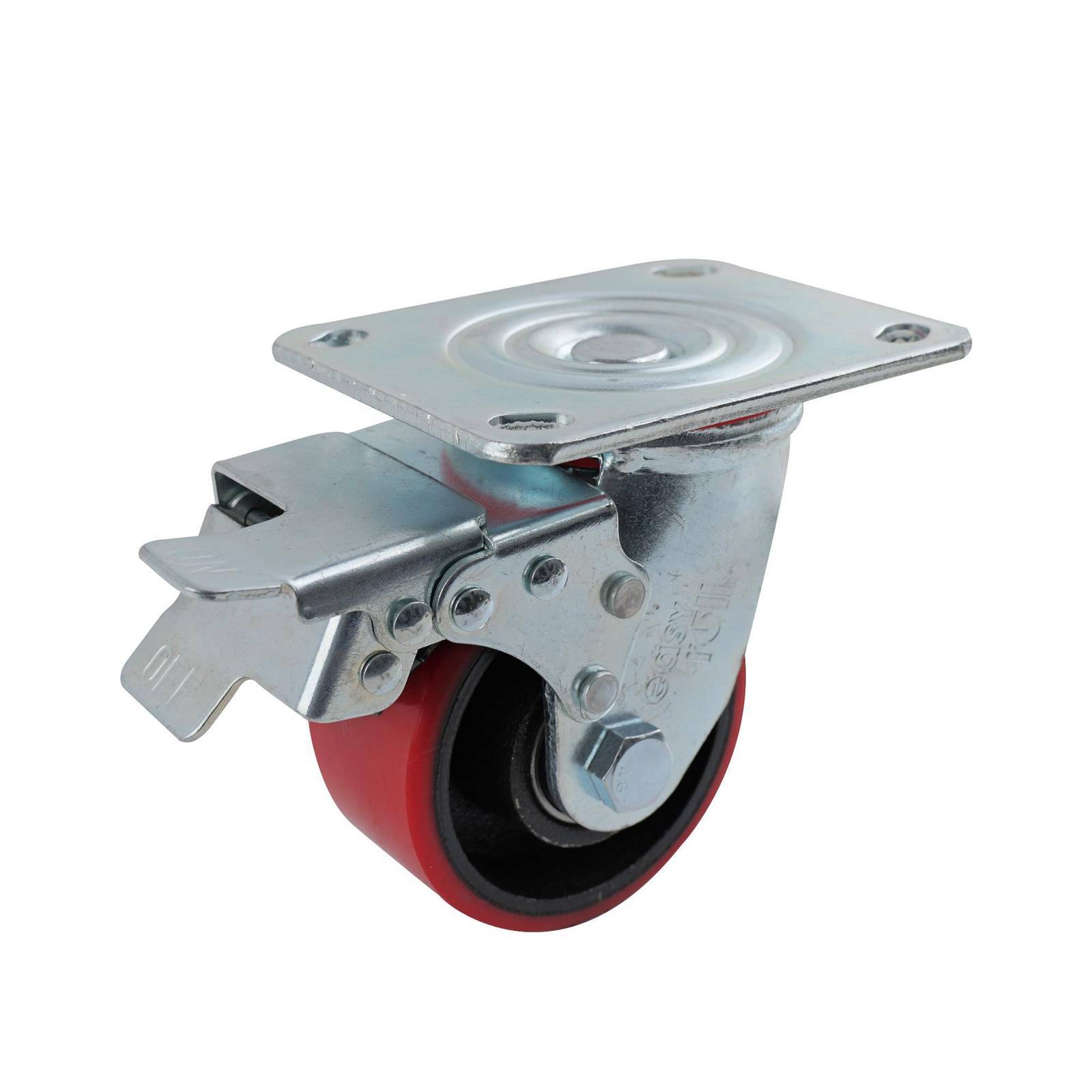

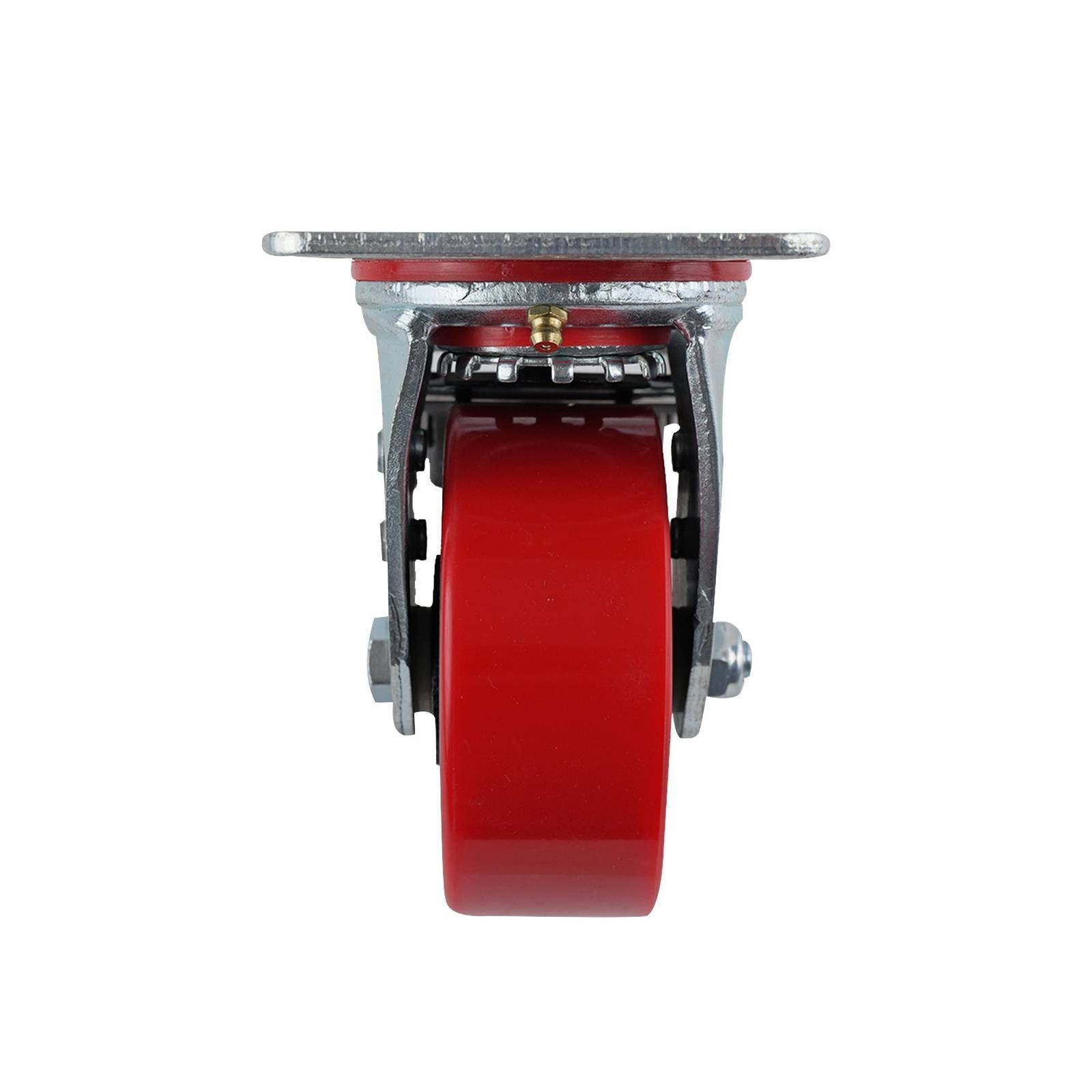

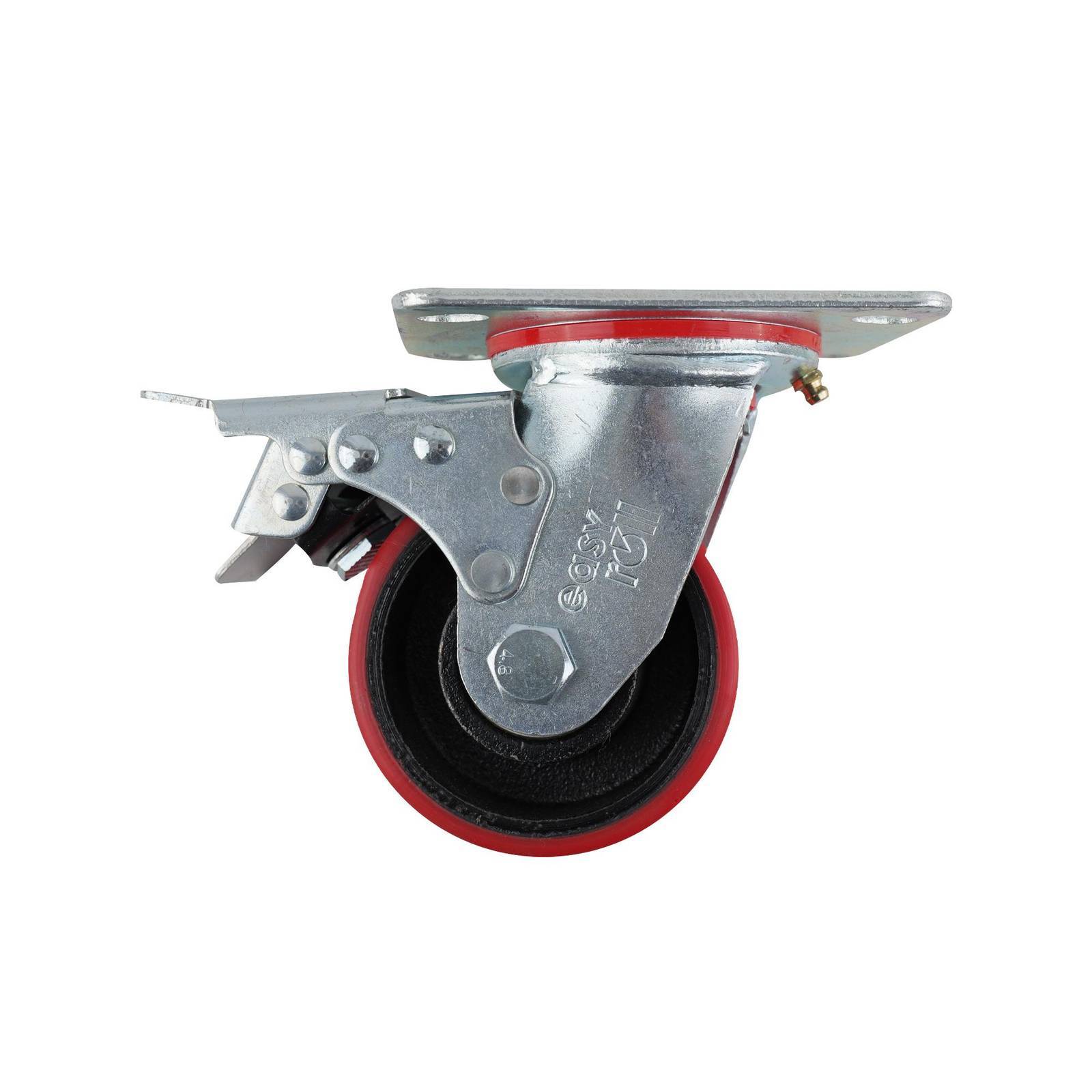

Easyroll 100mm Urethane Cast Iron Swivel Plate Brake J3 Series Castor 320kg
Easyroll 100mm Urethane Cast Iron Swivel Plate Brake J3 Series Castor 320kg is designed to provide reliable, controlled movement and support for precise load handling. Its steel frame and housing, coupled with polyurethane wheels and ball bearings, ensure durability and smooth operation. The red, black, and silver design offers technical aesthetics without excess flair. The plate mount with a built-in swivel attachment facilitates efficient repositioning for professional trade applications.
Couldn't load pickup availability
- Constructed with durable steel housing and wheel core
- Polyurethane wheel combined with cast iron for stability
- Ball bearing system ensures smooth and reliable rotation
- Plate mount design with integrated swivel attachment
- Rated for maximum load of 320kg capacity
- Suitable for indoor and outdoor use
- Product available in red, black and silver
- 100mm wheel diameter for precise and controlled movement
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Attachments | Plate Swivel |
Construction
| Wheel Core Material | Steel |
| Wheel Material | Polyurethane |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Red/Black/Silver |

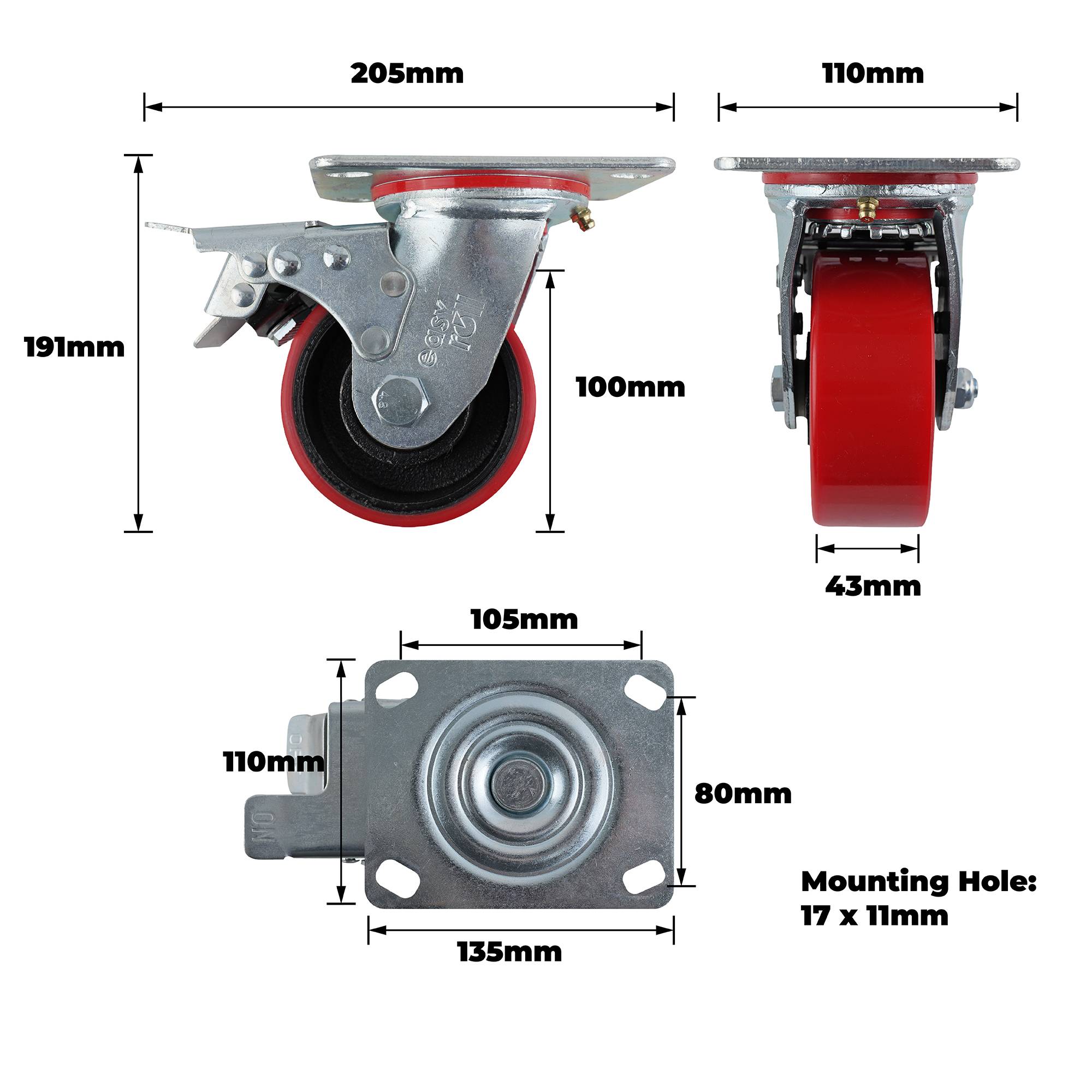

Dimensions
| Product Length (mm) | 205 |
| Product Width (mm) | 110 |
| Product Height (mm) | 191 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 43 |
| Swivel Radius (mm) | 137.5 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105x80 |
| Plate Dimensions (LxW) mm | 135x110 |
Weights
| Product Weight (grams) | 3035 |
| Product Weight (kg) | 3.035 |
| Load Capacity (kg) | 320.0 |
