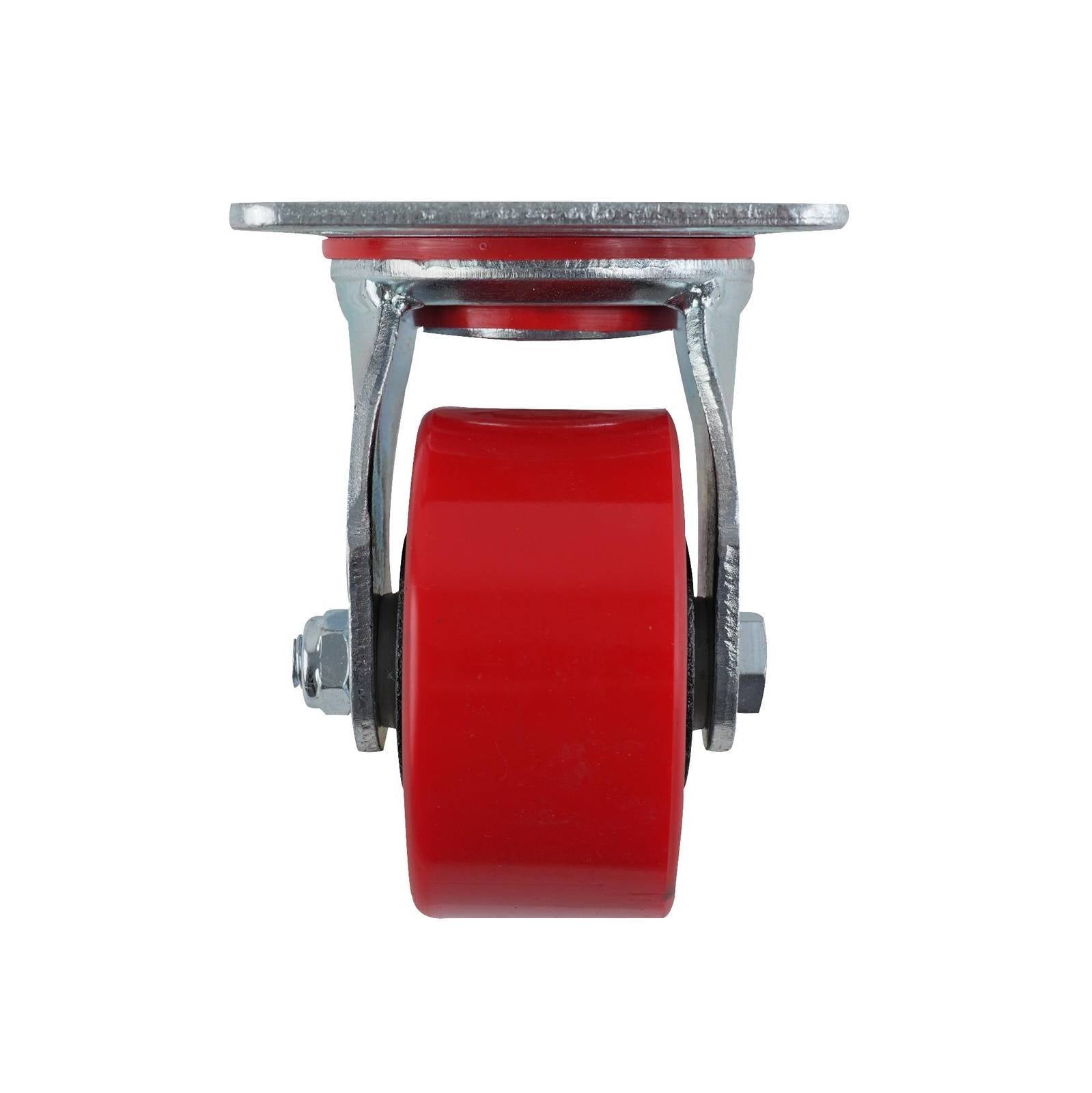

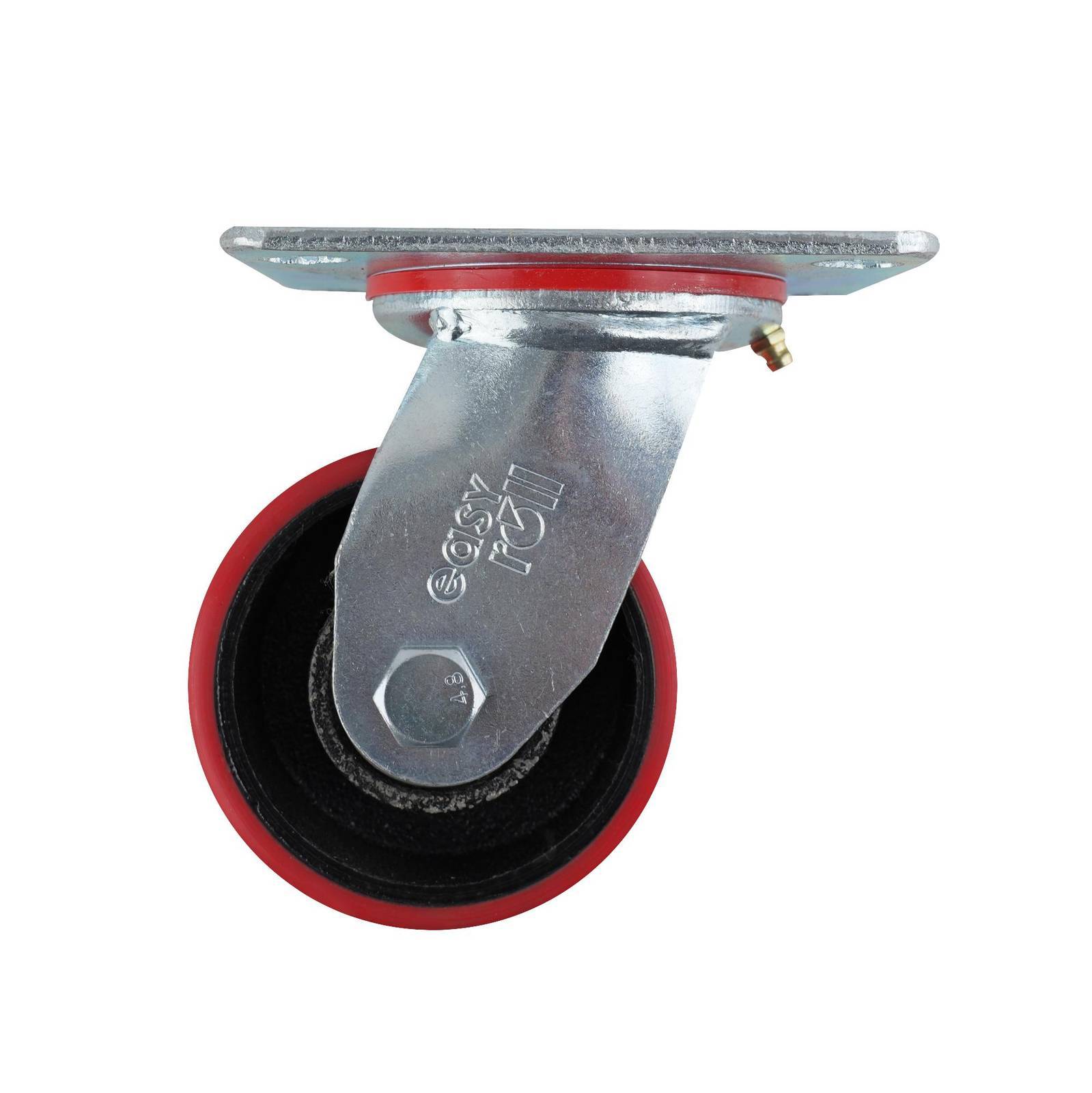

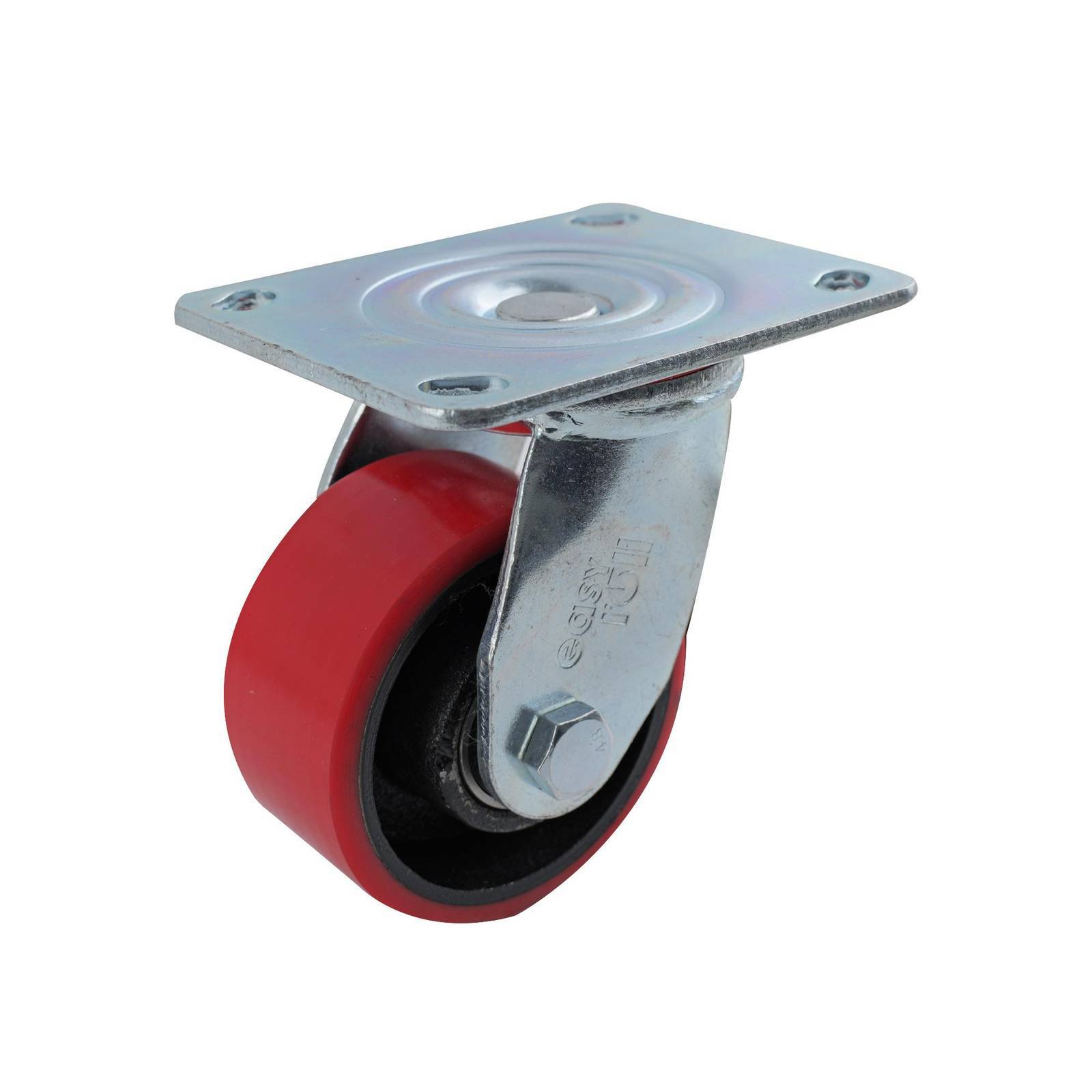

Easyroll 100mm Urethane Cast Iron Swivel Plate J3 Series Castor 310kg
Easyroll 100mm Urethane Cast Iron Swivel Plate J3 Series Castor 310kg is built with a polyurethane wheel, cast iron wheel and steel housing engineered for reliability and consistent performance. With its ball bearing design and robust materials including polypropylene for the wheel core and carbon steel for the bearings, this caster provides smooth manoeuvring and long-lasting durability. It is ideally suited for applications that demand efficient load handling, addressing the technical requirements of trade professionals.
Couldn't load pickup availability
- Red/Black/Silver finish with durable high-strength construction
- Polyurethane wheels on cast iron provide safe load carriage
- Polypropylene wheel cores enhance resilience and slip prevention
- Ball bearing design reduces friction and ensures smooth swivelling
- Steel housing offers robust structural integrity
- Rigid plate attachment yields stable, straightforward mounting
- Suitable for both indoor and outdoor applications
- Engineered for reliable performance under demanding loads
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Attachments | Plate Rigid |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Polyurethane |
| Housing Material | Steel |
| Bearing Material | Carbon Steel |
| Product Colour | Red/Black/Silver |

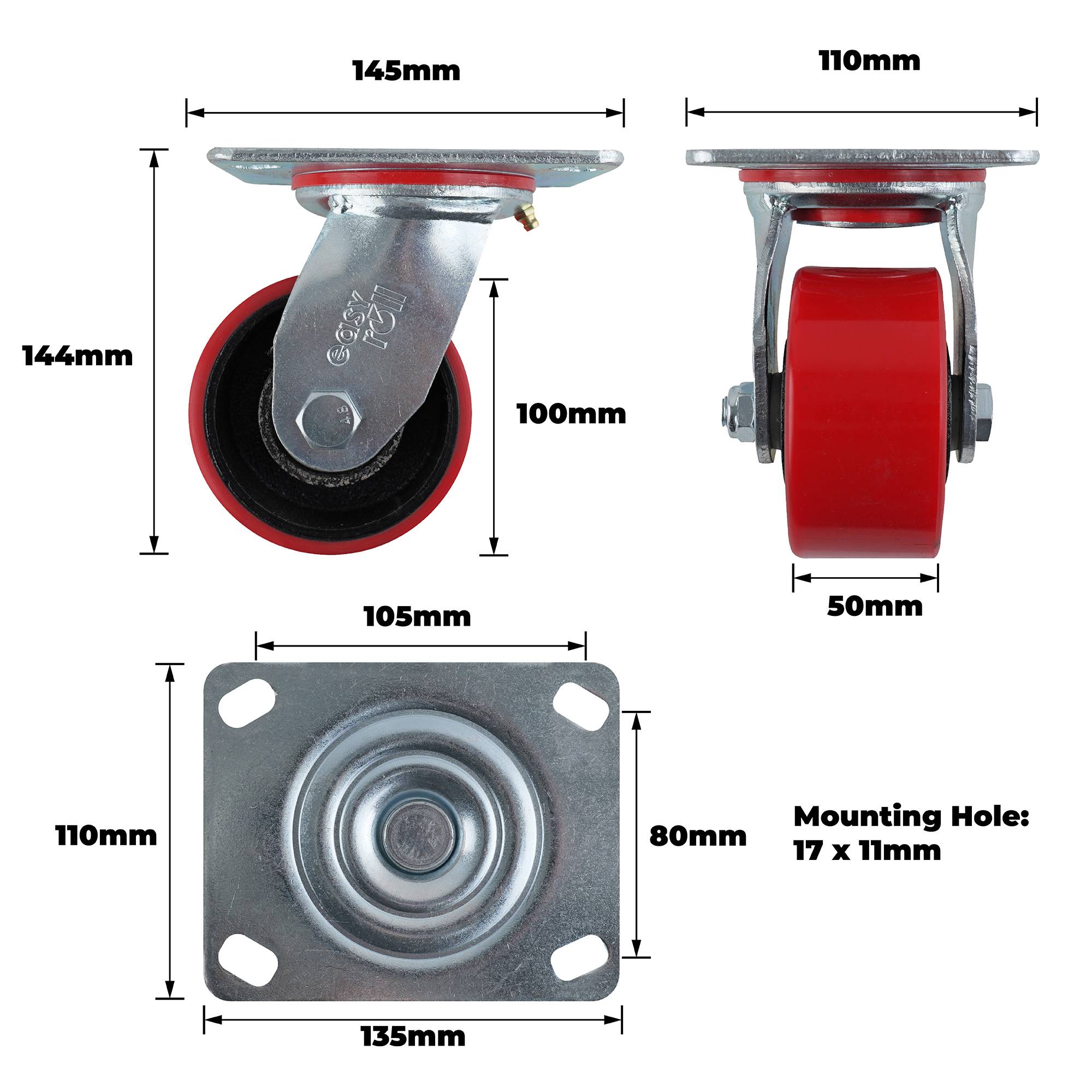

Dimensions
| Product Length (mm) | 145 |
| Product Width (mm) | 110 |
| Product Height (mm) | 144 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 50 |
| Swivel Radius (mm) | 77.5 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105x80 |
| Plate Dimensions (LxW) mm | 135x110 |
Weights
| Product Weight (grams) | 2592 |
| Product Weight (kg) | 2.592 |
| Load Capacity (kg) | 310.0 |
