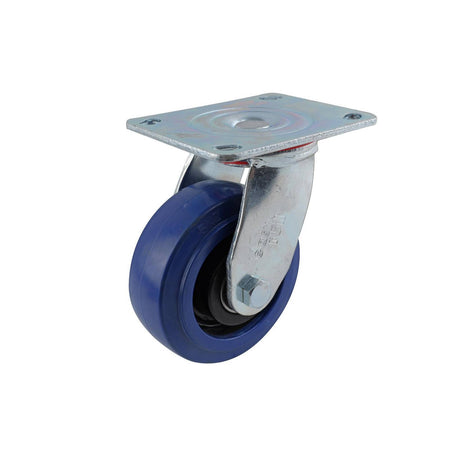

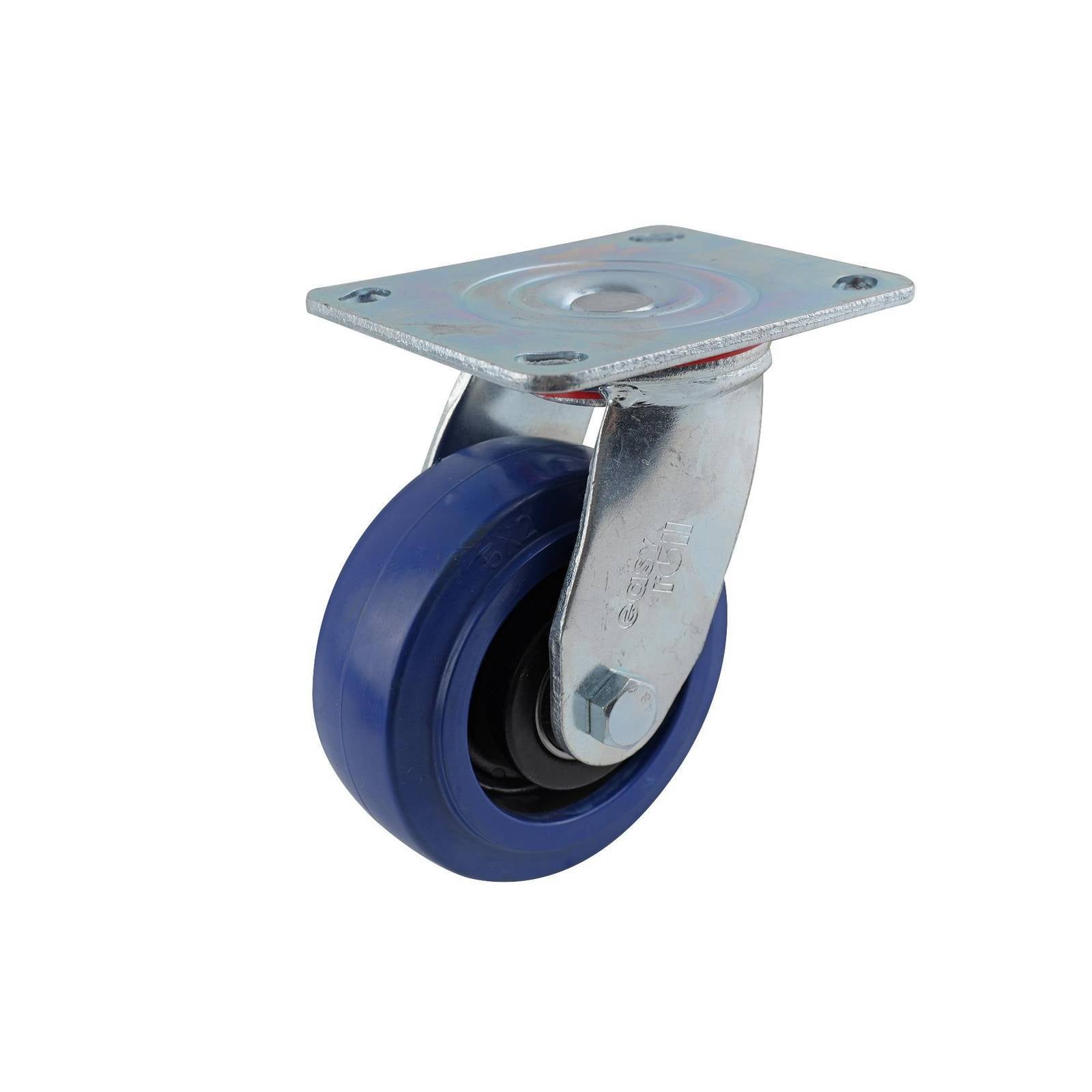

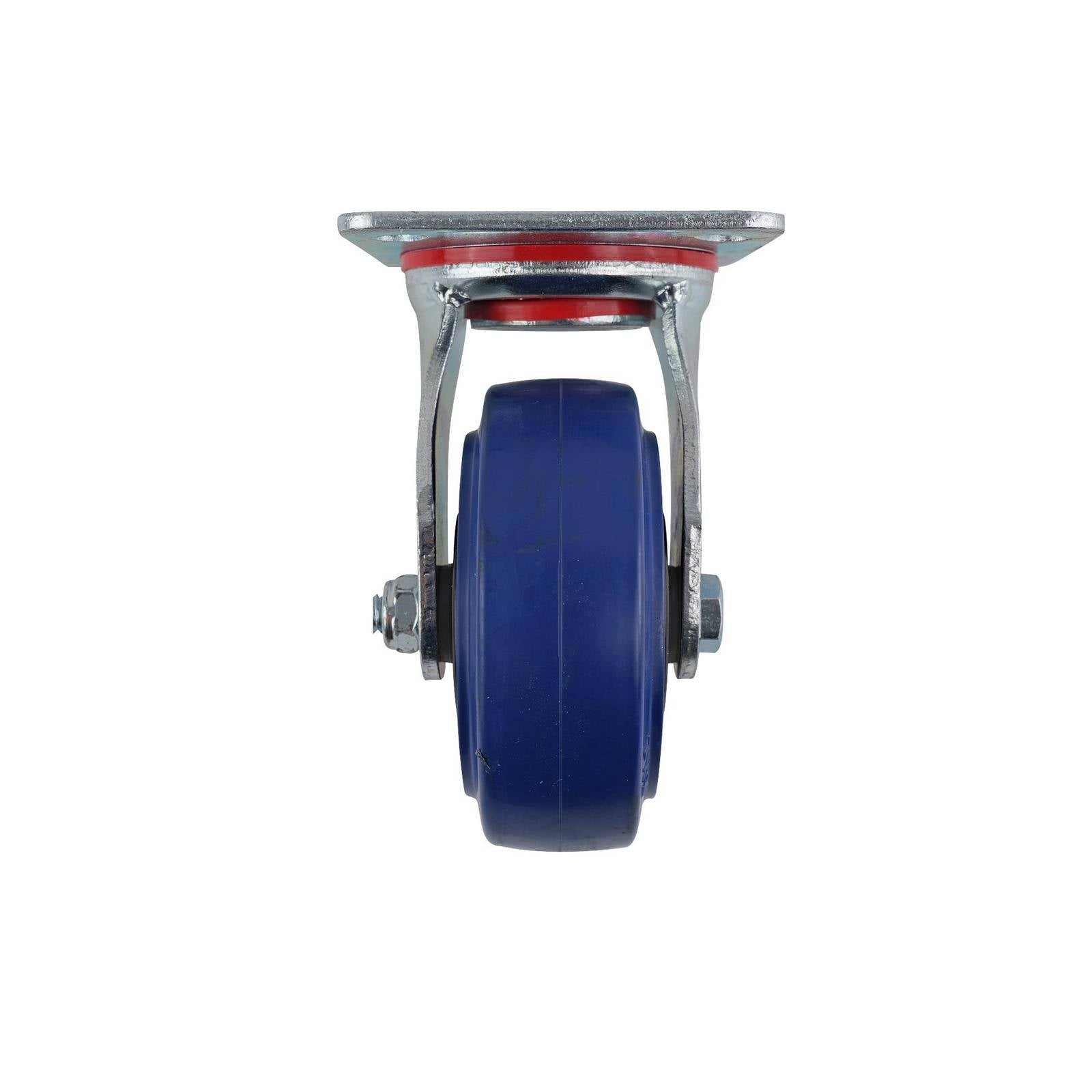

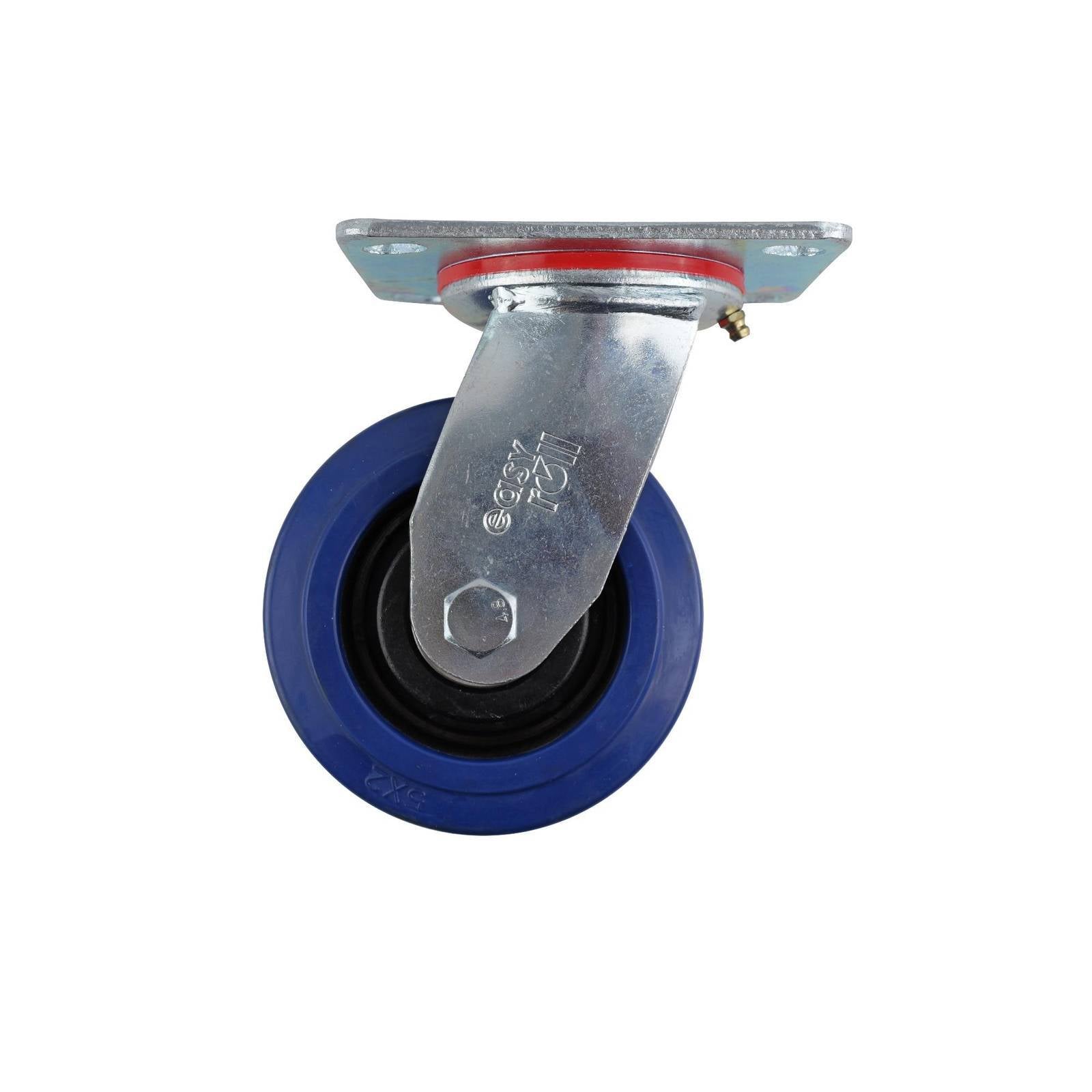

Easyroll 125mm Blue Rubber Swivel Plate J3 Series Castor 240kg
Easyroll 125mm Blue Rubber Swivel Plate J3 Series Castor 240kg is engineered for precise mobility and dependable performance in professional applications. The castor features a robust rubber wheel with a polypropylene core, integrated within a steel housing using ball bearings for smooth operation. The accurate plate mount and total brake system enable controlled movement and stability during use, offering technical advantages that support the operational demands of trade professionals.
Couldn't load pickup availability
- Robust steel housing provides enduring structural strength
- Total brake ensures full stop in movement
- Ball bearing mechanism allows smooth directional changes
- Single raceway design affords consistent wheel rotation
- Polypropylene wheel core resists impact and shock loads
- Rubber wheel provides stable grip on varied terrains
- High-strength steel wheel supports heavy load capacity
- Plate swivel design combines ease of mounting with total brake
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Brake Type | Total |
| Attachments | Plate Swivel Total Brake |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Steel |
| Housing Material | Steel |
| Bearing Material | Carbon Steel |
| Product Colour | Red/Black/Silver |

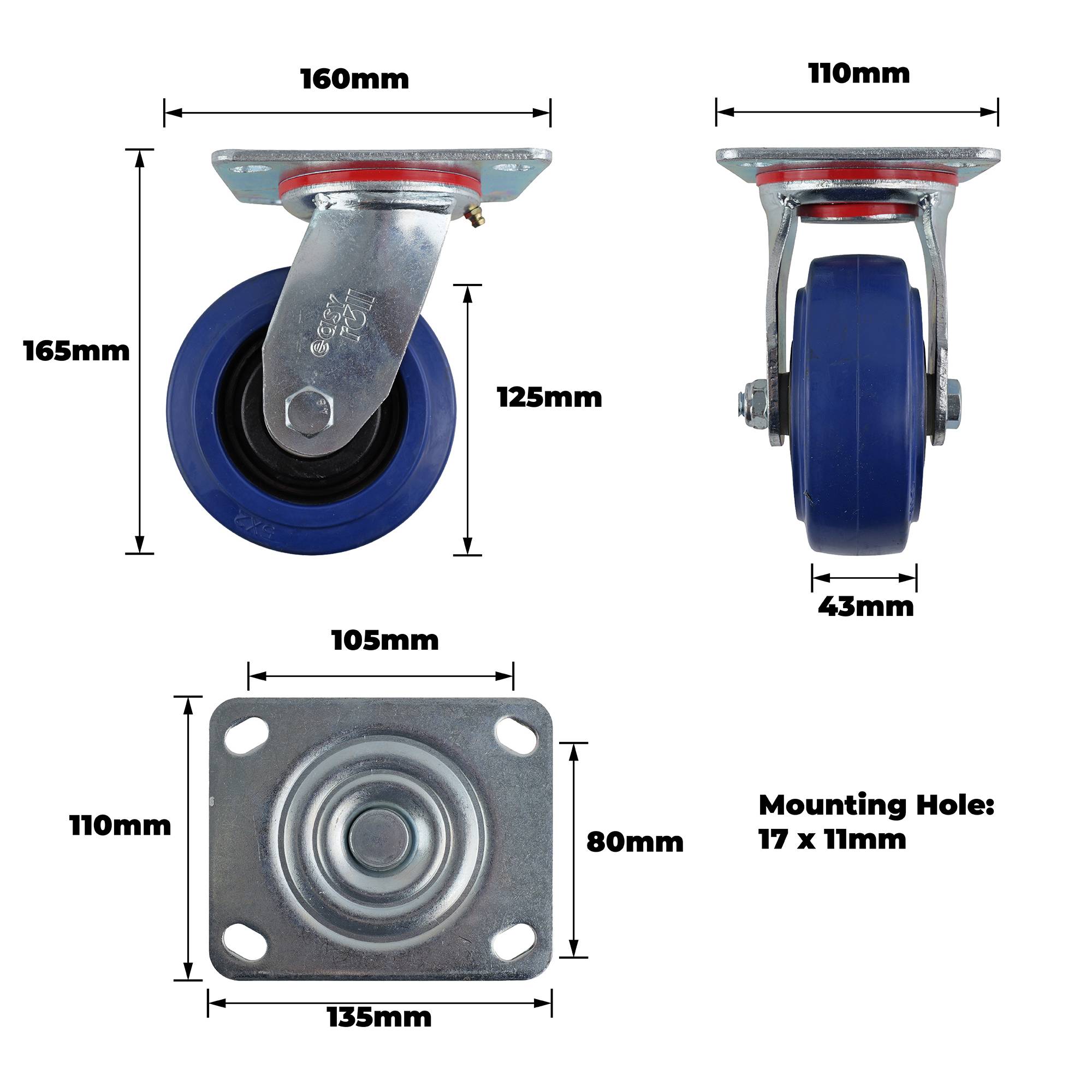

Dimensions
| Product Length (mm) | 160 |
| Product Width (mm) | 110 |
| Product Height (mm) | 165 |
| Wheel Diameter (mm) | 125 |
| Tread Width (mm) | 43 |
| Swivel Radius (mm) | 92.5 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105x80 |
| Plate Dimensions (LxW) mm | 135x110 |
Weights
| Product Weight (grams) | 2228 |
| Product Weight (kg) | 2.228 |
| Load Capacity (kg) | 240.0 |
