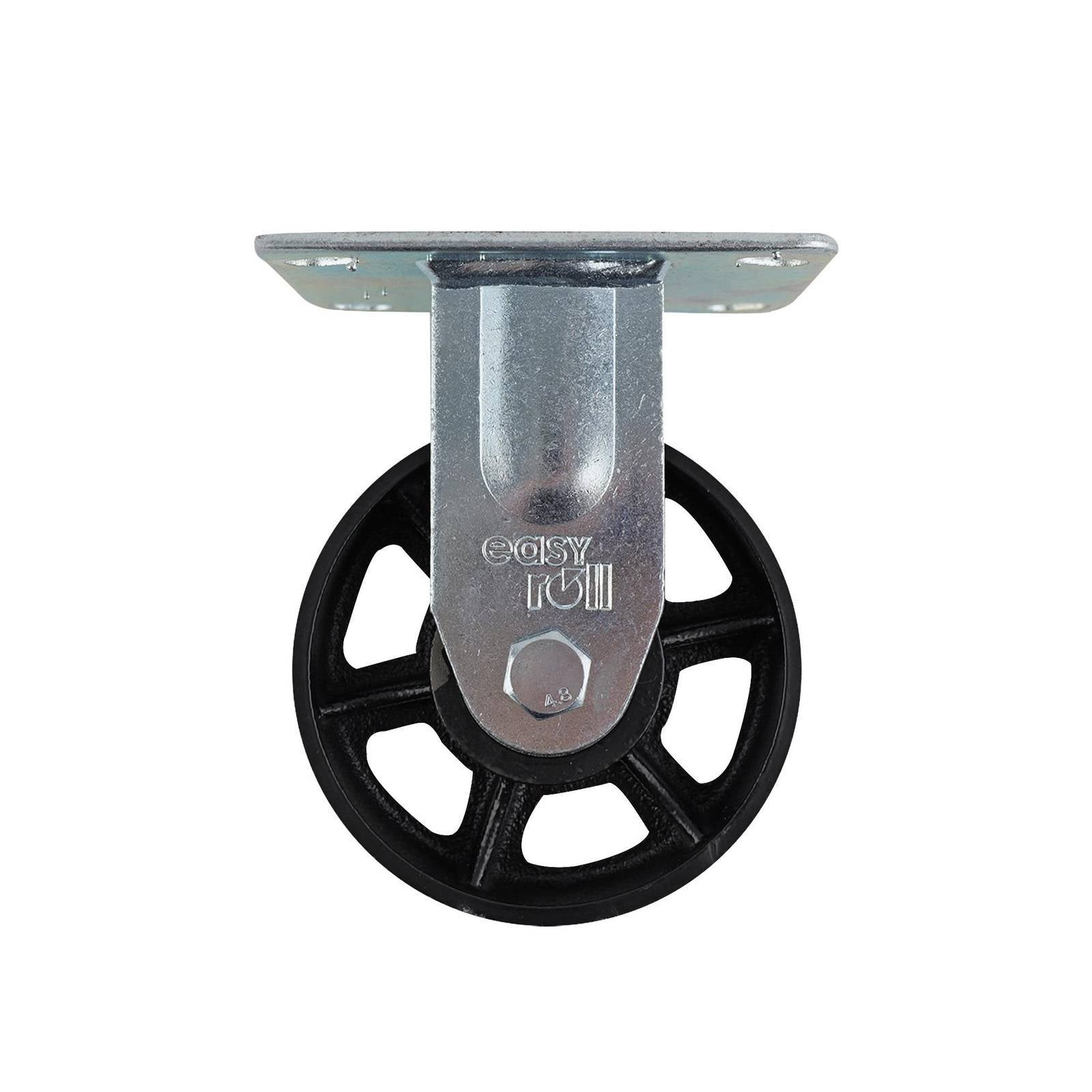

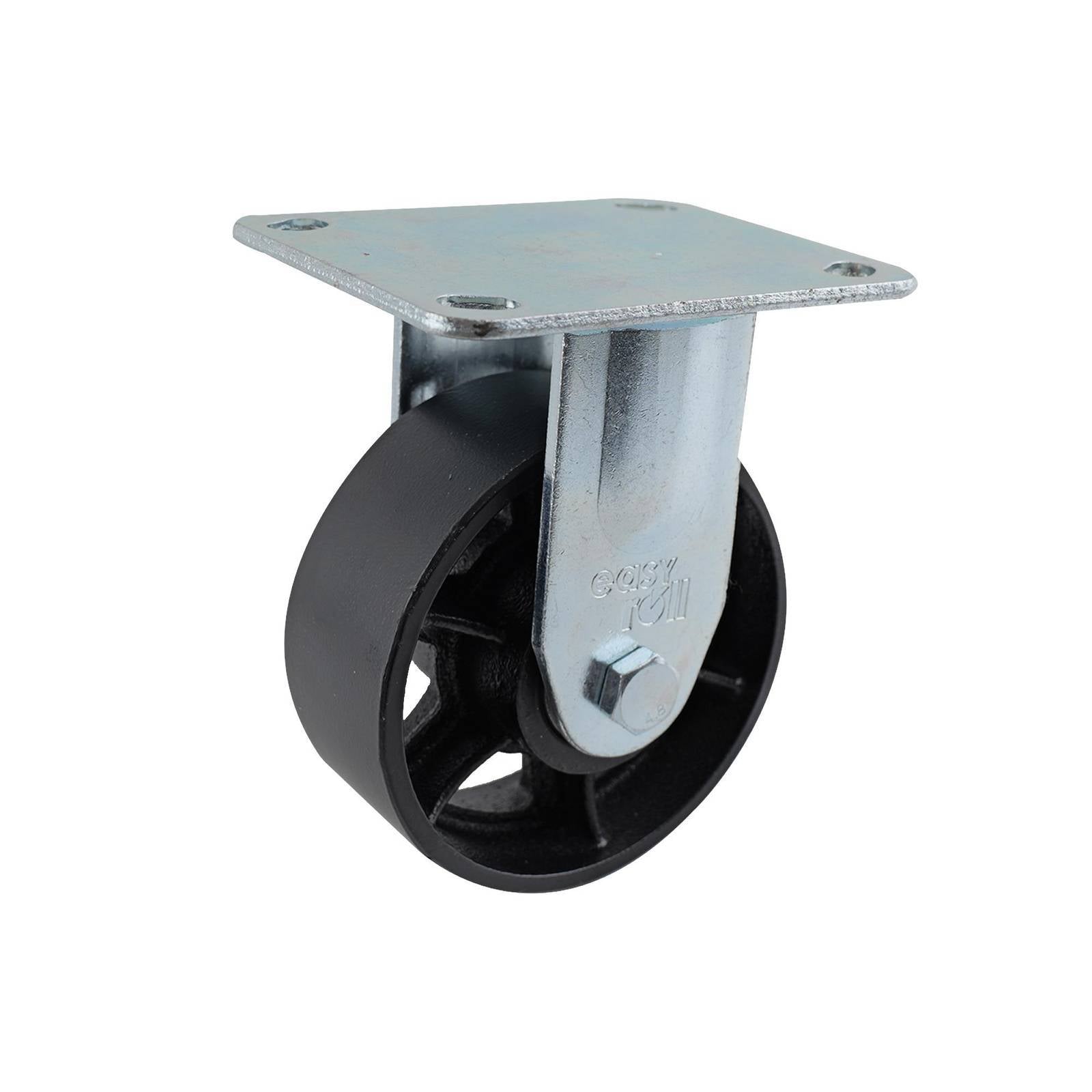

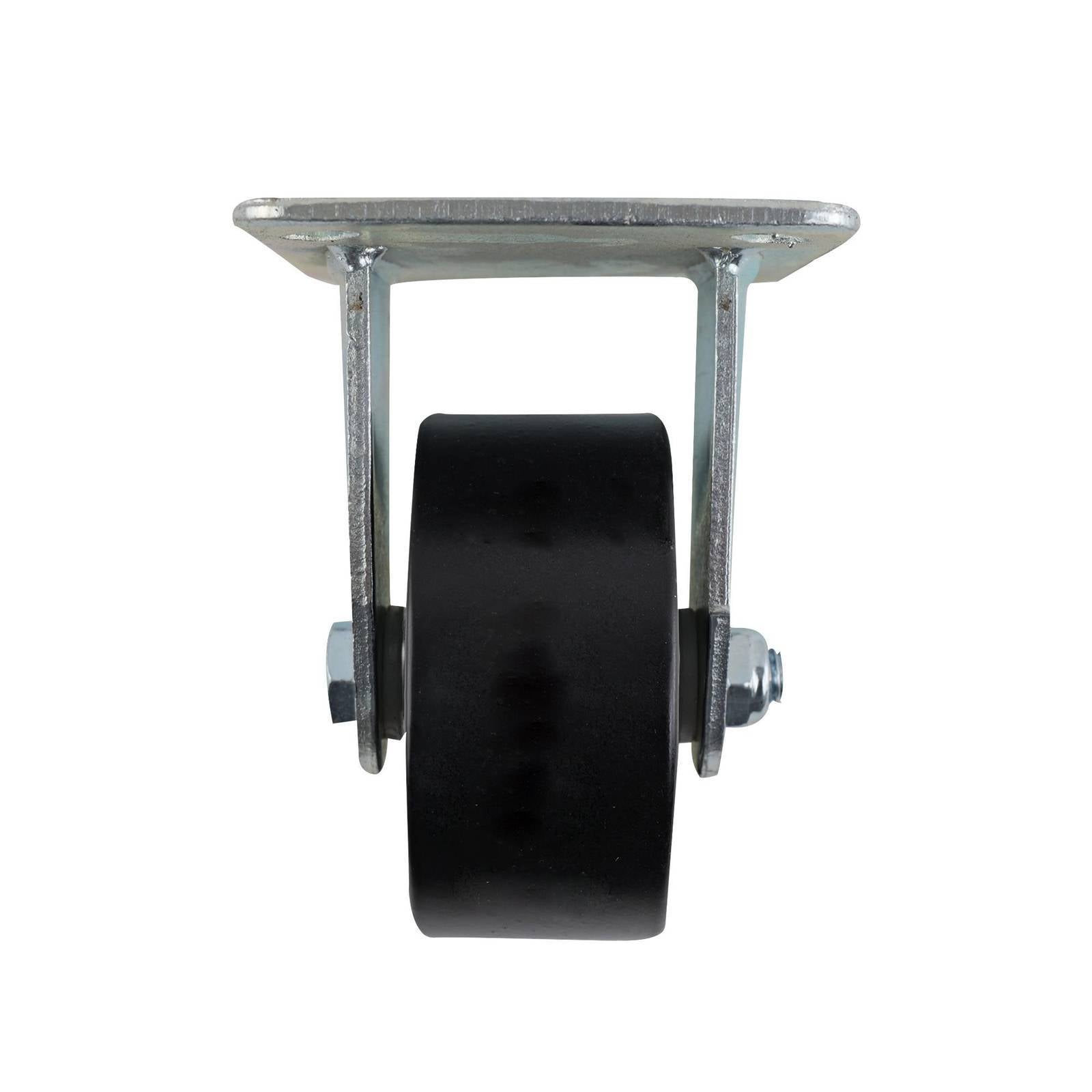

Easyroll 125mm Cast Iron Fixed Plate J3 Series Castor 410kg
Easyroll 125mm Cast Iron Fixed Plate J3 Series Castor 410kg is constructed with cast iron wheels and a steel housing and bearing material. It features a plate mount design with a swivel attachment and ball bearing mechanism that ensures smooth directional control and a reliable total brake system. Trade professionals benefit from its durable build and precise functionality, optimising load distribution and mobility for diverse operational tasks, while it remains suitable for both indoor and outdoor use.
Couldn't load pickup availability
- Cast iron wheel core offers high strength and durability
- Steel housing encloses robust ball bearing mechanism
- Plate mount provides secure fixing for reliable performance
- Swivel total brake offers controlled directional movement
- Steel bearings ensure smooth movement and load handling
- Elegant black silver finish provides a refined appearance
- Operates indoors and outdoors under varied conditions
- Engineered for load capacity up to 410kg
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Brake Type | Total |
| Attachments | Plate Swivel Total Brake |
Construction
| Wheel Core Material | Cast Iron |
| Wheel Material | Cast Iron |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Black/Silver |

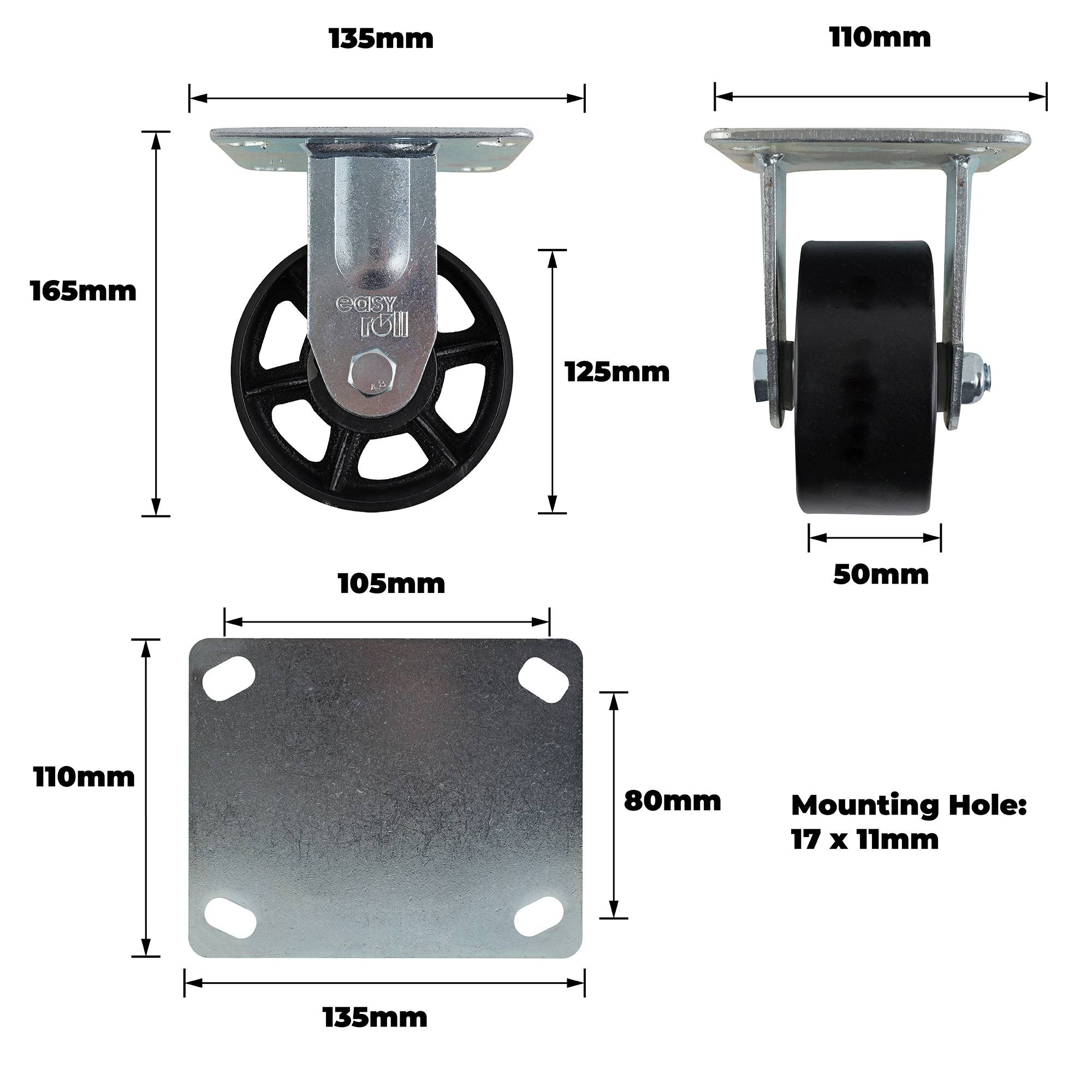

Dimensions
| Product Length (mm) | 135 |
| Product Width (mm) | 110 |
| Product Height (mm) | 165 |
| Wheel Diameter (mm) | 125 |
| Tread Width (mm) | 50 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105x80 |
| Plate Dimensions (LxW) mm | 135x110 |
Weights
| Product Weight (grams) | 2900 |
| Product Weight (kg) | 2.9 |
| Load Capacity (kg) | 410.0 |
