Easyroll 125mm Cast Iron Swivel Plate Brake J3 Series Castor 410kg
Easyroll 125mm Cast Iron Swivel Plate Brake J3 Series Castor 410kg is constructed with a robust cast iron wheel and core for optimal support and steady performance. Its steel housing and ball bearing mechanism provide reliable manoeuvrability, supported by a single raceway system and plate swivel attachment. Designed for efficient fittings, this castor offers dependable movement and precise control, serving the practical needs of trade professionals through secure and effective installations.
Couldn't load pickup availability
- Robust cast iron wheel core ensures reliable performance
- Steel housing enhances structural integrity and longevity
- Ball bearing design offers smooth swivel rotation
- Plate mount enables secure and stable attachment
- Integrated plate swivel provides versatile mobility
- Built with carbon steel bearing for durable performance
- Red, black and silver finish adds visual clarity
- Engineered for outdoor and indoor functionality
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Attachments | Plate Swivel |
Construction
| Wheel Core Material | Cast Iron |
| Wheel Material | Cast Iron |
| Housing Material | Steel |
| Bearing Material | Carbon Steel |
| Product Colour | Red/Black/Silver |

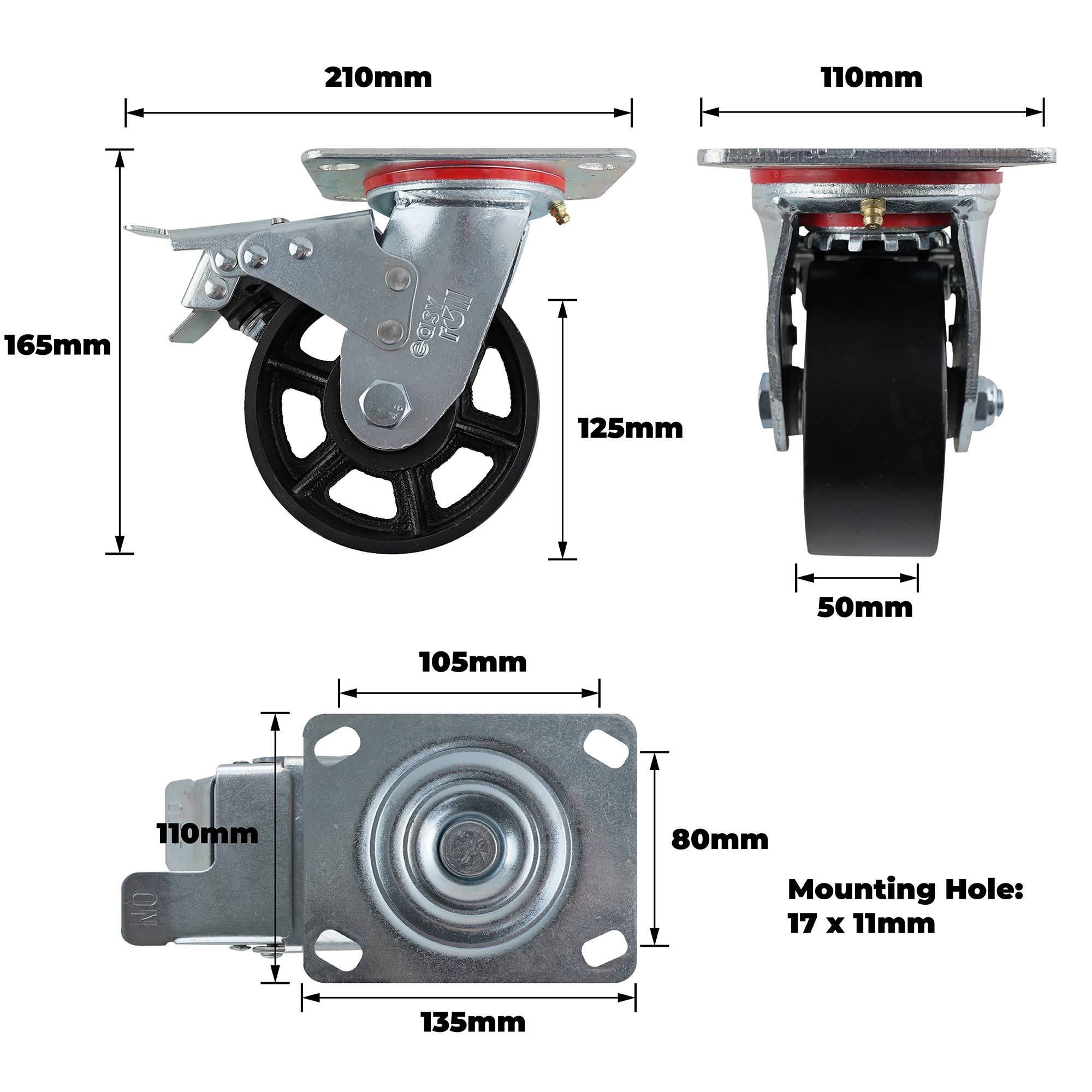

Dimensions
| Product Length (mm) | 210 |
| Product Width (mm) | 110 |
| Product Height (mm) | 165 |
| Wheel Diameter (mm) | 125 |
| Tread Width (mm) | 50 |
| Swivel Radius (mm) | 142.5 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105x80 |
| Plate Dimensions (LxW) mm | 135x110 |
Weights
| Product Weight (grams) | 3782 |
| Product Weight (kg) | 3.782 |
| Load Capacity (kg) | 410.0 |
