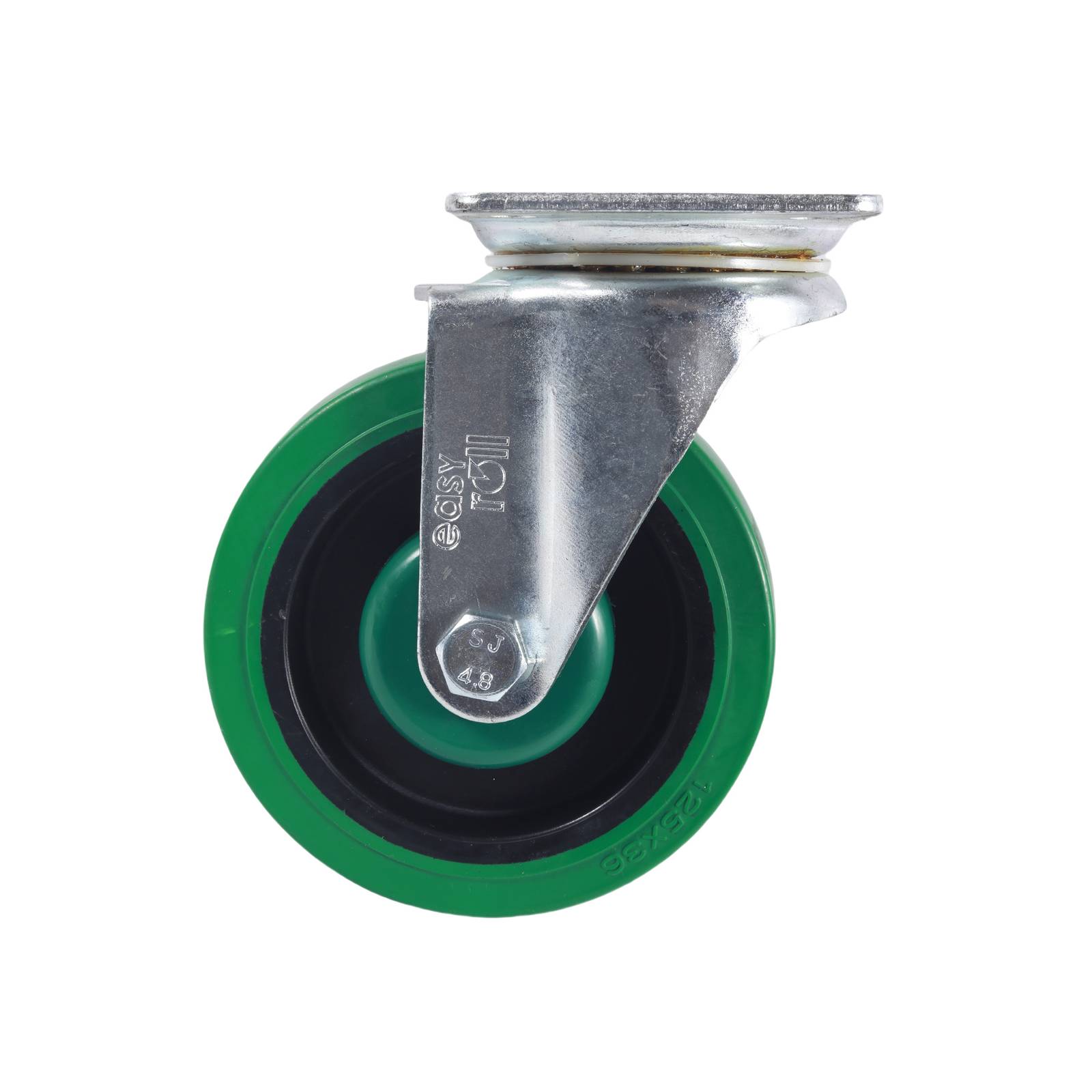

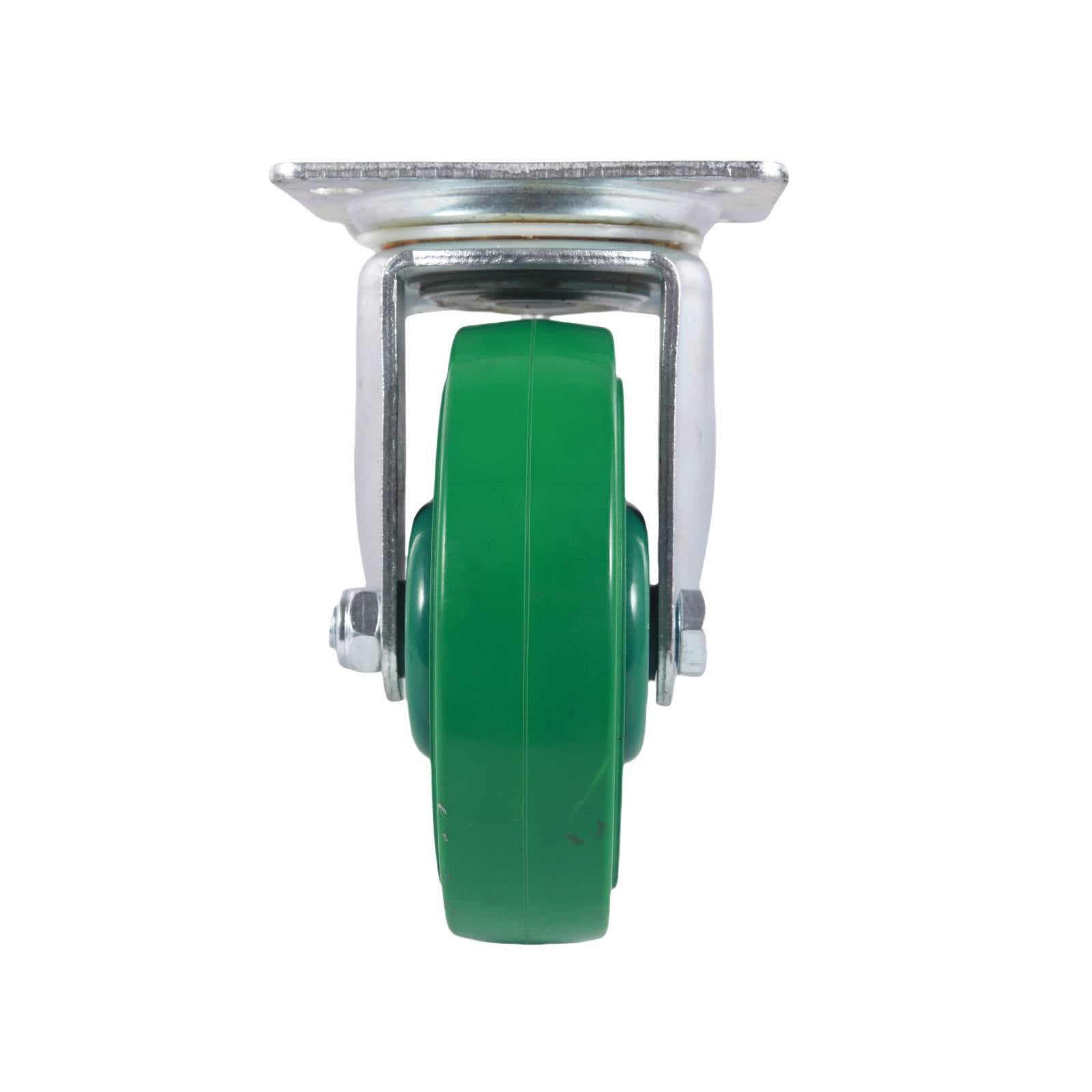

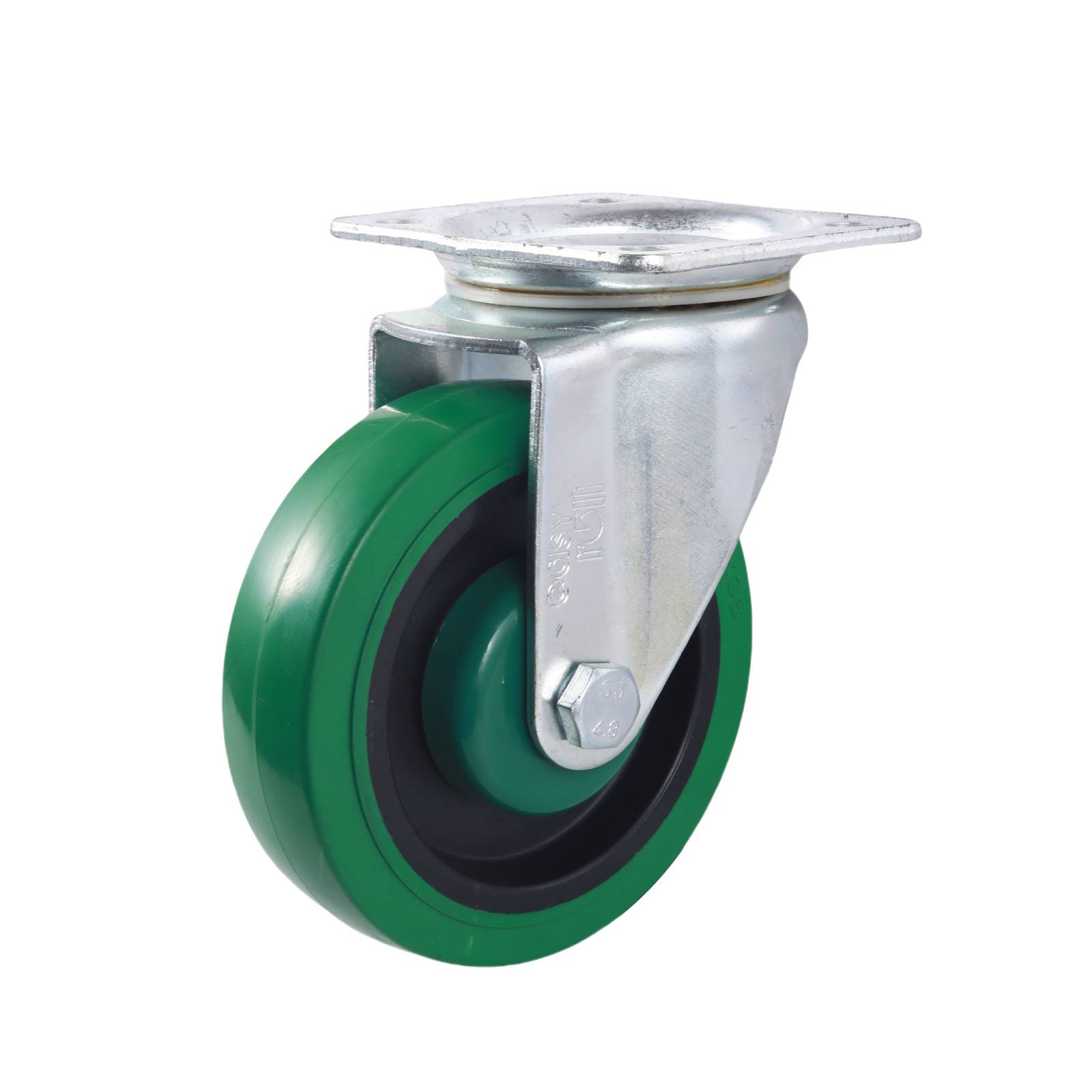

Easyroll 125mm Green Reflex Rubber I3 Series Castors 200kg 1PC
Home use, DIY, Manufacturing, Factory, Work site
High quality medium industrial 125mm Green Reflex Rubber castor with 200Kg capacity. Elastic Rubber is the most resilient rubber available and has been designed to virtually eliminate the flat spots common to rubber castors.
Suitable for use on, sales counters, dollies, trolleys, tool boxes, stillages, engine cranes, workshop equipment, vending machines, arcade games, general materials handling
Couldn't load pickup availability
- Robust & attractive Zinc plated housing is suited to all medium Industrial applications
- Double headset bearing for strength and a smooth swivelling action.
- Reflex rubber is the best quality rubber available for maximum shock absorption for high impact loads & is resistant to forming flat spots when left stationary.
- Double Precision bearings in the wheel for low rolling resistance and minimal push effort
- Headset seals & Thread Guards protect the bearings from dust & grime, lowering the maintenance & increasing the life of the castor
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Attachments | Plate Swivel |
Construction
| Wheel Core Material | Rubber |
| Wheel Material | Rubber |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Green |

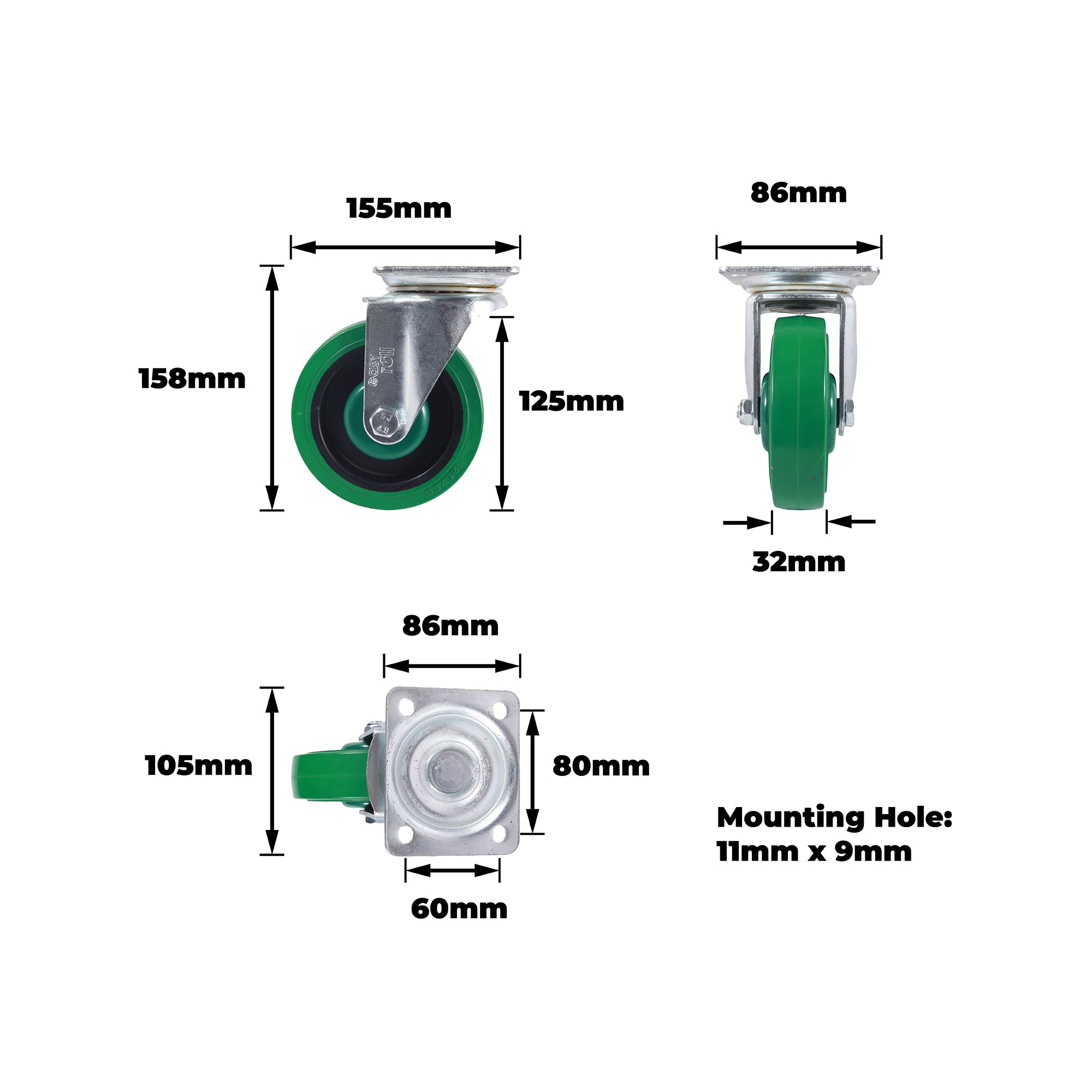

Dimensions
| Product Length (mm) | 155 |
| Product Width (mm) | 86 |
| Product Height (mm) | 158 |
| Wheel Diameter (mm) | 125 |
| Tread Width (mm) | 32 |
| Swivel Radius (mm) | 102.5 |
| Mounting Hole Dimensions (mm) | 11x9 |
| Hole Centre Dimensions (LxW) mm | 80x60 |
| Plate Dimensions (LxW) mm | 105x86 |
Weights
| Product Weight (grams) | 1299 |
| Product Weight (kg) | 1.299 |
| Load Capacity (kg) | 200.0 |
