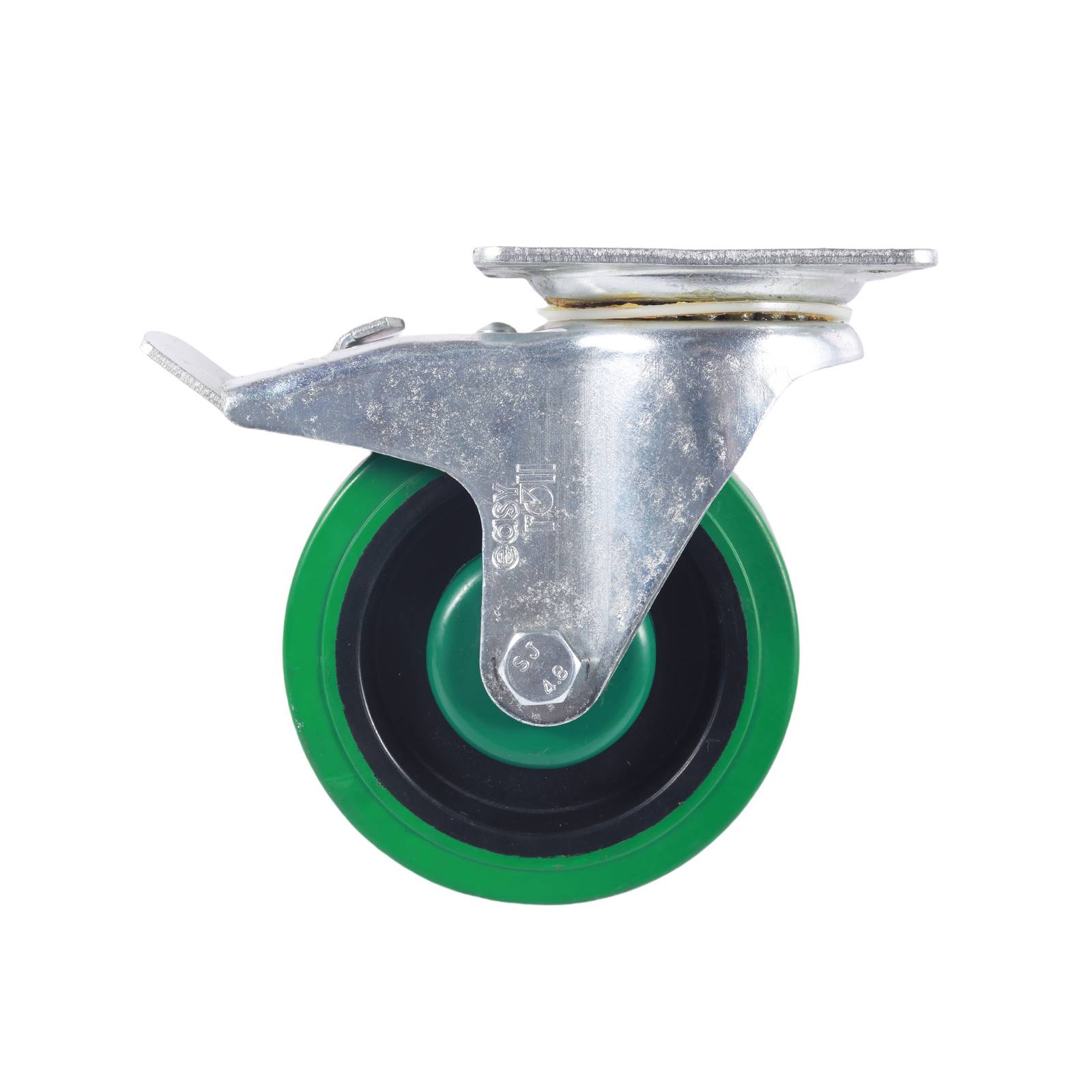

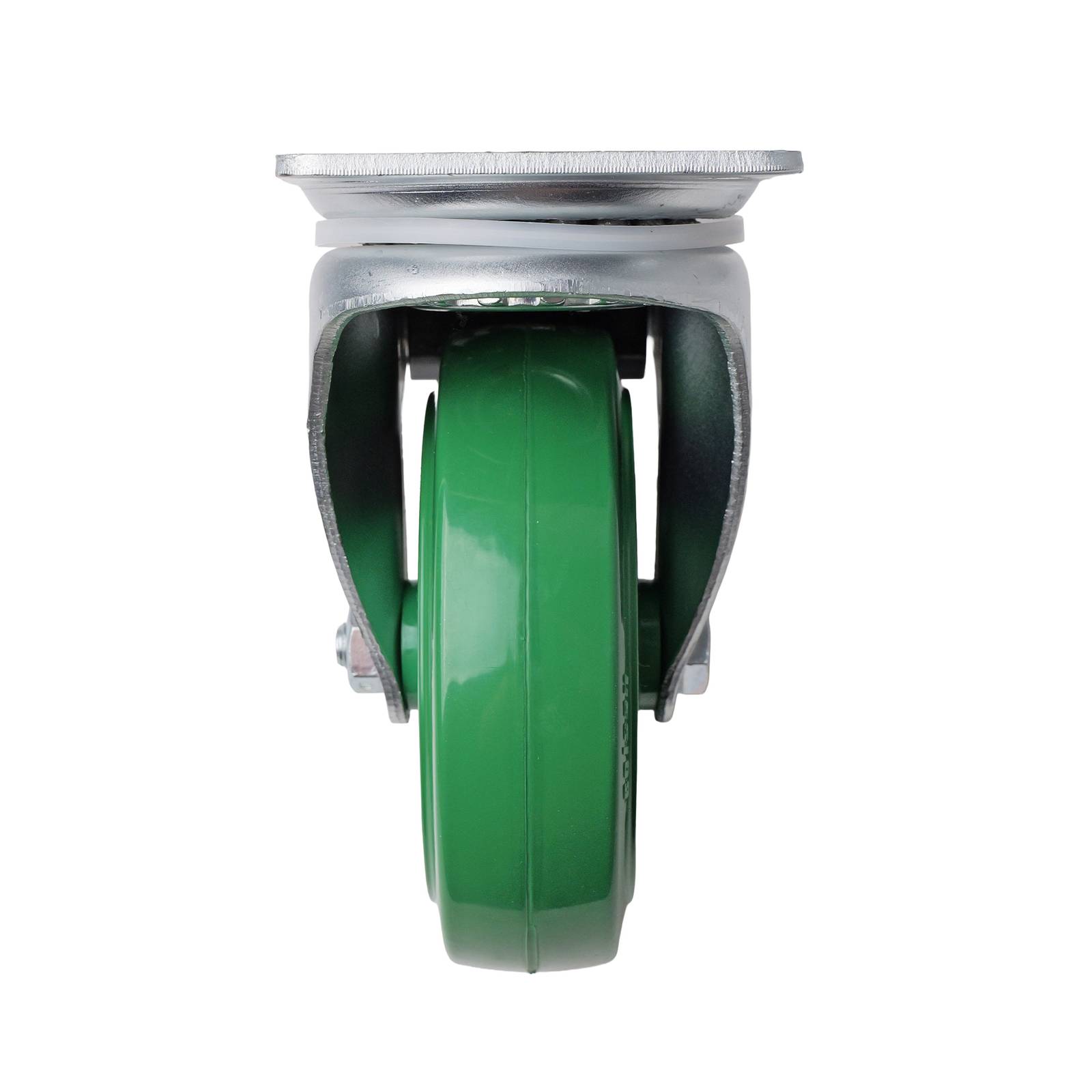

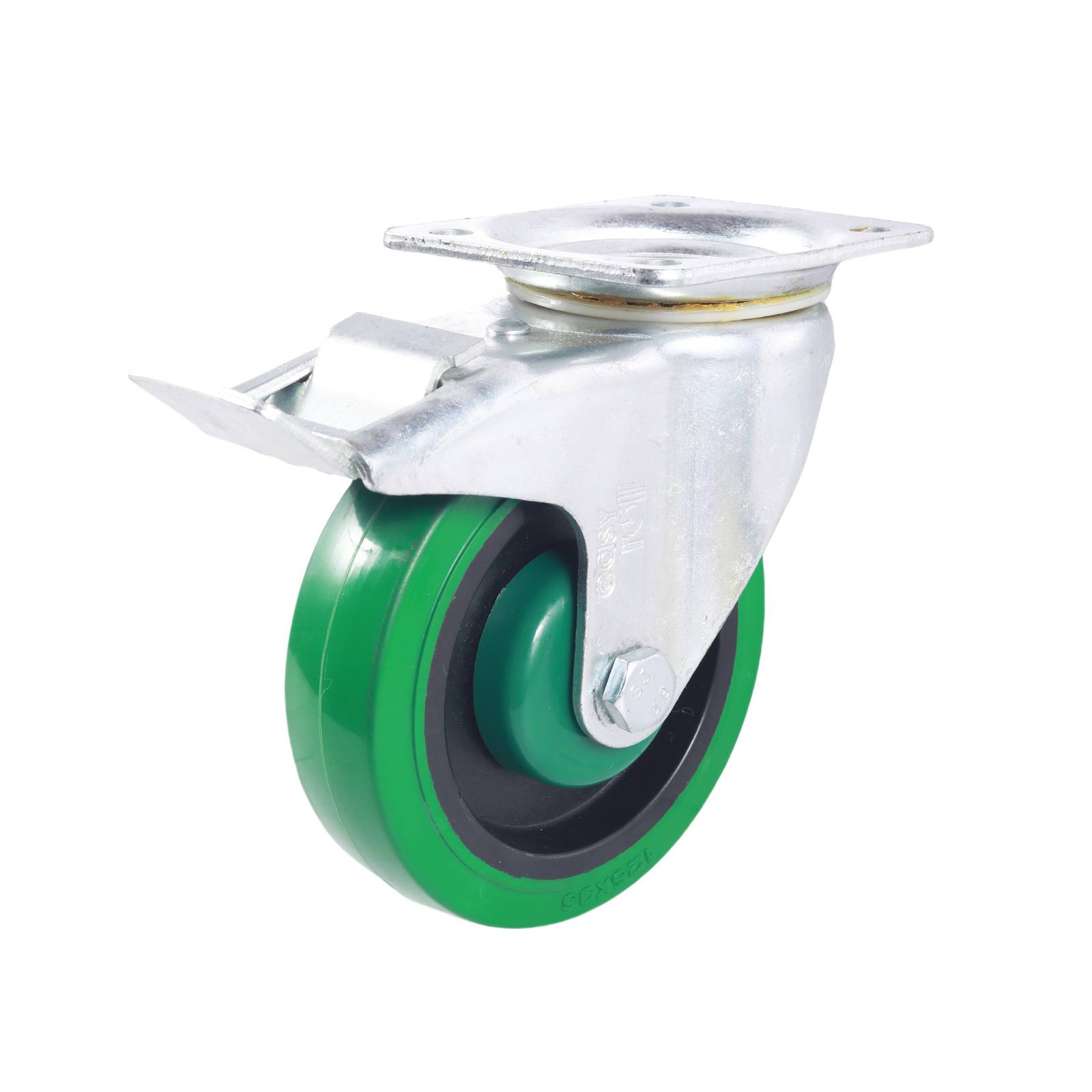

Easyroll 125mm Green Reflex Rubber I3 Series Castors 200kg 1PC
Easyroll 125mm Green Reflex Rubber I3 Series Castors 200kg 1PC. This castor features a green rubber wheel core, steel housing and ball bearing for smooth, reliable roll-over surfaces. The single raceway design and total lock brake offer secure movement control, while the plate swivel brake attachment ensures straightforward installation. It provides practical, efficient manoeuvrability for trade professionals in various applications, supporting both indoor and outdoor operational needs.
Couldn't load pickup availability
- Distinct green finish for straightforward identification
- Load capacity rated up to 200kg
- Robust steel plate construction with simple single raceway design
- Integrated total lock brake for secure mobility control
- 125mm wheel diameter supports manoeuvrability for varied application
- Rubber components enhance traction on different surfaces
- Adaptable performance for varied surface conditions
- Easyroll design simplifies replacement and maintenance procedures
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Brake Type | Total Lock |
| Attachments | Plate Swivel Brake |
Construction
| Wheel Core Material | Rubber |
| Wheel Material | Rubber |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Green |

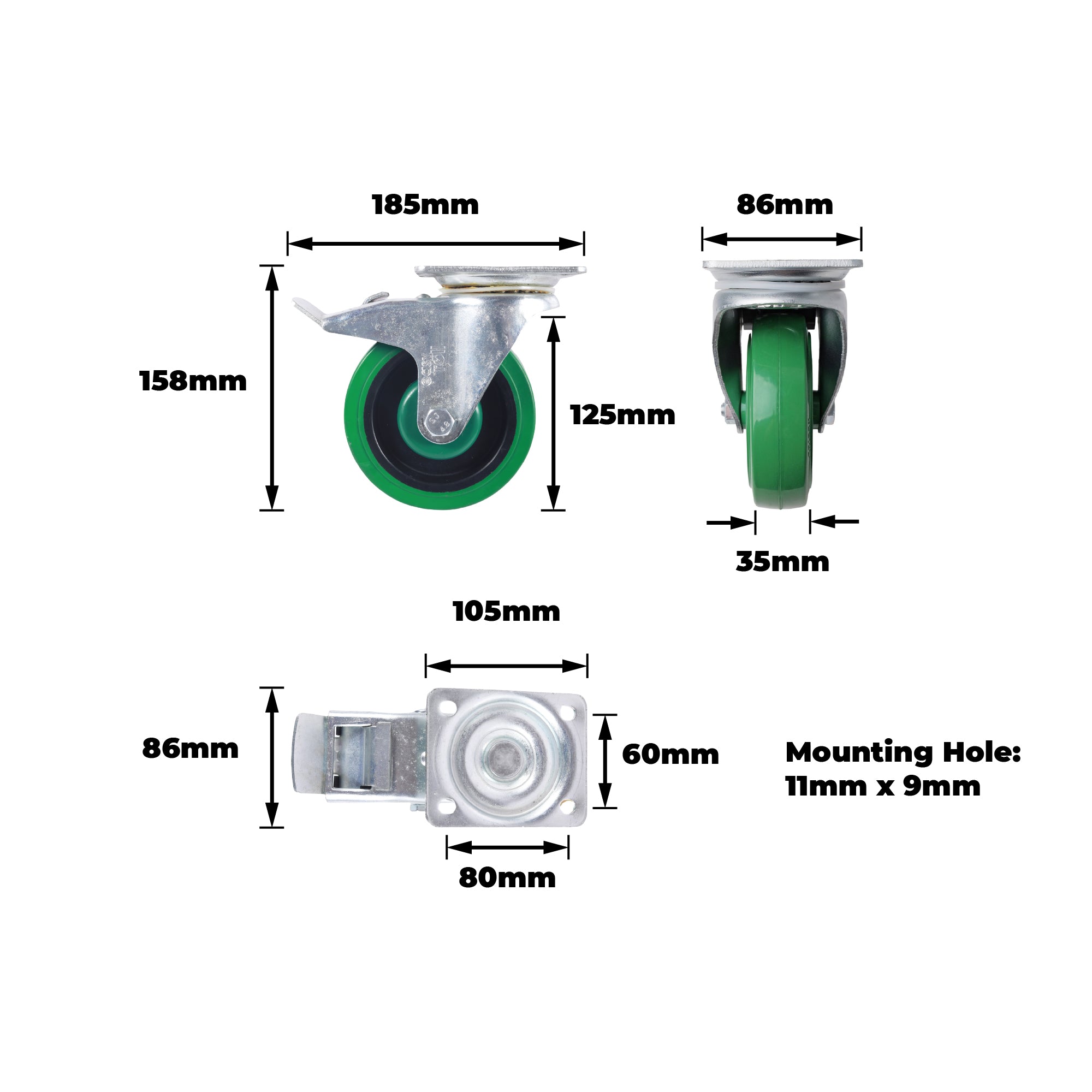

Dimensions
| Product Length (mm) | 185 |
| Product Width (mm) | 86 |
| Product Height (mm) | 158 |
| Wheel Diameter (mm) | 125 |
| Tread Width (mm) | 35 |
| Swivel Radius (mm) | 132.5 |
| Mounting Hole Dimensions (mm) | 11x9 |
| Hole Centre Dimensions (LxW) mm | 80x60 |
| Plate Dimensions (LxW) mm | 105x86 |
Weights
| Product Weight (grams) | 1571 |
| Product Weight (kg) | 1.571 |
| Load Capacity (kg) | 200.0 |
