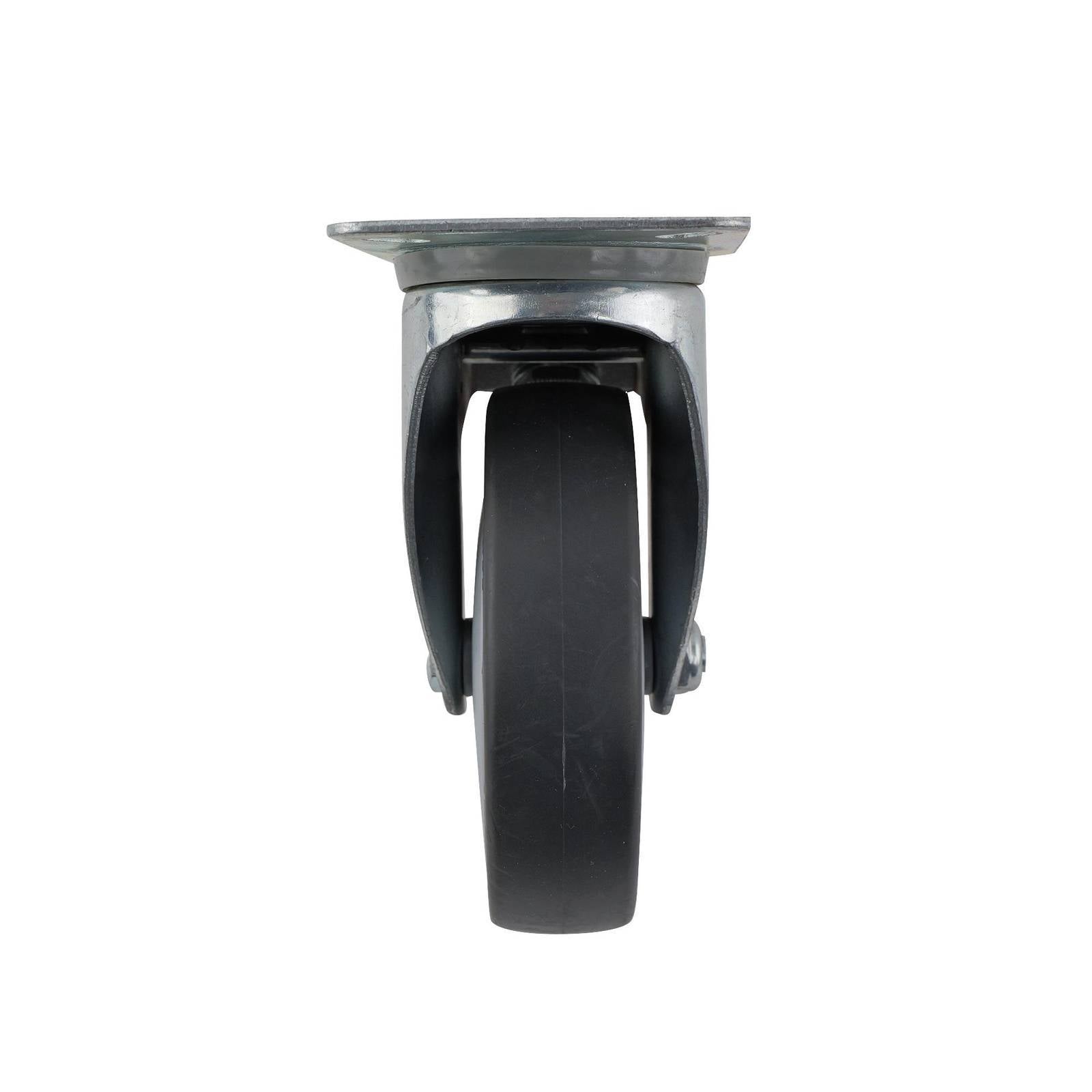

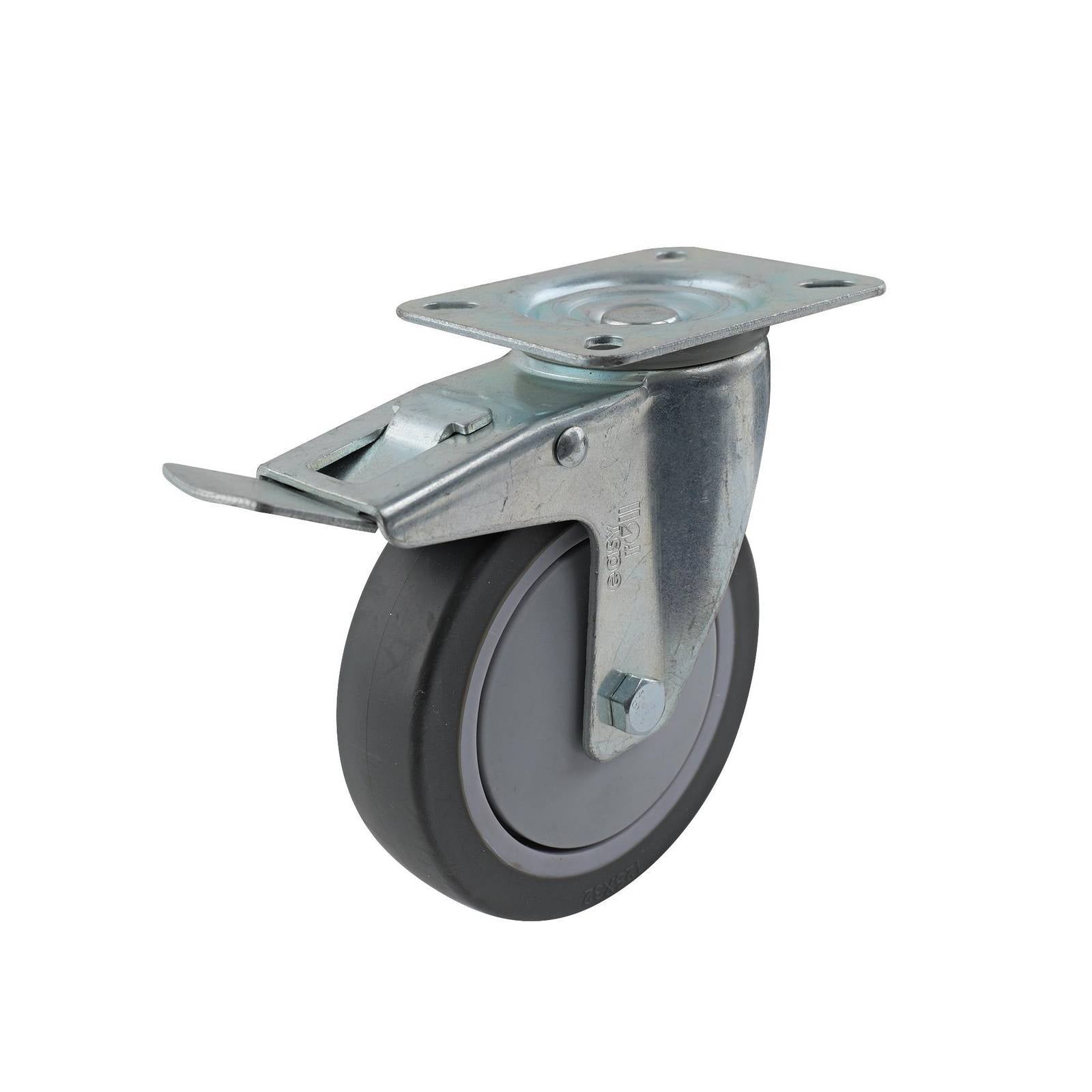

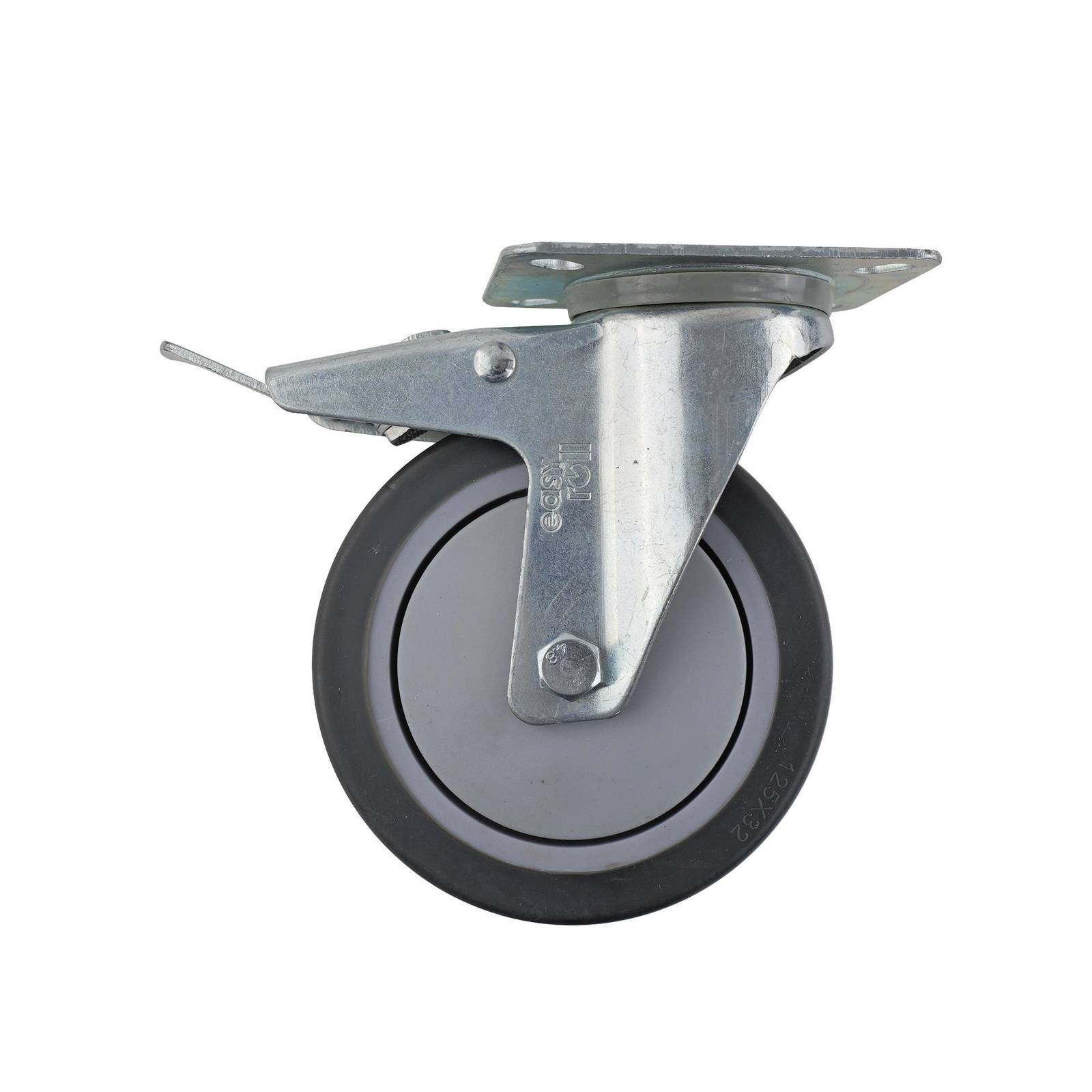

Easyroll 125mm Grey Rubber Swivel Plate Brake I4 Series Castor 100kg
Easyroll 125mm Grey Rubber Swivel Plate Brake I4 Series Castor 100kg is a robust castor system designed to deliver controlled manoeuvrability with its bolt hole swivel and plate mount fitting. Built with a polypropylene wheel core, thermoplastic rubber wheels and carbon steel ball bearings housed in steel, it provides controlled movement and steady performance for trade professionals, ensuring precise handling in various operational settings.
Couldn't load pickup availability
- Sturdy steel housing supports extended service life
- Carbon steel ball bearings ensure smooth swivel operation
- Thermoplastic rubber wheel grants reliable traction and shock absorption
- Polypropylene wheel core provides structural integrity and durability
- Plate mount design offers secure installation and balanced movement
- Bolt hole swivel attachment allows easy directional changes
- Single raceway system delivers controlled movement and reduced friction
- Tri-colour design increases aesthetics without compromising functionality
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Attachments | Bolt Hole Swivel |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Thermoplastic Rubber |
| Housing Material | Steel |
| Bearing Material | Carbon Steel |
| Product Colour | Grey/Silver/White |

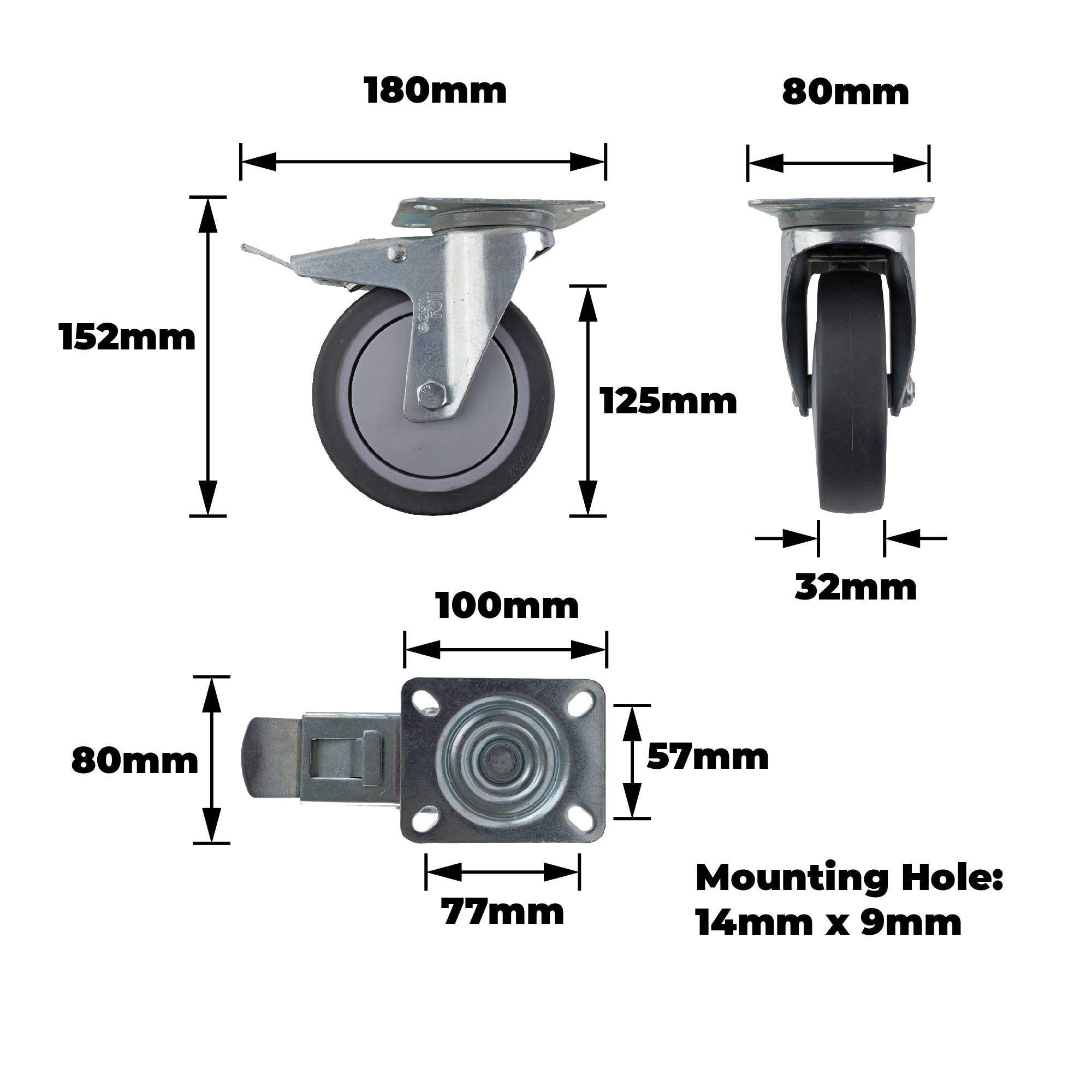

Dimensions
| Product Length (mm) | 180 |
| Product Width (mm) | 80 |
| Product Height (mm) | 152 |
| Wheel Diameter (mm) | 125 |
| Tread Width (mm) | 32 |
| Swivel Radius (mm) | 130 |
| Mounting Hole Dimensions (mm) | 14x9 |
| Hole Centre Dimensions (LxW) mm | 77x57 |
| Plate Dimensions (LxW) mm | 100x80 |
Weights
| Product Weight (grams) | 980 |
| Product Weight (kg) | 0.98 |
| Load Capacity (kg) | 100.0 |
