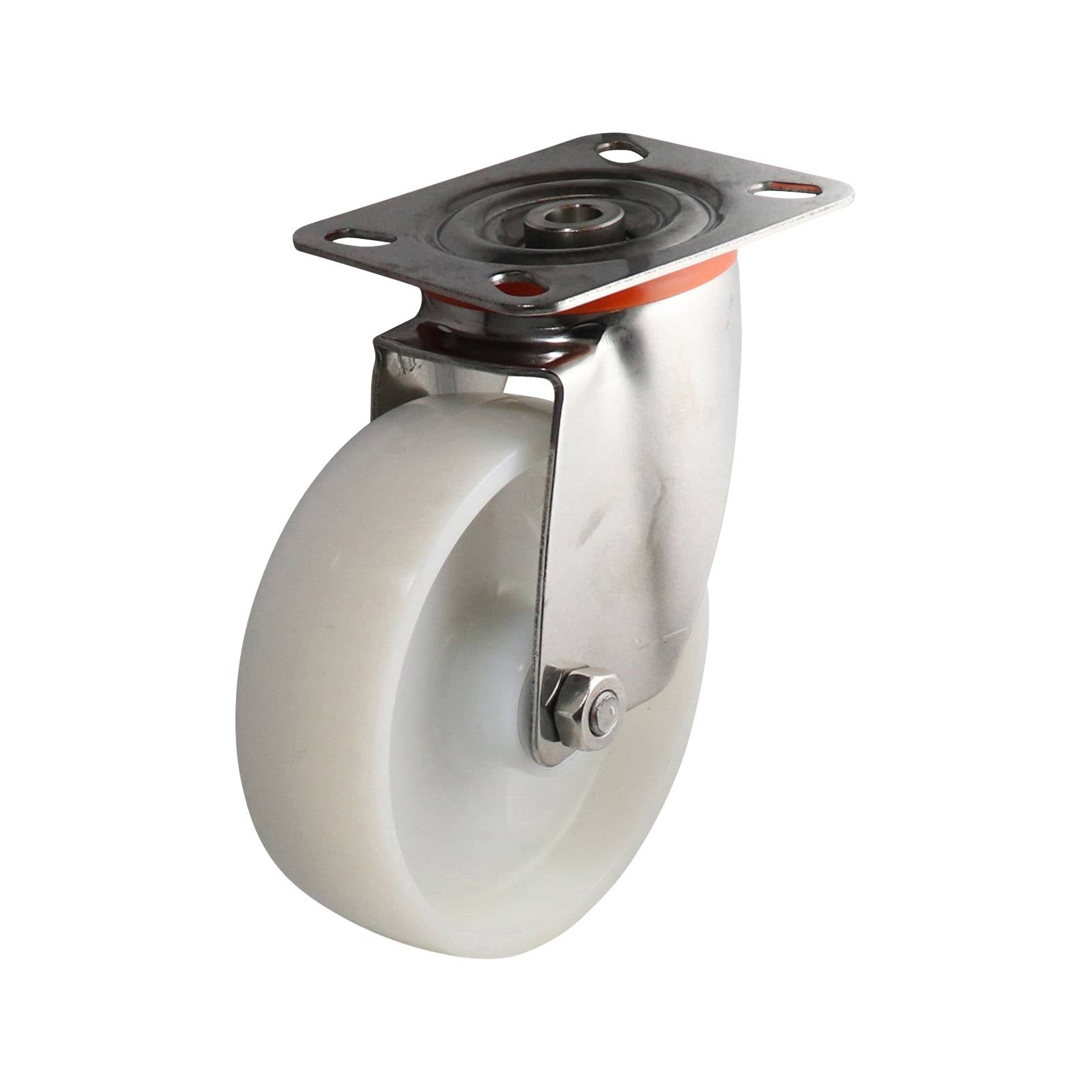

Easyroll 125mm White Nylon Swivel Plate S5 Series Castor 230kg
Easyroll 125mm White Nylon Swivel Plate S5 Series Castor 230kg is a plate mount castor designed for precise manoeuvring and controlled movement. It features a steel housing with precision steel bearings, a dual raceway design and polypropylene wheels and core. The red, white and silver finish is complemented by a total brake system and bolt hole swivel attachment, providing a robust and technically sound solution for trade professionals.
Couldn't load pickup availability
- Steel housing ensures robust structural integrity
- Polypropylene wheel core and outer wheel for durability
- Precision bearing enables smooth and responsive rotation
- Total brake delivers secure stopping with each castor
- Bolt hole swivel fitting permits versatile and easy installation
- Dual raceway design supports balanced load distribution
- Red white silver finish allows easy visual identification
- 125mm white nylon wheel optimises manoeuvrability and steering
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | No |
| Indoor Use | No |
| Bearing Type | Precision Bearing |
| Raceway Type | Dual |
| Brake Type | Total |
| Attachments | Bolt Hole Swivel Total Brake |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Polypropylene |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Red/White/Silver |
Dimensions
| Product Length (mm) | 160 |
| Product Width (mm) | 59 |
| Product Height (mm) | 155 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 35 |
| Swivel Radius (mm) | 107 |
| Mounting Hole Dimensions (mm) | 18x9 |
| Plate Dimensions (LxW) mm | 100x85 |
Weights
| Product Weight (grams) | 1040 |
| Product Weight (kg) | 1.04 |
| Load Capacity (kg) | 230.0 |
