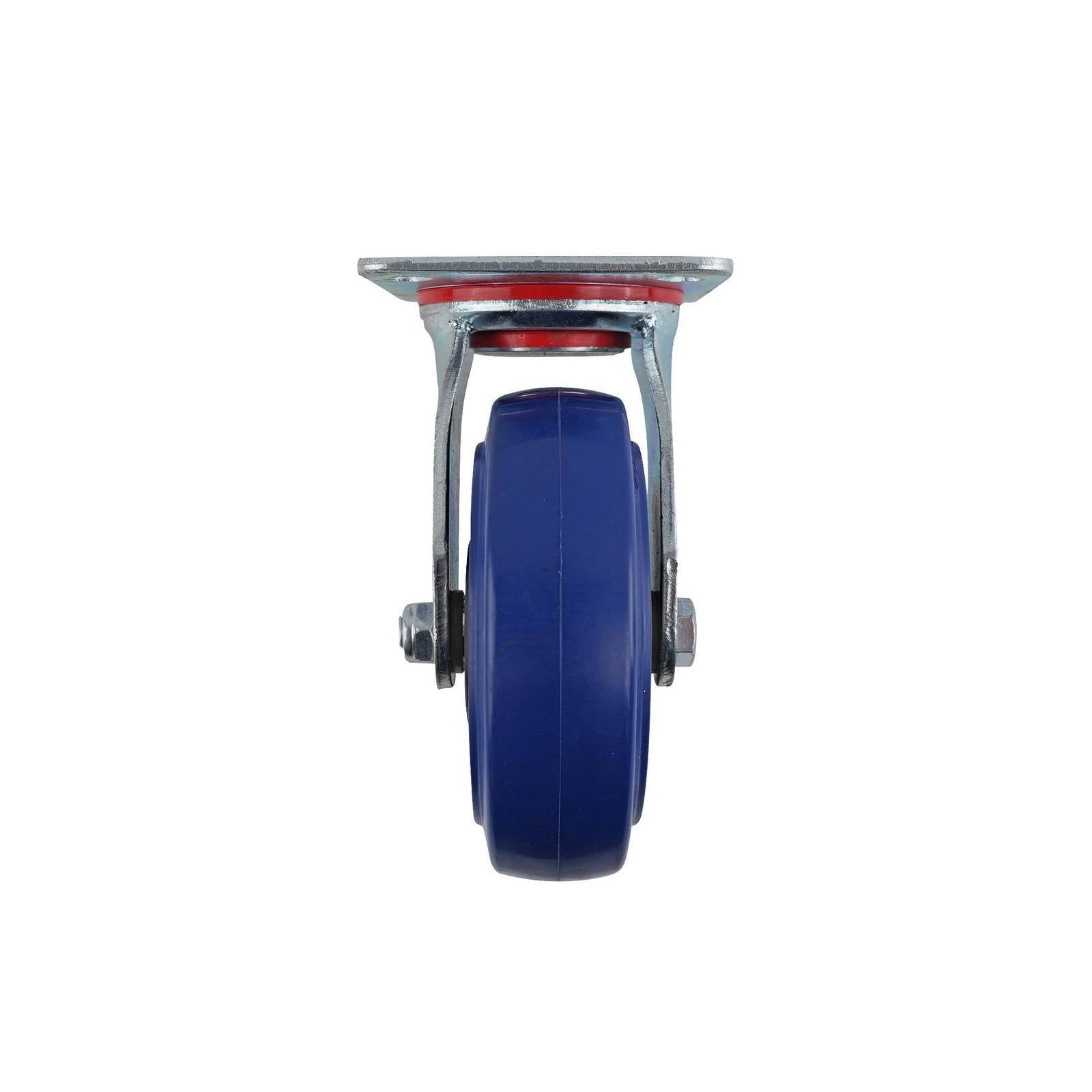

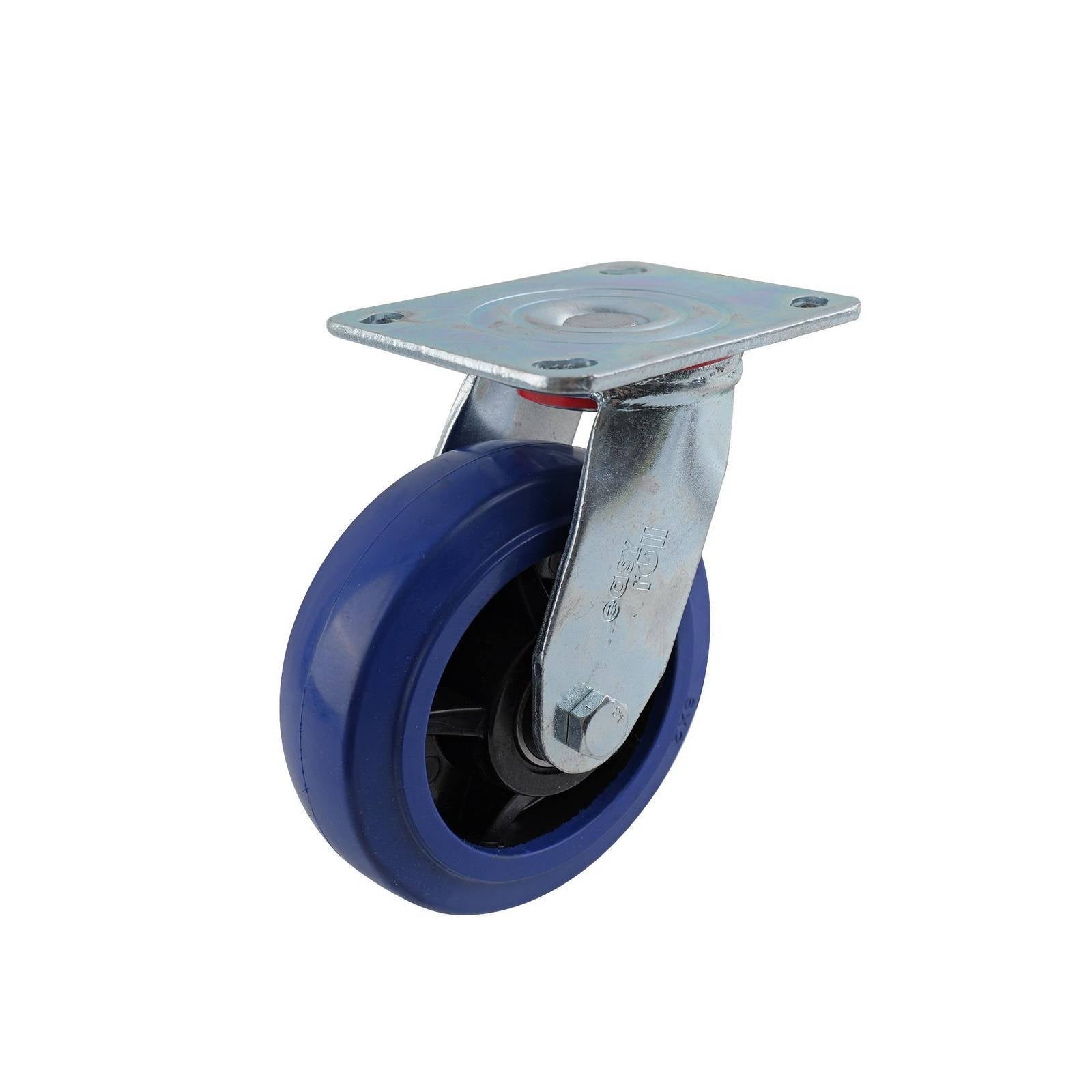

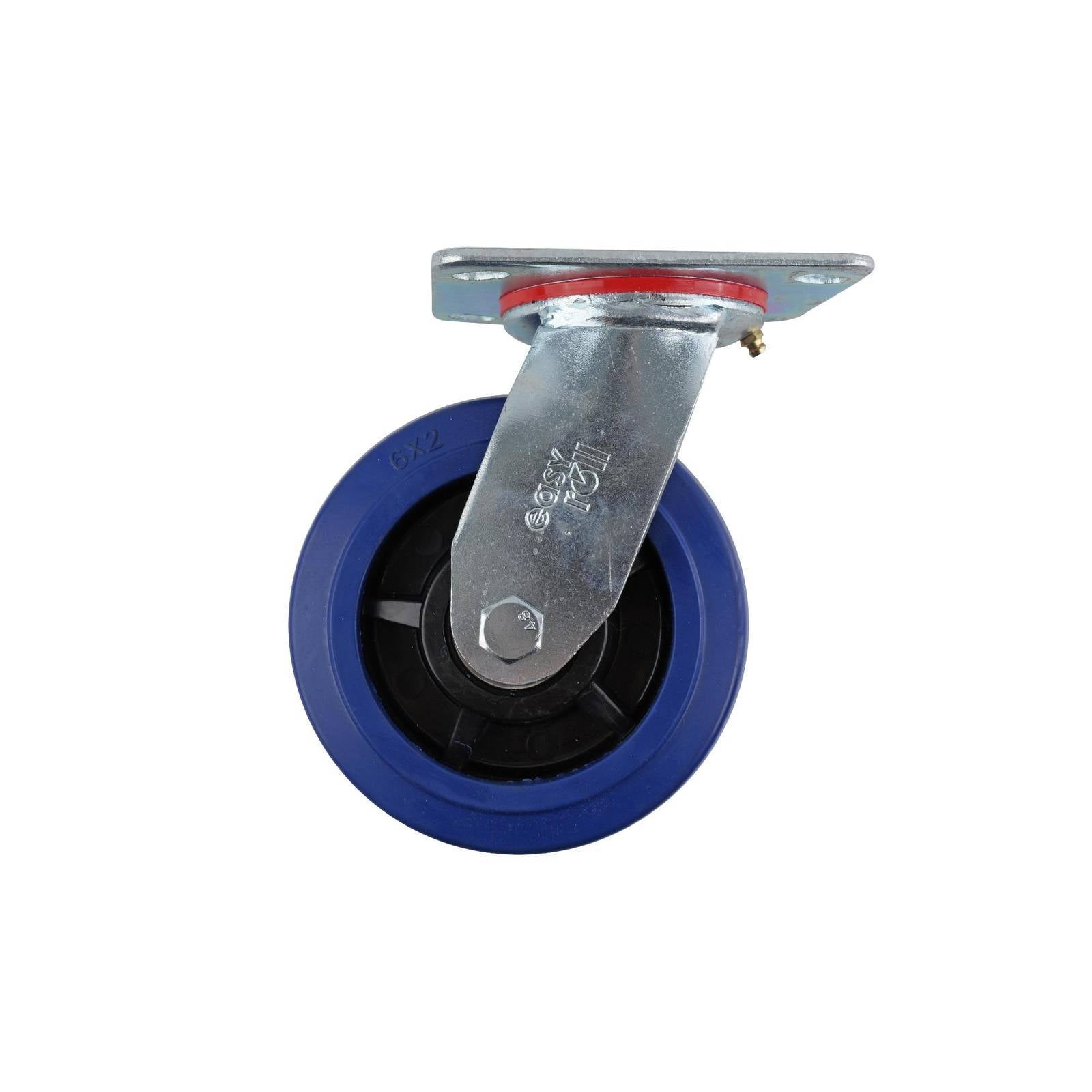

Easyroll 150mm Blue Rubber Swivel Plate J3 Series Castor 300kg
Easyroll 150mm Blue Rubber Swivel Plate J3 Series Castor 300kg provides a robust solution for optimising mobility in trade applications. It features a polypropylene wheel core coupled with durable steel construction and a ball bearing design. The red, black and silver finish enhances visual clarity, while the rubber wheel and total brake system ensure secure movement control. The plate mount and swivel configuration enable precise manoeuvring and effective load distribution for routine operations.
Couldn't load pickup availability
- Robust steel housing and high-tensile steel wheel construction
- Polypropylene wheel core for stable smooth rotation
- Ball bearing ensures precise directional movement control
- Includes plate swivel total brake for secure handling
- Plate mount attachment simplifies installation
- Available in red, black and silver
- Carbon steel bearing ensures enhanced durability
- Total brake delivers secure stopping power
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Brake Type | Total |
| Attachments | Plate Swivel Total Brake |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Steel |
| Housing Material | Steel |
| Bearing Material | Carbon Steel |
| Product Colour | Red/Black/Silver |

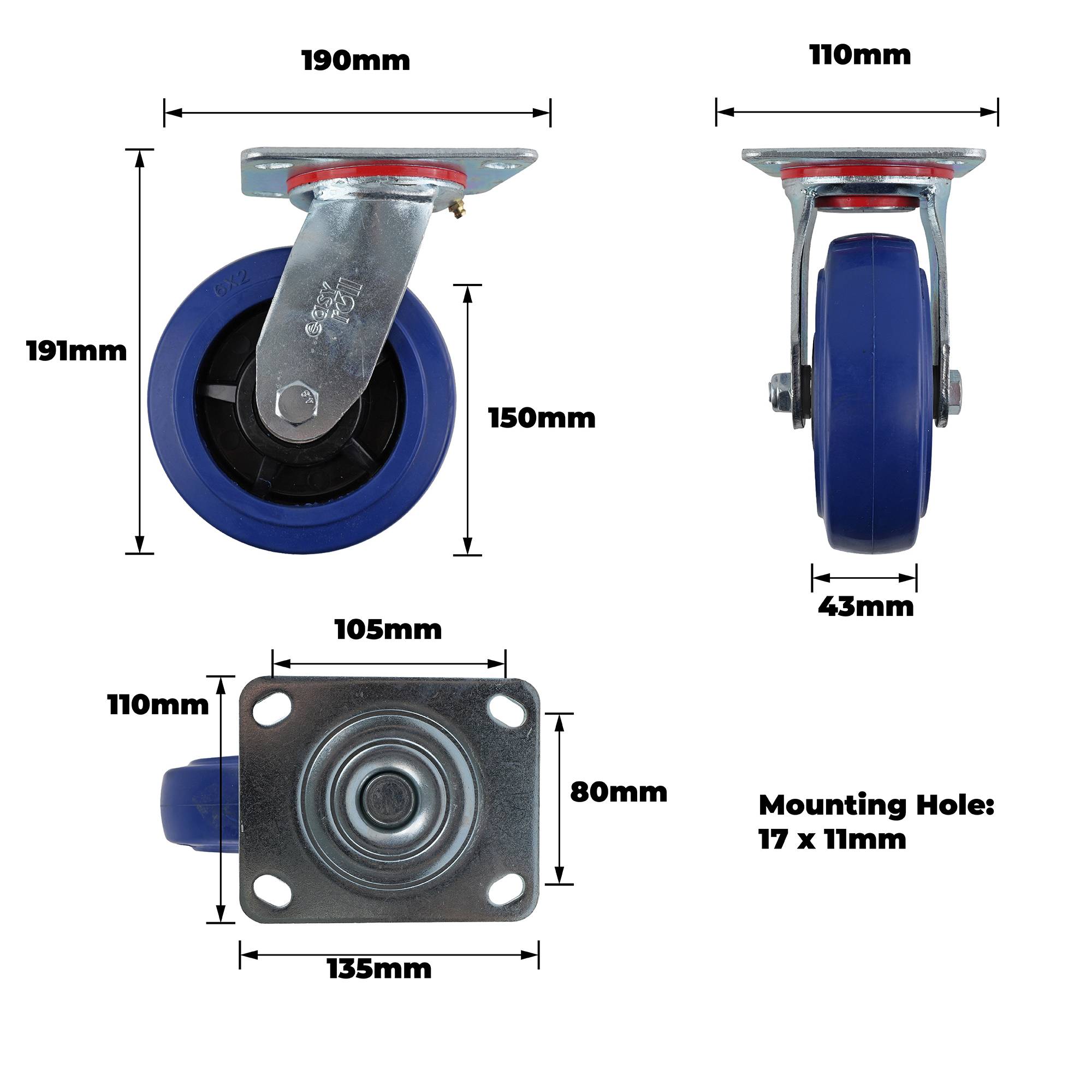

Dimensions
| Product Length (mm) | 190 |
| Product Width (mm) | 110 |
| Product Height (mm) | 191 |
| Wheel Diameter (mm) | 150 |
| Tread Width (mm) | 43 |
| Swivel Radius (mm) | 122.5 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105x80 |
| Plate Dimensions (LxW) mm | 135x110 |
Weights
| Product Weight (grams) | 2514 |
| Product Weight (kg) | 2.514 |
| Load Capacity (kg) | 300.0 |
