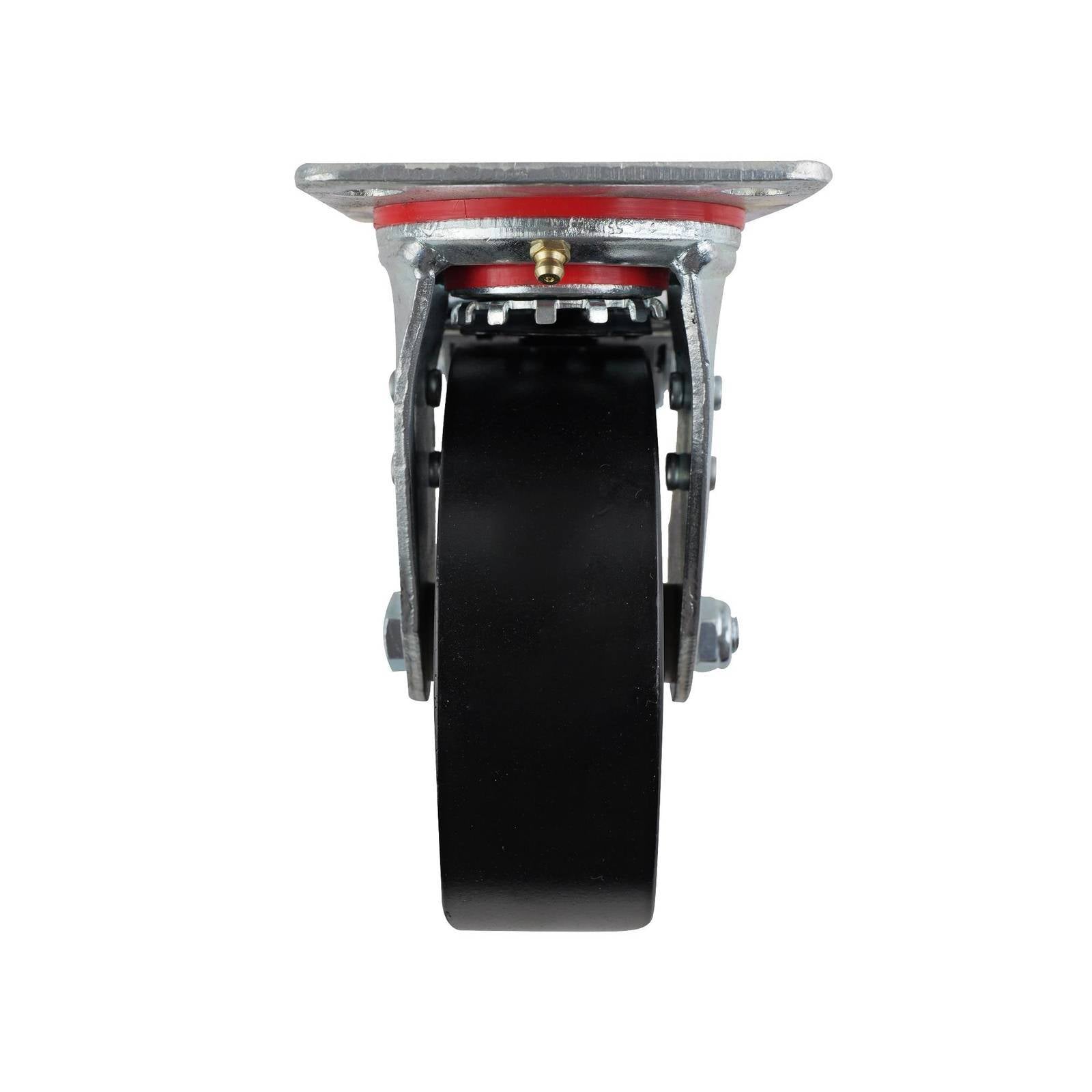

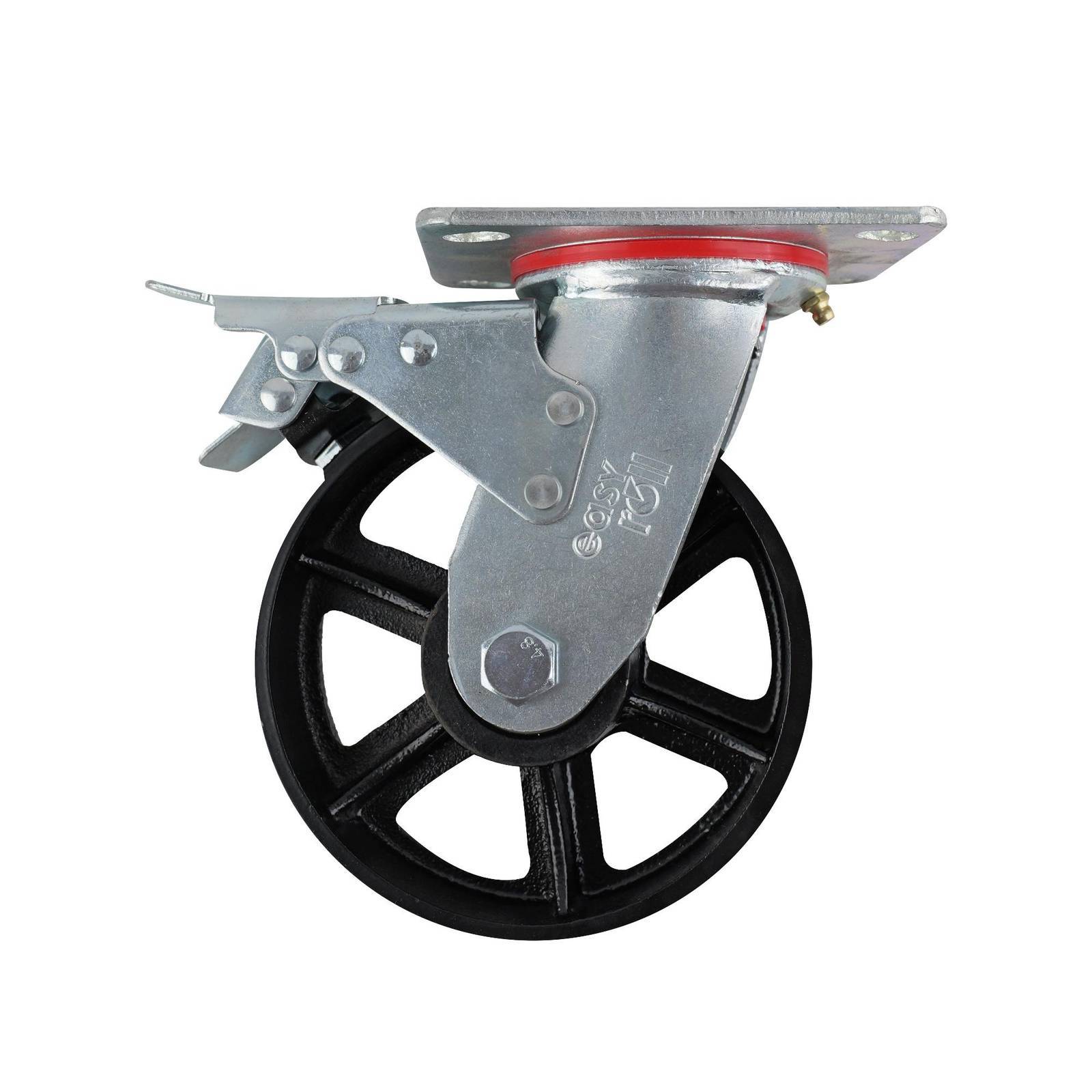

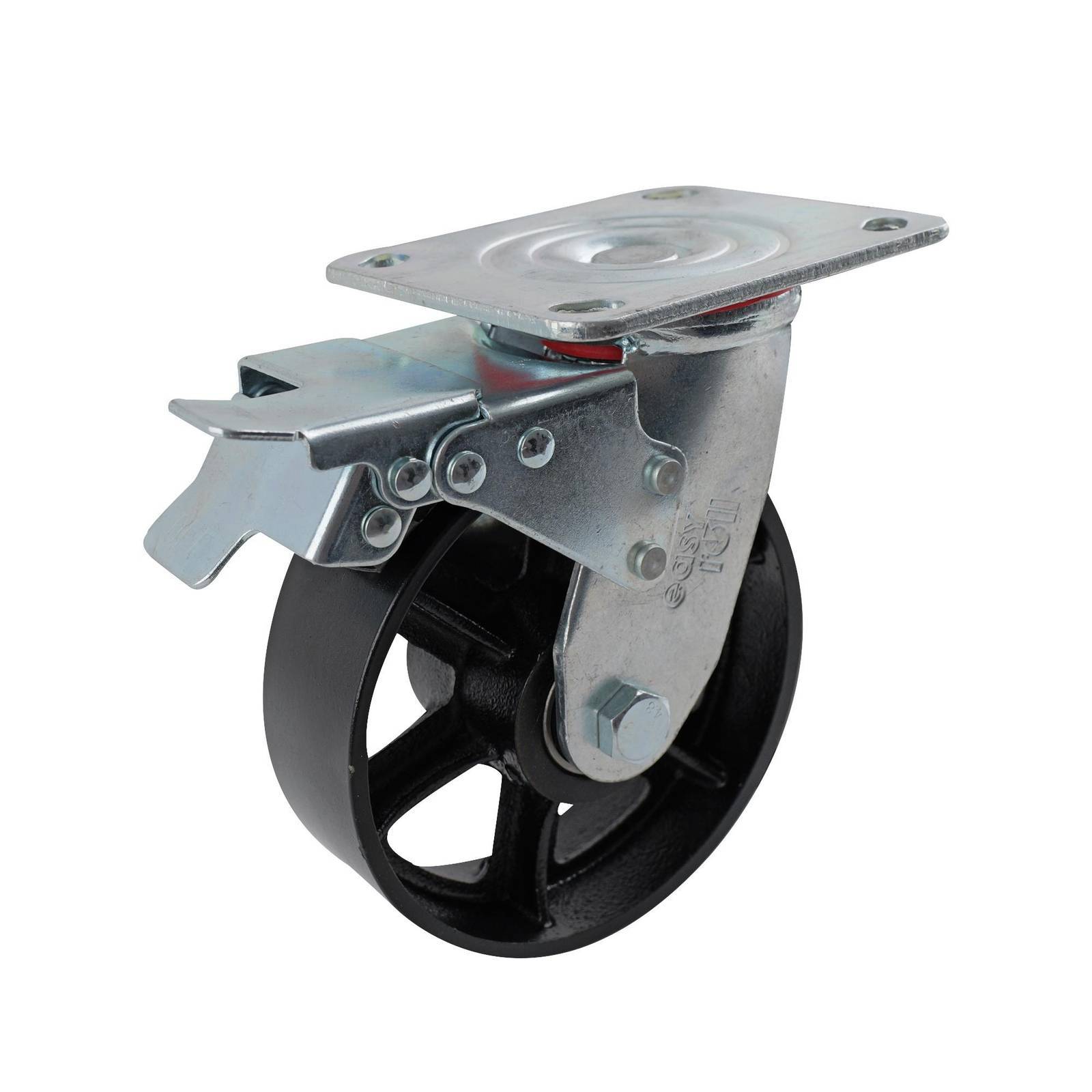

Easyroll 150mm Cast Iron Swivel Plate Brake J3 Series Castor 410kg
Easyroll 150mm Cast Iron Swivel Plate Brake J3 Series Castor 410kg is engineered with a solid cast iron wheel and core, complemented by a steel housing and carbon steel bearings. It features a ball bearing system within a single raceway design and a plate swivel for a secure mount. Designed for load manoeuvring in both indoor and outdoor settings, it offers dependable movement and a straightforward, technical approach to handling heavy loads.
Couldn't load pickup availability
- Robust cast iron wheel core ensures lasting performance
- Identifiable red, black and silver finish supports easy recognition
- Steel housing ensures structural strength and stability
- Reliable ball bearing mechanism provides smooth movement
- Plate mount fitting enables secure equipment attachment
- Single raceway design enhances directional control
- Cast iron wheel construction delivers robust load capacity
- Suitable for both outdoor and indoor operation
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Attachments | Plate Swivel |
Construction
| Wheel Core Material | Cast Iron |
| Wheel Material | Cast Iron |
| Housing Material | Steel |
| Bearing Material | Carbon Steel |
| Product Colour | Red/Black/Silver |

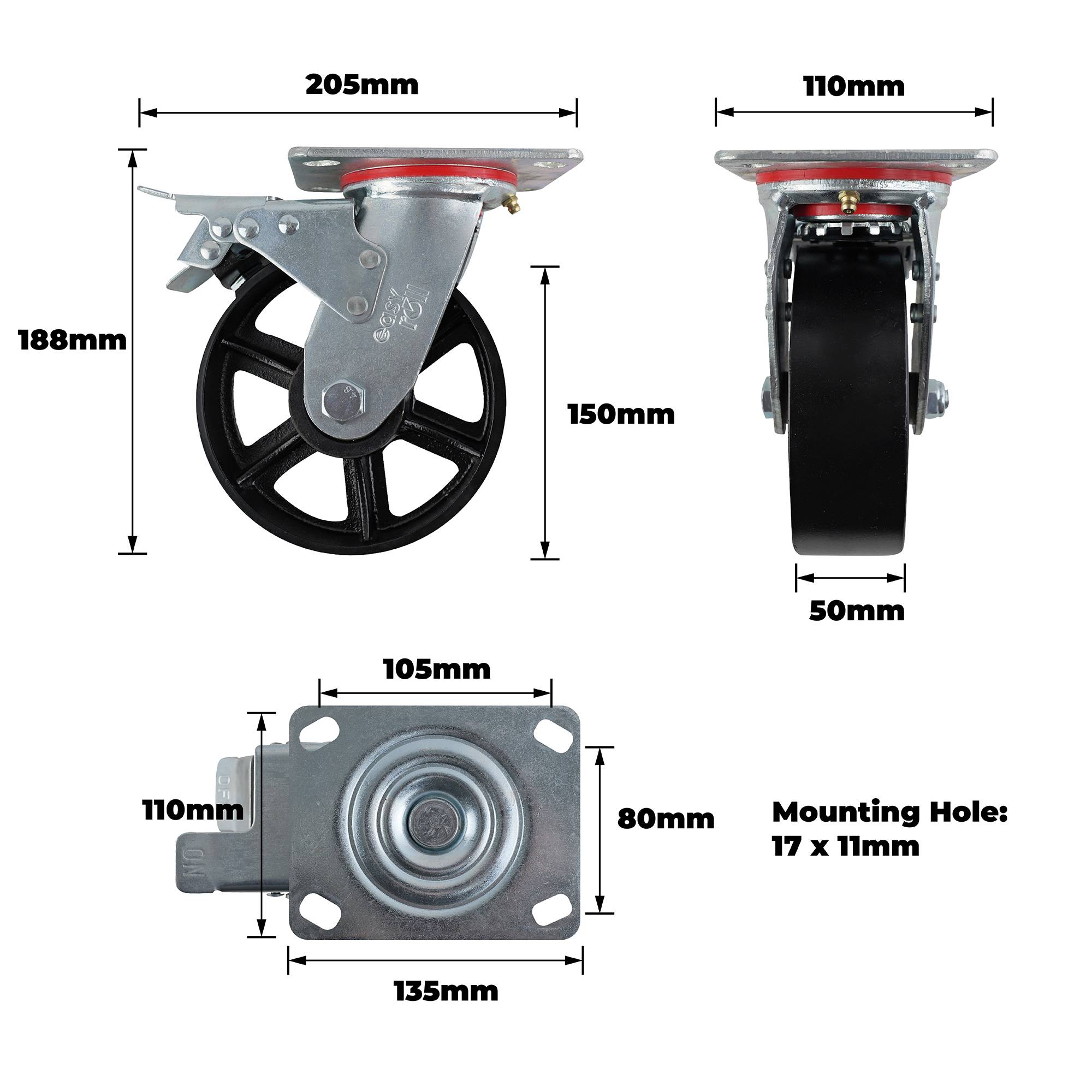

Dimensions
| Product Length (mm) | 205 |
| Product Width (mm) | 110 |
| Product Height (mm) | 188 |
| Wheel Diameter (mm) | 150 |
| Tread Width (mm) | 50 |
| Swivel Radius (mm) | 137.5 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105x80 |
| Plate Dimensions (LxW) mm | 135x110 |
Weights
| Product Weight (grams) | 4152 |
| Product Weight (kg) | 4.152 |
| Load Capacity (kg) | 410.0 |
