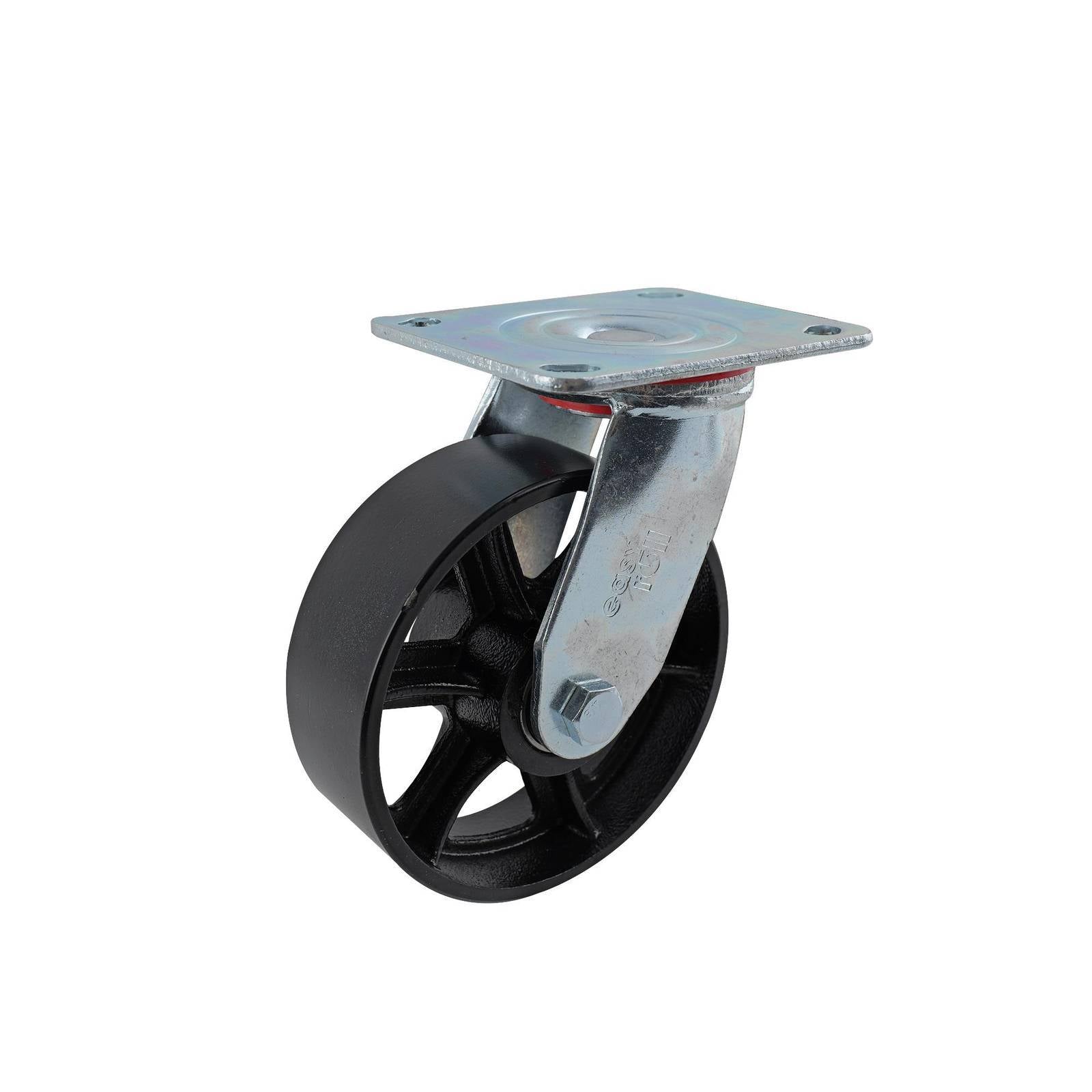

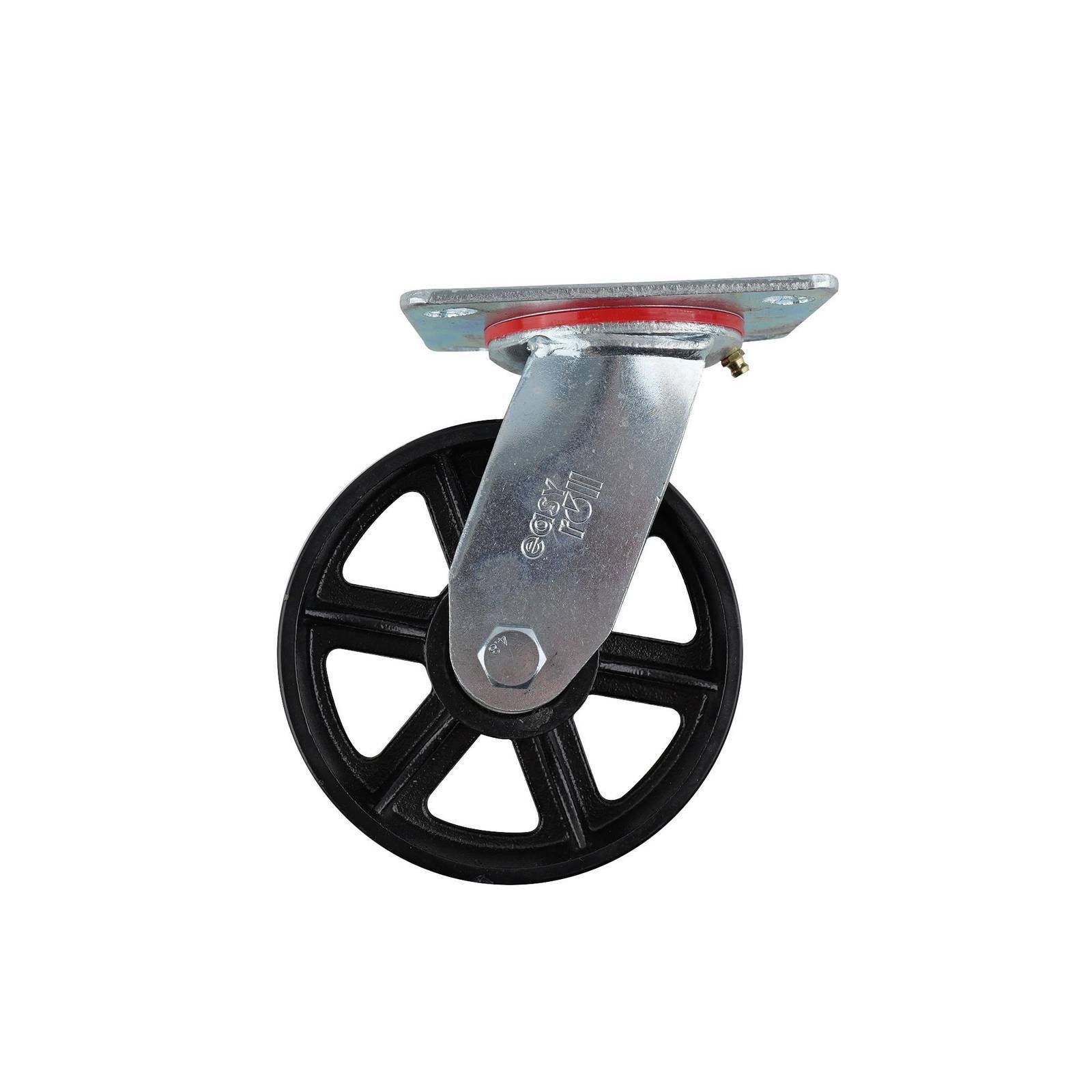

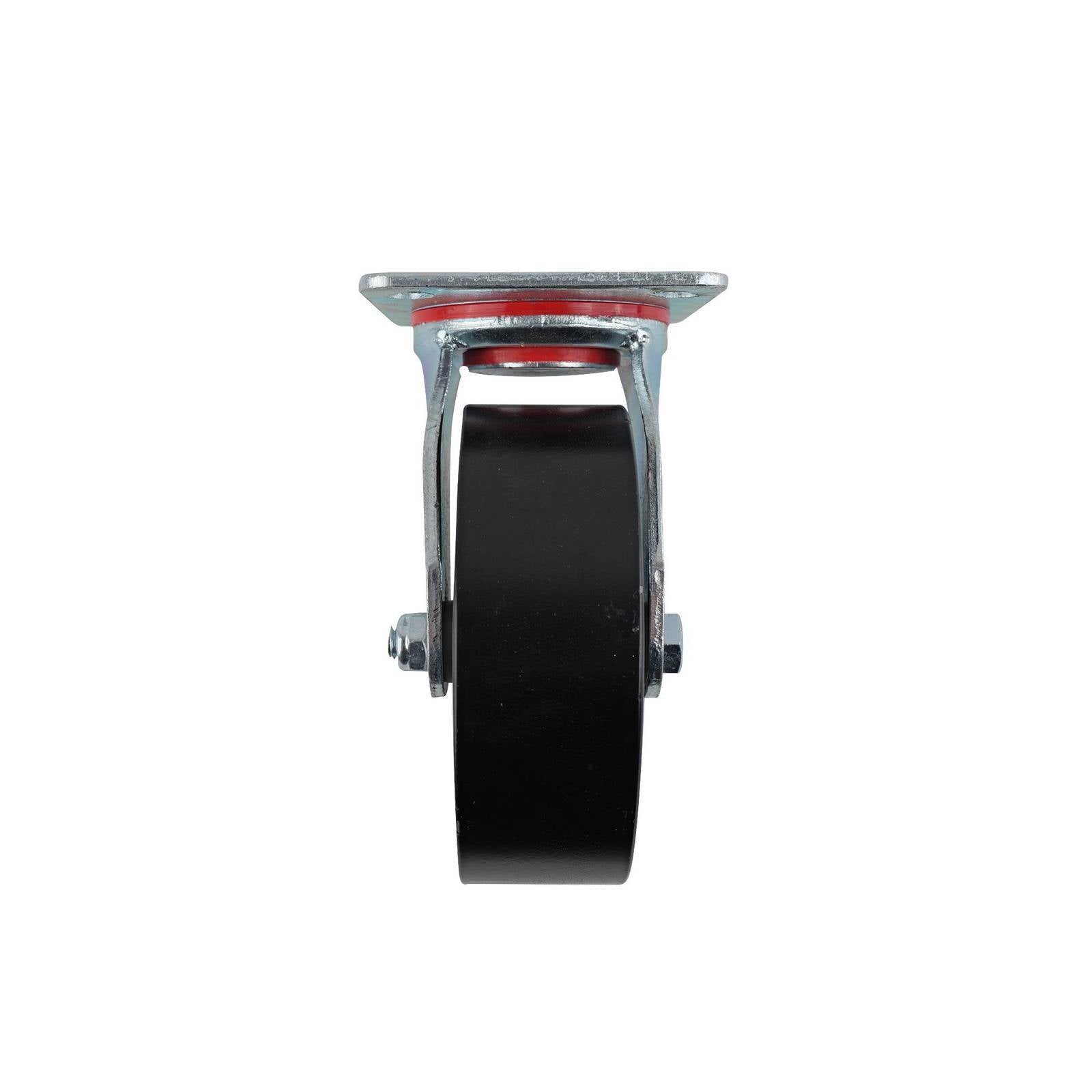

Easyroll 150mm Cast Iron Swivel Plate J3 Series Castor 410kg
Easyroll 150mm Cast Iron Swivel Plate J3 Series Castor 410kg is a robust caster designed with a cast iron wheel core, cast iron wheel, and steel housing. It employs a ball bearing system and a single raceway to provide consistent, precise movement for trade professionals operating both indoors and outdoors. The plate swivel attachment and plate mount design ensure secure fitting and reliable manoeuvring of heavy loads in demanding applications.
Couldn't load pickup availability
- Cast iron wheel core and wheel ensure robust load support
- Steel housing with carbon steel ball bearing offers durability
- Plate mount system with plate swivel simplifies installation
- Available in red, black and silver finish
- Suitable for indoor and outdoor use
- Single raceway ball bearing ensures smooth, reliable movement
- Designed to carry loads up to 410kg without compromise
- Easyroll quality trusted by trade professionals for performance
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Attachments | Plate Swivel |
Construction
| Wheel Core Material | Cast Iron |
| Wheel Material | Cast Iron |
| Housing Material | Steel |
| Bearing Material | Carbon Steel |
| Product Colour | Red/Black/Silver |

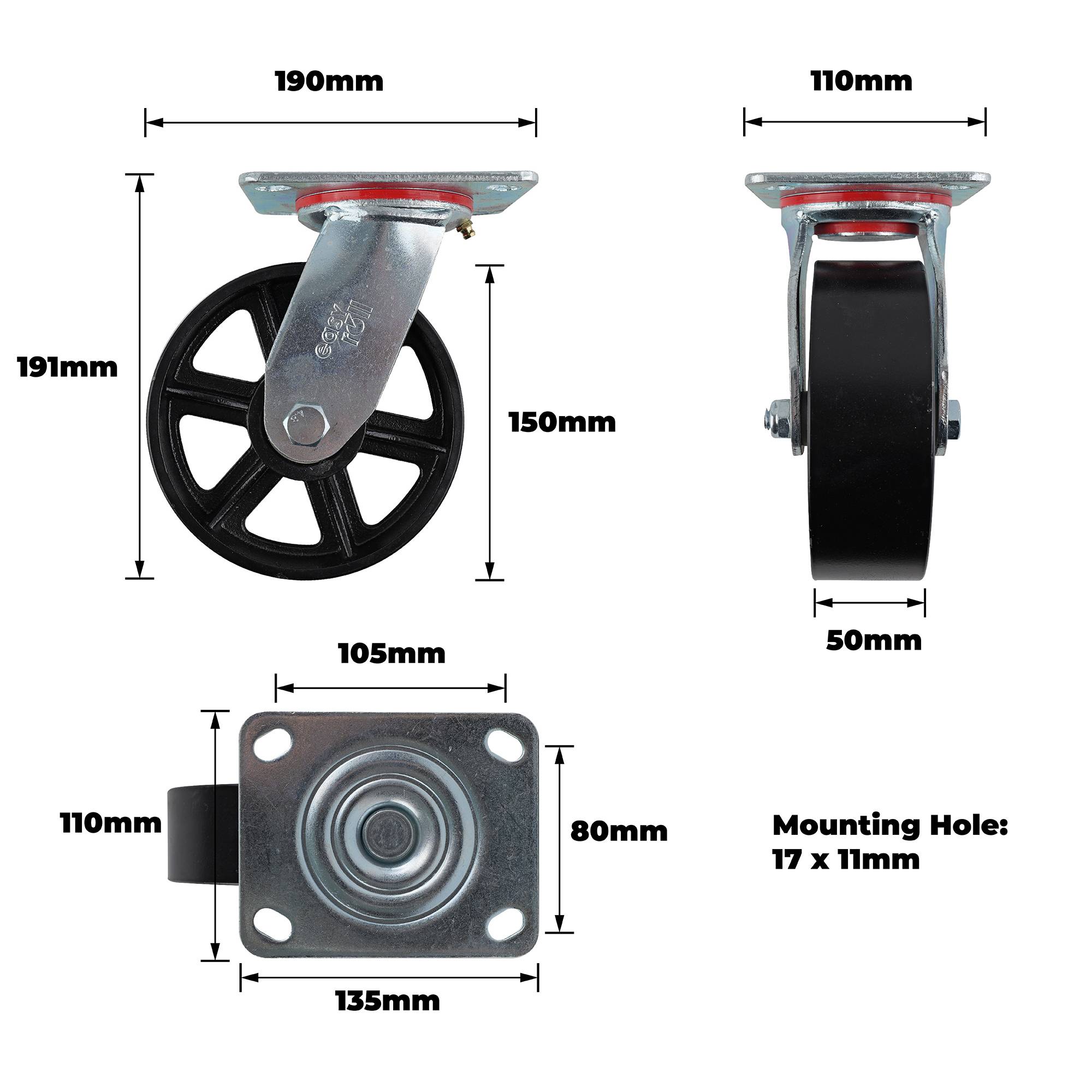

Dimensions
| Product Length (mm) | 190 |
| Product Width (mm) | 110 |
| Product Height (mm) | 191 |
| Wheel Diameter (mm) | 150 |
| Tread Width (mm) | 50 |
| Swivel Radius (mm) | 122.5 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105x80 |
| Plate Dimensions (LxW) mm | 135x110 |
Weights
| Product Weight (grams) | 3365 |
| Product Weight (kg) | 3.365 |
| Load Capacity (kg) | 410.0 |
