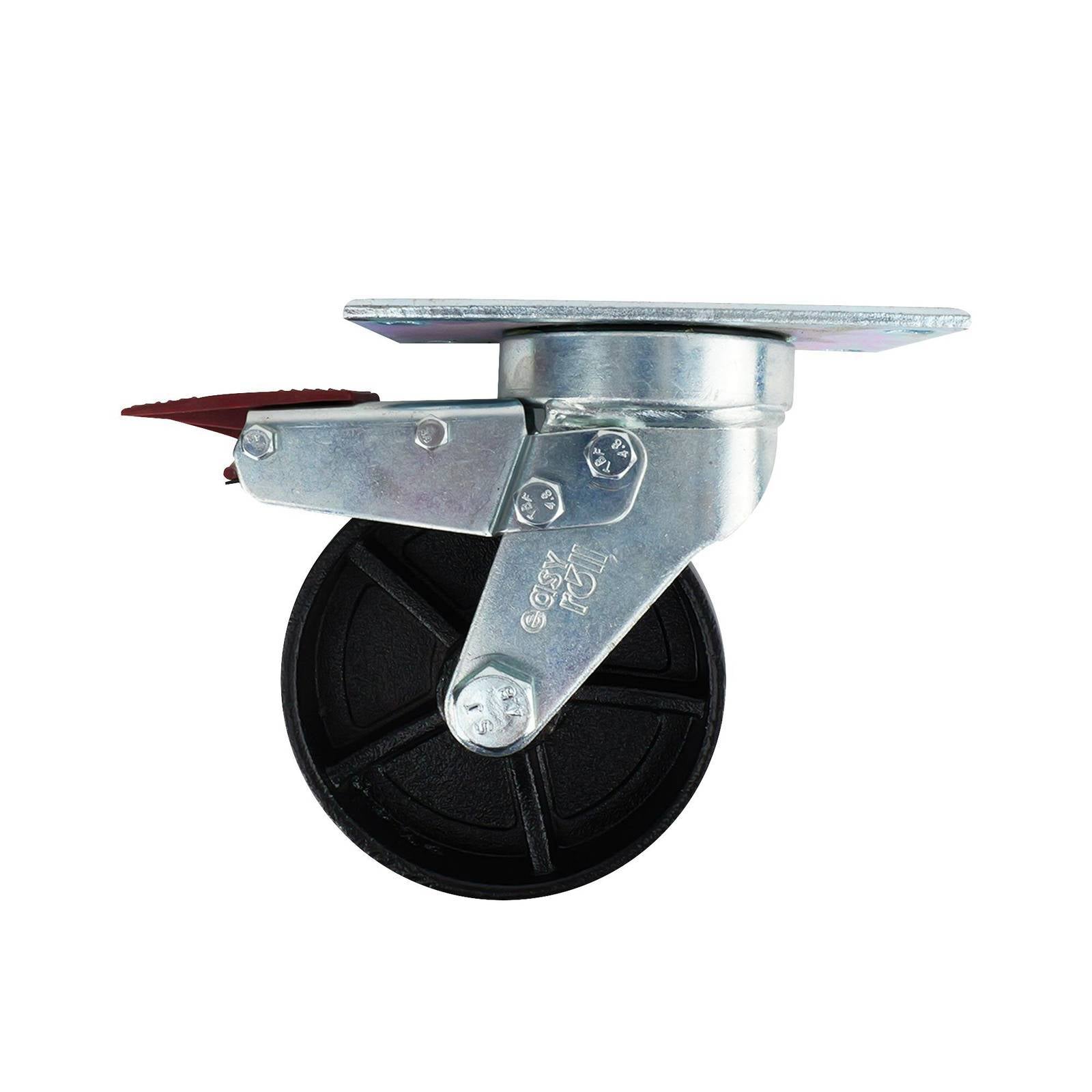

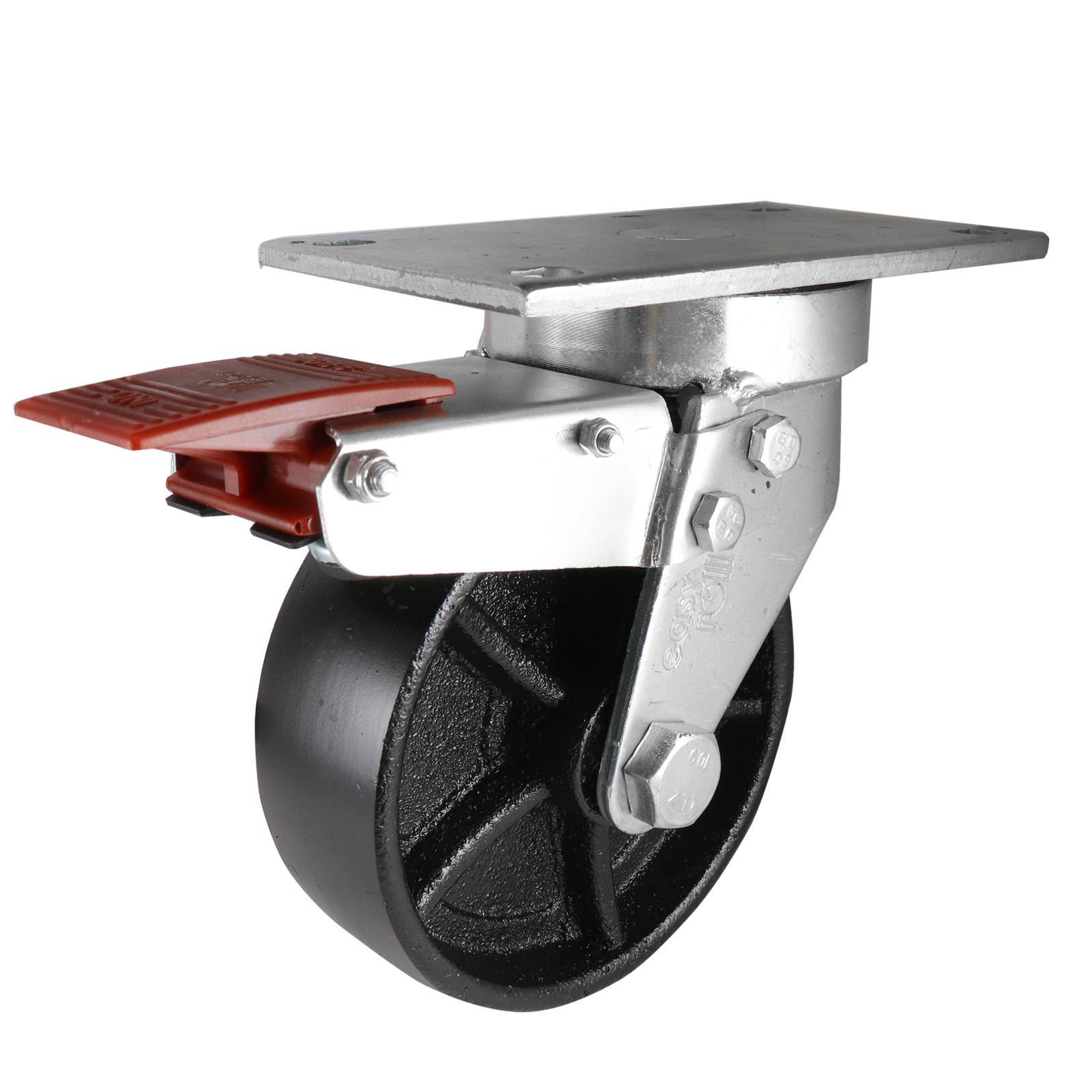

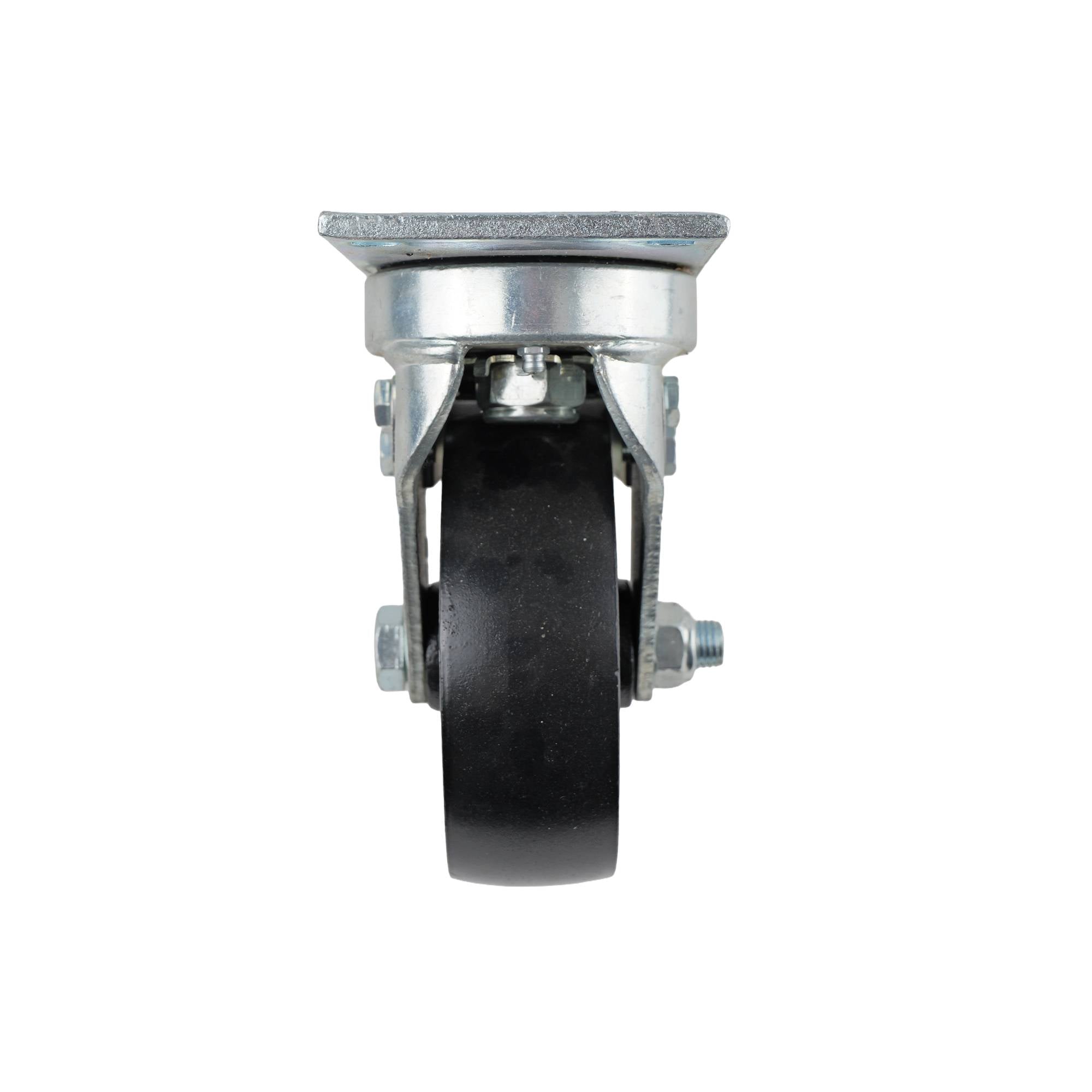

Easyroll 150mm Swivel Plate J7 Series Castor 500kg
Easyroll 150mm Swivel Plate J7 Series Castor 500kg. This castor integrates a robust cast iron wheel with a durable cast iron core and is housed in strong steel supported by a plain bearing. It features a single raceway design and a rigid plate attachment with a plate mount. The black, silver and red finish enhances identification. Its reliable performance offers value to industrial and trade professionals in both indoor and outdoor settings.
Couldn't load pickup availability
- Sturdy cast iron wheel with durable cast iron core
- Steel housing ensures robust performance in demanding conditions
- Plain bearing design simplifies maintenance and operation
- Plate mount fitting delivers fixed and reliable attachment
- Compatible with both indoor and outdoor applications
- Heavy load rating up to 500kg with secure swivel mechanism
- Available in black, silver, and red finish colour
- Engineered for efficient performance and extended usage life
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Plain Bearing |
| Raceway Type | Single |
| Attachments | Plate Rigid |
Construction
| Wheel Core Material | Cast Iron |
| Wheel Material | Cast Iron |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Black/Silver/Red |

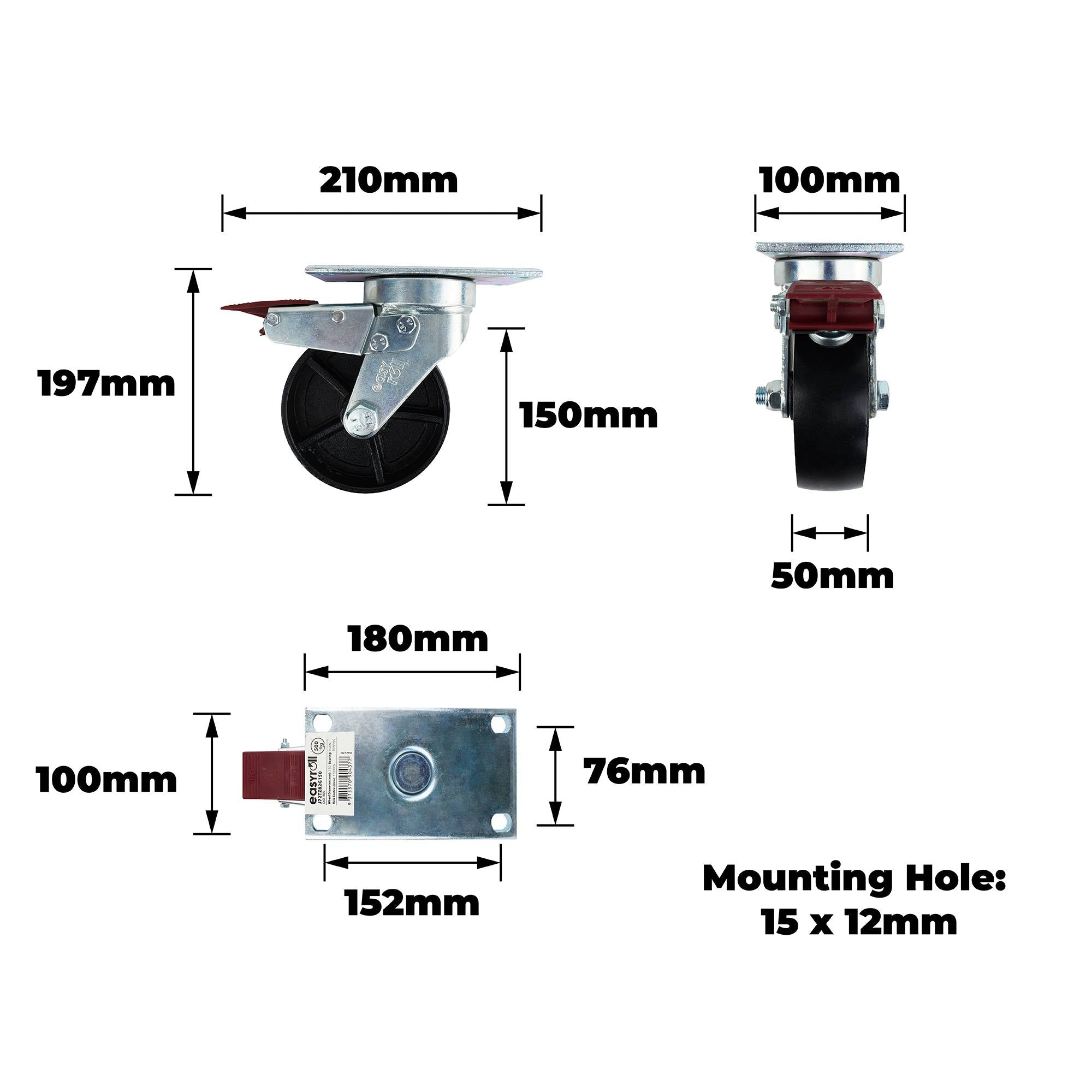

Dimensions
| Product Length (mm) | 260 |
| Product Width (mm) | 110 |
| Product Height (mm) | 196 |
| Wheel Diameter (mm) | 149 |
| Tread Width (mm) | 50 |
| Swivel Radius (mm) | 170 |
| Mounting Hole Dimensions (mm) | 15x12 |
| Hole Centre Dimensions (LxW) mm | 150x76 |
| Plate Dimensions (LxW) mm | 180x103 |
Weights
| Product Weight (grams) | 6270 |
| Product Weight (kg) | 6.27 |
| Load Capacity (kg) | 500.0 |
