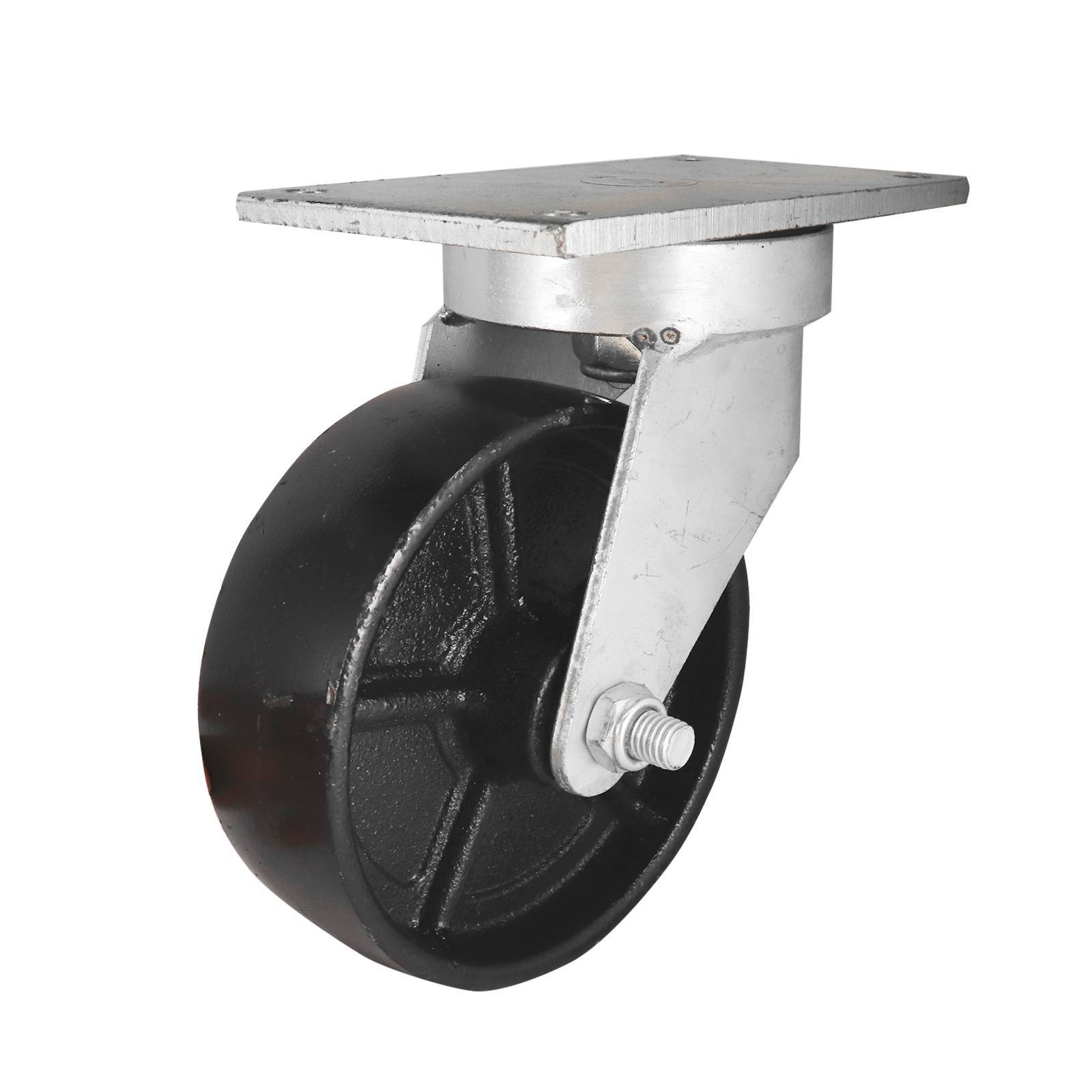

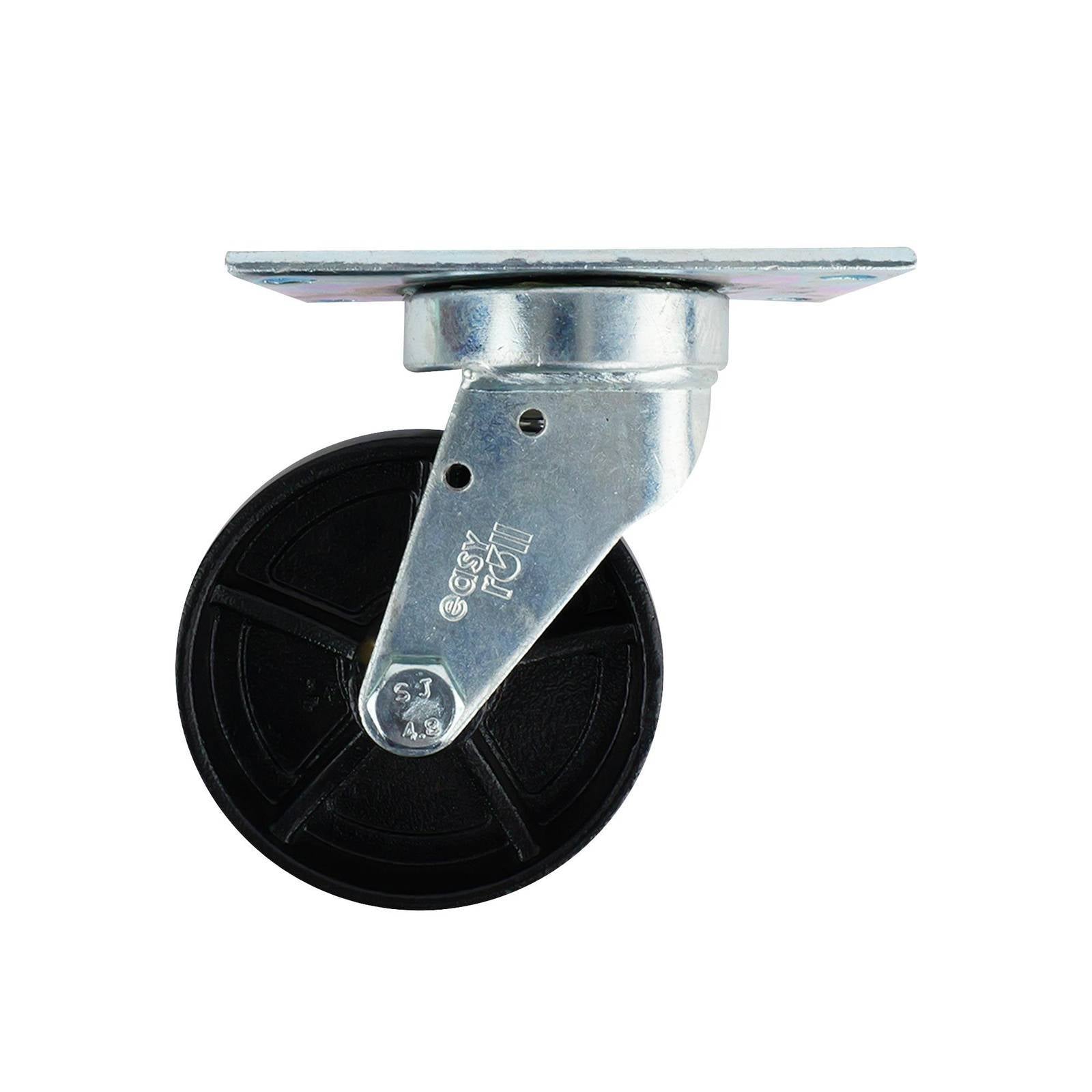

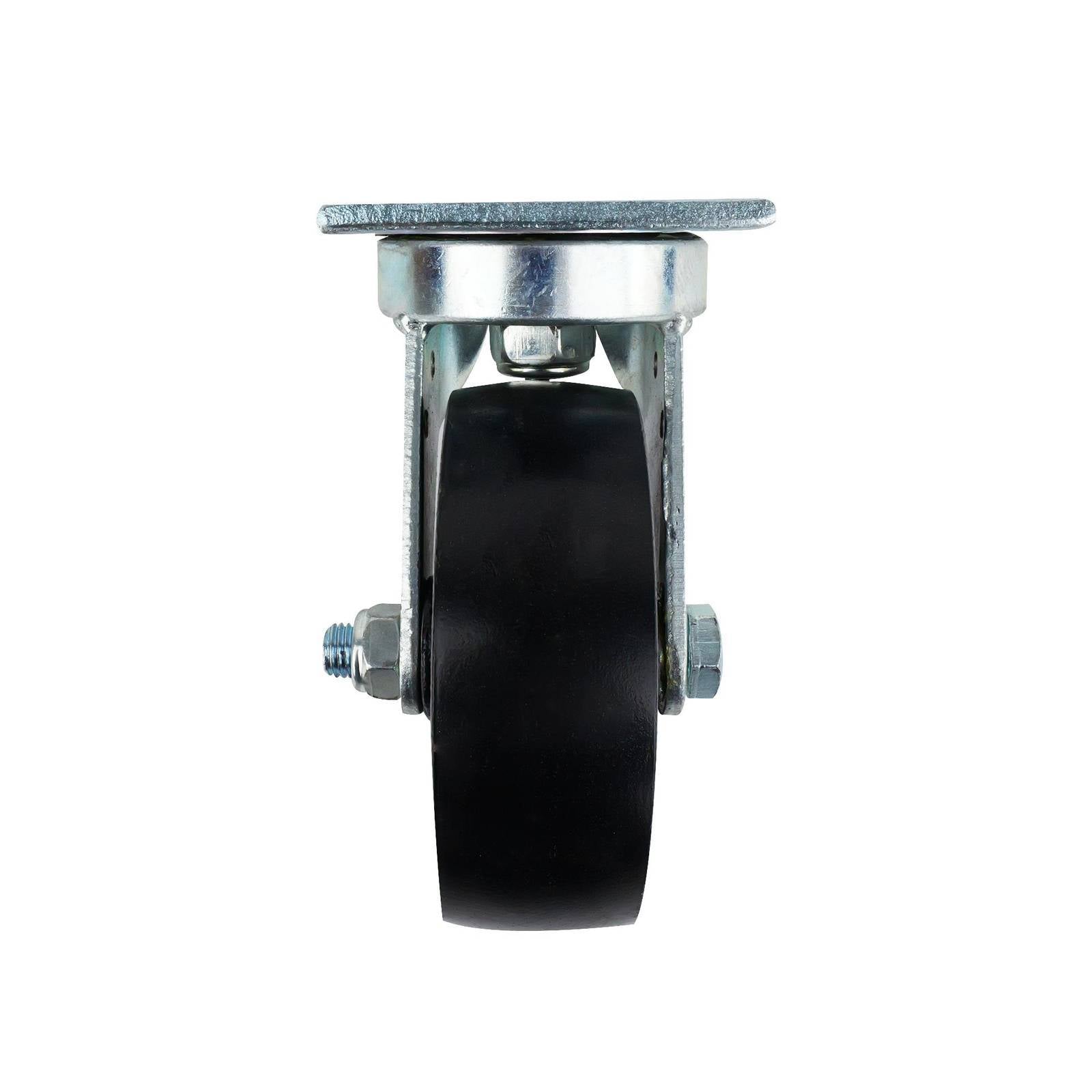

Easyroll 150mm Cast Iron Swivel Plate J7 Series Castor 600kg
Easyroll 150mm Cast Iron Swivel Plate J7 Series Castor 600kg is a robust plate mount castor featuring a cast iron wheel core and supportive steel housing with a plain bearing system. Its single raceway design ensures smooth manoeuvring when attached using the rigid mounting plate. Designed to offer dependable load performance and enhanced mobility, it serves industrial and trade professionals by providing a precise, consistent solution for effective equipment movement.
Couldn't load pickup availability
- Robust cast iron wheel and core for high load stability
- Durable steel housing and bearing ensure long-lasting performance
- Integrated plate mount simplifies attachment to equipment
- Single raceway minimises friction during movement
- Designed for both indoor and outdoor applications
- Black and silver finish provides a sleek professional look
- 600kg load capacity provides robust support for equipment
- Easyroll reliable construction enhances operational efficiency
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Plain Bearing |
| Raceway Type | Single |
| Attachments | Plate Rigid |
Construction
| Wheel Core Material | Cast Iron |
| Wheel Material | Cast Iron |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Black/Silver |

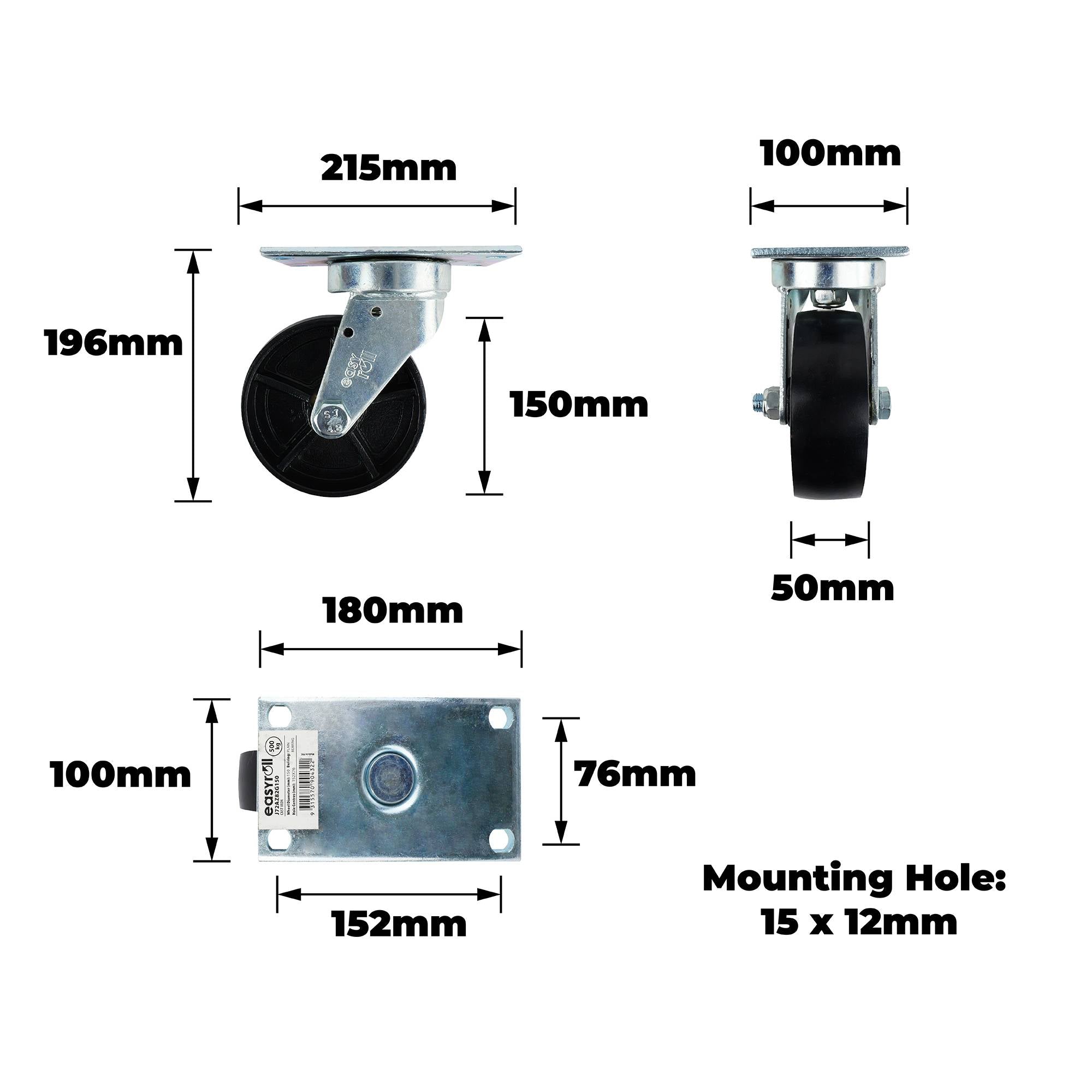

Dimensions
| Product Length (mm) | 215 |
| Product Width (mm) | 100 |
| Product Height (mm) | 196 |
| Wheel Diameter (mm) | 150 |
| Tread Width (mm) | 50 |
| Swivel Radius (mm) | 125 |
| Mounting Hole Dimensions (mm) | 15x12 |
| Hole Centre Dimensions (LxW) mm | 152x76 |
| Plate Dimensions (LxW) mm | 180x100 |
Weights
| Product Weight (grams) | 5720 |
| Product Weight (kg) | 5.72 |
| Load Capacity (kg) | 600.0 |
