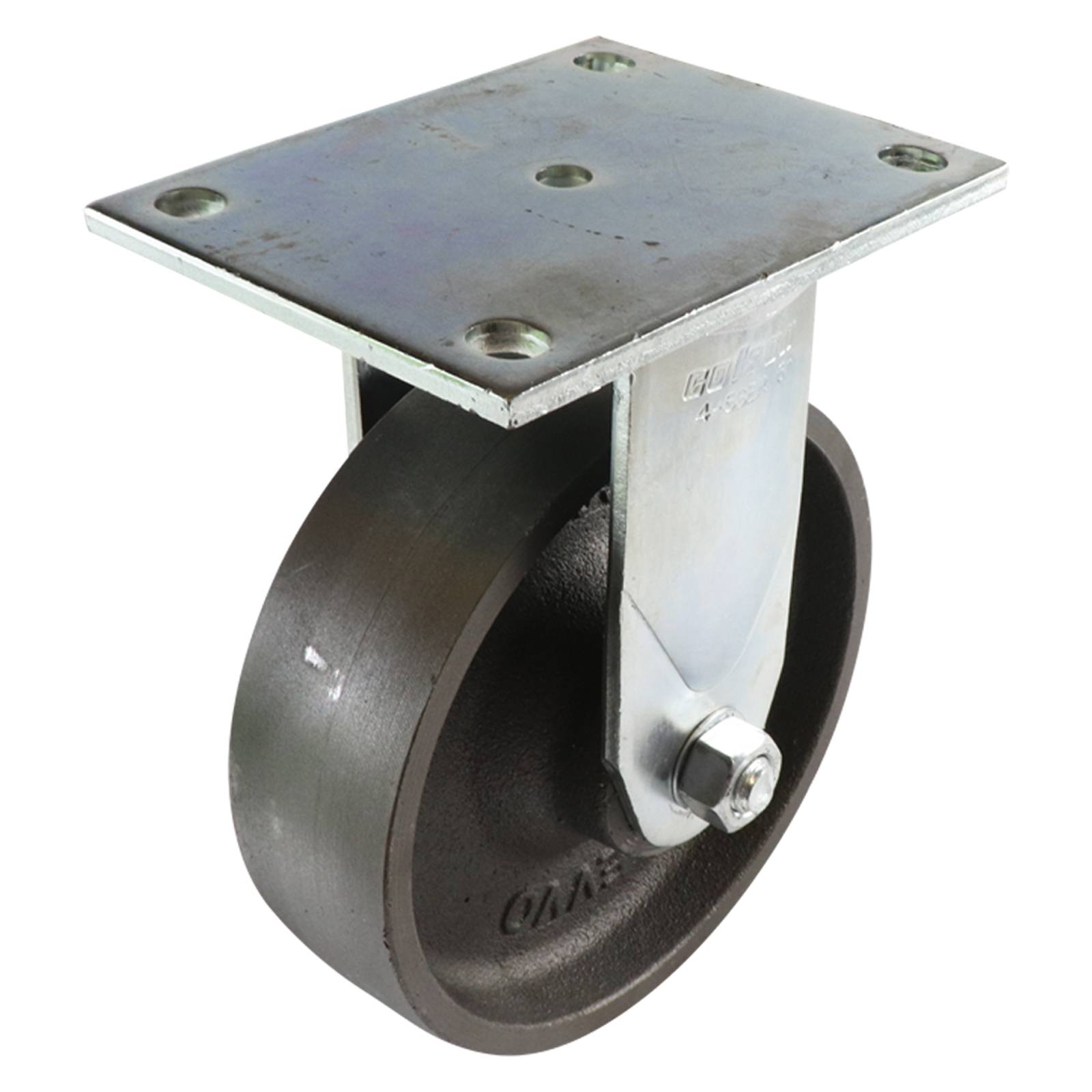

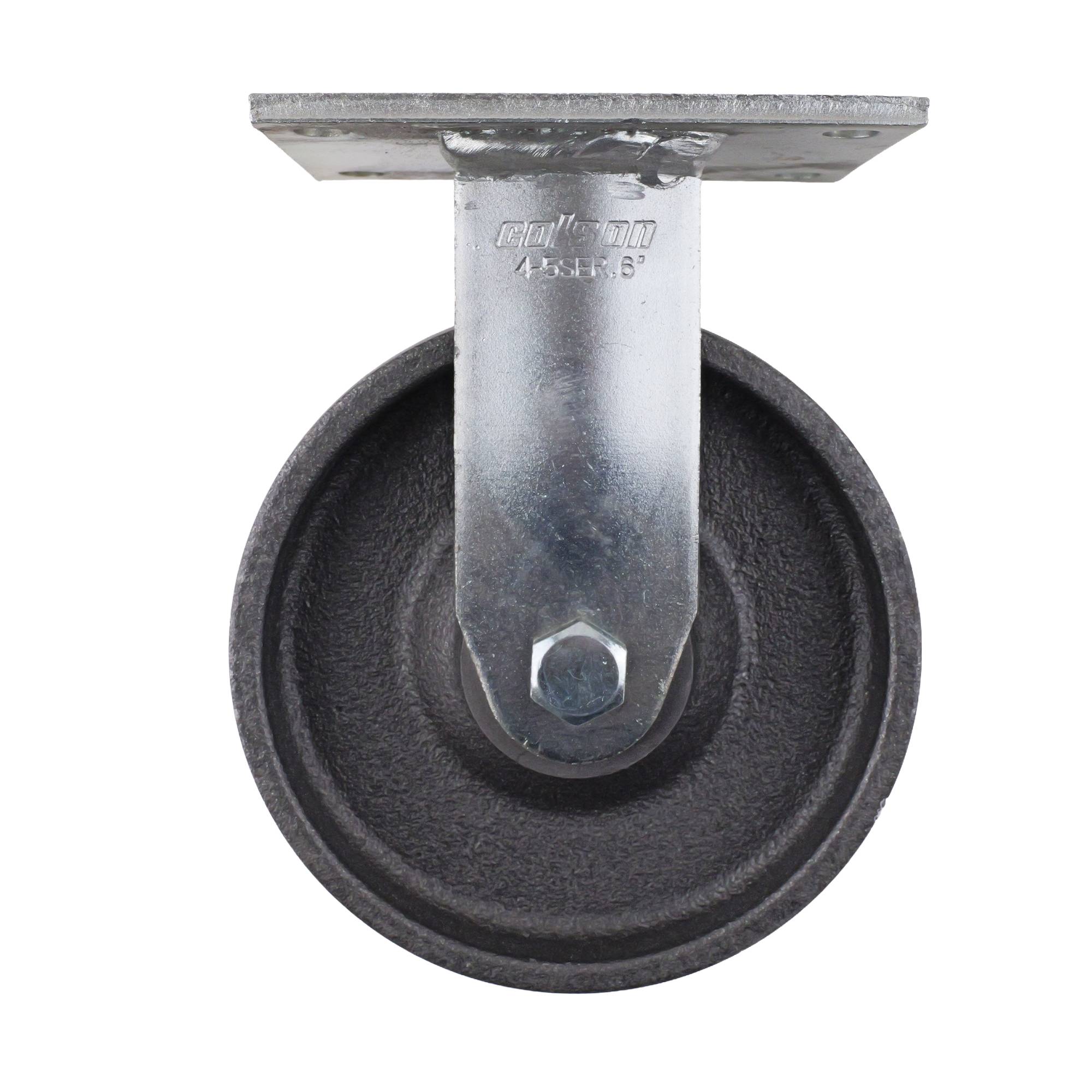

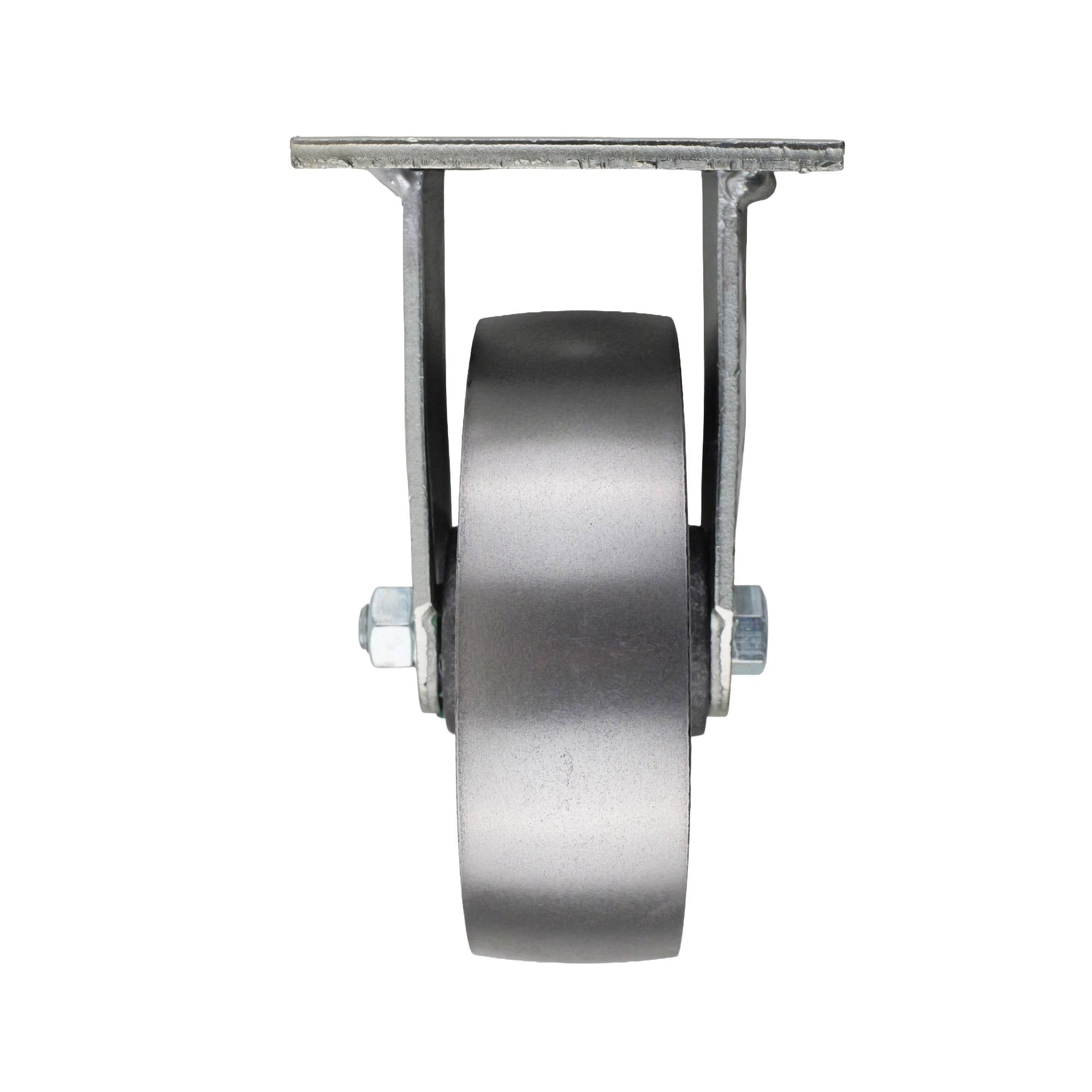

Colson 150mm Cast Iron Fixed Plate TF Series Castor 190kg
Colson 150mm Cast Iron Fixed Plate TF Series Castor 190kg is built to provide dependable movement for trade professionals. It features a cast iron wheel with a steel housing and a robust roller bearing set in a single raceway configuration. The fixed plate with swivel attachment ensures secure mounting and smooth manoeuvrability. Suitable for indoor and outdoor applications, it offers practical technical advantages in heavy load management and efficient transport across various professional settings.
Couldn't load pickup availability
- Cast iron wheel core ensures reliable strength and durability
- Solid steel housing and bearings provide robust overall construction
- Roller bearing mechanism promotes smooth and steady swivel motion
- Plate mount design streamlines secure attachment and positioning
- Operates indoors and outdoors for versatile application
- Plate swivel attachment enables easy directional adjustment
- Engineered for precise movement and consistent performance
- Designed to support up to 190kg load capacity
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Roller Bearing |
| Raceway Type | Single |
| Attachments | Plate Swivel |
Construction
| Wheel Core Material | Cast Iron |
| Wheel Material | Cast Iron |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Silver/Blue |

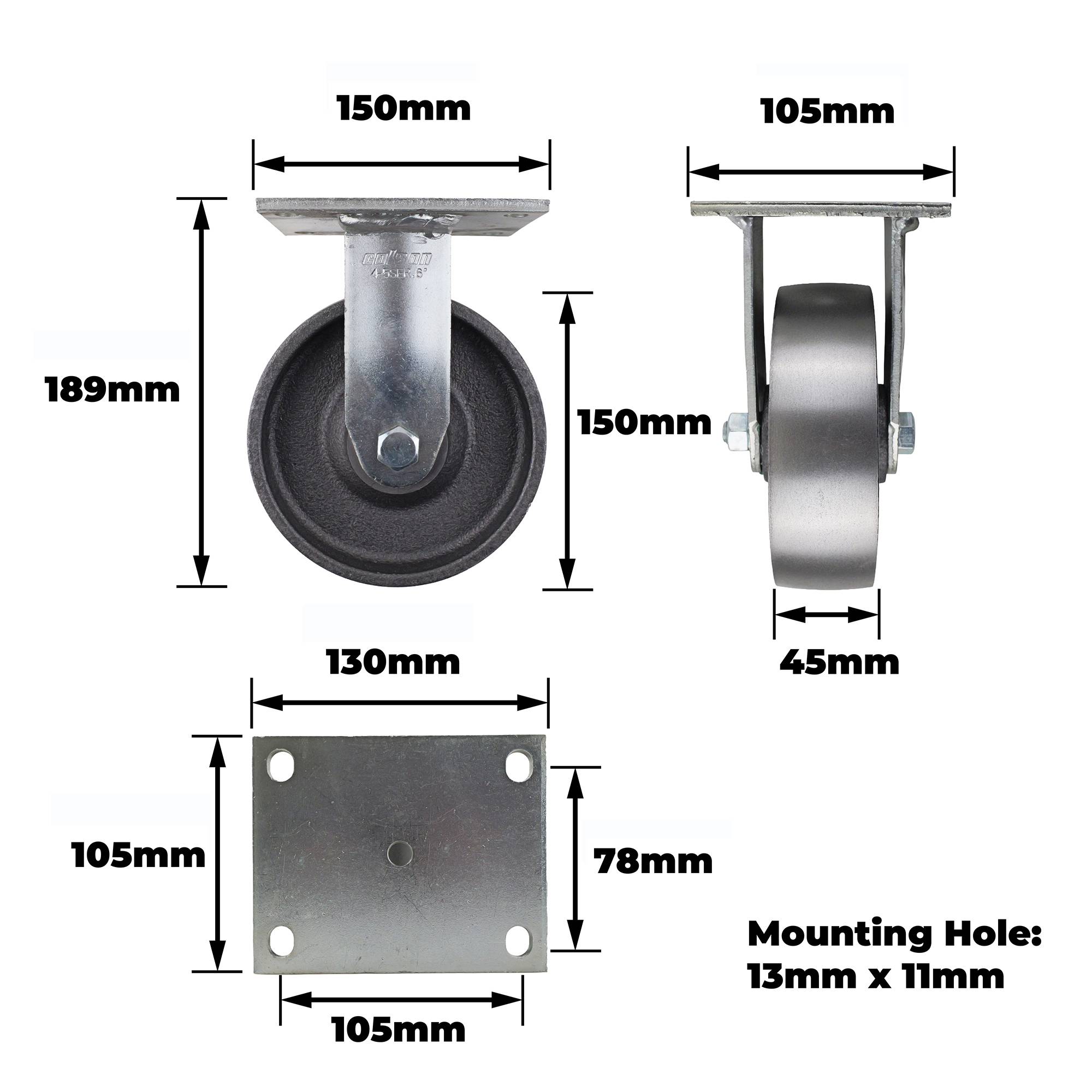

Dimensions
| Product Length (mm) | 150 |
| Product Width (mm) | 105 |
| Product Height (mm) | 189 |
| Wheel Diameter (mm) | 150 |
| Tread Width (mm) | 45 |
| Mounting Hole Dimensions (mm) | 14x11.3 |
| Hole Centre Dimensions (LxW) mm | 105x78 |
| Plate Dimensions (LxW) mm | 130x105 |
Weights
| Product Weight (grams) | 3948 |
| Product Weight (kg) | 3.6 |
| Load Capacity (kg) | 600.0 |
