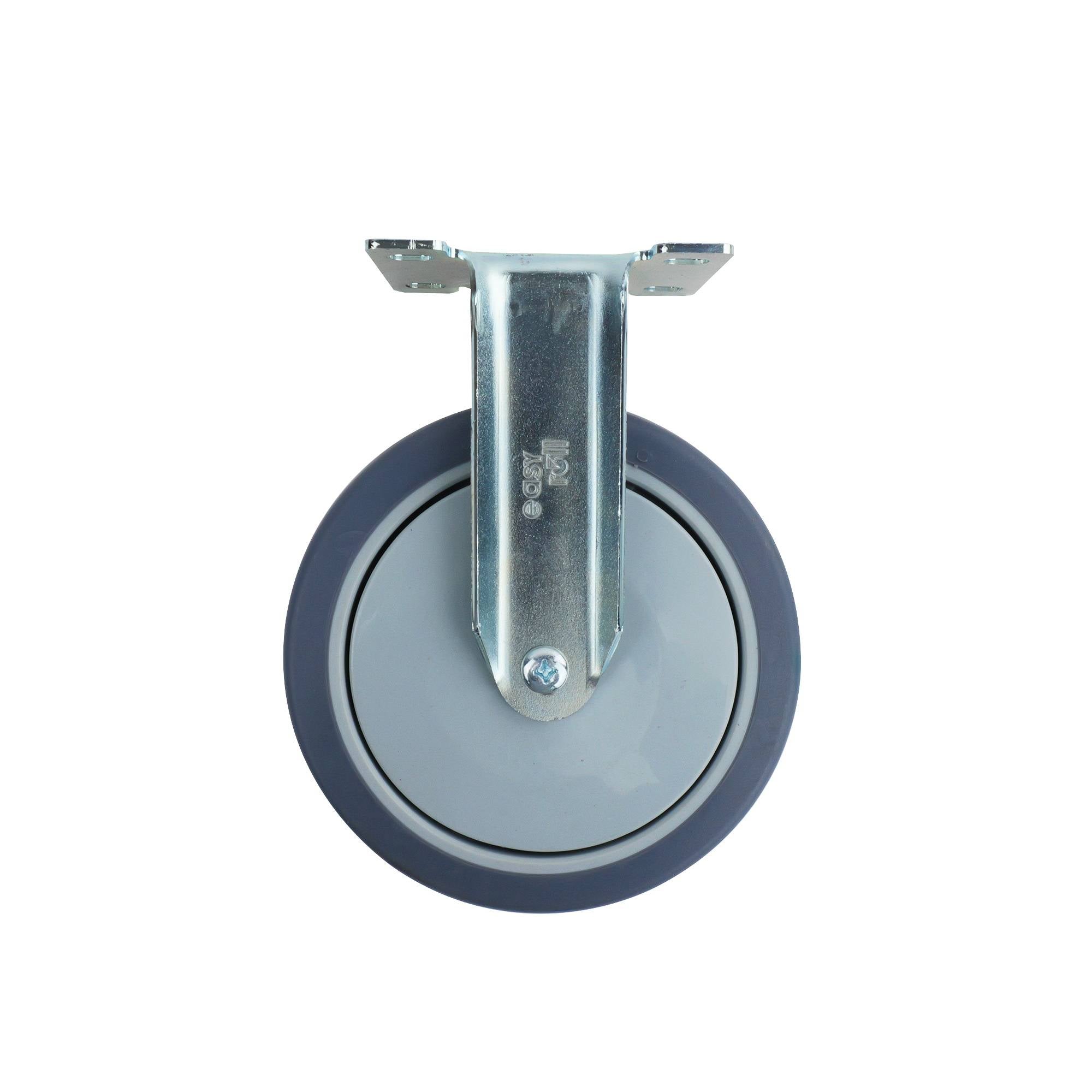

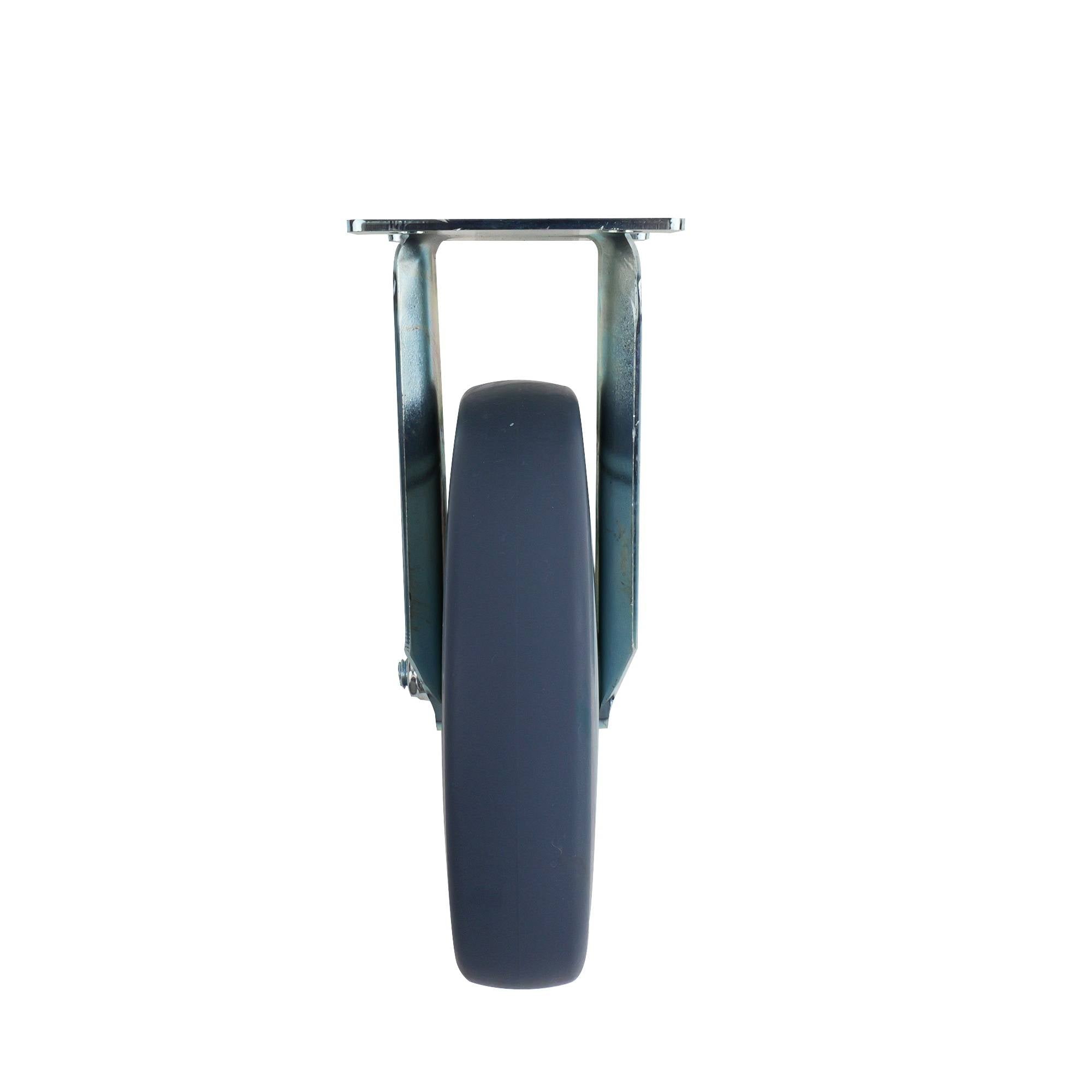

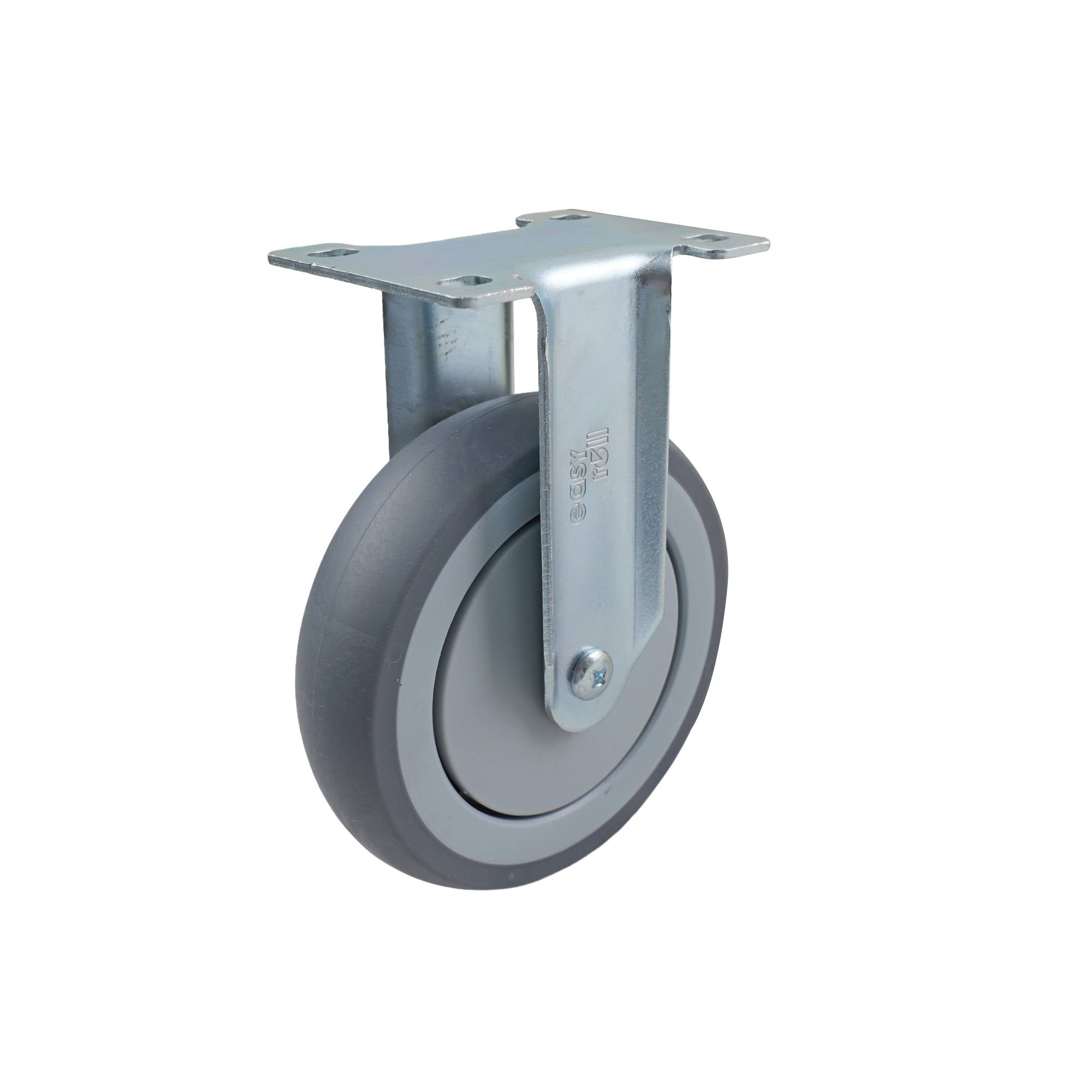

Easyroll 150mm Grey Rubber Fixed Plate G6 Series Castor 130kg
Easyroll 150mm Grey Rubber Fixed Plate G6 Series Castor 130kg offers a dependable caster solution designed for precision movement and total braking performance. It features a polypropylene wheel core paired with a thermoplastic rubber wheel, supported by a steel housing and ball bearings made from bearing steel, ensuring smooth, consistent roll action. The bolt hole swivel total brake and plate mount configuration deliver accurate directional control, adding value for industrial and trade professionals requiring pragmatic, technical caster solutions.
Couldn't load pickup availability
- Sturdy steel housing for durable performance
- Polypropylene wheel core provides strength with light weight
- Thermoplastic rubber wheel for quiet smooth operation
- Total brake system for full immobilisation when required
- Ball bearing design ensures smooth multidirectional movement
- Bolt hole swivel enables flexible plate mounting
- Single raceway reduces friction for efficient performance
- Support load capacity up to 130kg for robust use
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | No |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Brake Type | Total |
| Attachments | Bolt Hole Swivel Total Brake |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Thermoplastic Rubber |
| Housing Material | Steel |
| Bearing Material | Bearing Steel |
| Product Colour | Grey/Silver |

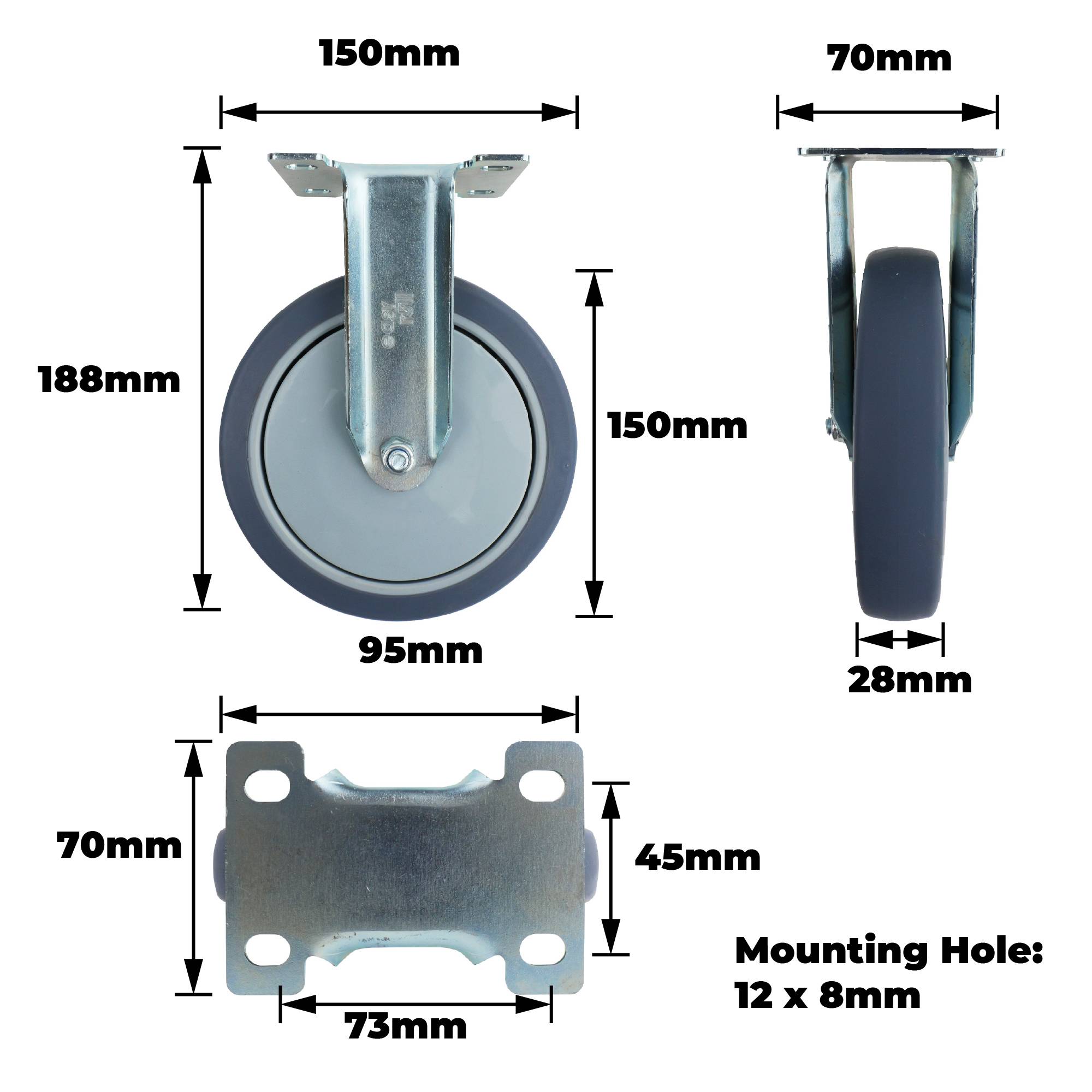

Dimensions
| Product Length (mm) | 150 |
| Product Width (mm) | 70 |
| Product Height (mm) | 187 |
| Wheel Diameter (mm) | 150 |
| Tread Width (mm) | 28 |
| Mounting Hole Dimensions (mm) | 12x8 |
| Hole Centre Dimensions (LxW) mm | 73x45 |
| Plate Dimensions (LxW) mm | 95x70 |
Weights
| Product Weight (grams) | 689 |
| Product Weight (kg) | 0.689 |
| Load Capacity (kg) | 130.0 |
