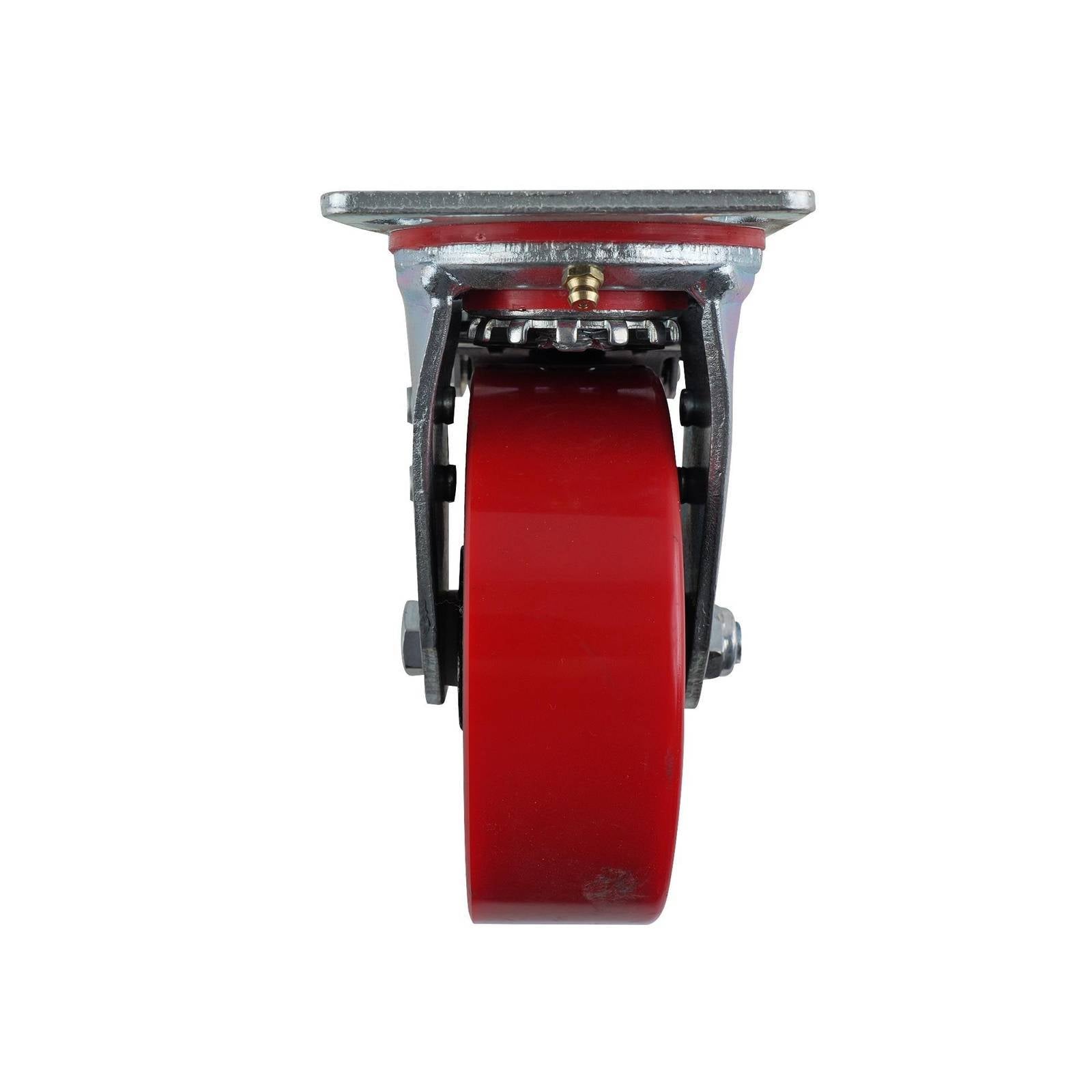

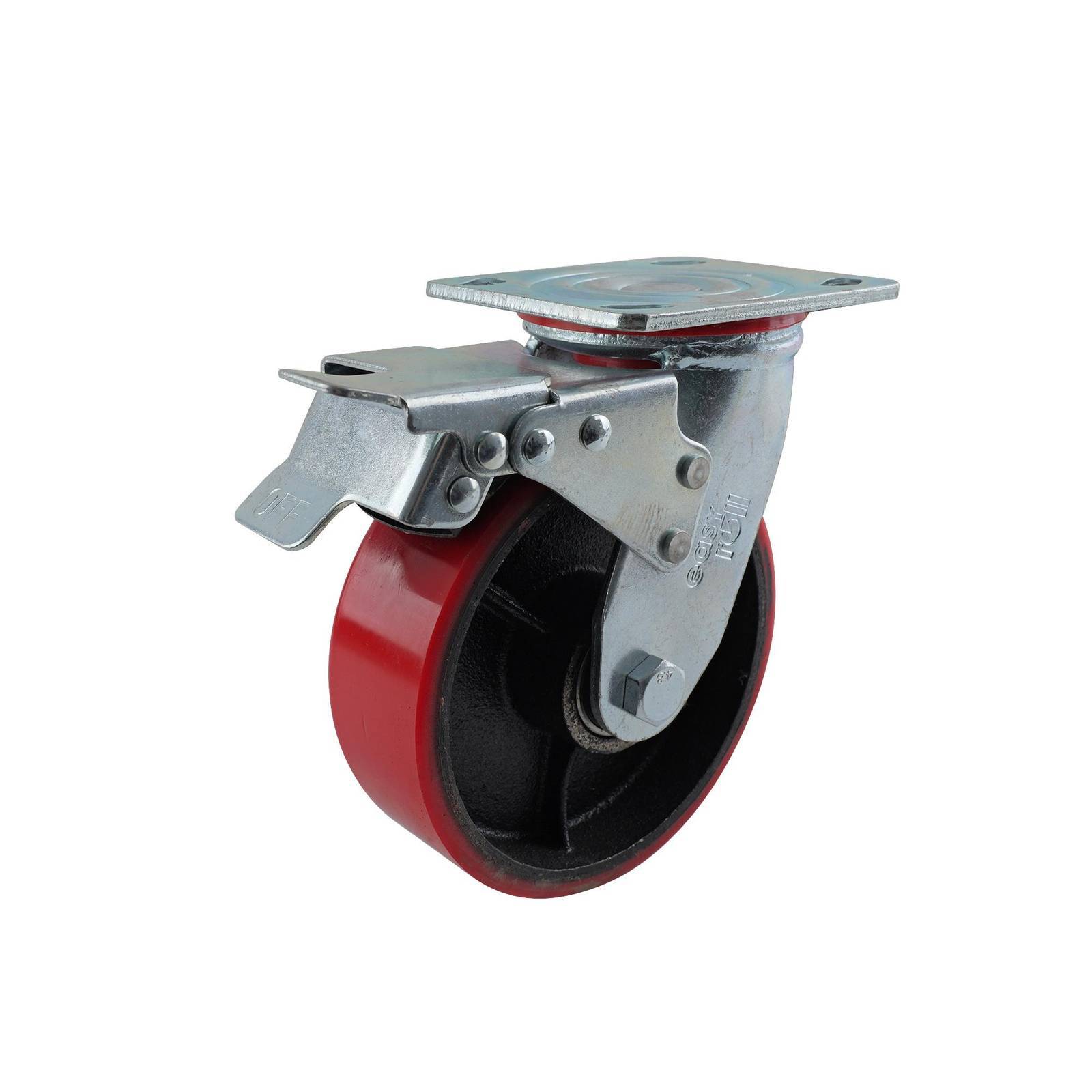

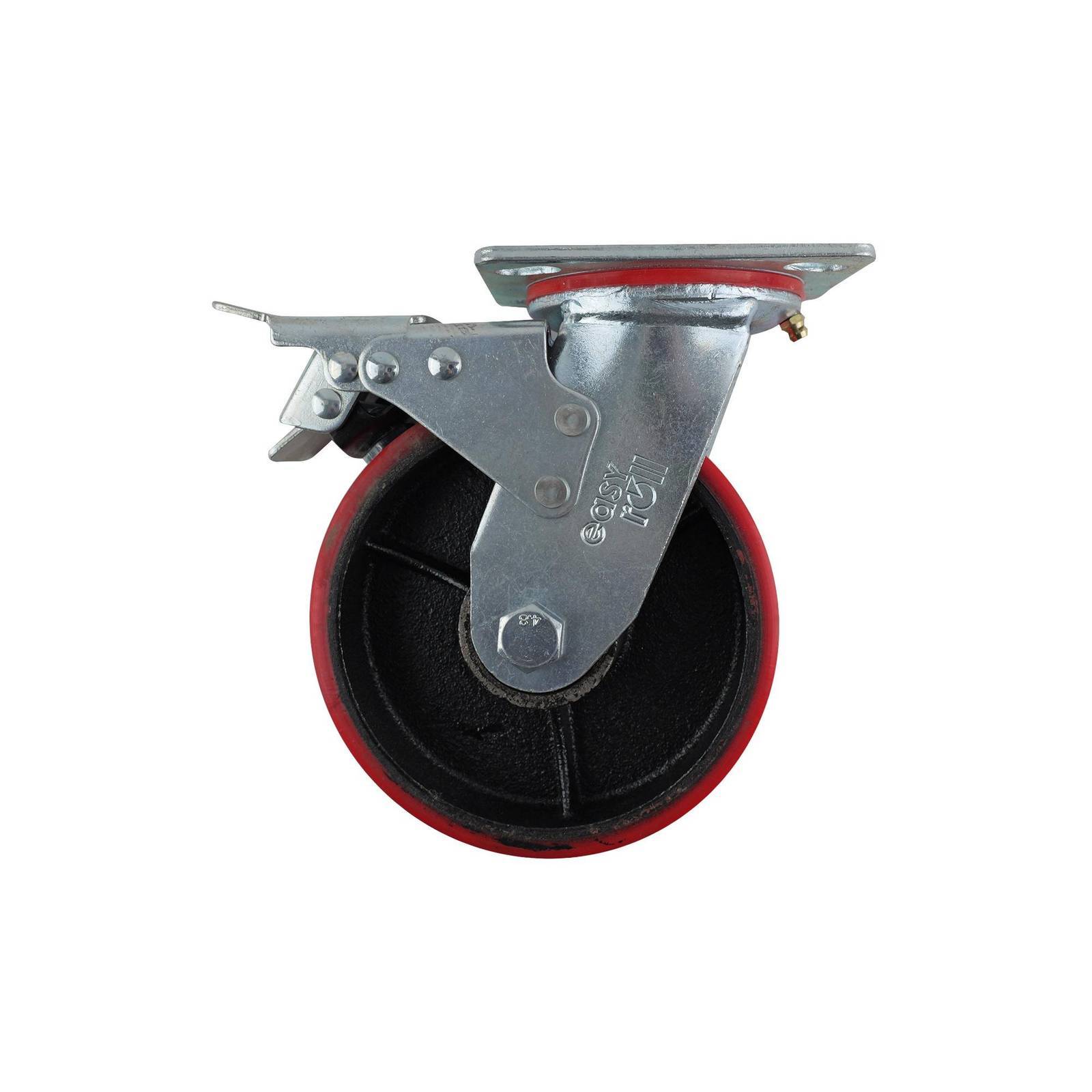

Easyroll 150mm Urethane Cast Iron Swivel Plate Brake J2 Series Castor 410kg
Easyroll 150mm Urethane Cast Iron Swivel Plate Brake J2 Series Castor 410kg is a castor rated for 410kg load capacity and designed for movement of equipment in trade applications. It utilises a polyurethane wheel with a cast iron core, a steel wheel core and a steel housing, along with a ball bearing assembly that supports smooth rotation. The plate swivel attachment enables precise manoeuvring, while the red, black and silver finish aids in clear product identification.
Couldn't load pickup availability
- Steel housing and core ensure lasting durability
- Polyurethane wheels provide quiet roll on various surfaces
- Ball bearing and single raceway simplify movement
- Mounted plate swivel attachment supports easy castor installation
- Durable polyurethane or cast iron wheel handles load well
- Suitable for both outdoor and indoor operational demands
- Easy roll design provides manoeuvrability and stable control
- Designed with precision for secure plate mount applications
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Attachments | Plate Swivel |
Construction
| Wheel Core Material | Steel |
| Wheel Material | Polyurethane |
| Housing Material | Steel |
| Bearing Material | Carbon Steel |
| Product Colour | Red/Black/Silver |

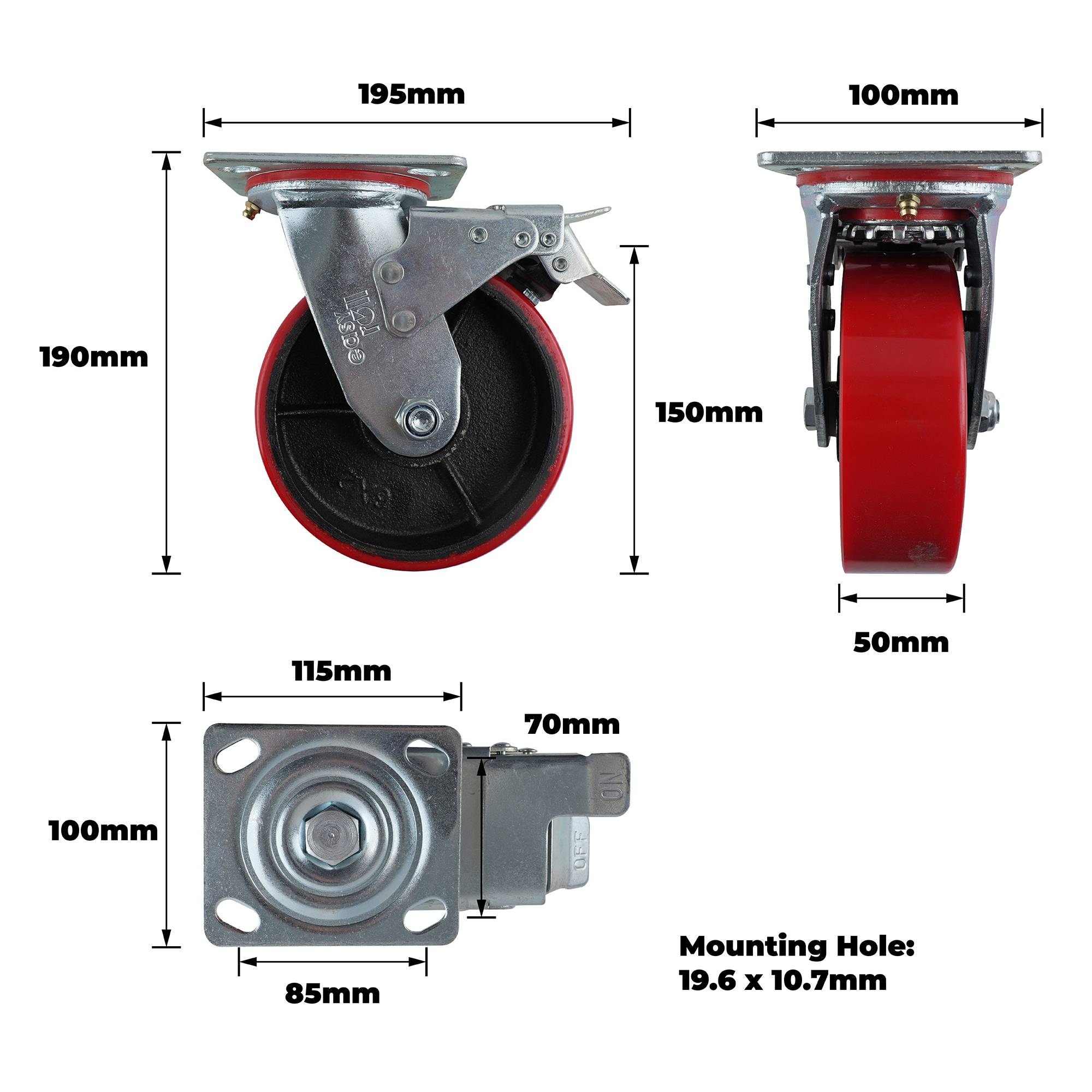

Dimensions
| Product Length (mm) | 195 |
| Product Width (mm) | 100 |
| Product Height (mm) | 188 |
| Wheel Diameter (mm) | 150 |
| Tread Width (mm) | 52 |
| Swivel Radius (mm) | 137.5 |
| Mounting Hole Dimensions (mm) | 19.6x10.7 |
| Hole Centre Dimensions (LxW) mm | 85x70 |
| Plate Dimensions (LxW) mm | 115x100 |
Weights
| Product Weight (grams) | 3573 |
| Product Weight (kg) | 3.573 |
| Load Capacity (kg) | 410.0 |
