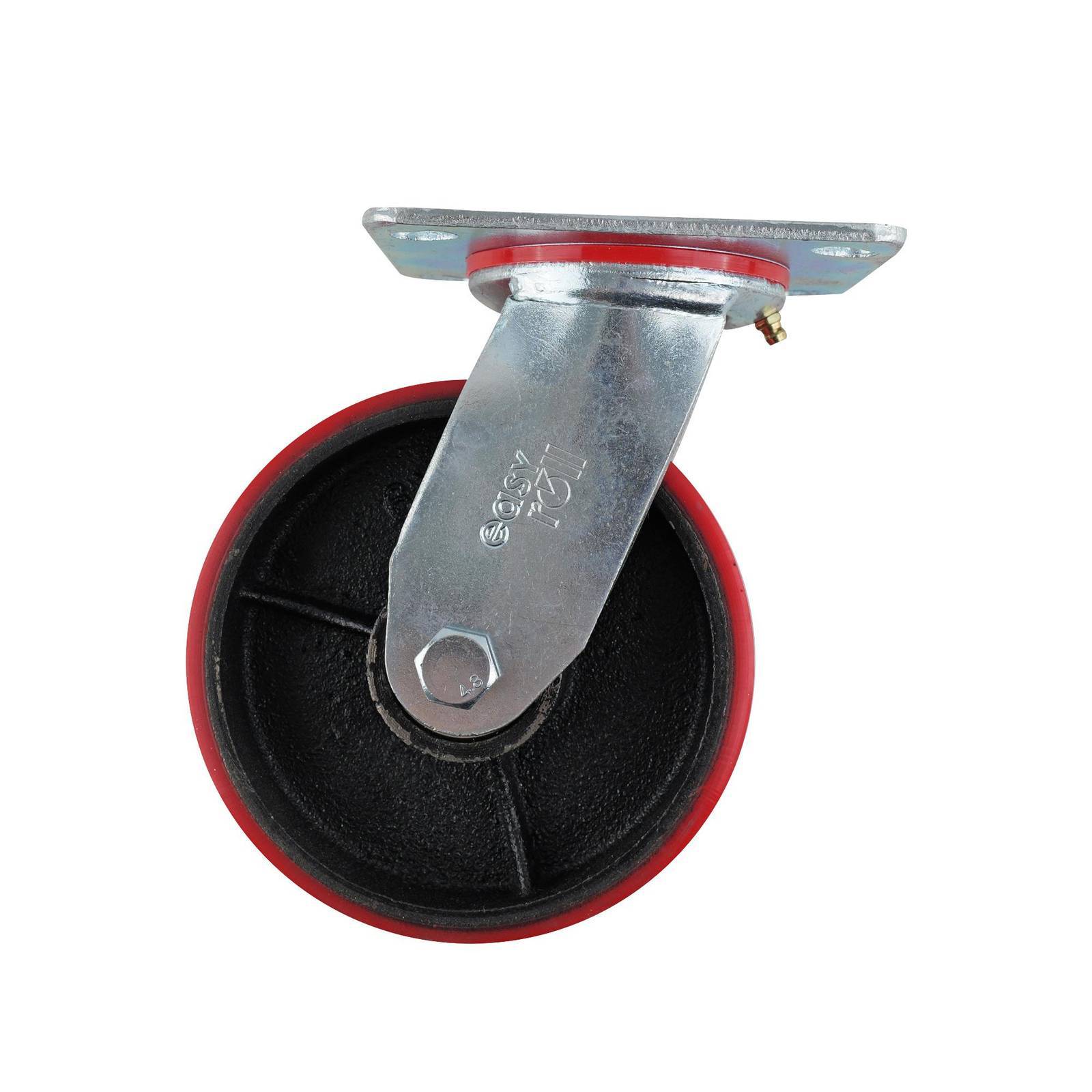

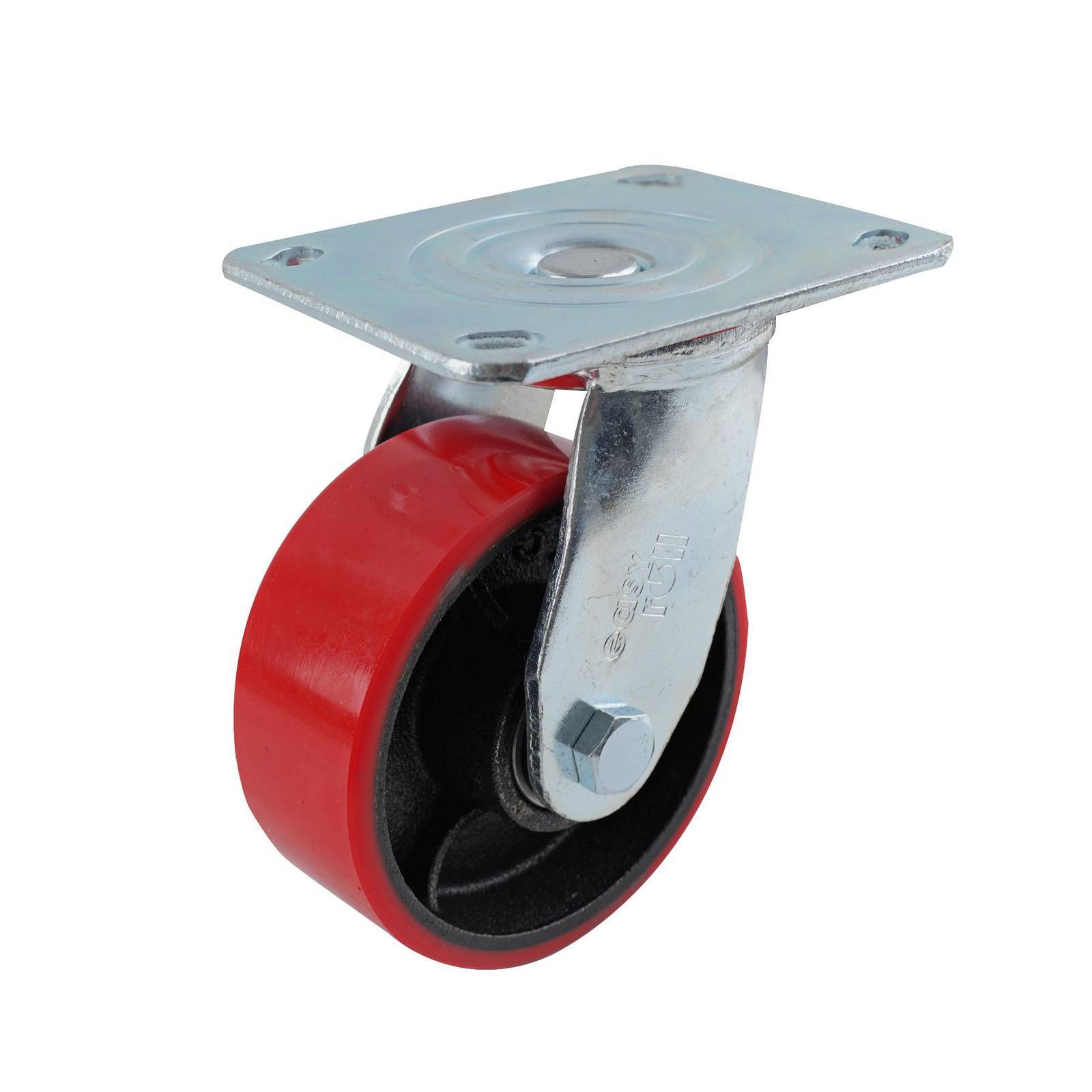

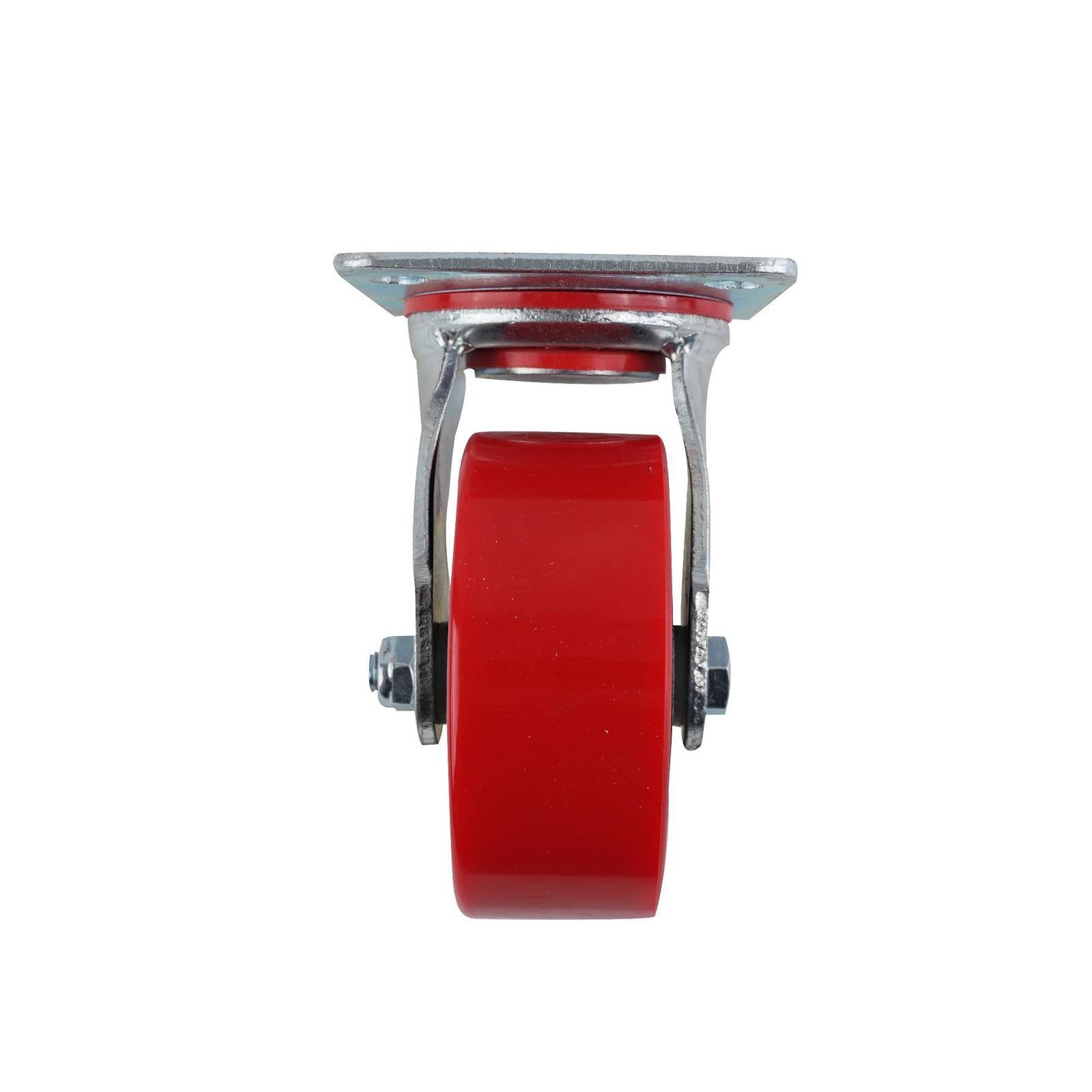

Easyroll 150mm Urethane Cast Iron Swivel Plate J3 Series Castor 410kg
Easyroll 150mm Urethane Cast Iron Swivel Plate J3 Series Castor 410kg features a robust design with a steel wheel core, polyurethane wheel and carbon steel bearings. This castor is engineered for efficient movement in settings requiring controlled manoeuvrability. Its ball bearing system and rigid plate attachment deliver smooth rotation and secure mounting. The combination of materials enhances durability and load handling while providing consistent performance for professional users.
Couldn't load pickup availability
- Robust steel wheel core for enhanced durability
- Polyurethane wheels offer smooth, quiet movement
- Ball bearing system ensures precise swivel action
- Steel housing provides robust, long-lasting construction
- Rigid mounting plate enables secure and stable installation
- Single raceway design simplifies maintenance tasks
- Integrated polyurethane and cast iron for balanced performance
- Engineered to support loads up to 410kg
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Attachments | Plate Rigid |
Construction
| Wheel Core Material | Steel |
| Wheel Material | Polyurethane |
| Housing Material | Steel |
| Bearing Material | Carbon Steel |
| Product Colour | Red/Black/Silver |

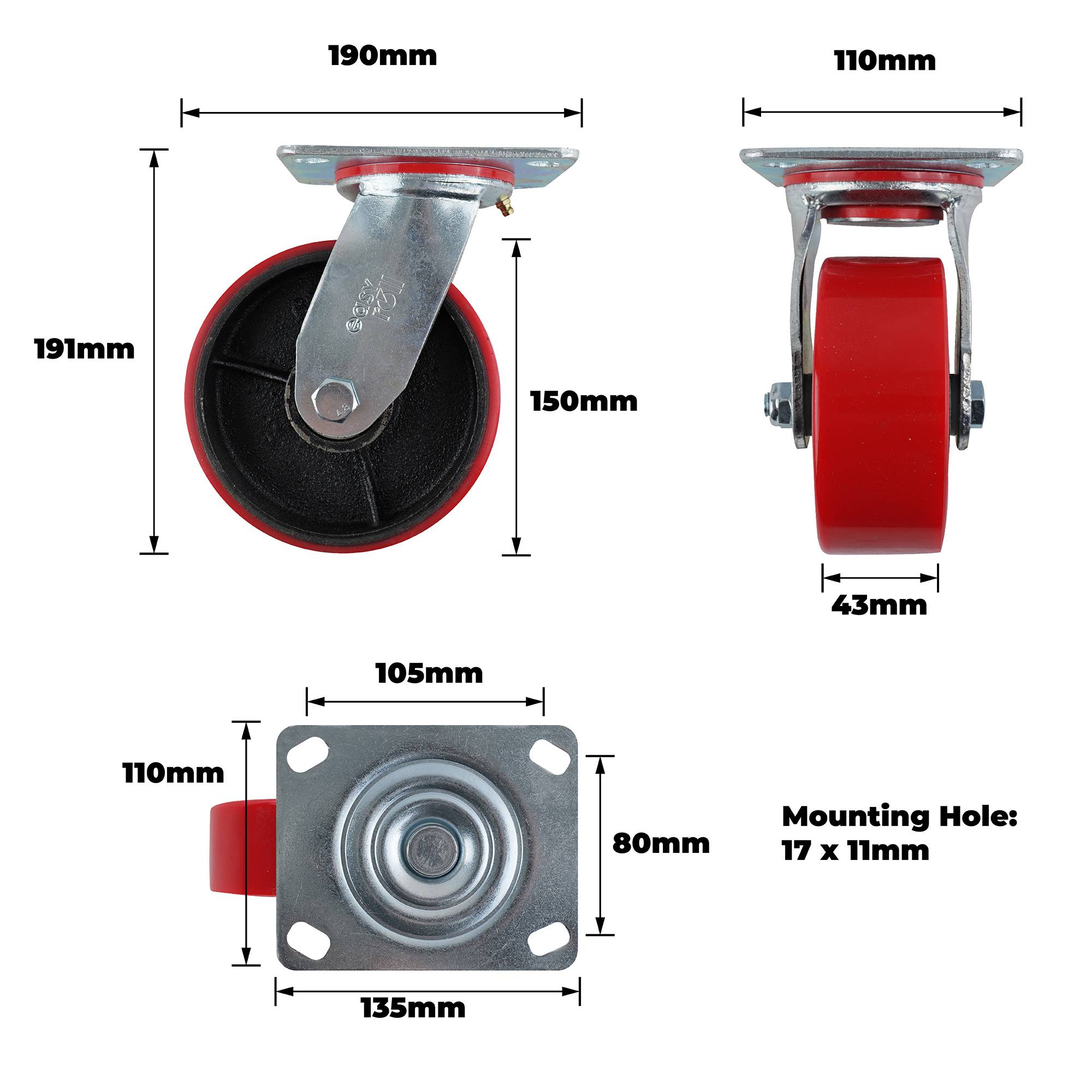

Dimensions
| Product Length (mm) | 190 |
| Product Width (mm) | 110 |
| Product Height (mm) | 191 |
| Wheel Diameter (mm) | 150 |
| Tread Width (mm) | 43 |
| Swivel Radius (mm) | 122.5 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105x80 |
| Plate Dimensions (LxW) mm | 135x110 |
Weights
| Product Weight (grams) | 3180 |
| Product Weight (kg) | 3.18 |
| Load Capacity (kg) | 410.0 |
