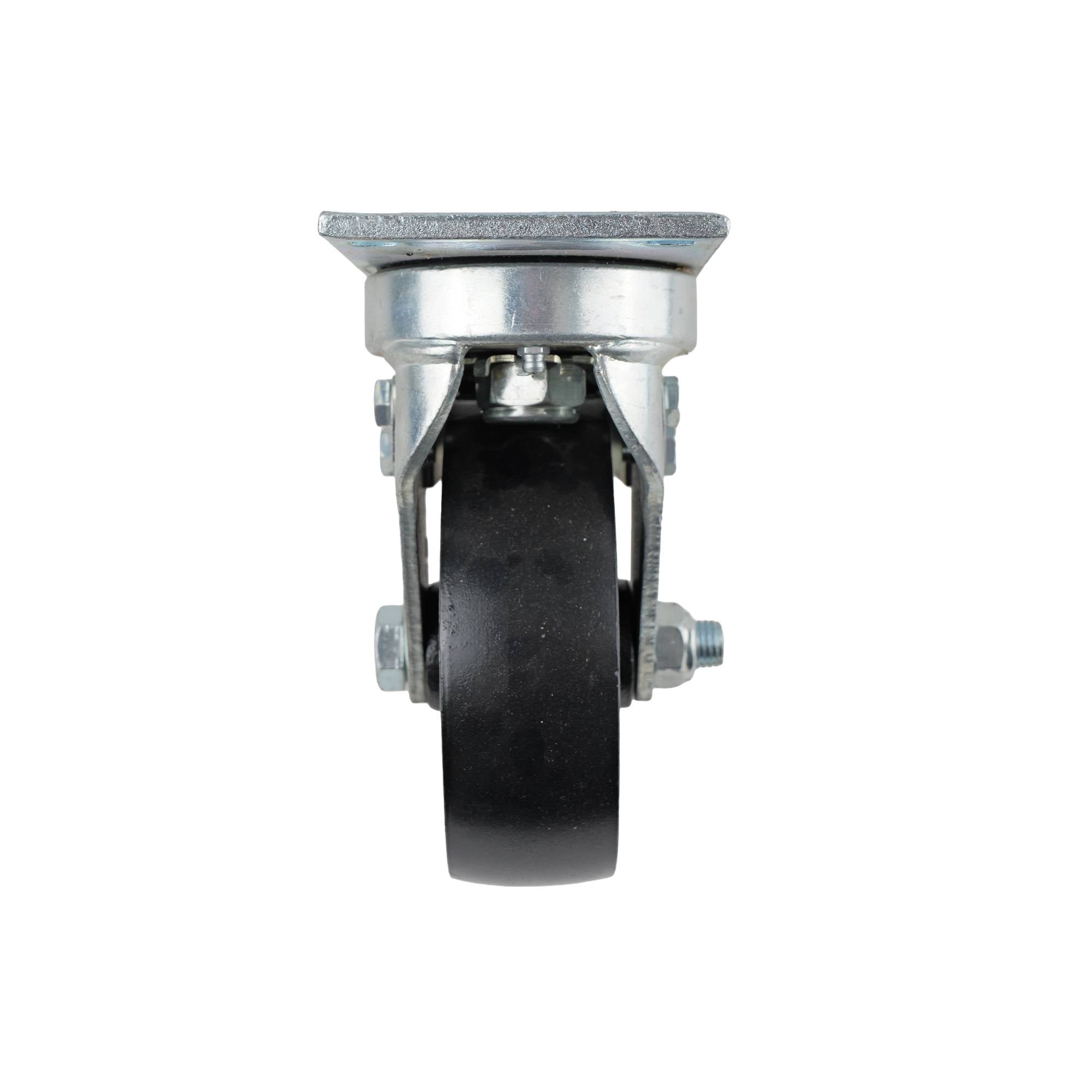

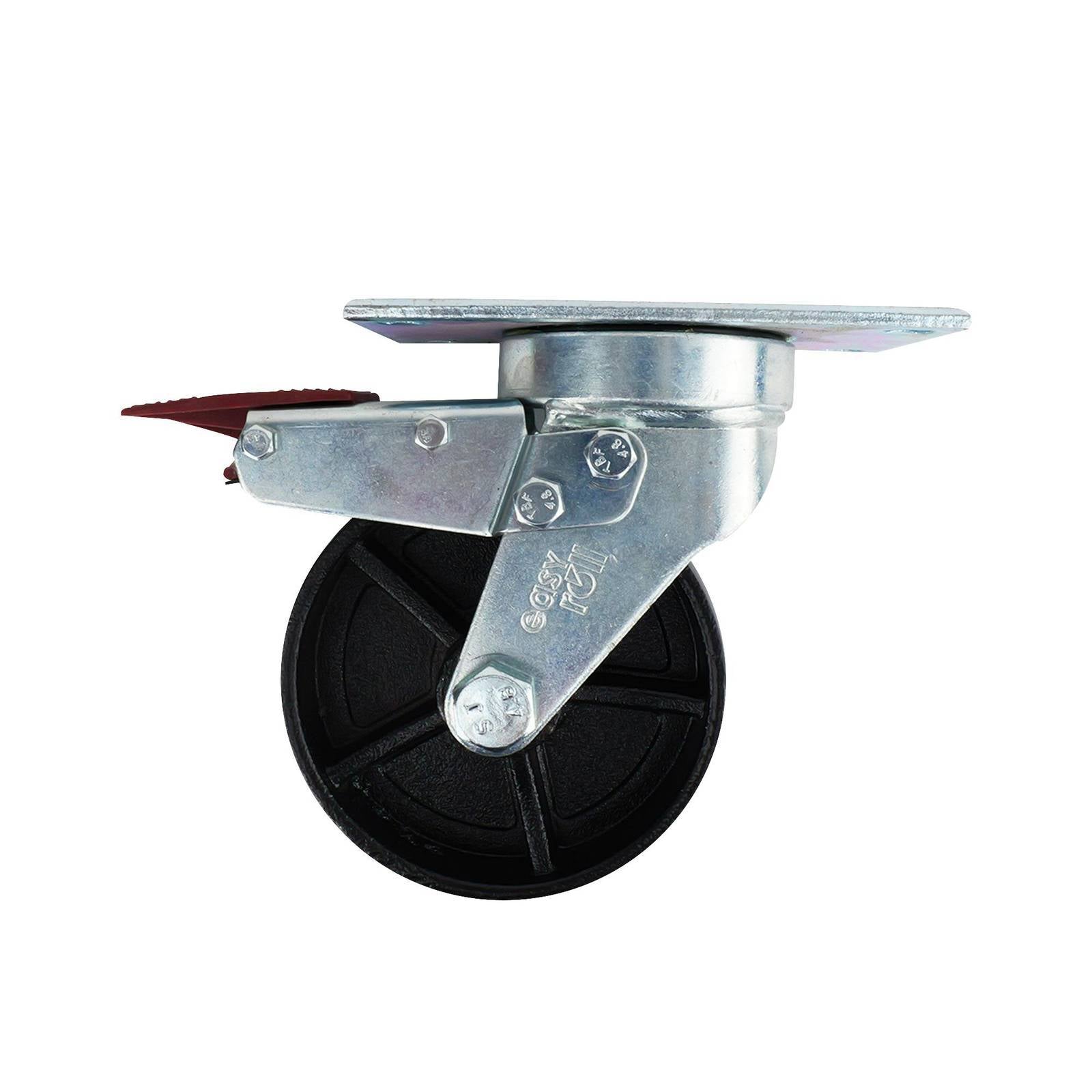

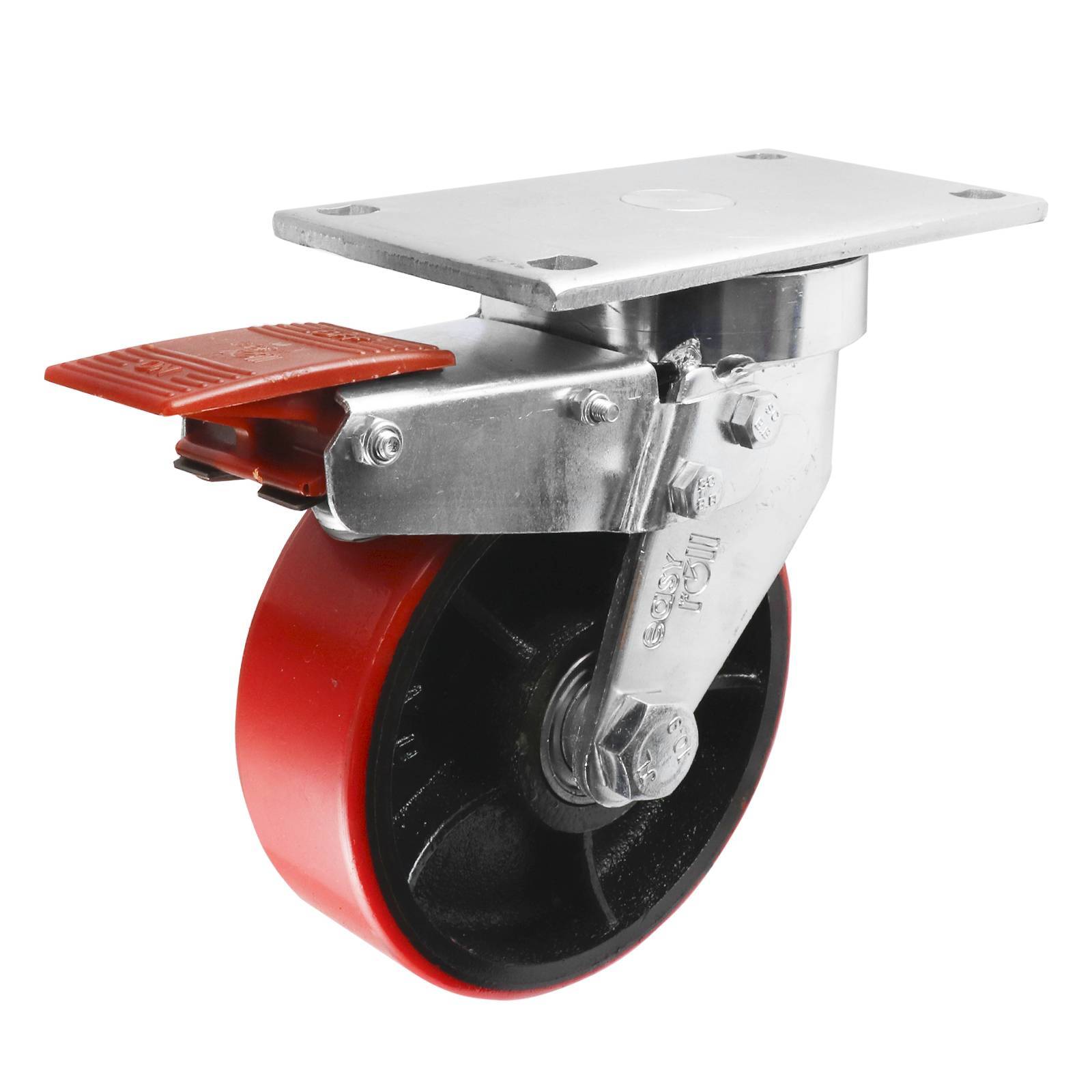

Easyroll 150mm Urethane Cast Iron Swivel Plate J7 Series Castor 600kg
Easyroll 150mm Urethane Cast Iron Swivel Plate J7 Series Castor 600kg offers a robust design with a cast iron wheel core, polyurethane wheel and a steel housing for precise load handling and secure manoeuvring. Its plain bearing and single raceway system provide reliable performance in material movement tasks for trade professionals. The product includes a plate rigid attachment with a plate mount fitting to ensure stability and accurate manoeuvrability in demanding work settings.
Couldn't load pickup availability
- Durable cast iron wheel core built for long-lasting performance
- Polyurethane wheel delivers smooth handling across various surfaces
- Steel housing and bearings offer robust support in operation
- Fixed plate mount ensures precise fitting during installation
- 150mm wheel size with a 600kg load capacity rating
- Single raceway design maximises stability on tilt and pivot
- Versatile red, black and silver finish enhances visual appeal
- Swivel mechanism offers controlled movement with plain bearing system
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Plain Bearing |
| Raceway Type | Single |
| Attachments | Plate Rigid |
Construction
| Wheel Core Material | Cast Iron |
| Wheel Material | Polyurethane |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Red/Black/Silver |

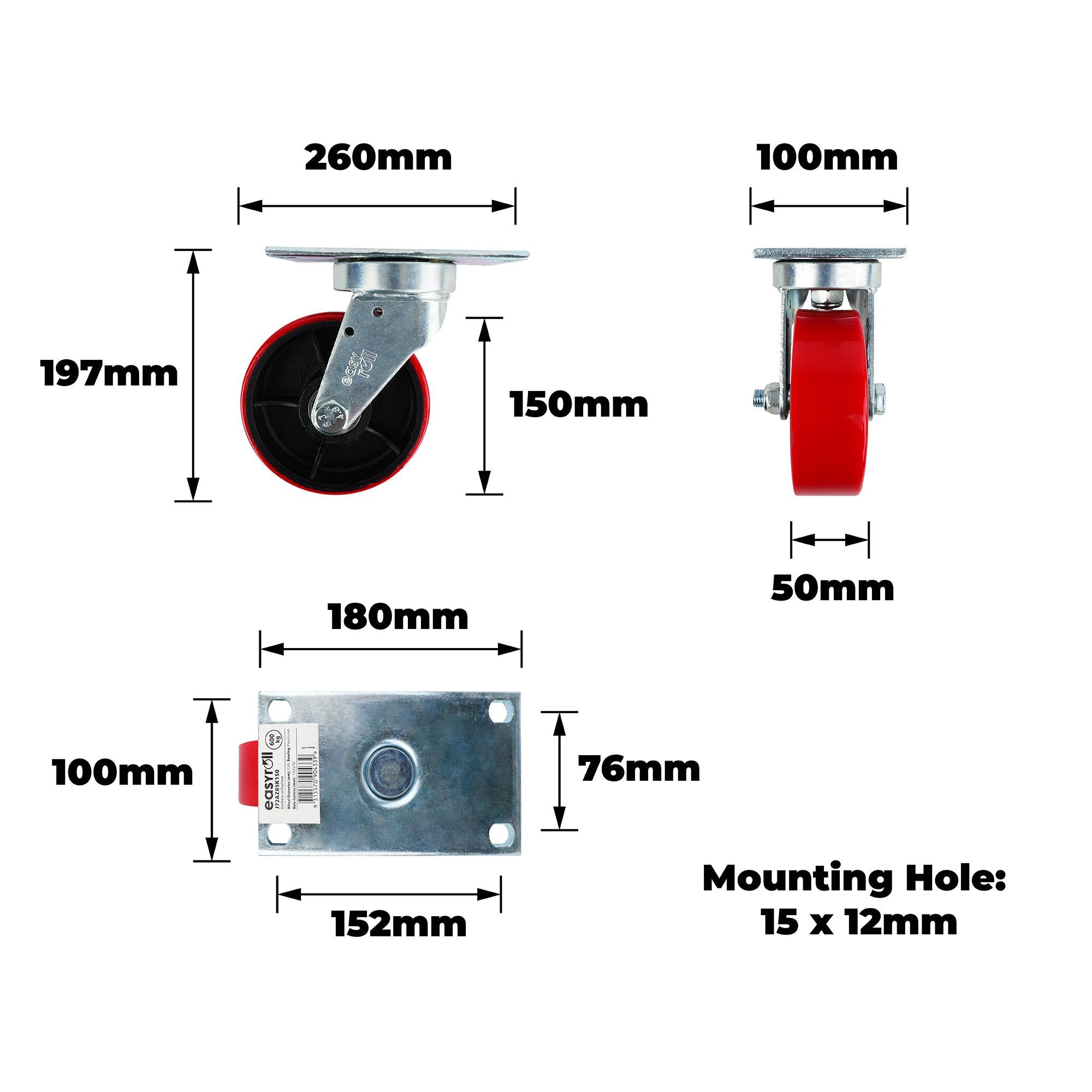

Dimensions
| Product Length (mm) | 260 |
| Product Width (mm) | 100 |
| Product Height (mm) | 197 |
| Wheel Diameter (mm) | 150 |
| Tread Width (mm) | 50 |
| Swivel Radius (mm) | 170 |
| Mounting Hole Dimensions (mm) | 15x12 |
| Hole Centre Dimensions (LxW) mm | 152x76 |
| Plate Dimensions (LxW) mm | 180x100 |
Weights
| Product Weight (grams) | 5643 |
| Product Weight (kg) | 5.643 |
| Load Capacity (kg) | 600.0 |
