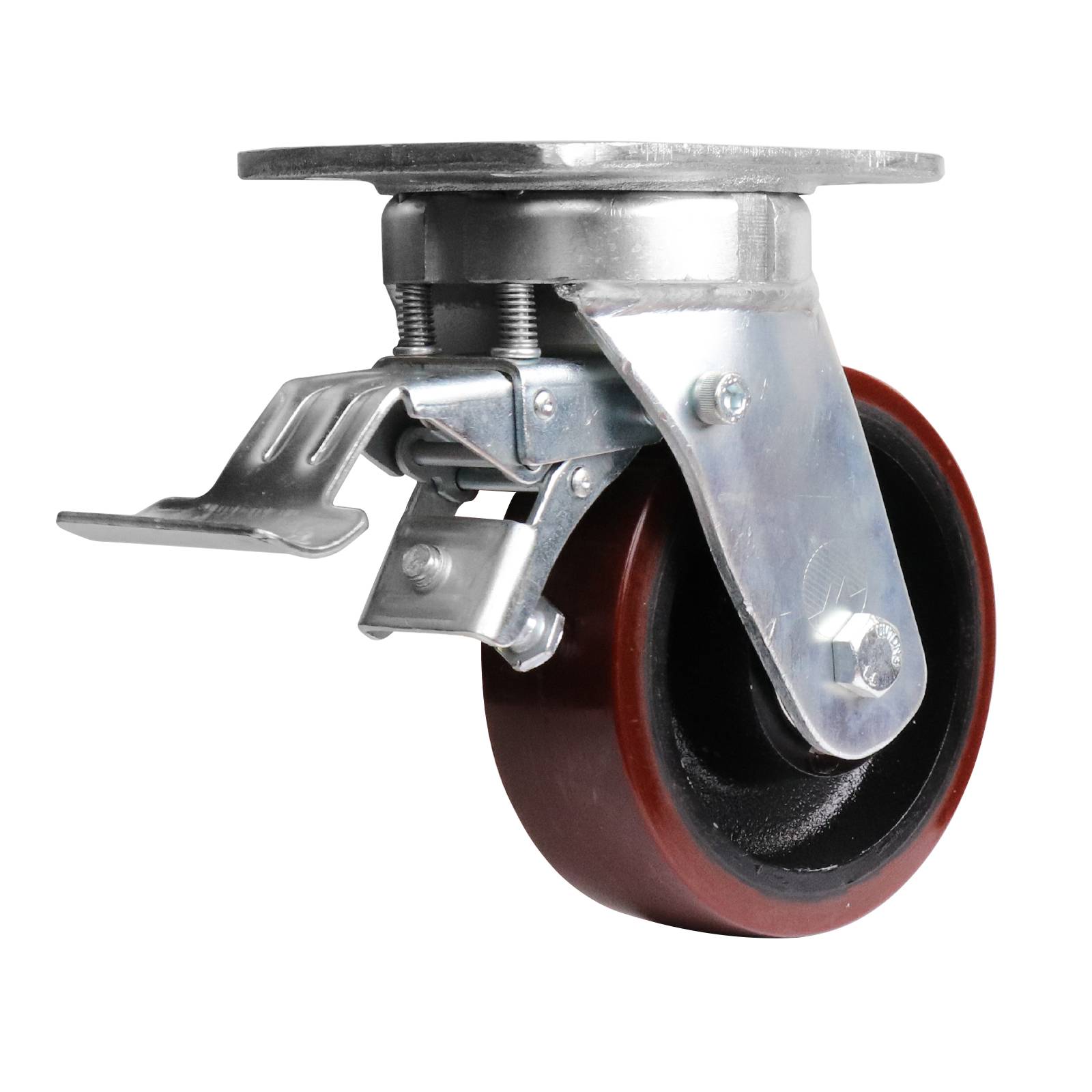

Easyroll 150mm Urethane Cast Iron Swivel Plate Brake X2 Series Castor 750kg
Easyroll 150mm Urethane Cast Iron Swivel Plate Brake X2 Series Castor 750kg is a robust castor designed for precise manoeuvrability and effective load handling. It features a polyurethane wheel with a polypropylene core, supported by a stainless steel housing and precision stainless steel bearings. The dual raceway and plate mount with rigid attachment allow for straightforward installation, offering reliable performance and ease of movement for trade professionals.
Couldn't load pickup availability
- Robust stainless steel housing and bearing construction
- Precision bearings deliver dependable swivel movement
- Polyurethane wheels provide smooth roll performance
- Dual raceway design supports balanced load distribution
- Plate mount fitting offers secure attachment and stability
- Red, black and silver finish provides clear visual identification
- Polypropylene wheel core ensures robust support and resilience
- Supports load capacity up to 750 kg
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | No |
| Indoor Use | No |
| Bearing Type | Precision Bearing |
| Raceway Type | Dual |
| Attachments | Plate Rigid |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Polyurethane |
| Housing Material | Stainless Steel |
| Bearing Material | Stainless Steel |
| Product Colour | Red/Black/Silver |
Dimensions
| Product Length (mm) | 135 |
| Product Width (mm) | 59 |
| Product Height (mm) | 200 |
| Wheel Diameter (mm) | 100 |
| Tread Width (mm) | 50 |
| Swivel Radius (mm) | 132.5 |
| Mounting Hole Dimensions (mm) | 26.4x13.2 |
| Plate Dimensions (LxW) mm | 150x110 |
Weights
| Product Weight (grams) | 6.2 |
| Product Weight (kg) | 6.2 |
| Load Capacity (kg) | 750.0 |
