Colson 150mm Urethane Cast Iron Swivel Plate Brake TS Series Castor 600kg
Colson 150mm Urethane Cast Iron Swivel Plate Brake TS Series Castor 600kg is a robust plate mount castor engineered for controlled mobility and precise handling. It features a cast iron wheel core paired with a nylon wheel and polyurethane outer wheel, all housed in a steel construction with roller bearings. The design delivers consistent performance and load stability while ensuring ease of installation and practical use for trade professionals.
Couldn't load pickup availability
- Cast iron wheel core provides enhanced durability
- Polyurethane wheel offers excellent resistance to wear
- Steel housing and roller bearings ensure smooth operation
- Swivel plate design enables versatile mounting configuration
- 150mm wheel diameter supports manoeuvrability and 600kg load
- Brake mechanism assists in controlled movement
- Nylon reinforcement and polyurethane yield improved longevity
- Engineered for reliable operation across varied applications
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Roller Bearing |
| Raceway Type | Single |
| Attachments | Plate Swivel |
Construction
| Wheel Core Material | Cast Iron |
| Wheel Material | Nylon |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Red/Silver |

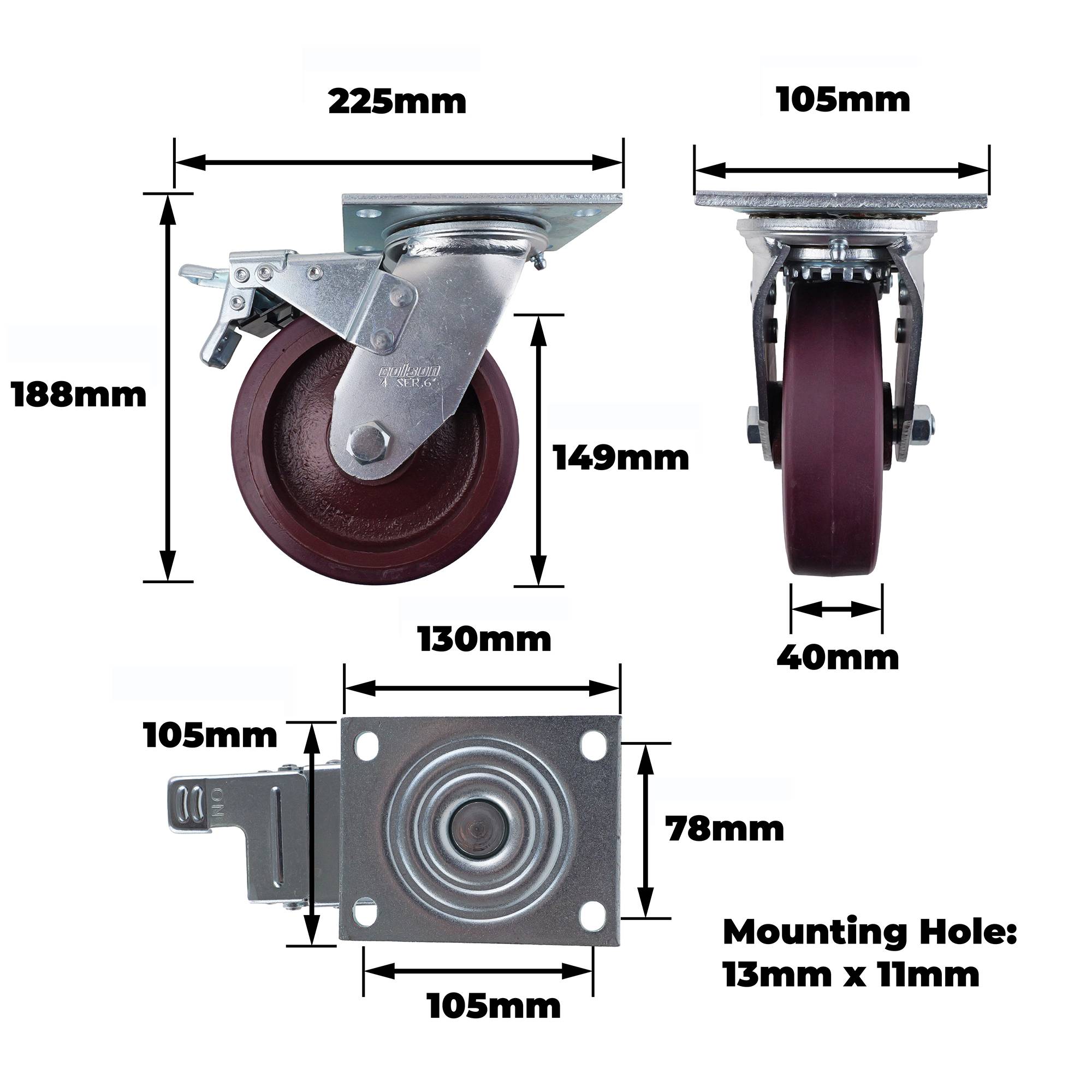

Dimensions
| Product Length (mm) | 225 |
| Product Width (mm) | 105 |
| Product Height (mm) | 188 |
| Wheel Diameter (mm) | 149 |
| Tread Width (mm) | 40 |
| Swivel Radius (mm) | 160 |
| Mounting Hole Dimensions (mm) | 14x11.3 |
| Hole Centre Dimensions (LxW) mm | 105x78 |
| Plate Dimensions (LxW) mm | 130x105 |
Weights
| Product Weight (grams) | 4415 |
| Product Weight (kg) | 4.458 |
| Load Capacity (kg) | 600.0 |
