Easyroll 200mm Black Rubber Swivel Plate Brake TS Series Castor 535kg
Easyroll 200mm Black Rubber Swivel Plate Brake TS Series Castor 535kg is engineered for trade and technical professionals, incorporating a robust cast iron wheel core, precision bearing and a high-quality rubber wheel. Its steel housing and bearing materials ensure reliable performance, while the plate mount design and bolt hole swivel facilitate effective manoeuvrability across varied applications. The unit is suitable for both indoor and outdoor use, offering practical movement solutions without unnecessary adornment.
Couldn't load pickup availability
- Cast iron wheel core for lasting structure
- Rubber wheel provides quiet, smooth handling
- Steel housing and bearings ensure robust construction
- Precision bearings deliver smooth, accurate manoeuvring
- Elegant black, silver and red finish enhances appearance
- Bolt hole swivel attachment simplifies plate mount installation
- Single raceway ensures reliable rotation control
- Fitted plate mount allows secure, straightforward positioning
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Precision Bearing |
| Raceway Type | Single |
| Attachments | Bolt Hole Swivel |
Construction
| Wheel Core Material | Cast Iron |
| Wheel Material | Rubber |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Black/Silver/Red |

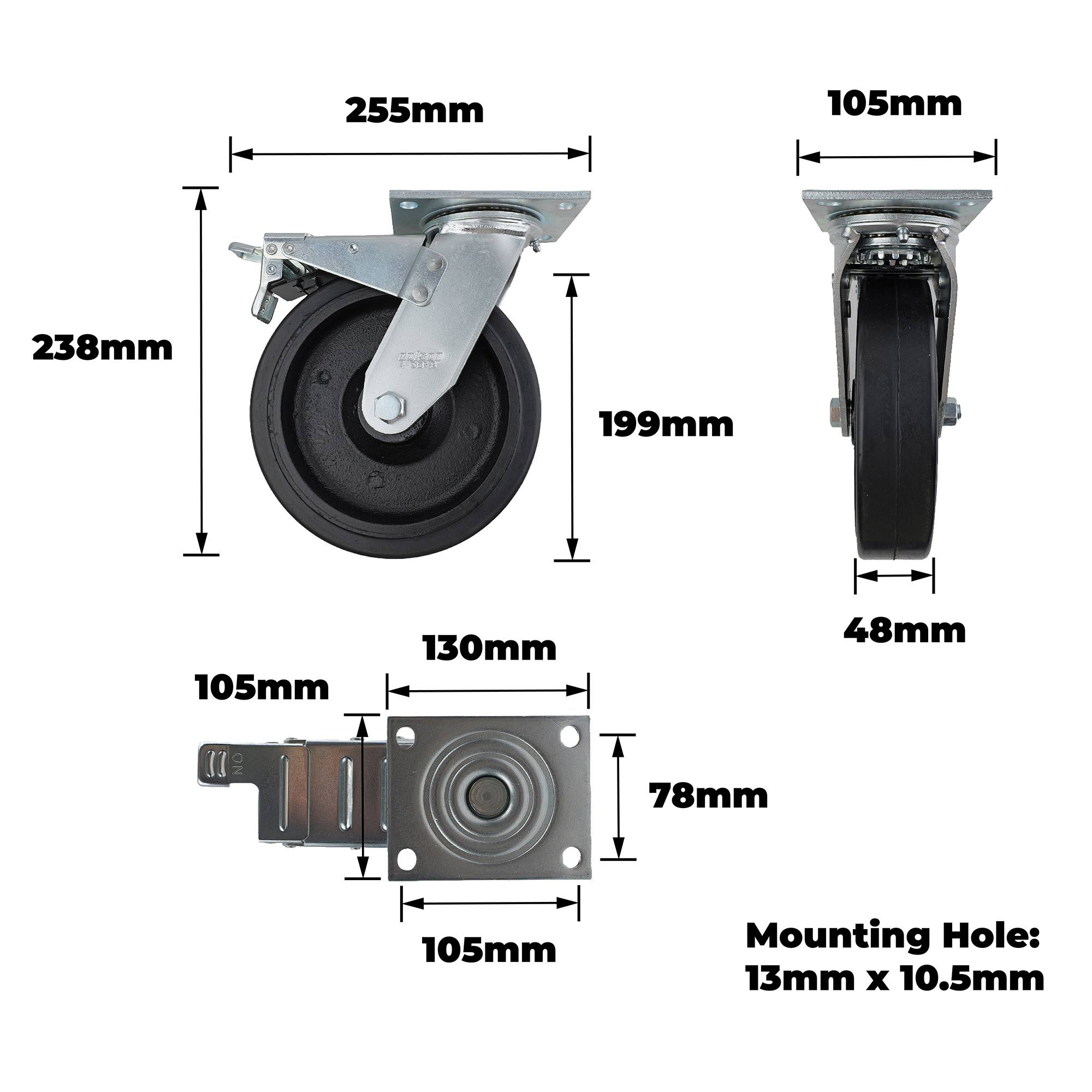

Dimensions
| Product Length (mm) | 255 |
| Product Width (mm) | 105 |
| Product Height (mm) | 238 |
| Wheel Diameter (mm) | 199 |
| Tread Width (mm) | 48 |
| Swivel Radius (mm) | 190 |
| Mounting Hole Dimensions (mm) | 13x10.5 |
| Hole Centre Dimensions (LxW) mm | 105x78 |
| Plate Dimensions (LxW) mm | 130x105 |
Weights
| Product Weight (grams) | 6188 |
| Product Weight (kg) | 6.188 |
| Load Capacity (kg) | 535.0 |
