Easyroll 200mm Blue Rubber Swivel Plate J3 Series Castor 500kg
Easyroll 200mm Blue Rubber Swivel Plate J3 Series Castor 500kg is designed with a polypropylene wheel core and rubber wheel for smooth rolling on a variety of surfaces. Its steel housing, carbon steel bearings and ball bearing system provide reliable performance and longevity. The plate mount design with a true plate attachment and total brake system ensures precise control. This castor offers practical mobility and dependable movement for trade and professional applications.
Couldn't load pickup availability
- Steel housing ensures robust construction for prolonged duty
- Polypropylene wheel core enhances wear and impact resistance
- Rubber wheels deliver reliable traction on varied surfaces
- Ball bearing assembly provides smooth caster rotation
- Swivel mechanism supports multiple movement directions
- Total brake offers precise locking for accurate stationary control
- Plate mount design enables fast installation and secure attachment
- Bold red, black, silver provide distinctive visual tracking
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Brake Type | Total |
| Attachments | Plate Swivel Total Brake |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Rubber |
| Housing Material | Steel |
| Bearing Material | Carbon Steel |
| Product Colour | Red/Black/Silver |

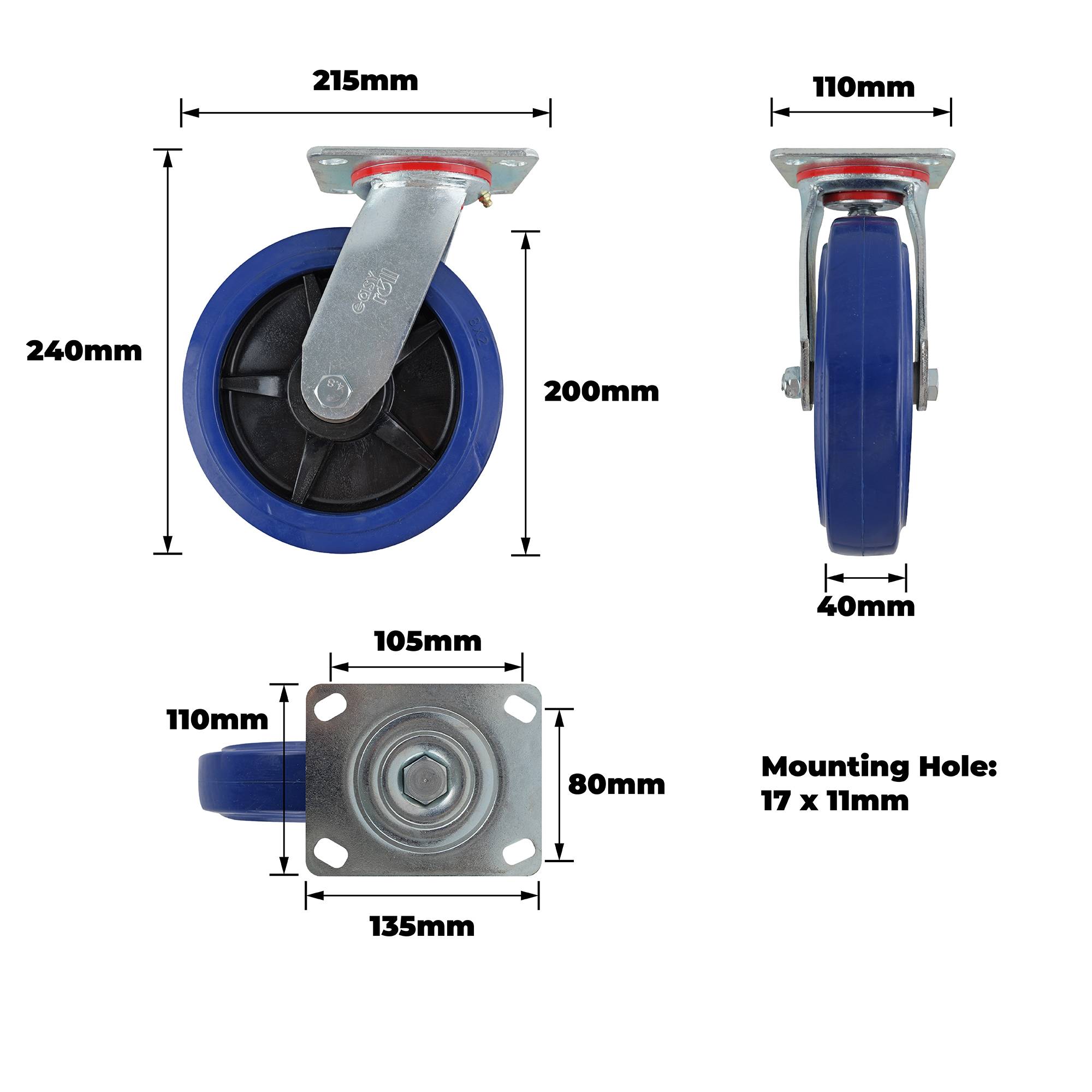

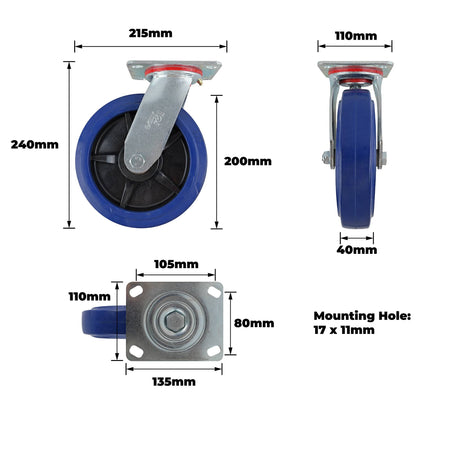

Dimensions
| Product Length (mm) | 215 |
| Product Width (mm) | 110 |
| Product Height (mm) | 240 |
| Wheel Diameter (mm) | 200 |
| Tread Width (mm) | 40 |
| Swivel Radius (mm) | 147.5 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105x80 |
| Plate Dimensions (LxW) mm | 135x110 |
Weights
| Product Weight (grams) | 3222 |
| Product Weight (kg) | 3.222 |
| Load Capacity (kg) | 500.0 |
