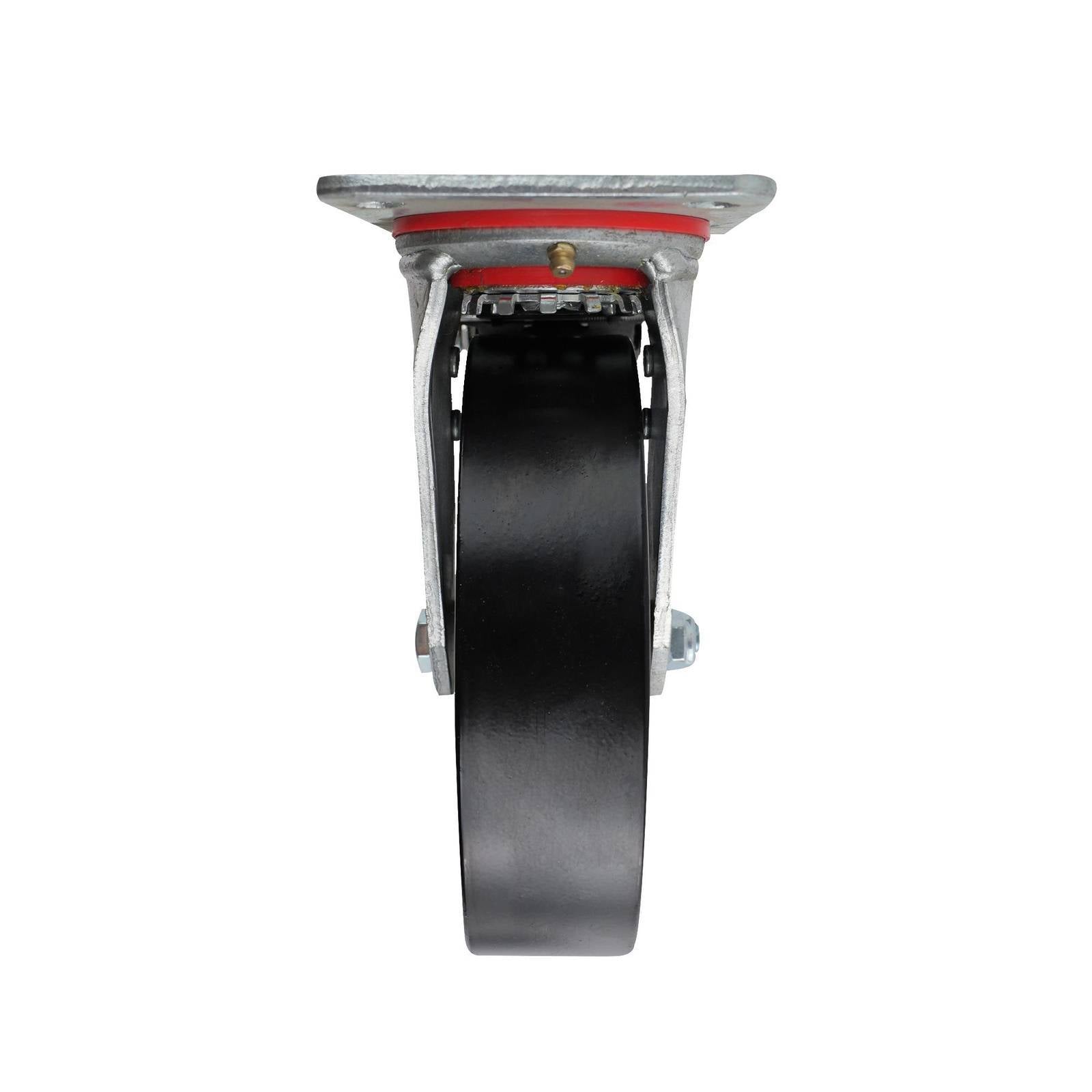

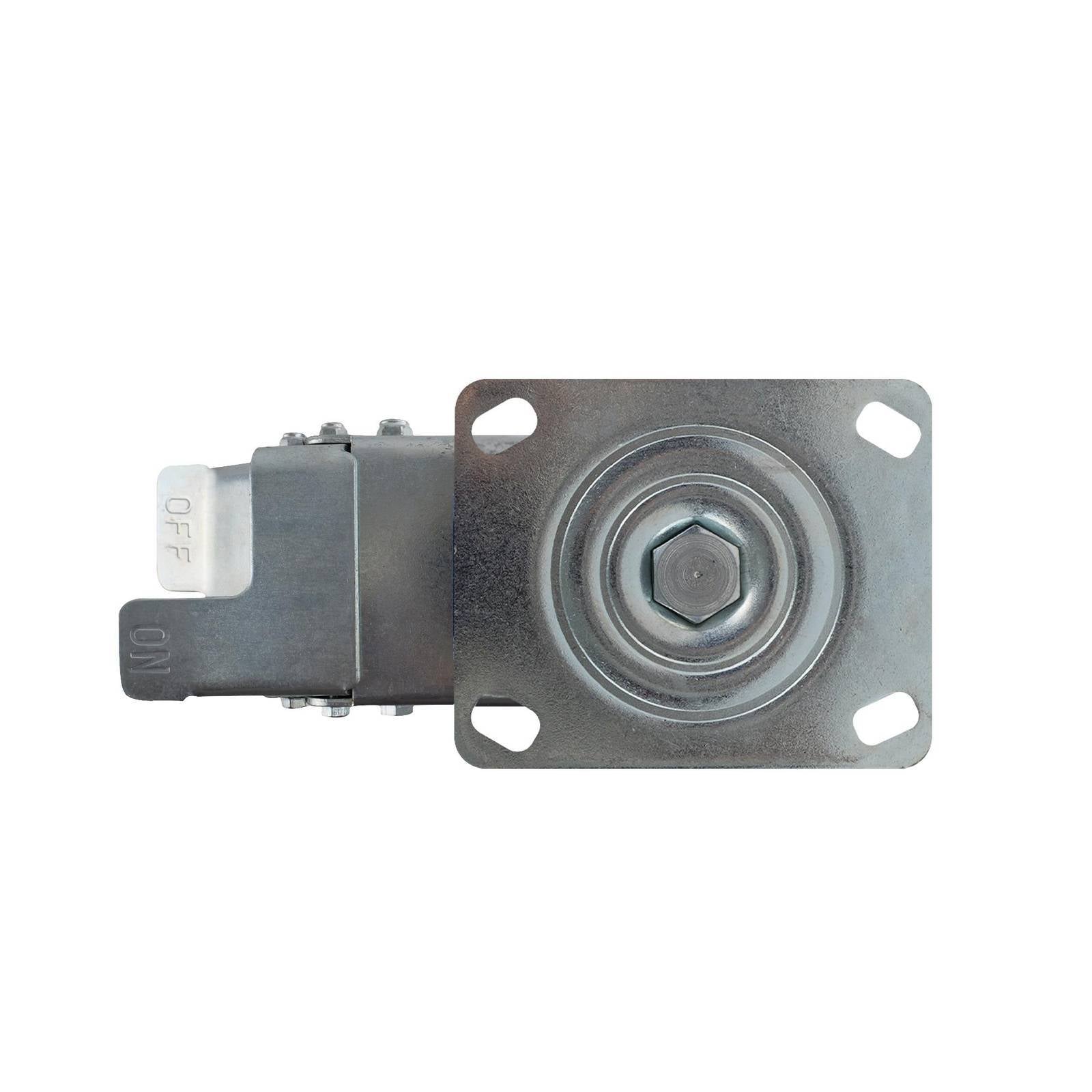

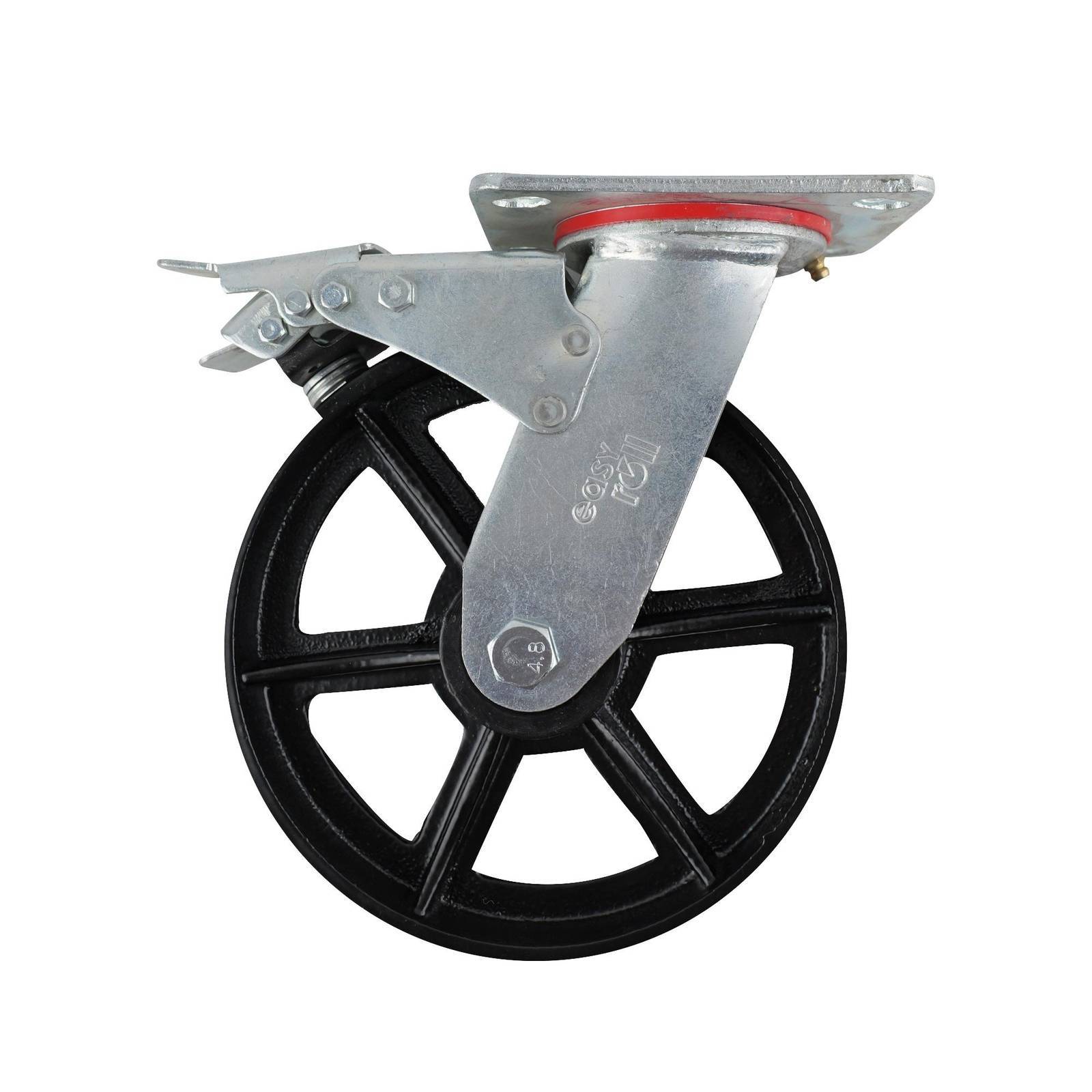

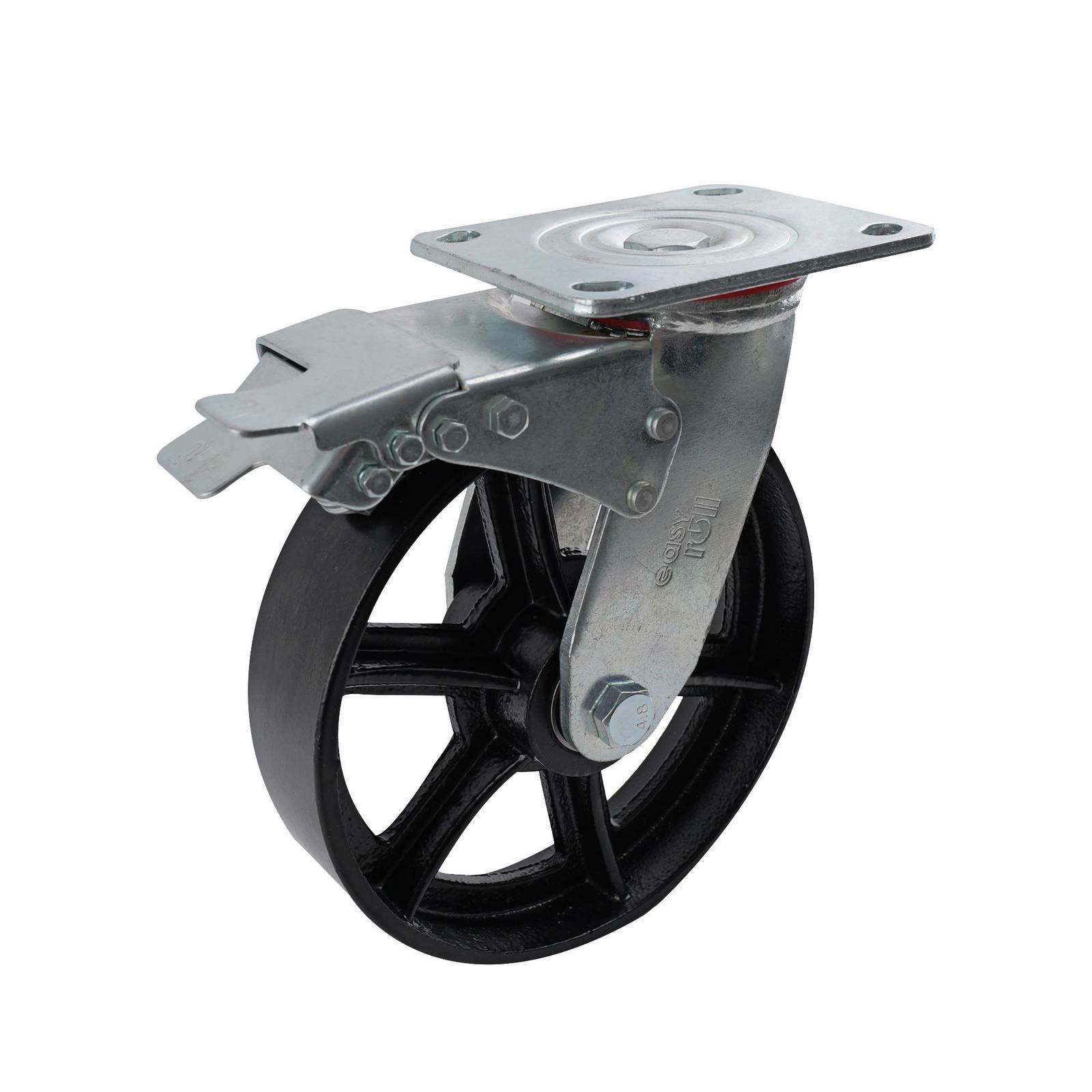

Easyroll 200mm Cast Iron Swivel Plate Brake J3 Series Castor 600kg
Easyroll 200mm Cast Iron Swivel Plate Brake J3 Series Castor 600kg is designed for effective material manoeuvring and precise load control. Its construction incorporates a cast iron wheel and core, a steel housing and carbon steel ball bearings that promote smooth rotation and reliable performance. The plate mount with swivel attachment allows for straightforward movement over both indoor and outdoor surfaces, providing technical advantages for professionals in trade and related industries.
Couldn't load pickup availability
- Robust cast iron wheel and core ensure dependable load handling
- Steel housing offers increased strength and long service life
- Carbon steel ball bearings enable smooth movement and reliability
- Single raceway design promotes consistent performance and precise travel
- Plate mount attachment ensures secure integration and easy fitting
- Versatile use indoors and outdoors across varied settings
- Red black silver finish enhances visibility and adds style
- Designed with plate swivel attachment for reliable directional control
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Attachments | Plate Swivel |
Construction
| Wheel Core Material | Cast Iron |
| Wheel Material | Cast Iron |
| Housing Material | Steel |
| Bearing Material | Carbon Steel |
| Product Colour | Red/Black/Silver |

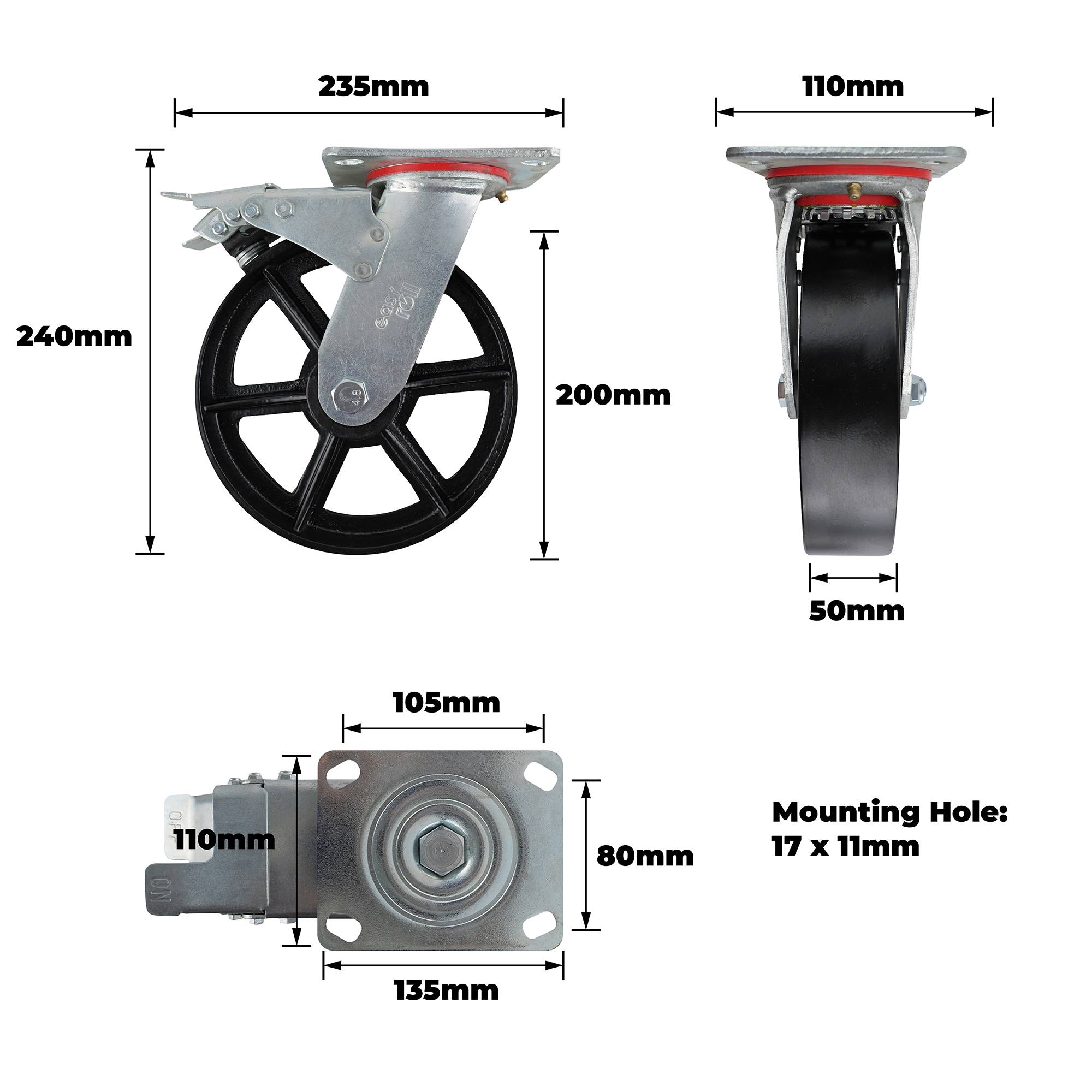

Dimensions
| Product Length (mm) | 235 |
| Product Width (mm) | 110 |
| Product Height (mm) | 240 |
| Wheel Diameter (mm) | 200 |
| Tread Width (mm) | 50 |
| Swivel Radius (mm) | 167.5 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105x80 |
| Plate Dimensions (LxW) mm | 135x110 |
Weights
| Product Weight (grams) | 5611 |
| Product Weight (kg) | 5.611 |
| Load Capacity (kg) | 600.0 |
