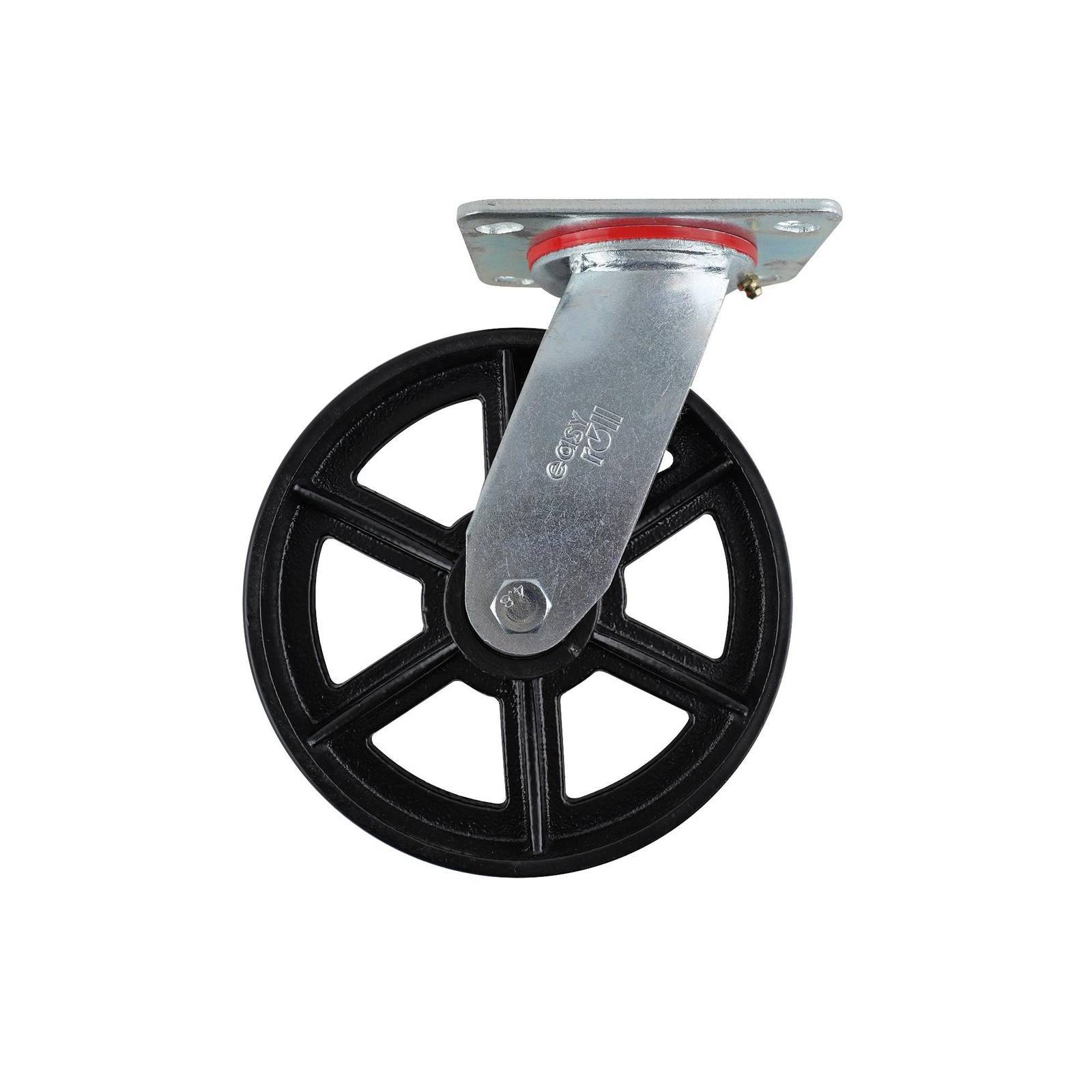

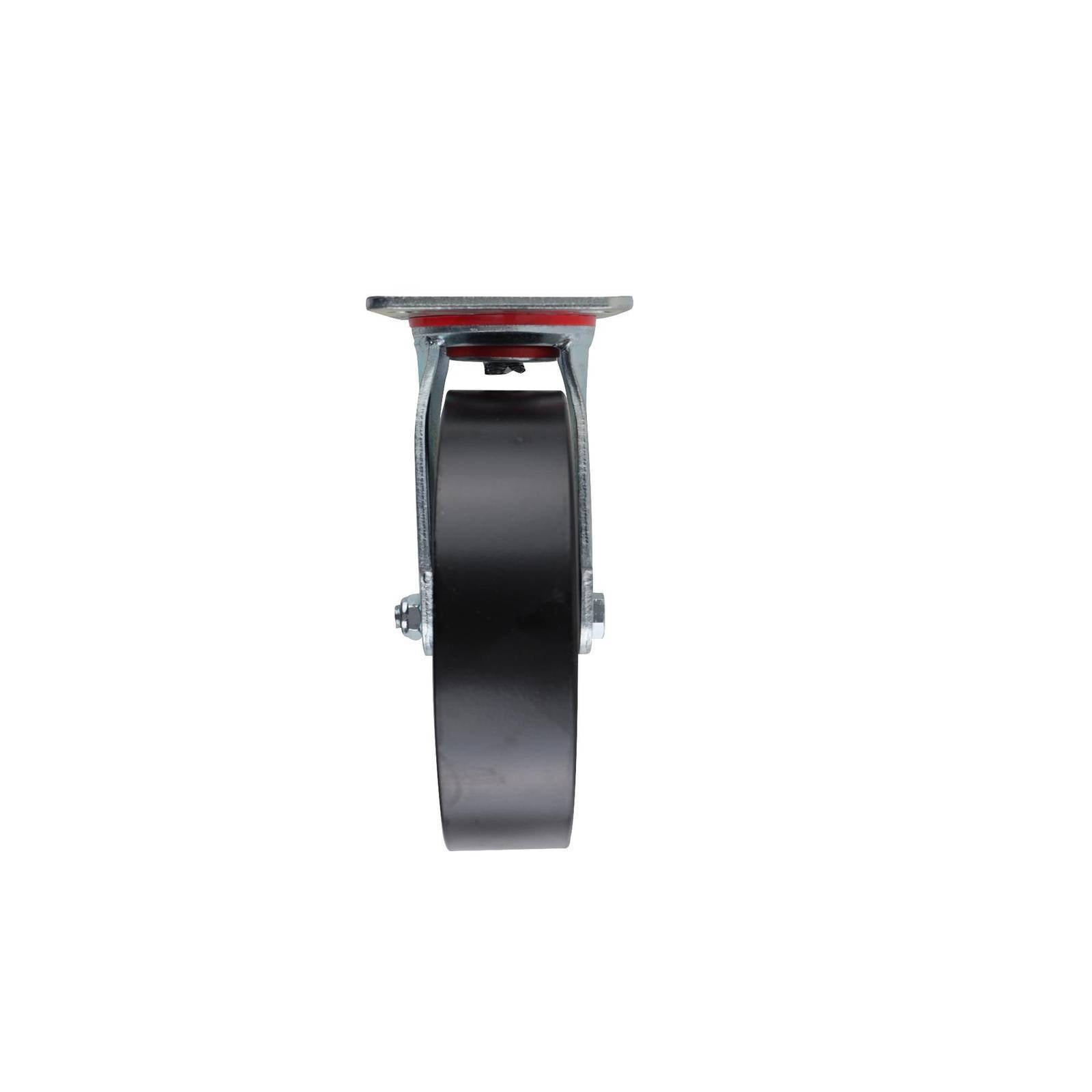

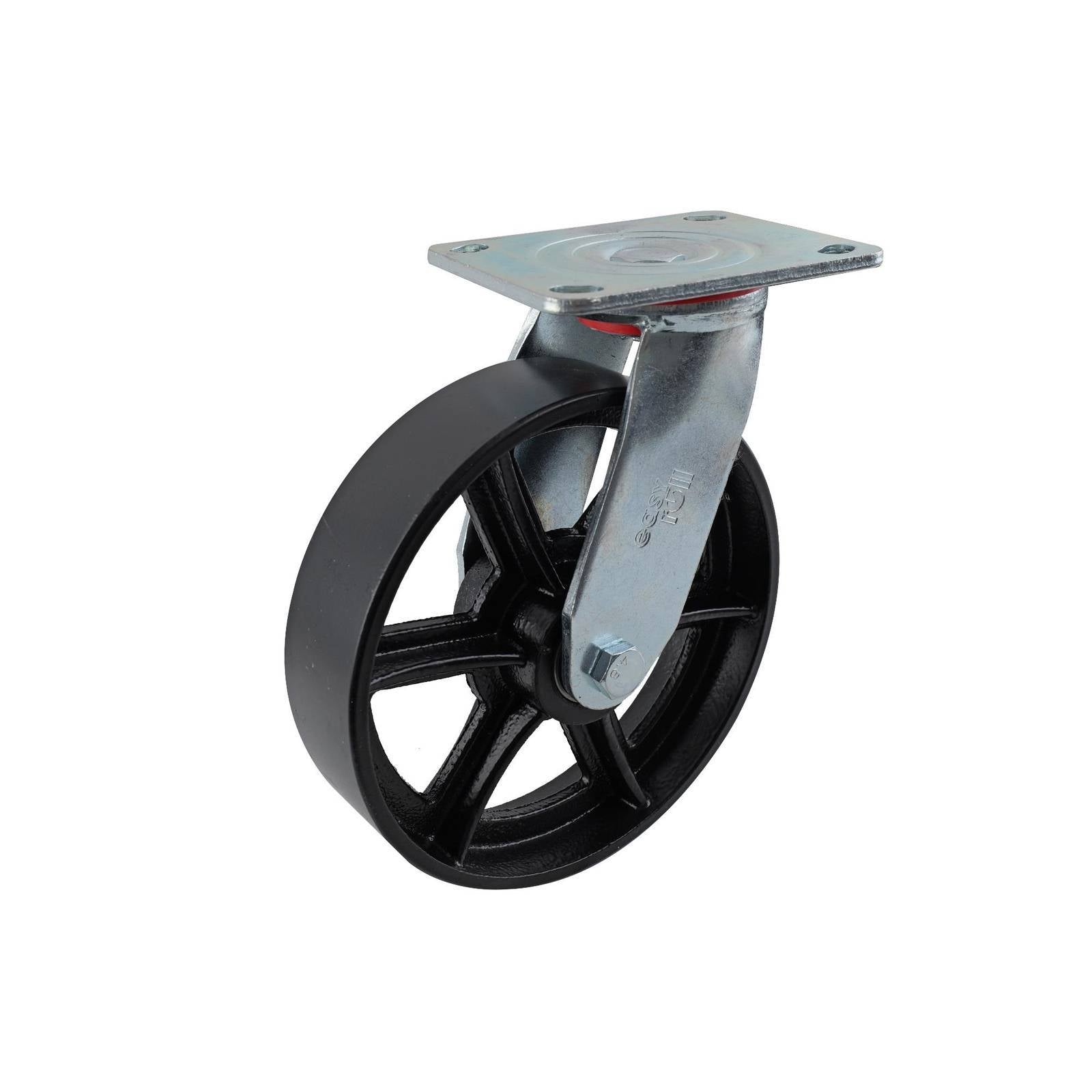

Easyroll 200mm Cast Iron Swivel Plate J3 Series Castor 600kg
Easyroll 200mm Cast Iron Swivel Plate J3 Series Castor 600kg. This product is engineered with a cast iron wheel and core, coupled with a robust steel housing and carbon steel ball bearings in a single raceway design. The plate swivel enhances movement precision and secure plate mounting. Featuring a red, black and silver finish, it optimises application reliability for trade professionals in both outdoor and indoor environments.
Couldn't load pickup availability
- Robust cast iron wheel and core for long-life service
- Steel housing with high strength support for heavy loads
- Smooth ball bearings ensure low resistance in rotation
- Single raceway design simplifies maintenance and inspection
- Plate mount attachment for secure and adaptable fitting
- Cast iron construction provides consistent stability and durability
- Versatile design suits indoor and outdoor applications
- Easyroll brand assurance offers proven reliability per castor
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Attachments | Plate Swivel |
Construction
| Wheel Core Material | Cast Iron |
| Wheel Material | Cast Iron |
| Housing Material | Steel |
| Bearing Material | Carbon Steel |
| Product Colour | Red/Black/Silver |

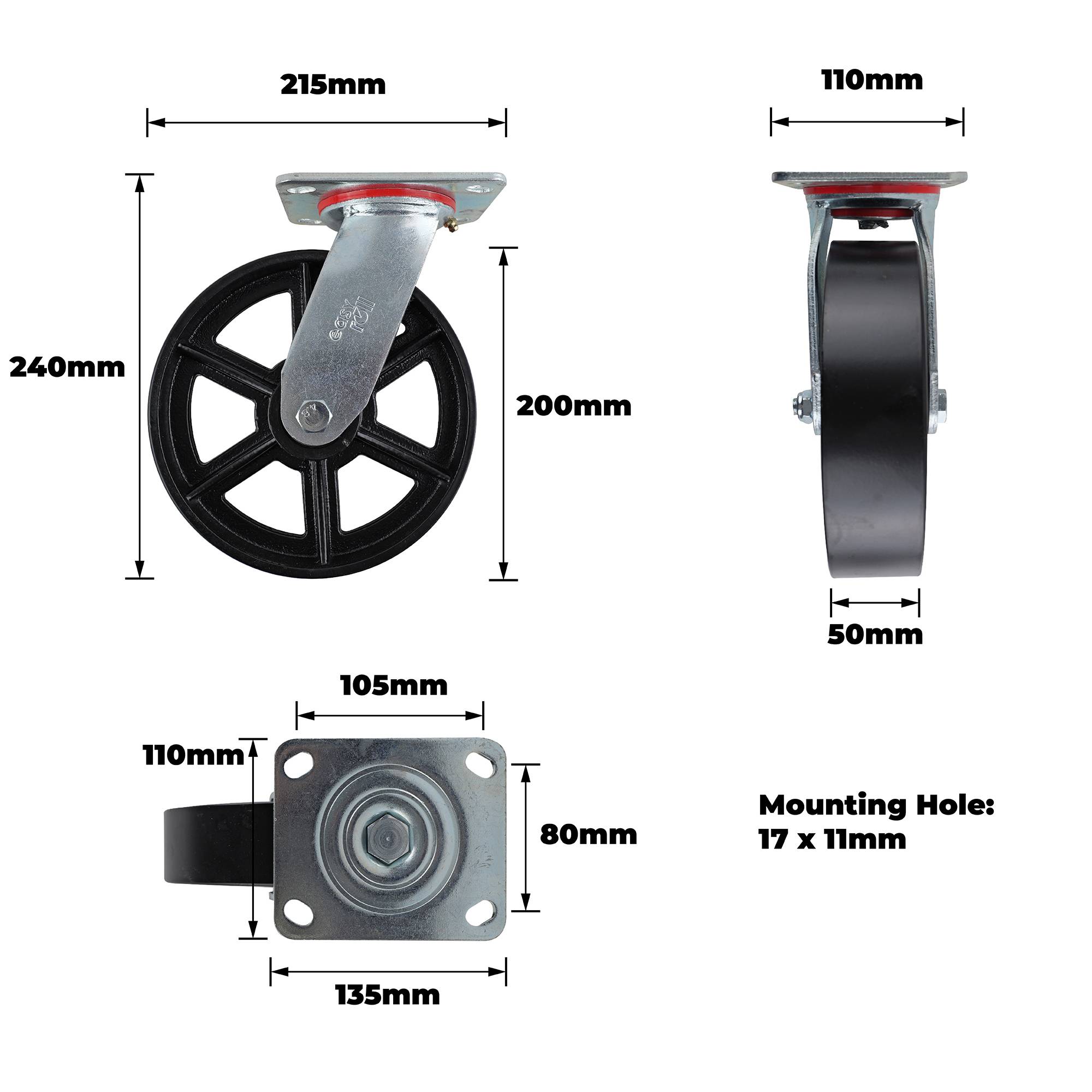

Dimensions
| Product Length (mm) | 215 |
| Product Width (mm) | 110 |
| Product Height (mm) | 240 |
| Wheel Diameter (mm) | 200 |
| Tread Width (mm) | 50 |
| Swivel Radius (mm) | 147.5 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105x80 |
| Plate Dimensions (LxW) mm | 135x110 |
Weights
| Product Weight (grams) | 5100 |
| Product Weight (kg) | 5.1 |
| Load Capacity (kg) | 600.0 |
