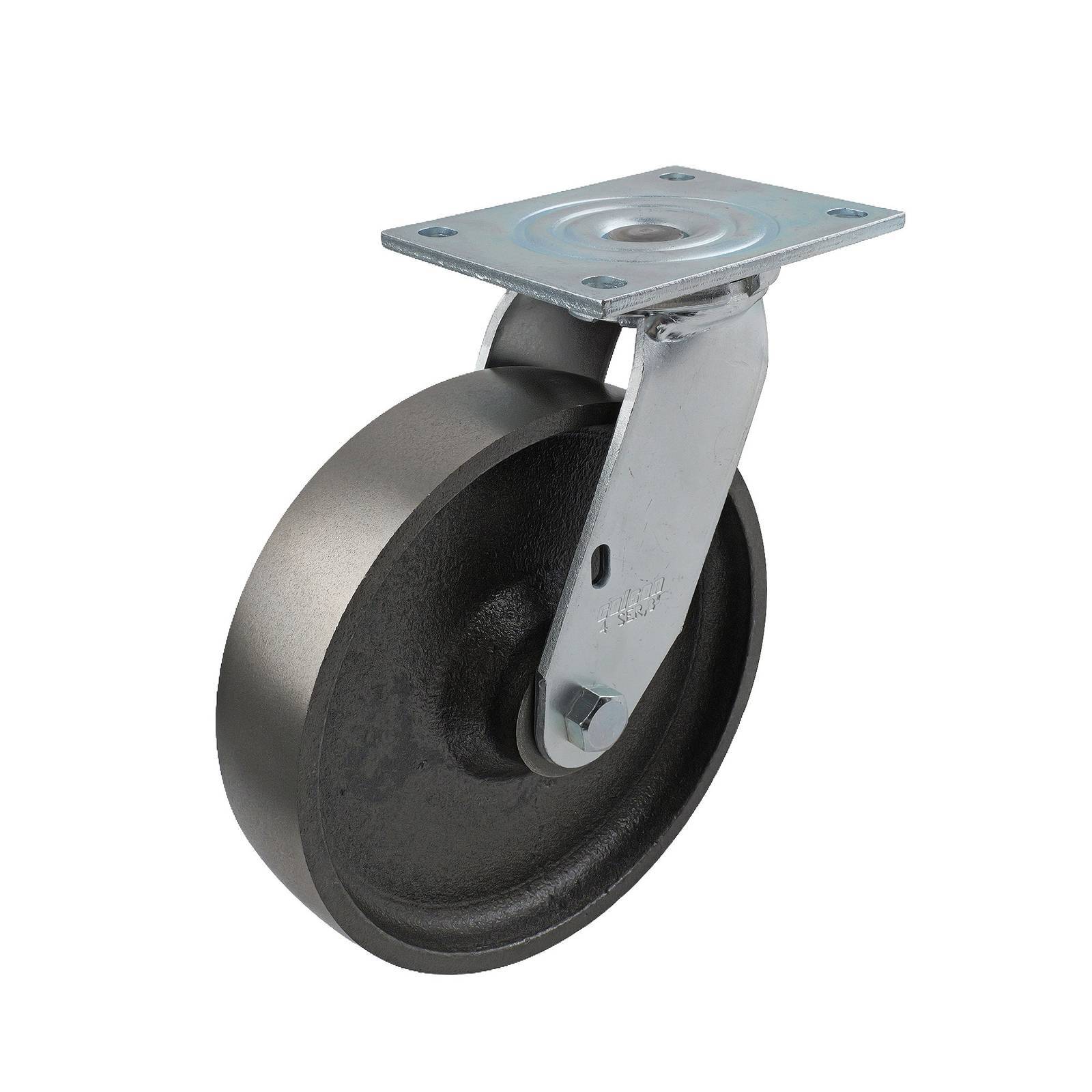

Easyroll 200mm Cast Iron Swivel Plate TS Series Castor 600kg
Easyroll 200mm Cast Iron Swivel Plate TS Series Castor 600kg is designed for practical applications that require dependable mobility and robust construction. The TG Series Castors feature a cast iron wheel core and cast iron wheels paired with a steel housing and roller bearings, which deliver stable movement and smooth operation. Plate swivel attachments and plate mount fittings offer efficient handling for professionals engaged in material transport across various work settings.
Couldn't load pickup availability
- Heavy-duty cast iron wheel ensures robust performance
- Durable steel housing supports structural integrity
- Roller bearing provides smooth swivel motion
- Precision plate mount for secure attachment
- Single raceway design simplifies maintenance
- Compatible with diverse floors for reliable movement
- Handles static loads up to 600kg
- Attractive silver blue finish delivers professional appearance
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Roller Bearing |
| Raceway Type | Single |
| Attachments | Plate Swivel |
Construction
| Wheel Core Material | Cast Iron |
| Wheel Material | Cast Iron |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Silver/Blue |

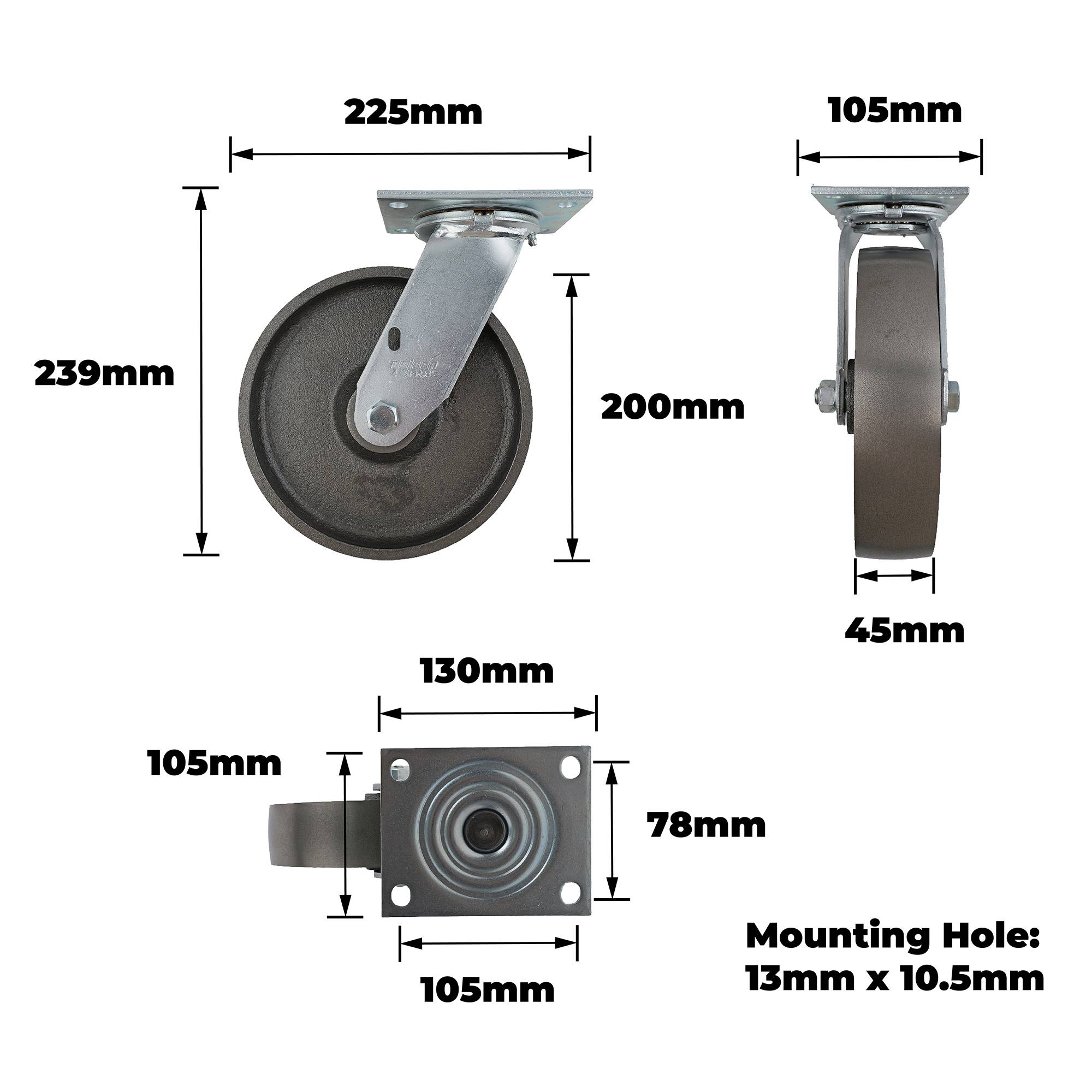

Dimensions
| Product Length (mm) | 225 |
| Product Width (mm) | 105 |
| Product Height (mm) | 239 |
| Wheel Diameter (mm) | 200 |
| Tread Width (mm) | 45 |
| Swivel Radius (mm) | 160 |
| Mounting Hole Dimensions (mm) | 13x10.5 |
| Hole Centre Dimensions (LxW) mm | 105x78 |
| Plate Dimensions (LxW) mm | 130x105 |
Weights
| Product Weight (grams) | 5789 |
| Product Weight (kg) | 5.789 |
| Load Capacity (kg) | 600.0 |
