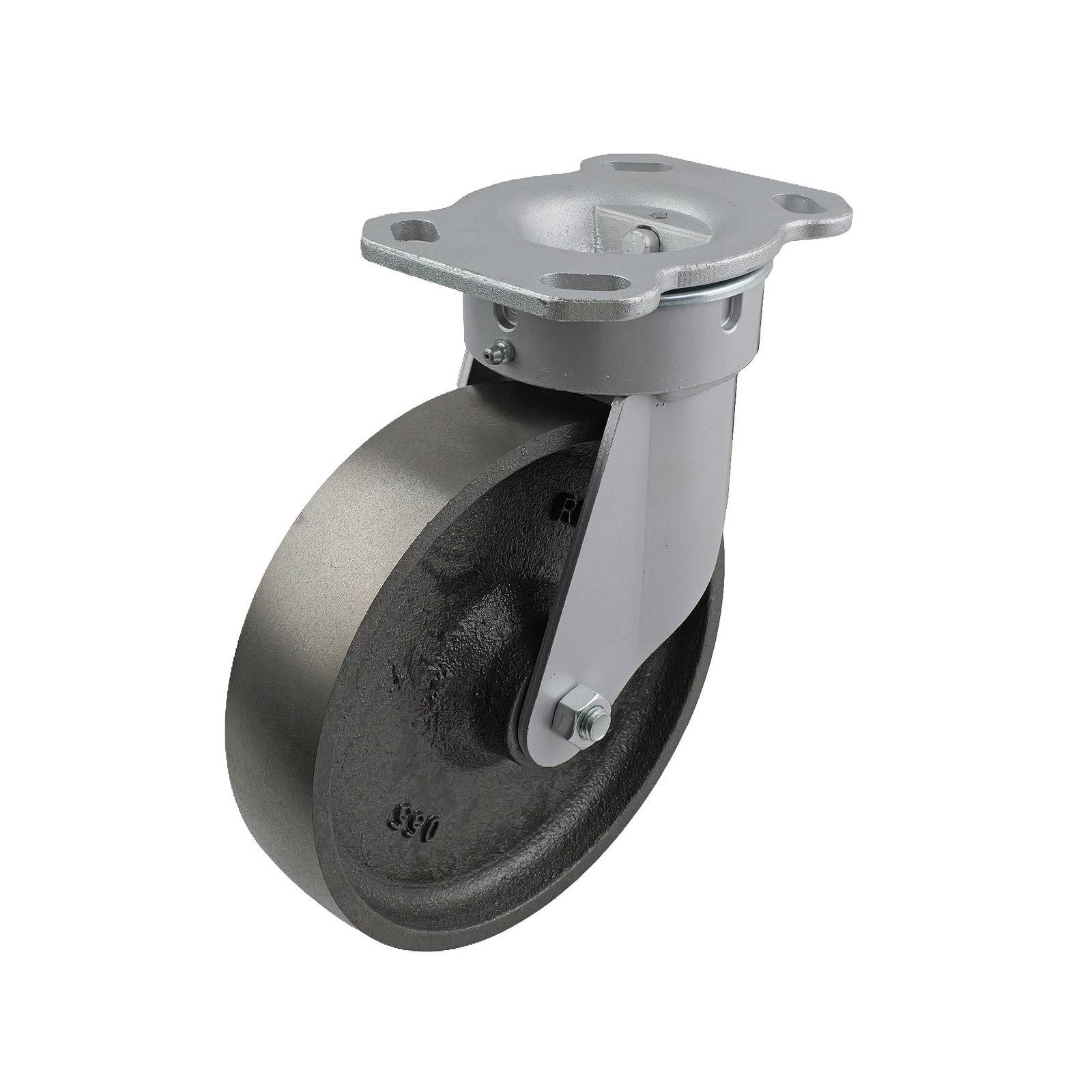

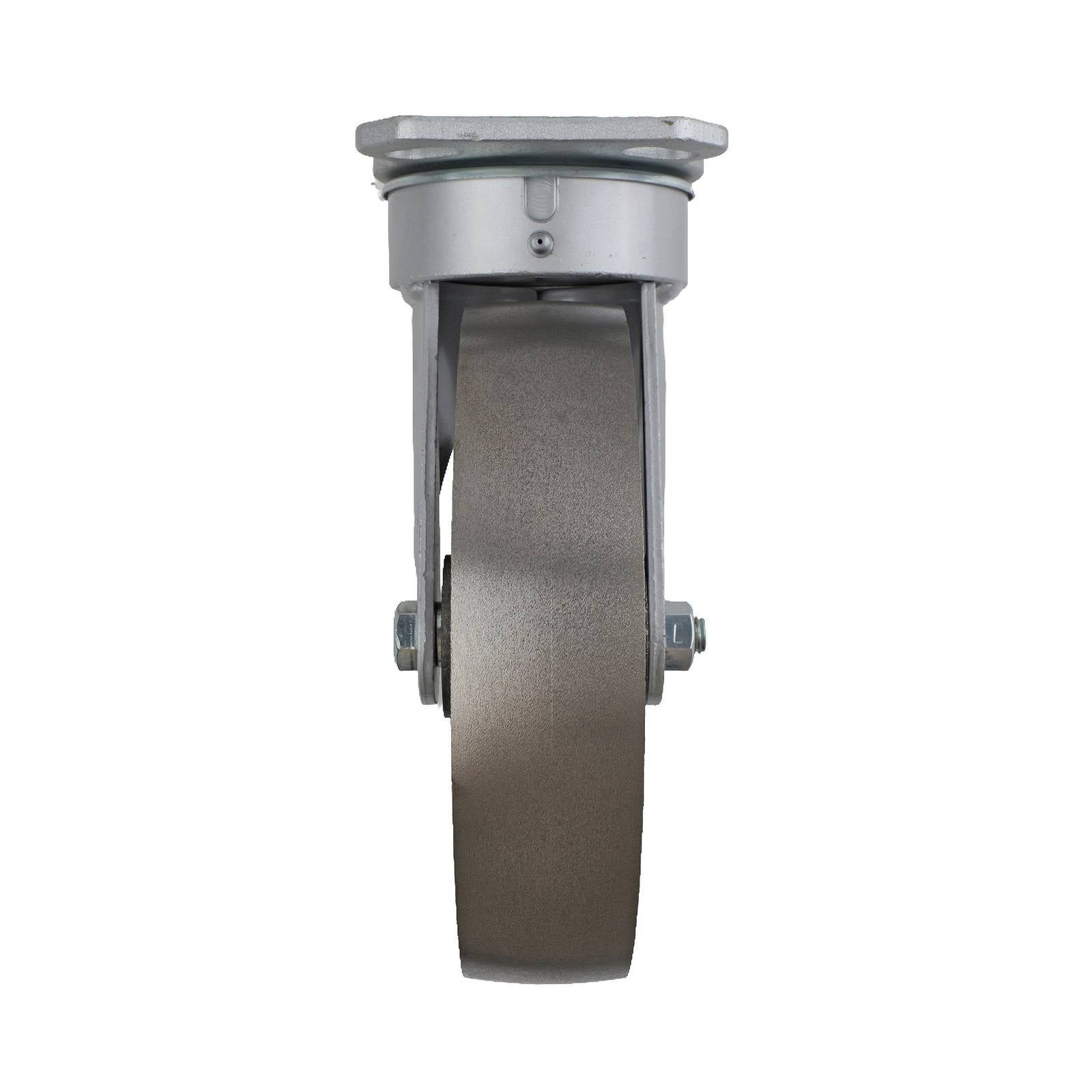

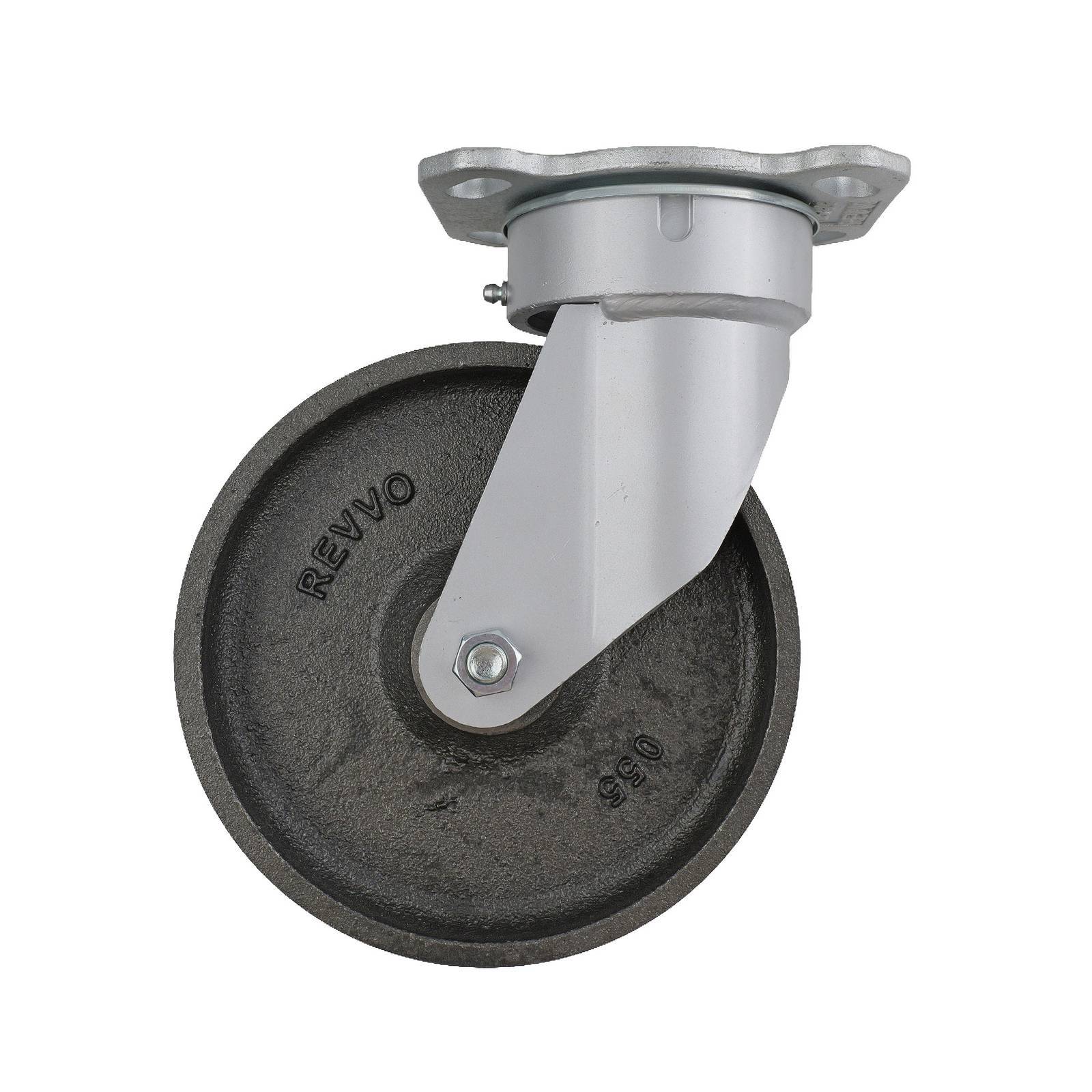

Easyroll 200mm Cast Iron Swivel Plate TS Series Castor 1150kg
Easyroll 200mm Cast Iron Swivel Plate TS Series Castor 1150kg features a cast iron wheel and core with a steel housing and roller bearings that ensure consistent performance. It is engineered for precise load handling and smooth swivel motion. The bolt hole swivel attachment and plate mount fitting offer efficient positioning and manoeuvrability both indoors and outdoors. This product provides trade professionals with a practical, robust solution for precise movement and reliable load support.
Couldn't load pickup availability
- Constructed with robust cast iron wheel core and wheel material
- Steel housing and roller bearing support smooth movement
- Bolt hole swivel attachments enable secure and adjustable positioning
- Cast iron wheel design offers reliable strength for heavy loads
- Single raceway design improves stability and weight distribution
- Compatible with both indoor and outdoor applications
- Cast iron materials offer robust build and long service life
- Plate mount fitting supports easy installation and secure operation
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Roller Bearing |
| Raceway Type | Single |
| Attachments | Bolt Hole Swivel |
Construction
| Wheel Core Material | Cast Iron |
| Wheel Material | Cast Iron |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Silver/Blue |

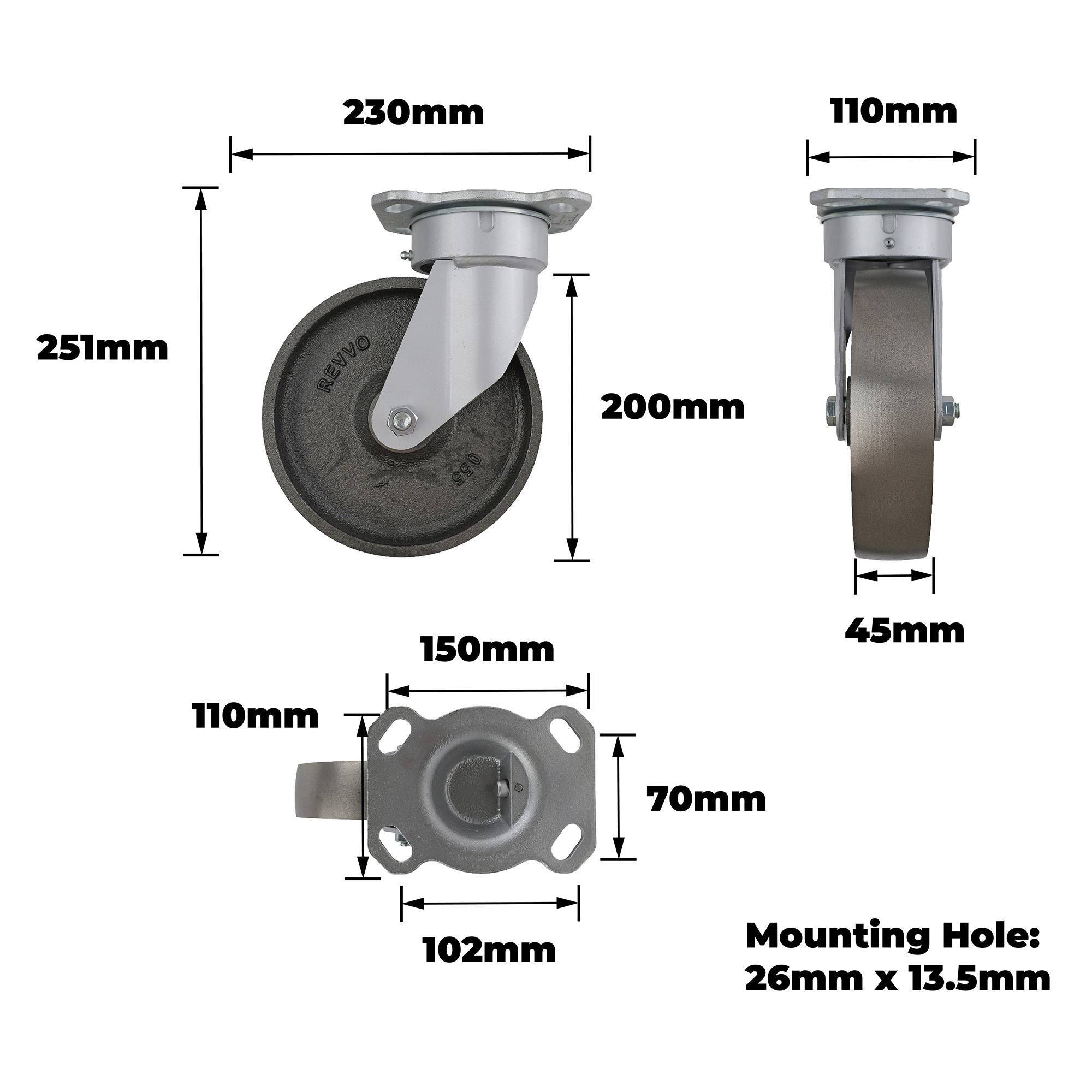

Dimensions
| Product Length (mm) | 230 |
| Product Width (mm) | 110 |
| Product Height (mm) | 251 |
| Wheel Diameter (mm) | 200 |
| Tread Width (mm) | 45 |
| Swivel Radius (mm) | 165 |
| Mounting Hole Dimensions (mm) | 26x13.5 |
| Hole Centre Dimensions (LxW) mm | 102x70 |
| Plate Dimensions (LxW) mm | 150x110 |
Weights
| Product Weight (grams) | 6787 |
| Product Weight (kg) | 6.787 |
| Load Capacity (kg) | 1150.0 |
