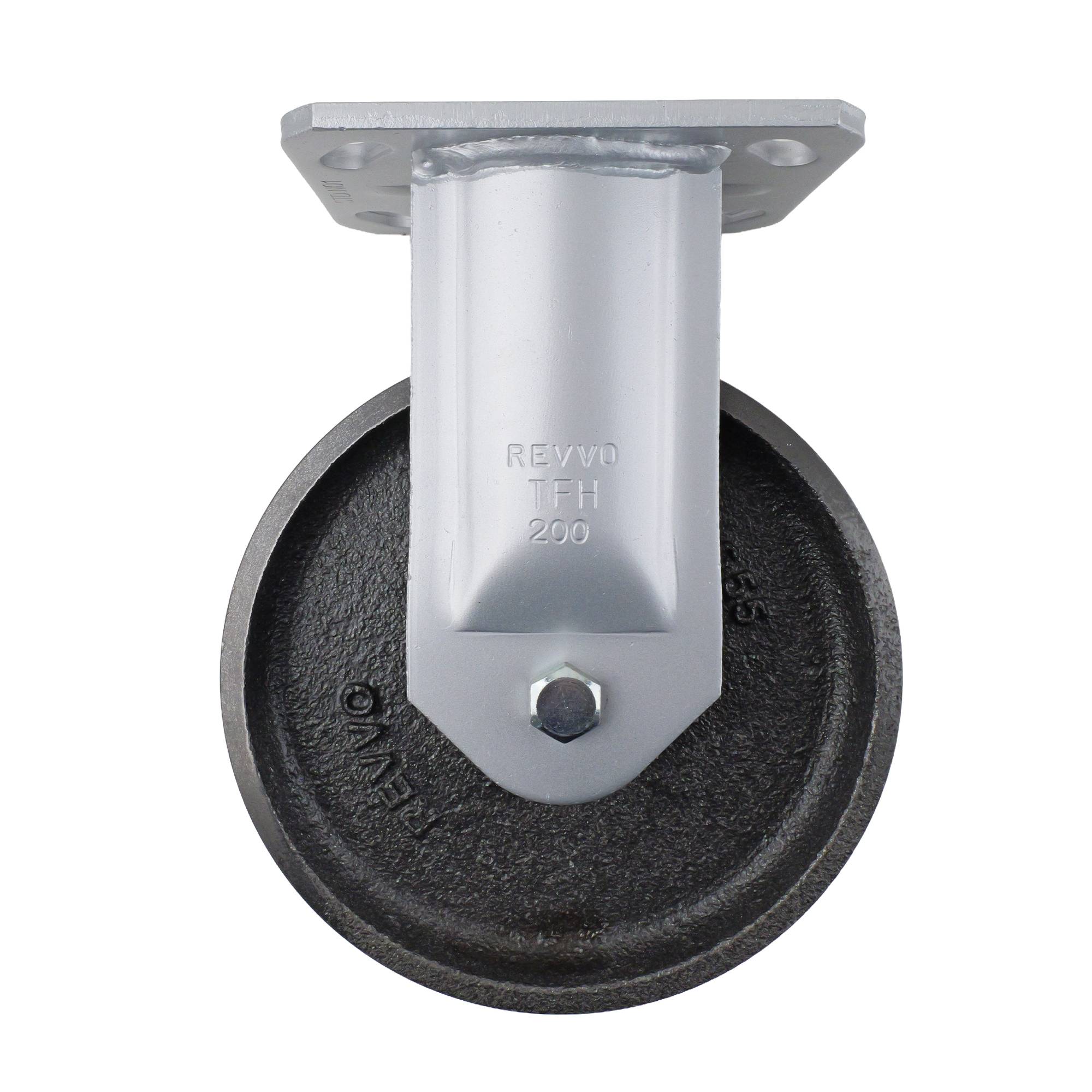

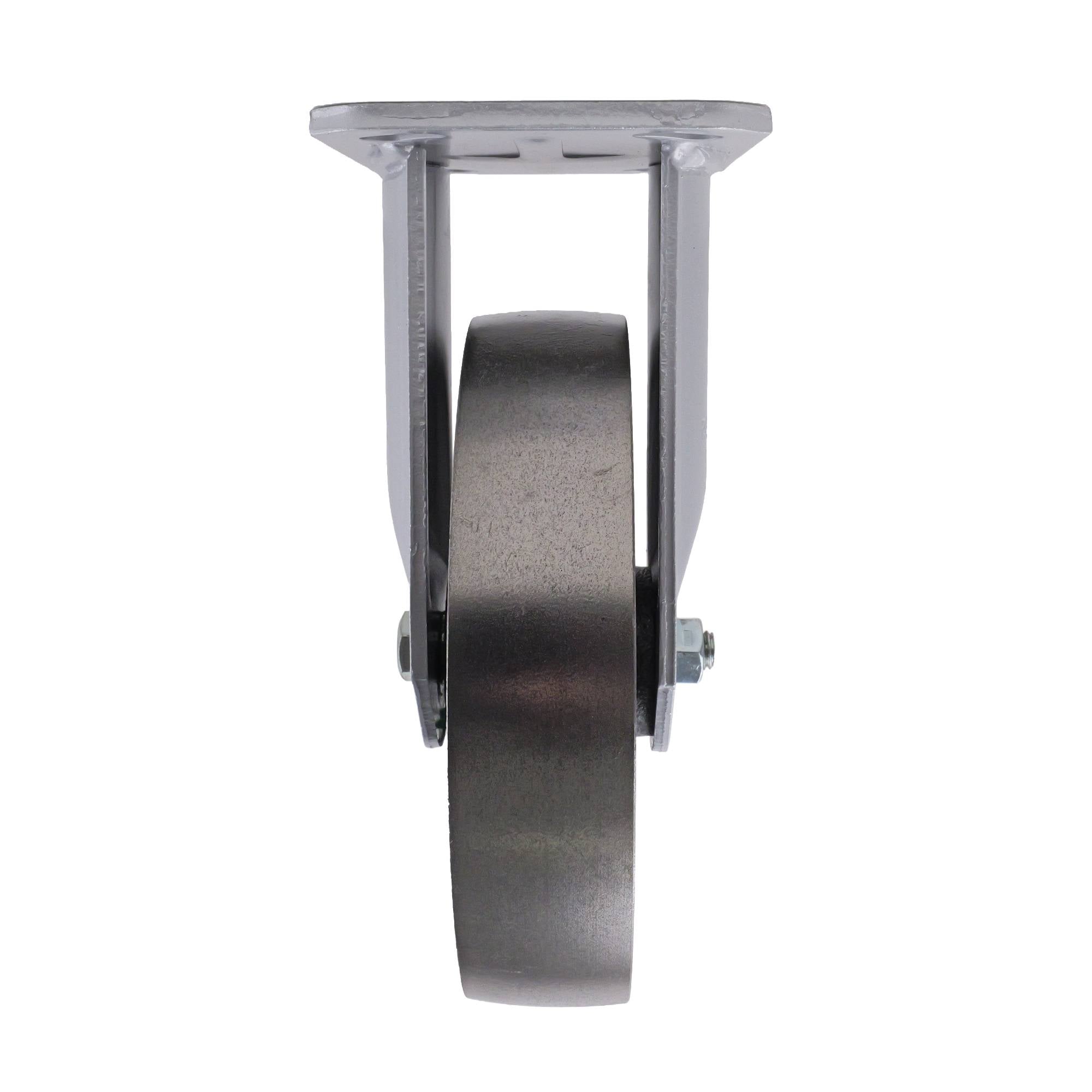

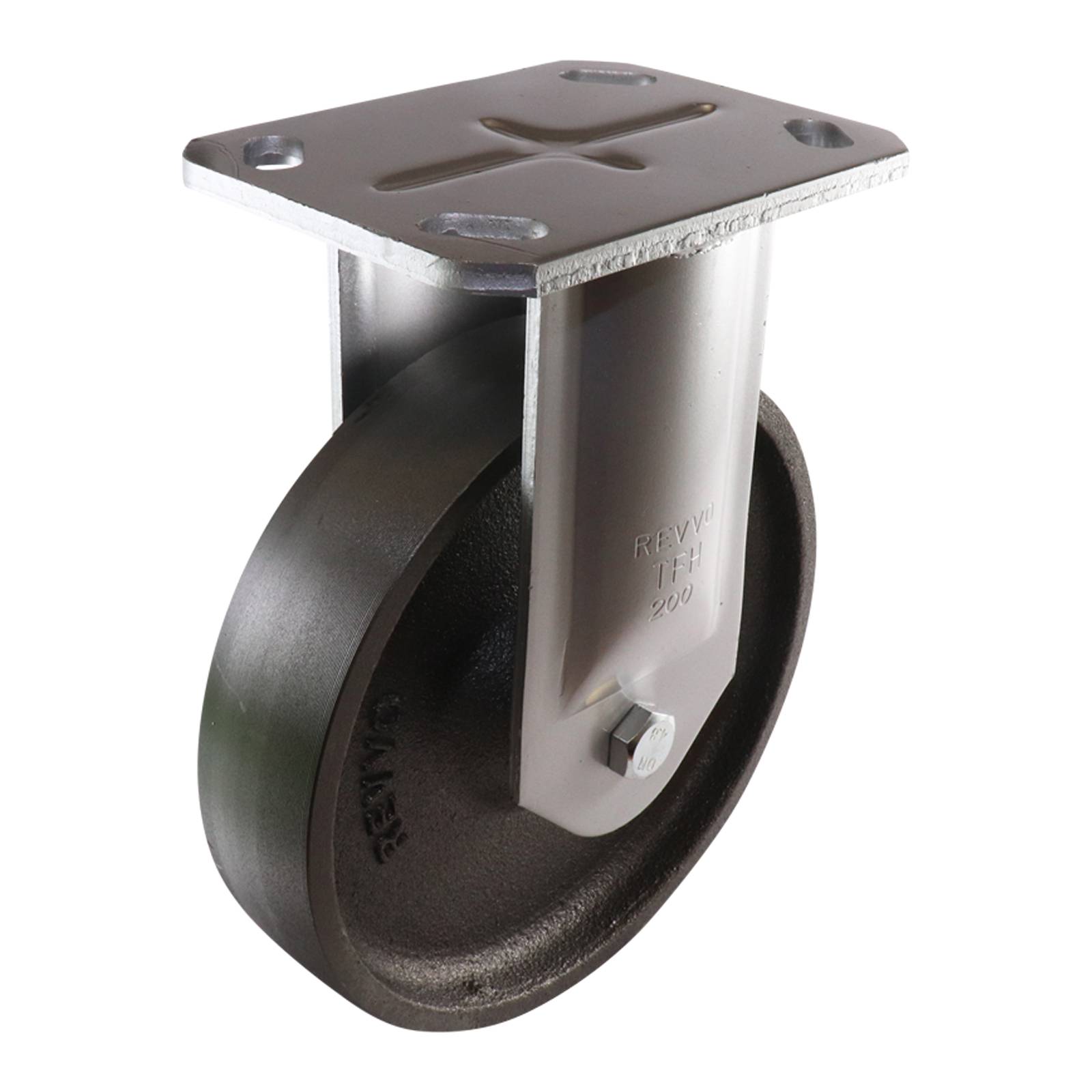

Colson 200mm Cast Iron Fixed Plate TF Series Castor 1150kg
Colson 200mm Cast Iron Fixed Plate TF Series Castor 1150kg is built with durable cast iron components and a steel housing that support high load capacities. It features a roller bearing system with a total brake and plate swivel attachments, ensuring controlled mobility and secure stops. The plate mount design facilitates straightforward integration into existing systems, providing reliable performance and precise motion control for trade professionals handling various materials.
Couldn't load pickup availability
- Cast iron wheel core ensures durable and stable rotation
- Steel housing provides robust structural integrity
- Roller bearings support smooth low friction movement
- Total brake offers quick and secure stopping action
- Plate mount design simplifies equipment installation
- Suitable for both indoor and outdoor operations
- Silver blue finish provides modern clean aesthetic
- Single raceway design promotes reliable rolling movement
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Roller Bearing |
| Raceway Type | Single |
| Brake Type | Total |
| Attachments | Plate Swivel Total Brake |
Construction
| Wheel Core Material | Cast Iron |
| Wheel Material | Cast Iron |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Silver/Blue |

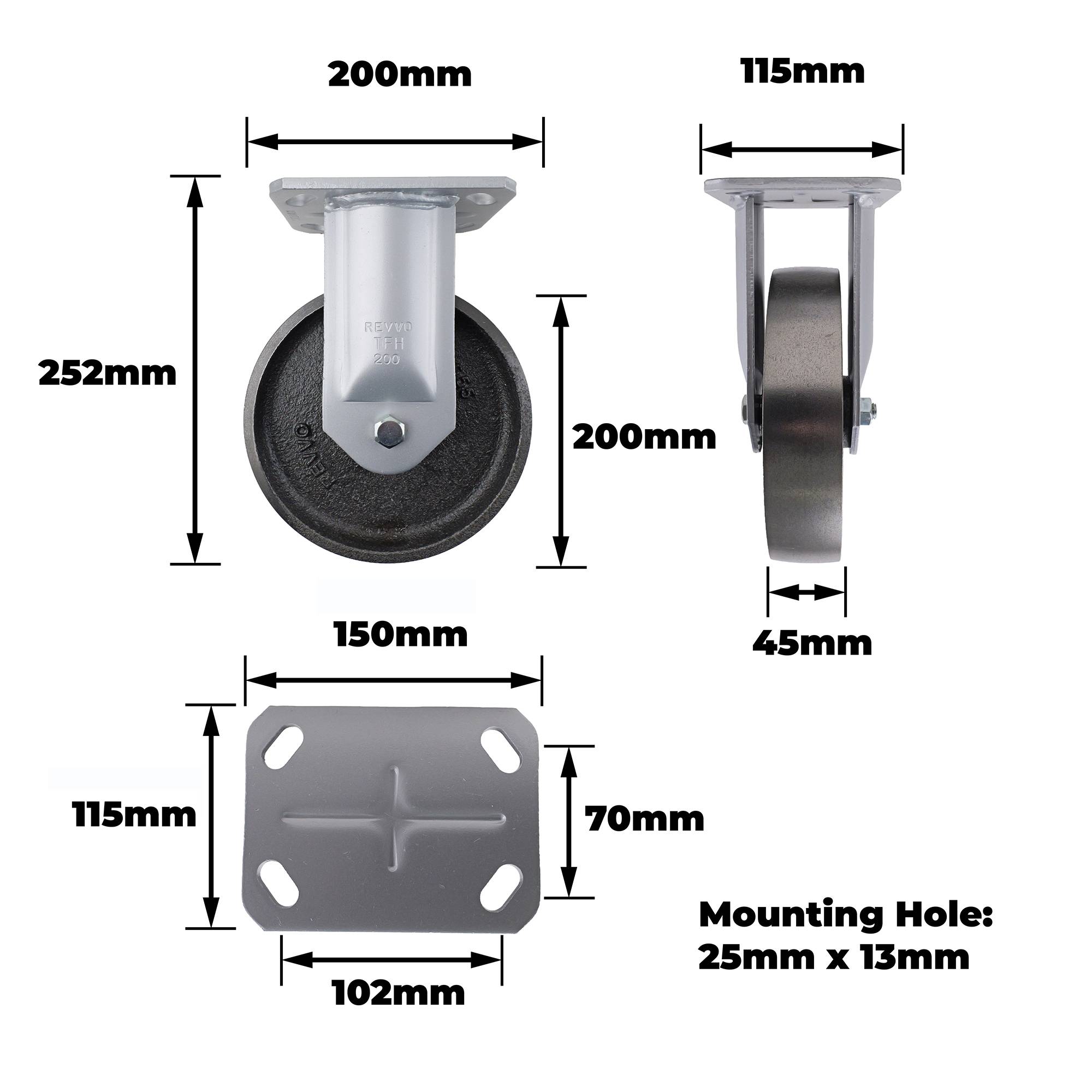

Dimensions
| Product Length (mm) | 200 |
| Product Width (mm) | 115 |
| Product Height (mm) | 252 |
| Wheel Diameter (mm) | 200 |
| Tread Width (mm) | 45 |
| Mounting Hole Dimensions (mm) | 25.5x13 |
| Hole Centre Dimensions (LxW) mm | 102x70 |
| Plate Dimensions (LxW) mm | 150x115 |
Weights
| Product Weight (grams) | 6267 |
| Product Weight (kg) | 6.006 |
| Load Capacity (kg) | 1150.0 |
