Easyroll 200mm Urethane Cast Iron Fixed Plate J3 Series Castor 600kg

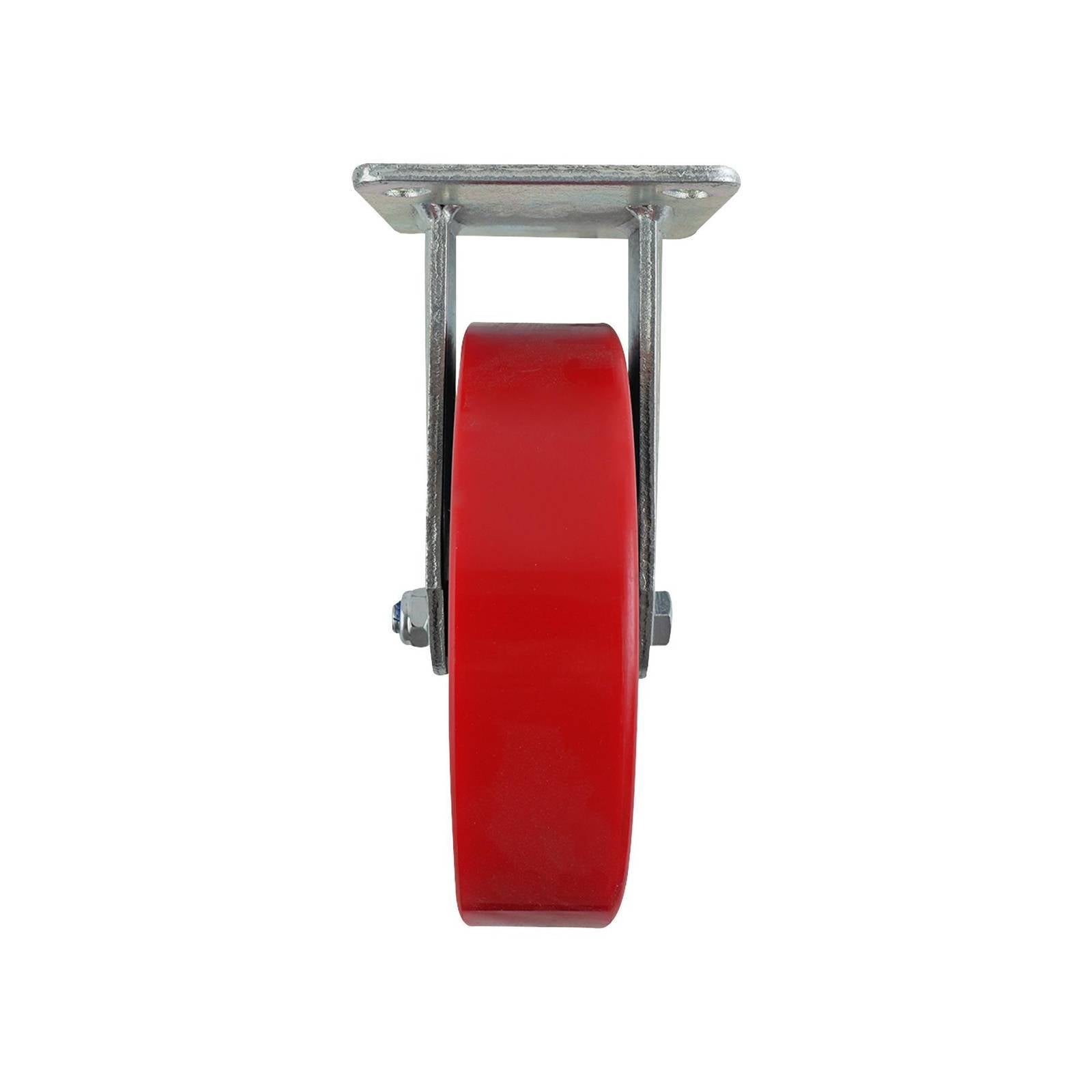

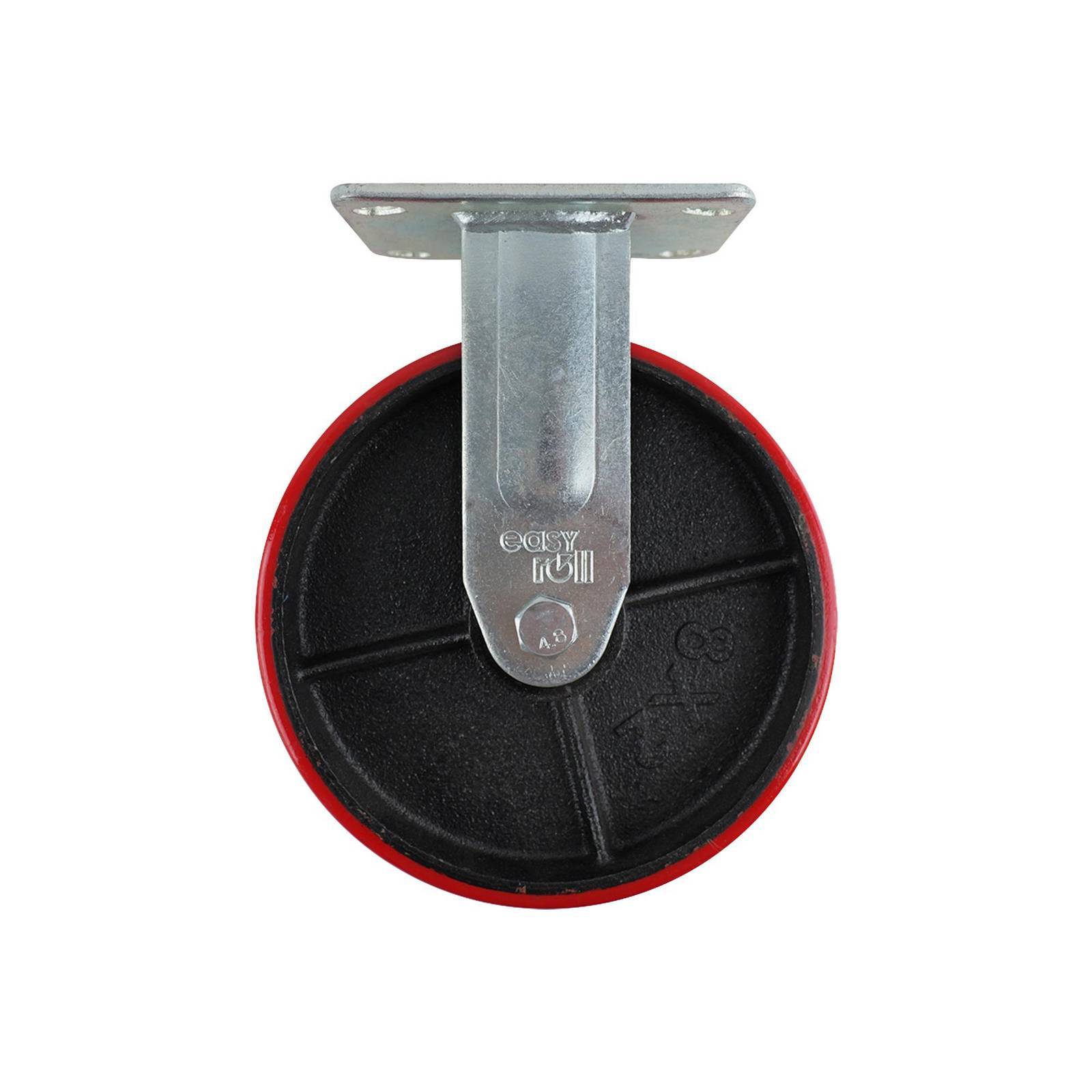

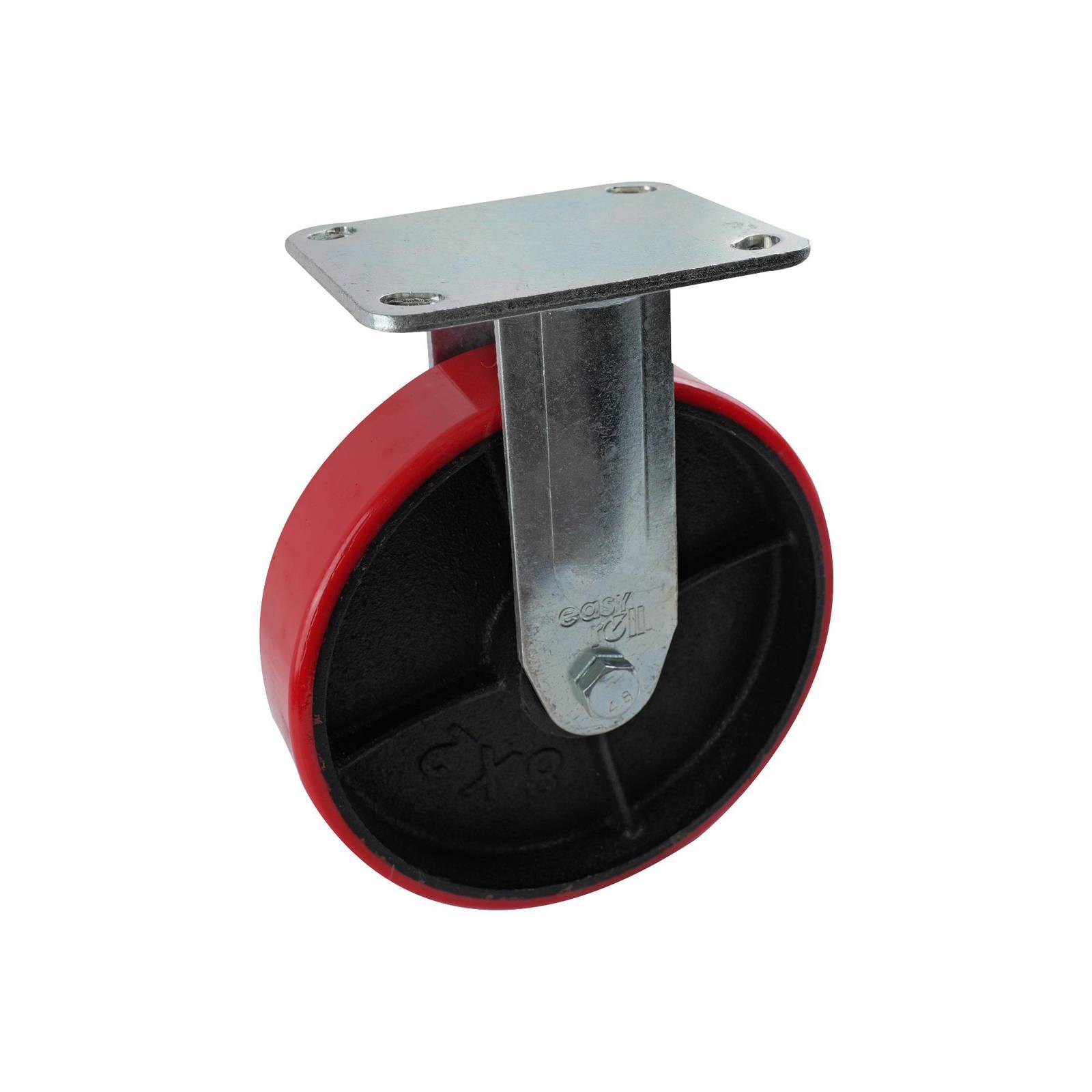

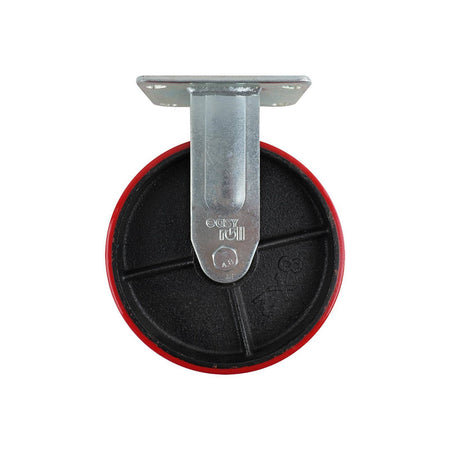

Easyroll 200mm Urethane Cast Iron Fixed Plate J3 Series Castor 600kg is designed for precise mobility applications in commercial and trade settings. It features a polyurethane wheel mounted on a cast iron core with a steel housing and carbon steel ball bearings for consistent performance under heavy loads. The unit employs a single raceway construction and a rigid plate mounting system, ensuring reliable movement and straightforward installation for professional use.
Couldn't load pickup availability
- Constructed with steel housing and polypropylene wheel core
- High-performance polyurethane wheel with fixed plate design
- Ball bearing system improves smooth directional movement
- Rigid plate mount facilitates quick secure installation
- Dual material wheel ensures durability and high resilience
- Strong carbon steel bearings provide robust load support
- Engineered for outdoor and indoor applications
- Single raceway maximises smooth caster rotation
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Ball Bearing |
| Raceway Type | Single |
| Attachments | Plate Rigid |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Polyurethane |
| Housing Material | Steel |
| Bearing Material | Carbon Steel |
| Product Colour | Red/Black/Silver |
Dimensions
| Product Length (mm) | 200 |
| Product Width (mm) | 110 |
| Product Height (mm) | 240 |
| Wheel Diameter (mm) | 200 |
| Tread Width (mm) | 50 |
| Mounting Hole Dimensions (mm) | 17x11 |
| Hole Centre Dimensions (LxW) mm | 105x80 |
| Plate Dimensions (LxW) mm | 135x110 |
Weights
| Product Weight (grams) | 3936 |
| Product Weight (kg) | 3.936 |
| Load Capacity (kg) | 600.0 |
