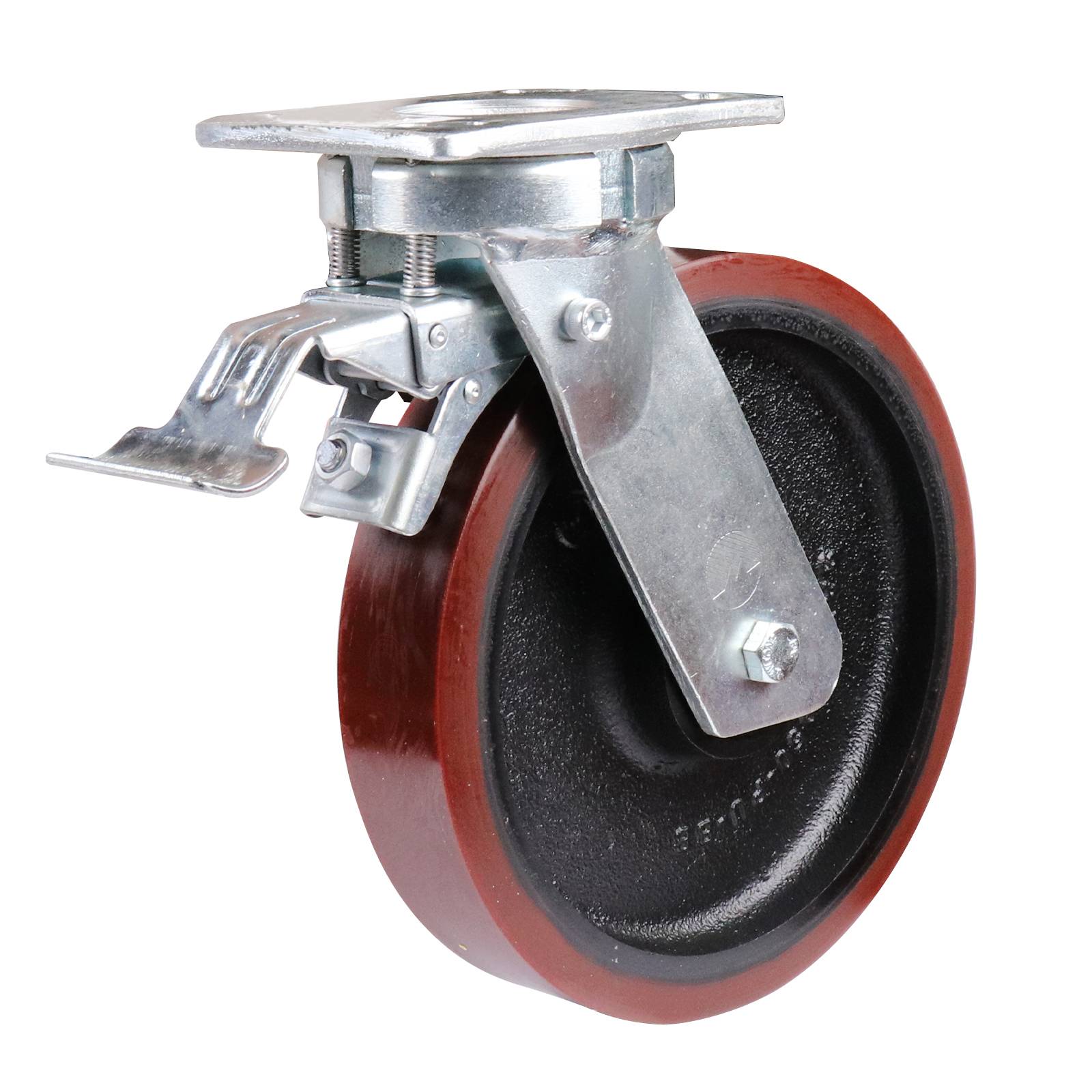

Easyroll 250mm Urethane Cast Iron Swivel Plate Brake X2 Series Castor 1200kg
Easyroll 250mm Urethane Cast Iron Swivel Plate Brake X2 Series Castor 1200kg is engineered to deliver precise manoeuvring through a carefully integrated design comprising a stainless steel housing, precision bearings and a dual raceway construction. Ideal for applications requiring reliable total braking and secure plate mounting, its polypropylene wheel core and polyurethane wheels ensure consistent load distribution and enhanced durability. The system delivers practical performance and accurate positioning for demanding settings.
Couldn't load pickup availability
- Includes plate mount for stable, secure installation
- Dual raceway system distributes loads for smooth rolling
- Precision stainless steel bearings enable accurate, stable movement
- Polyurethane wheels reduce vibration while ensuring durable performance
- Robust stainless steel housing withstands demanding operational loads
- Total brake design guarantees full control during travel
- Cast iron wheel with polyurethane coating balances traction with rolling
- Plate mount swivel base for easily adjusted directional movement
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | No |
| Indoor Use | No |
| Bearing Type | Precision Bearing |
| Raceway Type | Dual |
| Brake Type | Total |
| Attachments | Plate Swivel Total Brake |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Polyurethane |
| Housing Material | Stainless Steel |
| Bearing Material | Stainless Steel |
| Product Colour | Red/Black/Silver |
Dimensions
| Product Length (mm) | 135 |
| Product Width (mm) | 59 |
| Product Height (mm) | 300 |
| Wheel Diameter (mm) | 75 |
| Tread Width (mm) | 50 |
| Swivel Radius (mm) | 197 |
| Mounting Hole Dimensions (mm) | 26.4x13.2 |
| Hole Centre Dimensions (LxW) mm | 105 |
| Plate Dimensions (LxW) mm | 150x110 |
Weights
| Product Weight (grams) | 9.7 |
| Product Weight (kg) | 9.7 |
| Load Capacity (kg) | 1200.0 |
