Colson 250mm Urethane Cast Iron Swivel Plate X1 Series Castor 2000kg
Colson 250mm Urethane Cast Iron Swivel Plate X1 Series Castor 2000kg is designed for professional use with a robust cast iron wheel core, precision steel bearings and a steel housing that support effective load control. The caster features a plate swivel attachment and plate mount fitting, utilising a resilient polyurethane wheel on a single raceway. Its yellow, black and silver finish underlines a practical design that delivers reliable motion management for demanding applications.
Couldn't load pickup availability
- Robust cast iron core supports heavy duty workloads
- Composite wheel design utilises nylon with polyurethane outer surface
- Steel housing and bearing construction ensures maximum reliability
- Plate mounting with swivel attachment for flexible positioning
- Suitable for outdoor and indoor applications
- Precision bearings deliver smooth swivel performance
- Single raceway design minimises friction during movement
- Robust construction built for demanding use
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Precision Bearing |
| Raceway Type | Single |
| Attachments | Plate Swivel |
Construction
| Wheel Core Material | Cast Iron |
| Wheel Material | Nylon |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Yellow/Black/Silver |

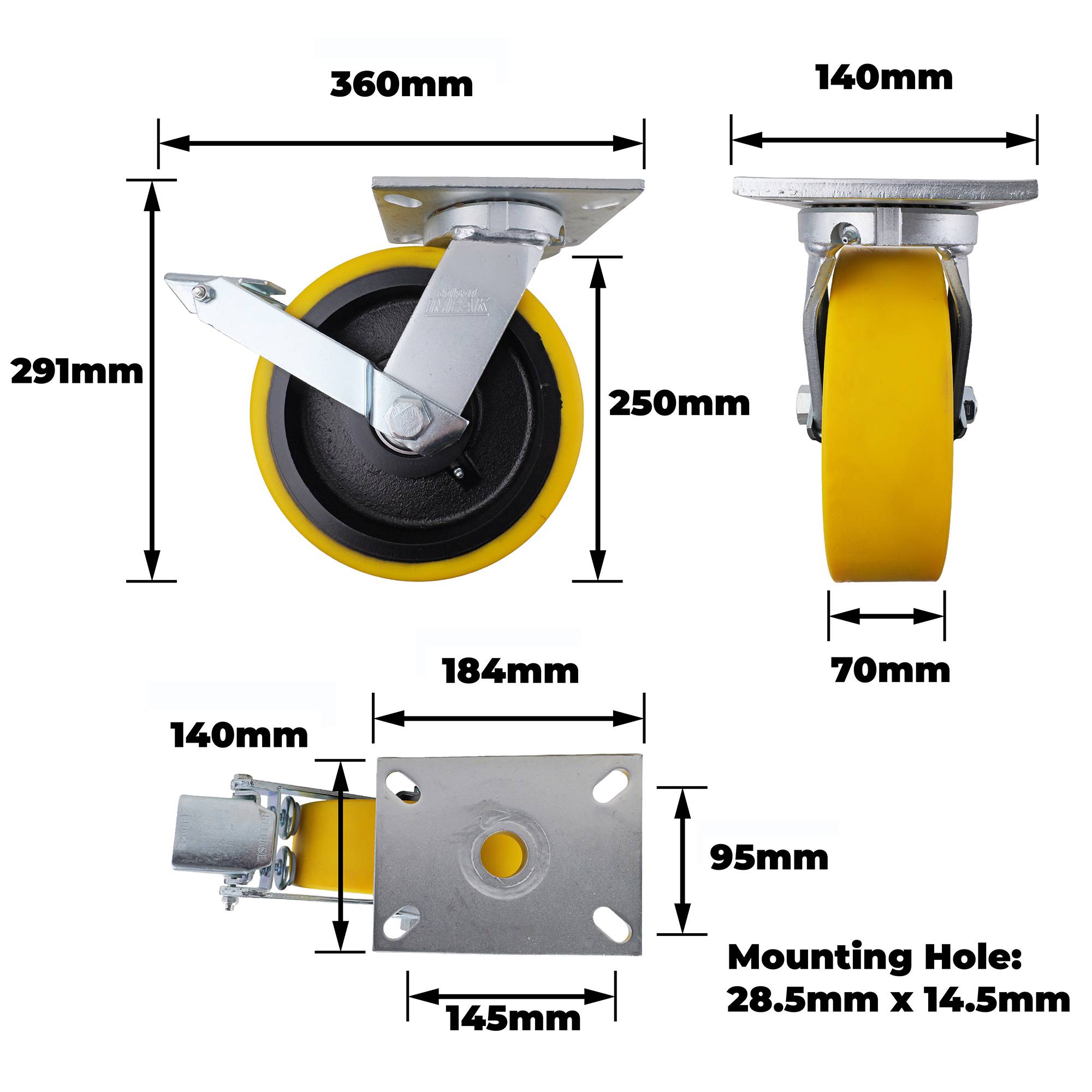

Dimensions
| Product Length (mm) | 360 |
| Product Width (mm) | 140 |
| Product Height (mm) | 291 |
| Wheel Diameter (mm) | 250 |
| Tread Width (mm) | 70 |
| Swivel Radius (mm) | 268 |
| Mounting Hole Dimensions (mm) | 29x14.3 |
| Hole Centre Dimensions (LxW) mm | 145x95 |
| Plate Dimensions (LxW) mm | 184x140 |
Weights
| Product Weight (grams) | 16950 |
| Product Weight (kg) | 16.8 |
