Easyroll 50mm Grey Urethane Swivel Plate Brake G1 Series Castor 40kg
Easyroll 50mm Grey Urethane Swivel Plate Brake G1 Series Castor 40kg is a plate mount castor featuring a steel housing, steel bearings, and a polypropylene wheel core that supports a thermoplastic rubber wheel. The unit is designed for precise manoeuvring on indoor surfaces using a plain bearing and a single raceway. Its integrated brake and rigid plate attachment offer controlled movement and dependable performance for trade professionals requiring practical and efficient solutions.
Couldn't load pickup availability
- Steel housing and bearings offer robust mechanical integrity
- Thermoplastic rubber wheels provide low friction movement
- Polypropylene wheel core enhances performance efficiency
- Rigid plate mount supports secure and precise installation
- Single raceway design improves directional stability
- Designed for indoor use with smooth mobility
- Plain bearing design minimises friction and wear
- Integrated brake limits unwanted castor rotation
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | No |
| Indoor Use | Yes |
| Bearing Type | Plain Bearing |
| Raceway Type | Single |
| Attachments | Plate Rigid |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Thermoplastic Rubber |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Grey/Black/Silver |

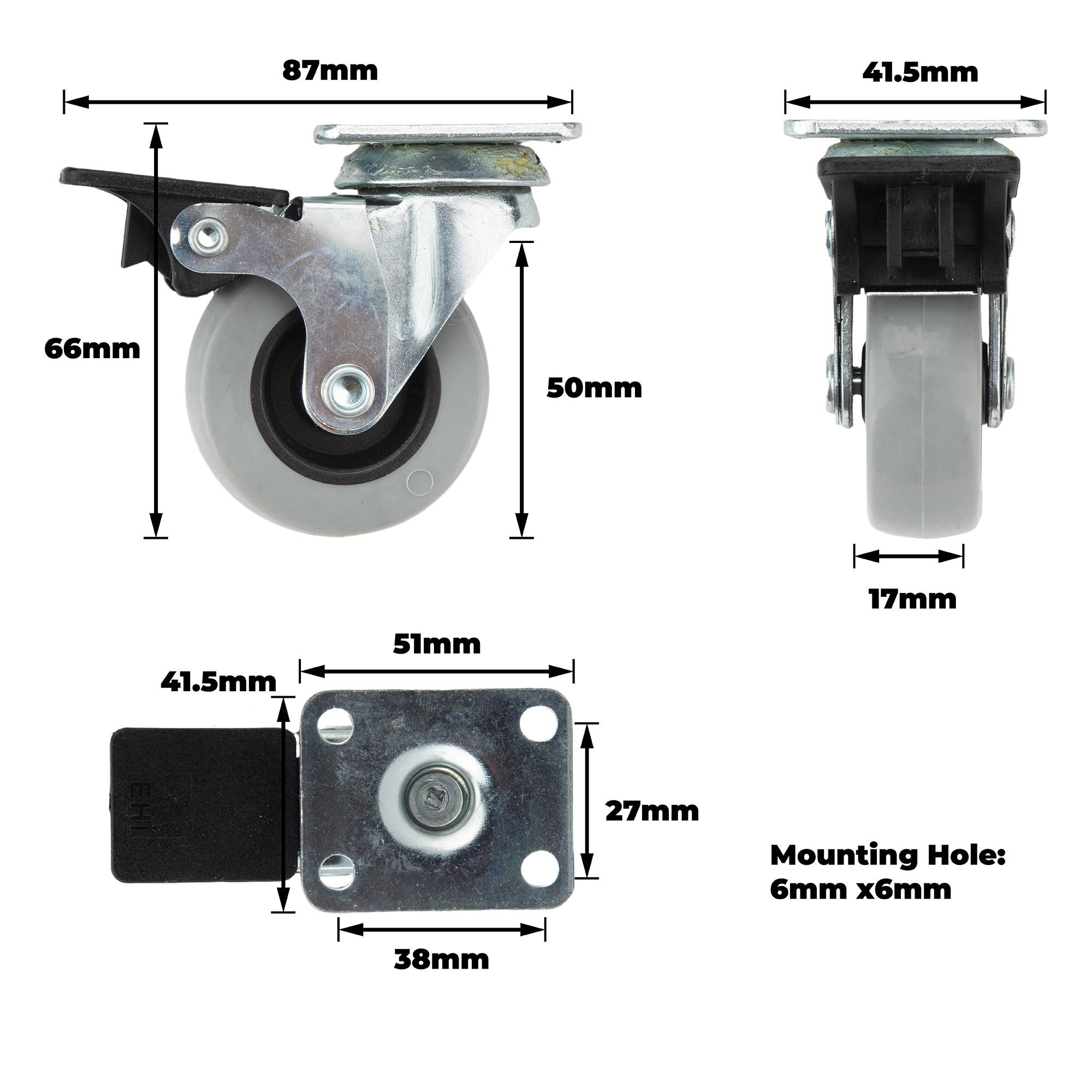

Dimensions
| Product Length (mm) | 87 |
| Product Width (mm) | 42 |
| Product Height (mm) | 66 |
| Wheel Diameter (mm) | 50 |
| Tread Width (mm) | 17 |
| Swivel Radius (mm) | 61.5 |
| Mounting Hole Dimensions (mm) | 6.0x6 |
| Hole Centre Dimensions (LxW) mm | 38x27 |
| Plate Dimensions (LxW) mm | 51x42 |
Weights
| Product Weight (grams) | 160 |
| Product Weight (kg) | 0.16 |
| Load Capacity (kg) | 40.0 |
