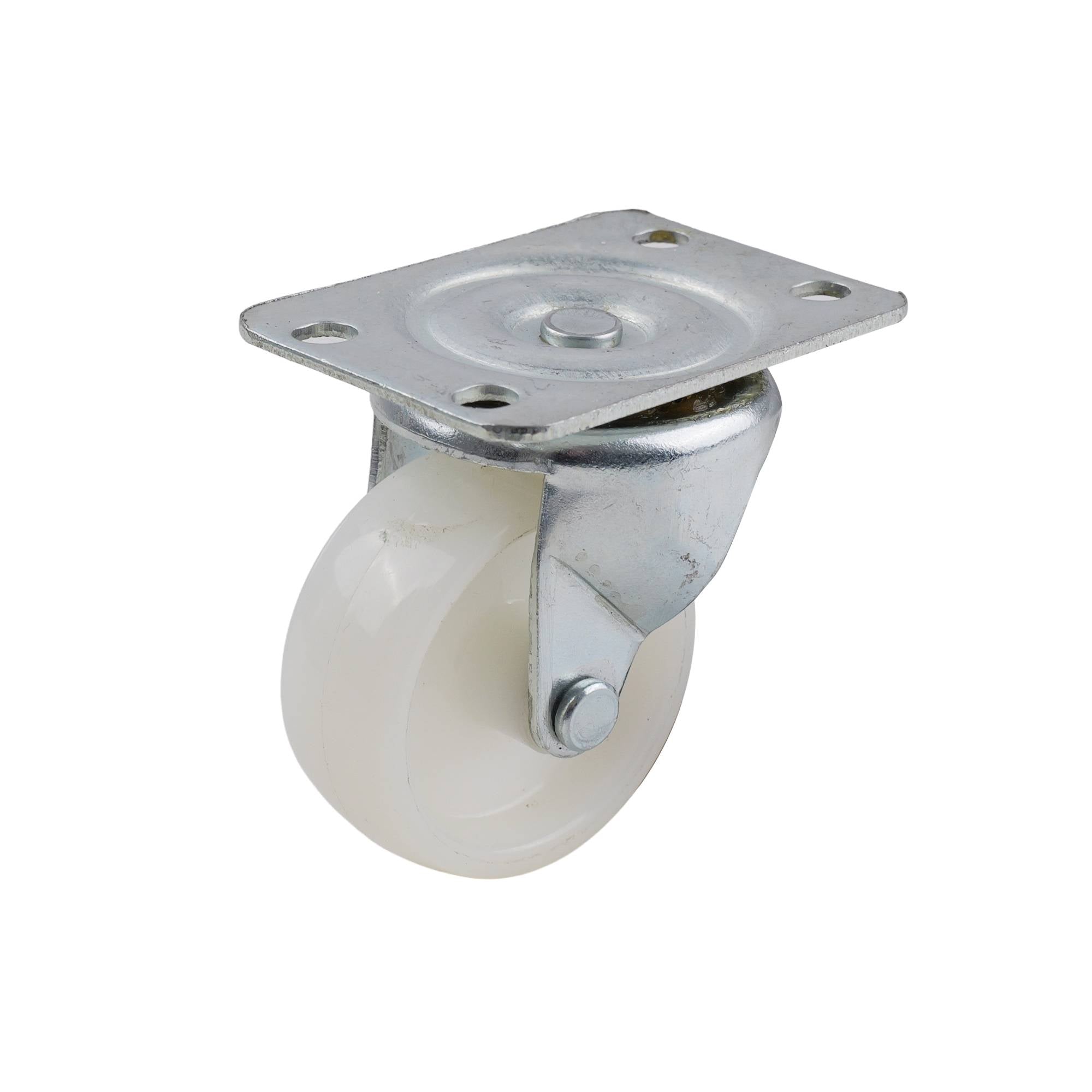

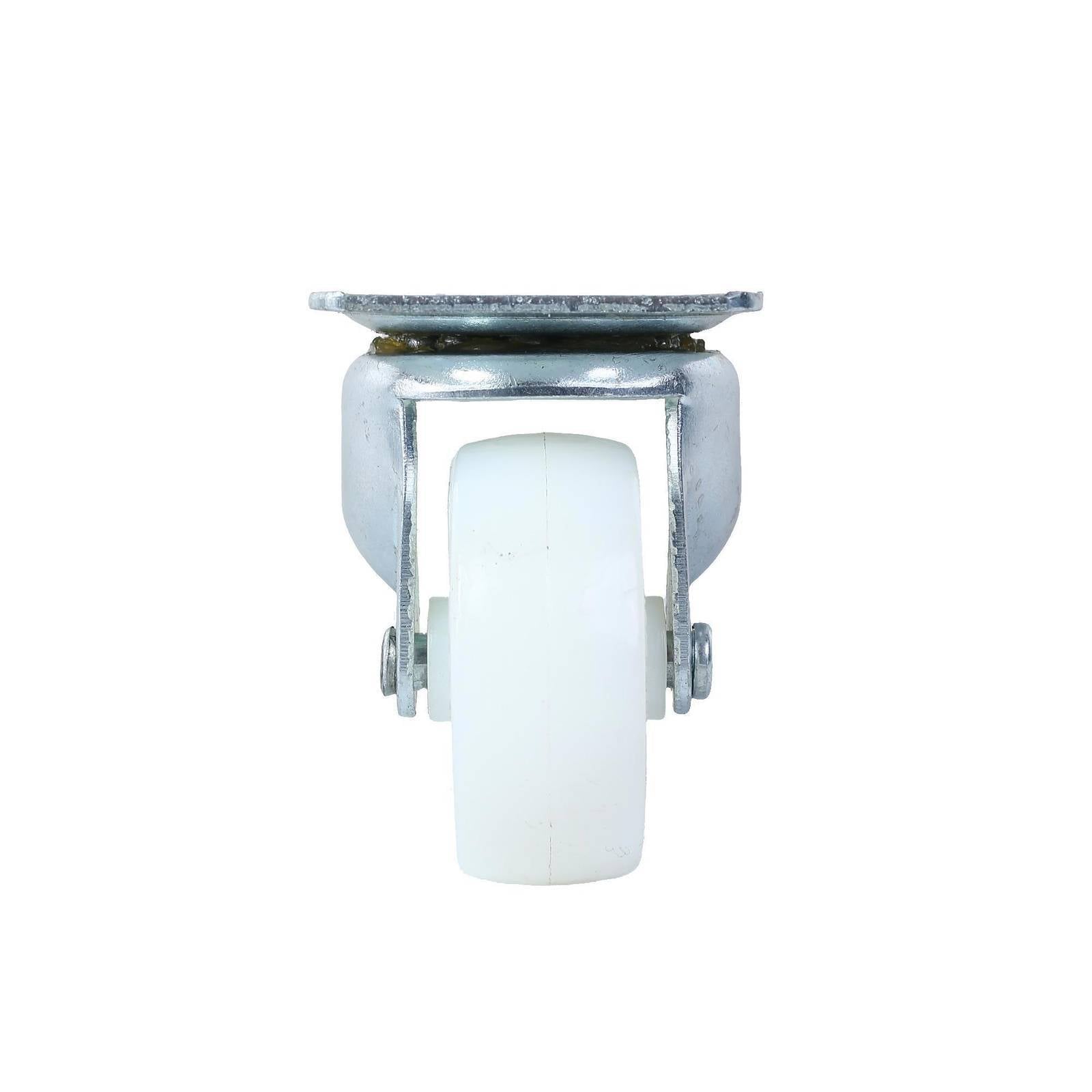

Easyroll 50mm White Nylon Swivel Plate I1 Series Castor 40kg
Easyroll 50mm White Nylon Swivel Plate I1 Series Castor 40kg is engineered to provide a dependable solution for precise and controlled movement within workspaces. It features a nylon wheel and wheel core, supported by a steel housing and bearings that ensure robustness and consistency for indoor application. The plate swivel attachment simplifies secure mounting while the overall construction promotes longevity and efficiency for professional users.
Couldn't load pickup availability
- Nylon wheel and core ensure durable performance
- Steel housing and plain bearing provide sturdy support

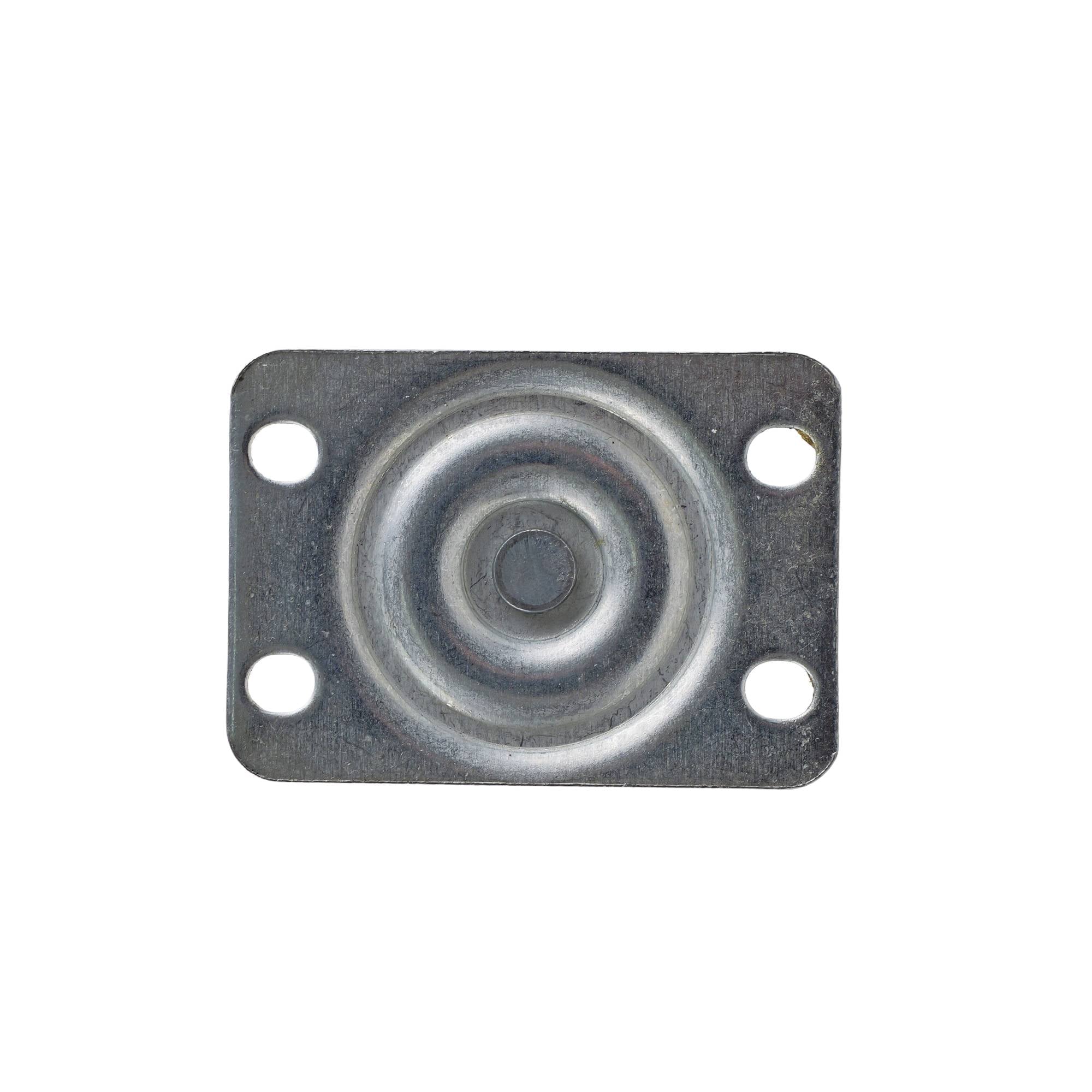

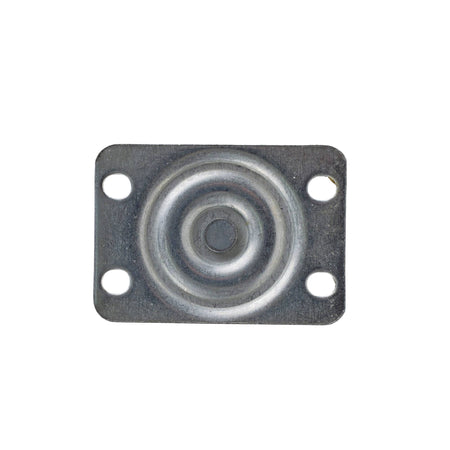

- Designed with plate mount fitting for secure installation
- Innovative plate swivel attachment improves manoeuvrability
- Single raceway design enhances efficient rolling performance
- High load capacity rated at 40kg
- White and silver finish gives clean professional look
- Engineered for smooth indoor roll and manoeuvre
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | No |
| Indoor Use | Yes |
| Bearing Type | Plain Bearing |
| Raceway Type | Single |
| Attachments | Plate Swivel |
Construction
| Wheel Core Material | Nylon |
| Wheel Material | Nylon |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | White/Silver |

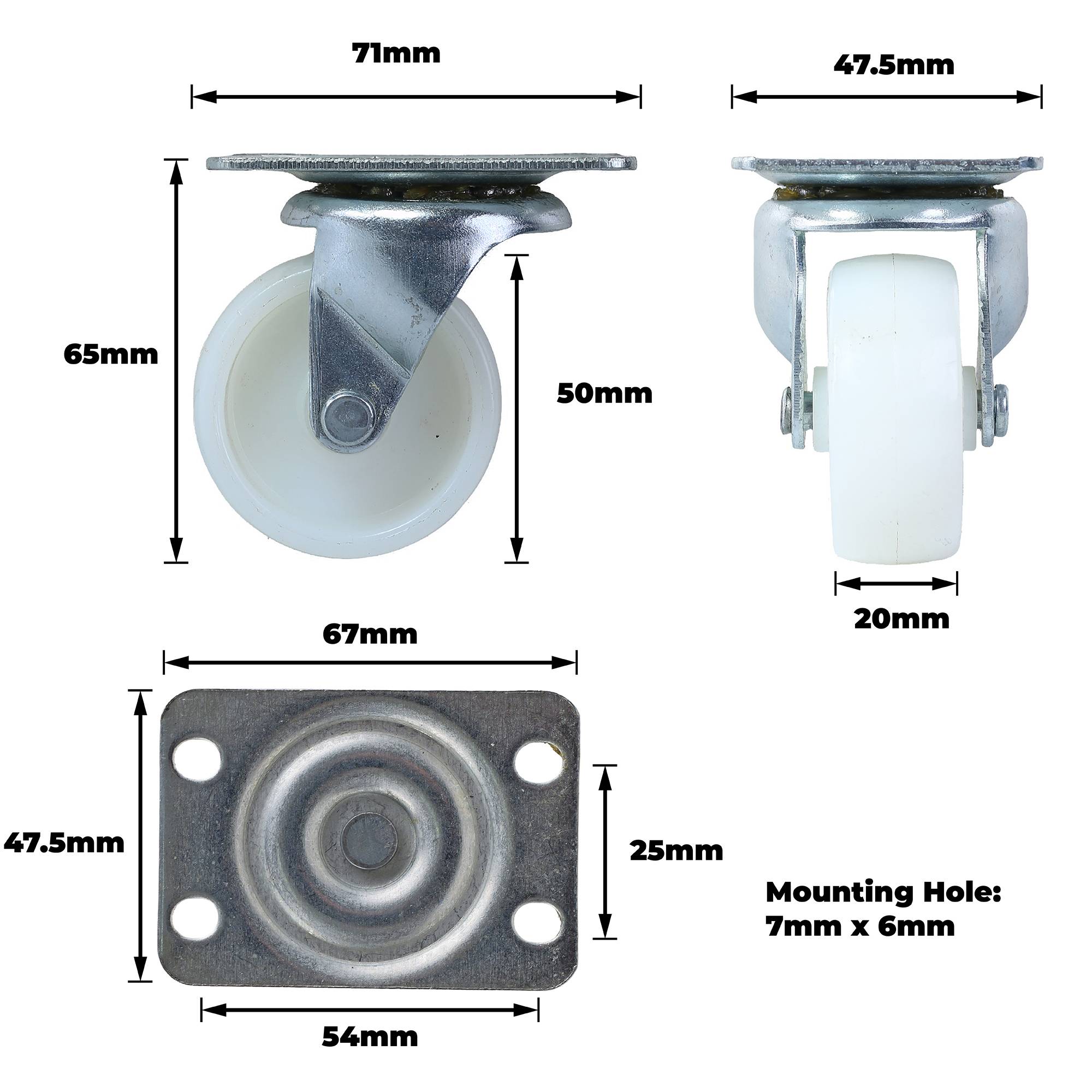

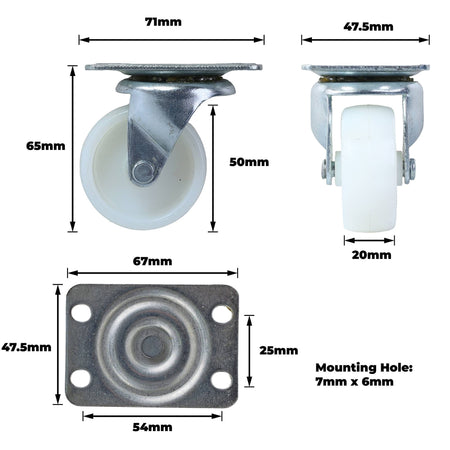

Dimensions
| Product Length (mm) | 71 |
| Product Width (mm) | 47.5 |
| Product Height (mm) | 65 |
| Wheel Diameter (mm) | 50 |
| Tread Width (mm) | 20 |
| Swivel Radius (mm) | 37.5 |
| Mounting Hole Dimensions (mm) | 7.3x7.3 |
| Hole Centre Dimensions (LxW) mm | 54x25 |
| Plate Dimensions (LxW) mm | 67x47.5 |
Weights
| Product Weight (grams) | 143 |
| Product Weight (kg) | 0.116 |
| Load Capacity (kg) | 40.0 |
