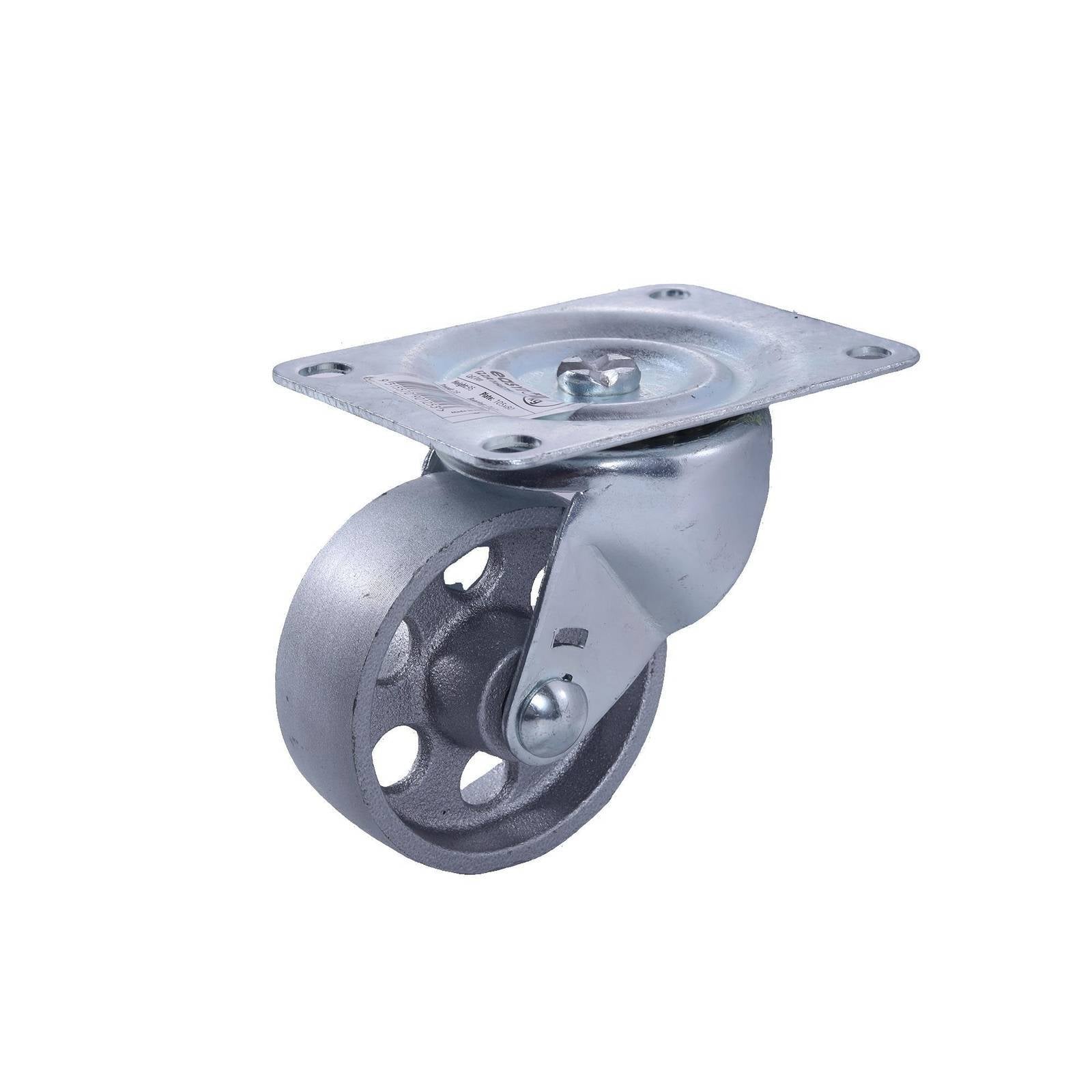

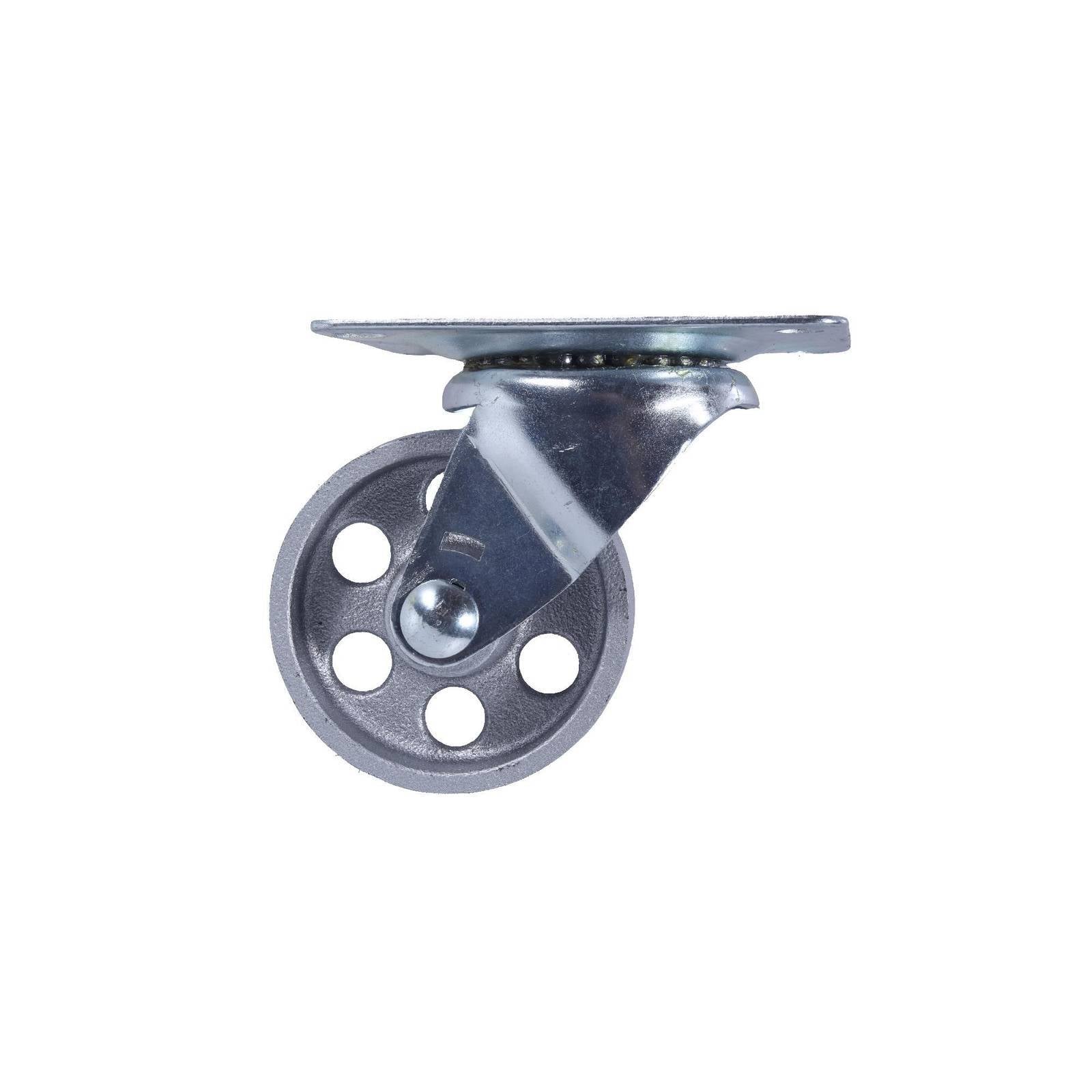

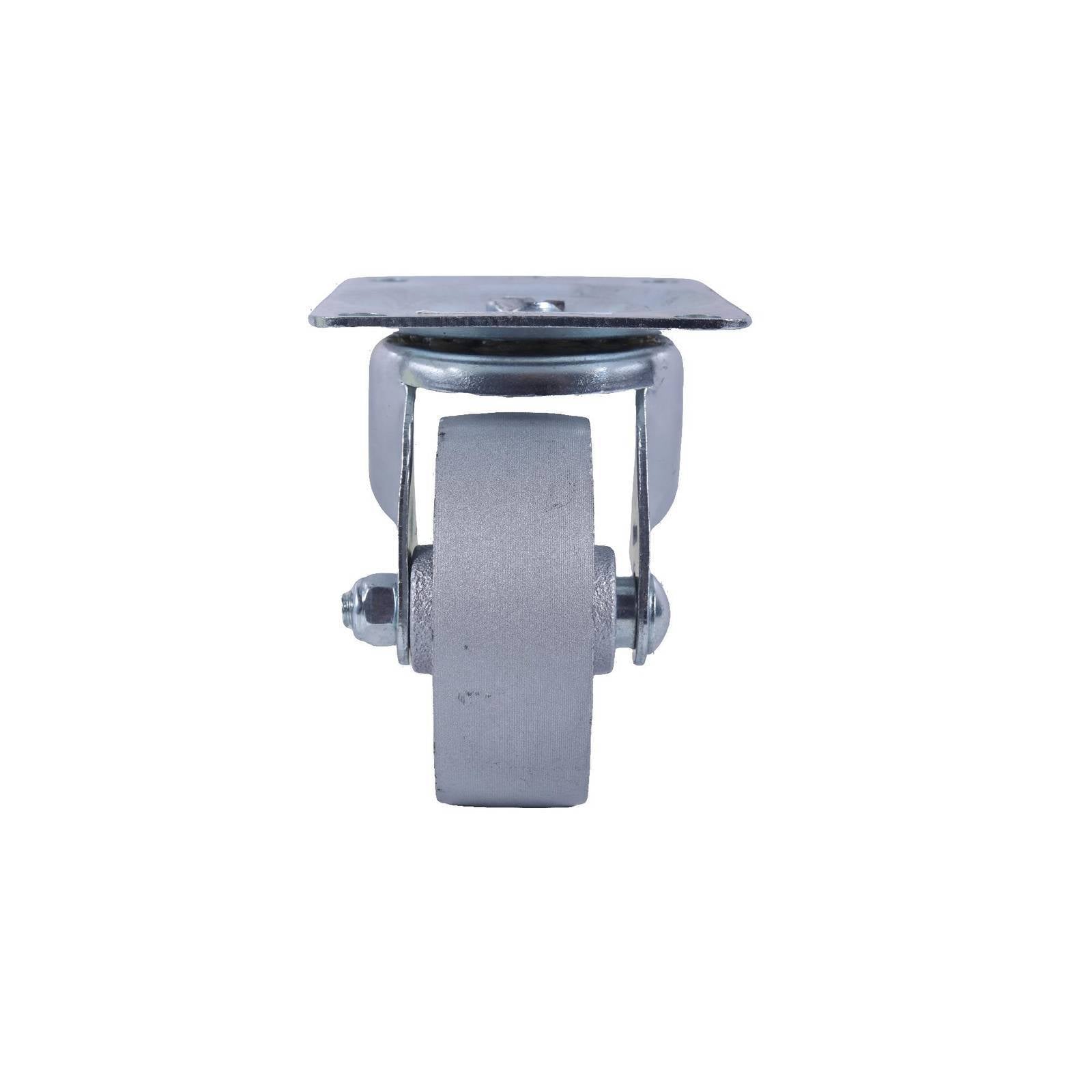

Easyroll 75mm Cast Iron Swivel Plate I2 Series Castor 115kg
Easyroll 75mm Cast Iron Swivel Plate I2 Series Castor 115kg. This castor features a robust cast iron wheel with a cast iron core integrated with a steel housing and plain steel bearings designed for precise movement and secure total braking. The plate mount design supports efficient manoeuvrability in fixed applications. Its technical build provides reliable performance and effective control for trade professionals in routine tasks.
Couldn't load pickup availability
- Cast iron wheel and core for durable construction
- Steel housing and plain bearing offer stable handling
- Integrated total brake enhances control during use
- Plate mount design secures fixture to equipment
- Swivel action enables manoeuvrability in confined spaces
- Single raceway design simplifies maintenance procedures
- Reliable performance with rated 115kg load
- Smooth swivel ensures precise manoeuvring indoors
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | No |
| Indoor Use | Yes |
| Bearing Type | Plain Bearing |
| Raceway Type | Single |
| Brake Type | Total |
| Attachments | Plate Swivel Total Brake |
Construction
| Wheel Core Material | Cast Iron |
| Wheel Material | Cast Iron |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Grey/Silver |

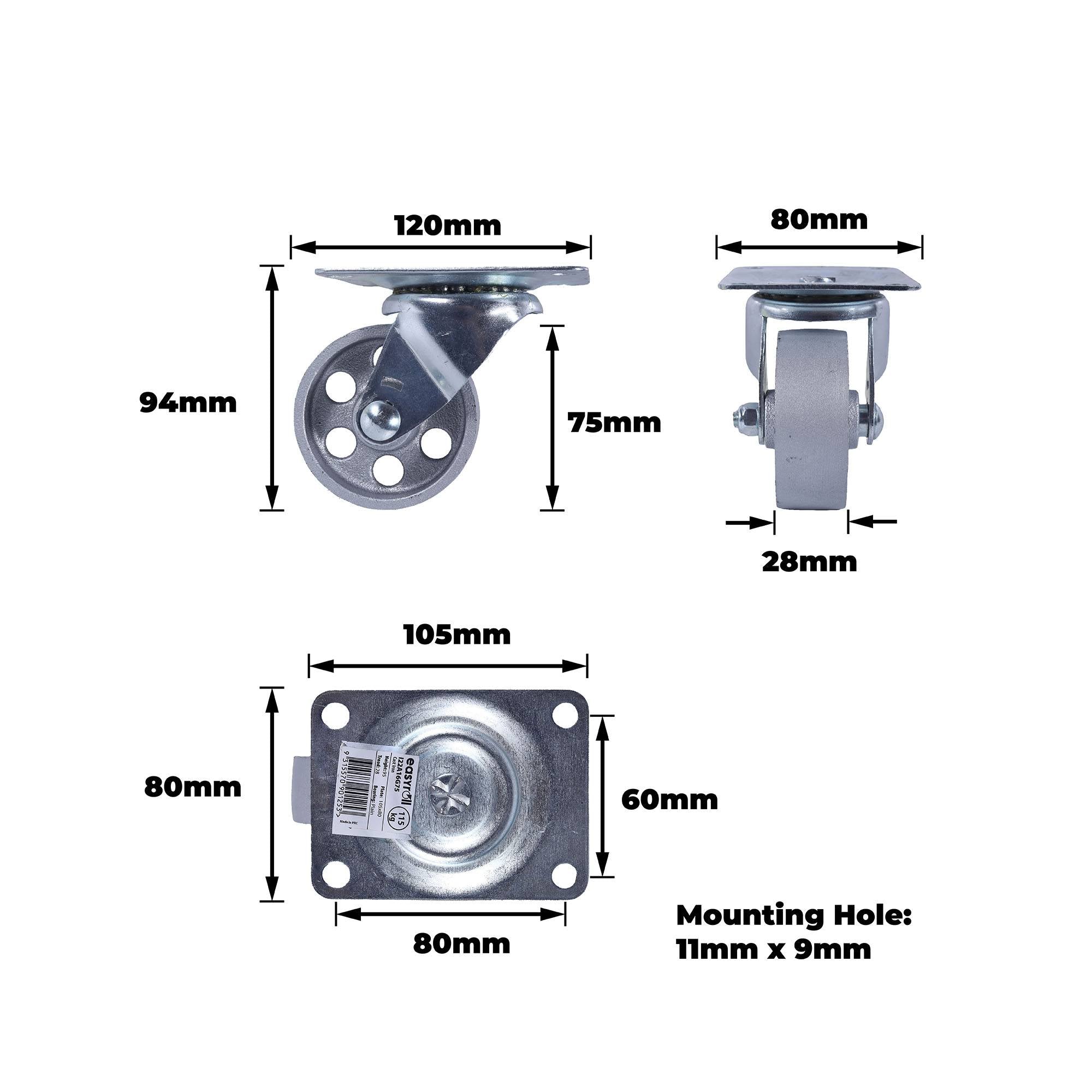

Dimensions
| Product Length (mm) | 120 |
| Product Width (mm) | 80 |
| Product Height (mm) | 94 |
| Wheel Diameter (mm) | 75 |
| Tread Width (mm) | 28 |
| Swivel Radius (mm) | 67.5 |
| Mounting Hole Dimensions (mm) | 11x9 |
| Hole Centre Dimensions (LxW) mm | 80x60 |
| Plate Dimensions (LxW) mm | 105x80 |
Weights
| Product Weight (grams) | 780 |
| Product Weight (kg) | 0.78 |
| Load Capacity (kg) | 115.0 |
