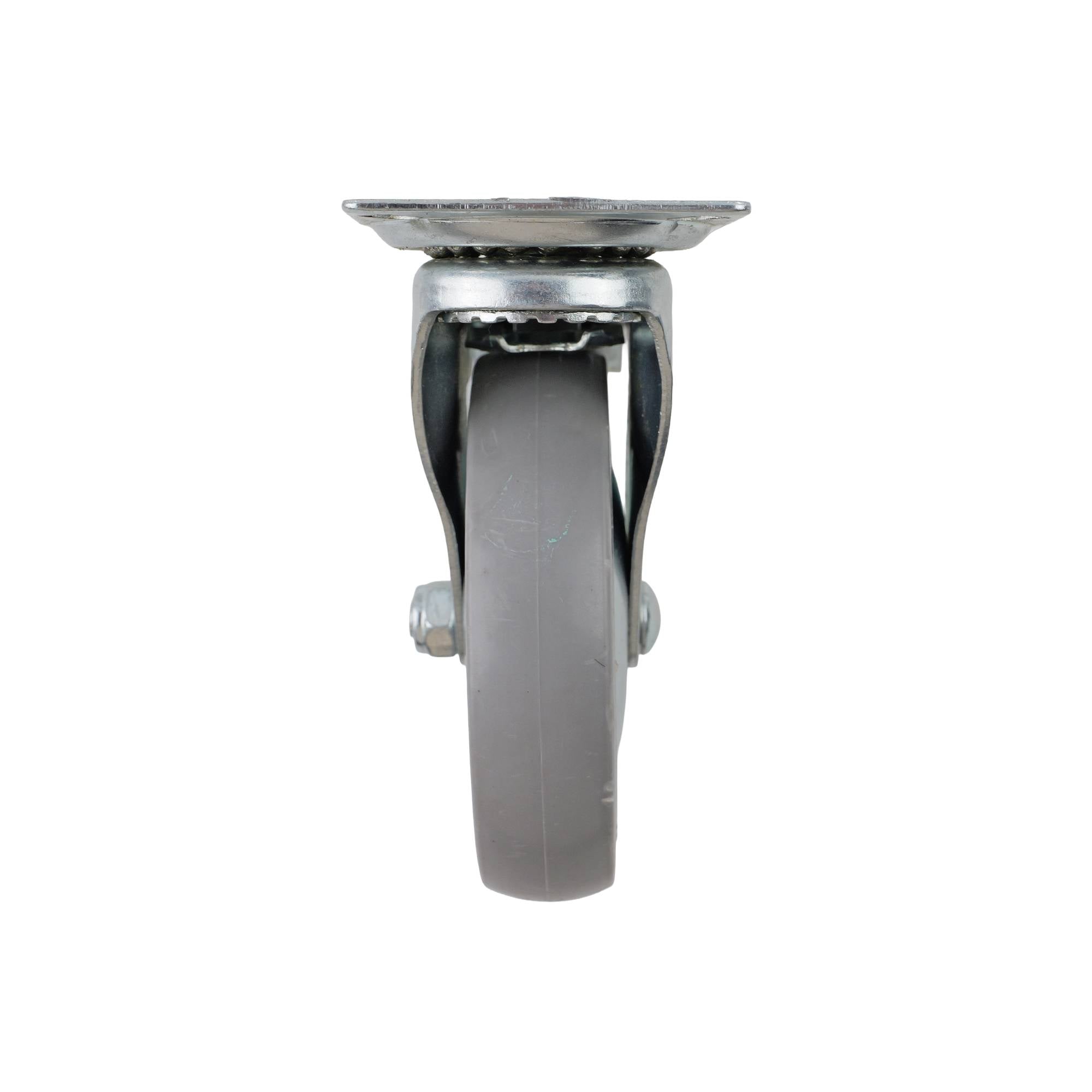

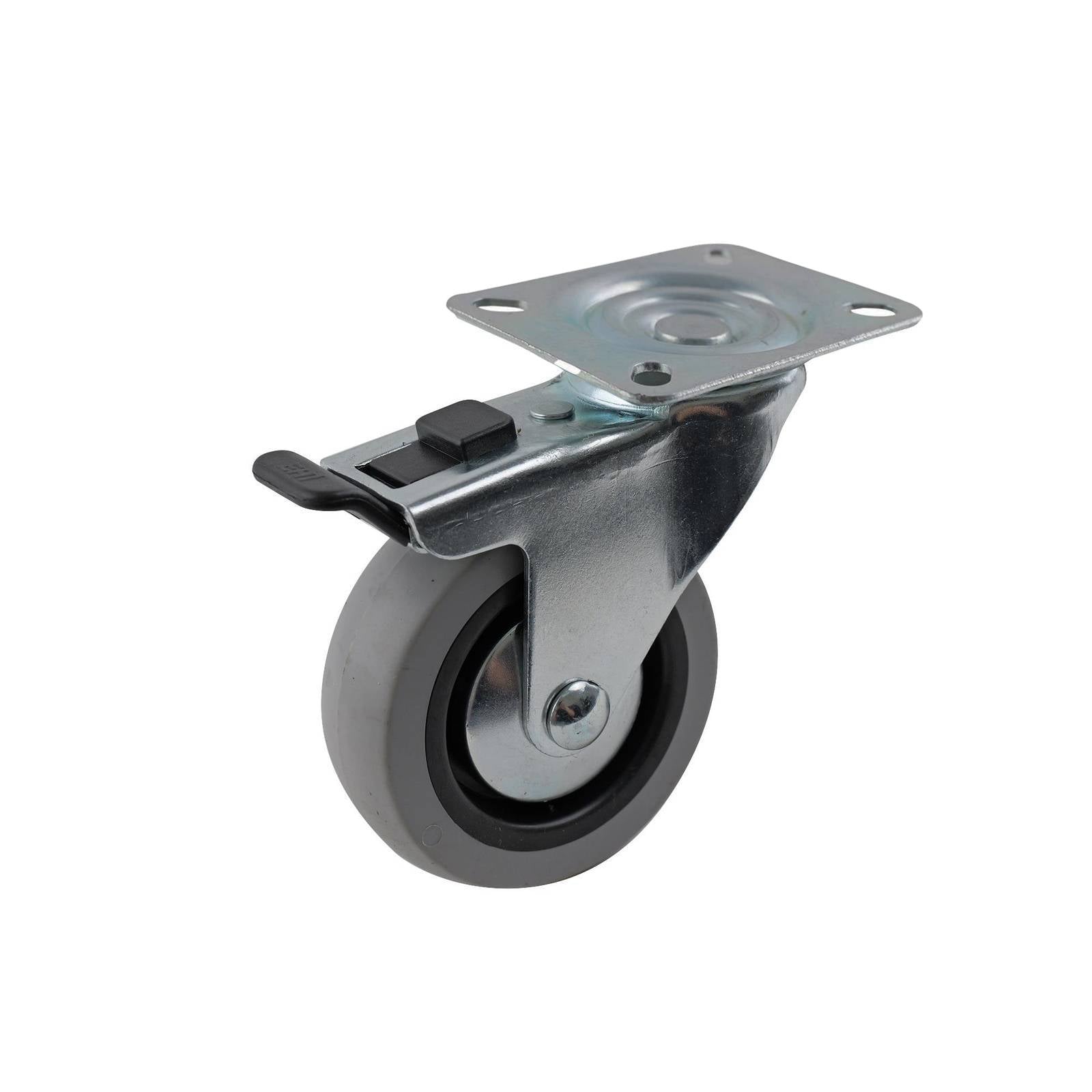

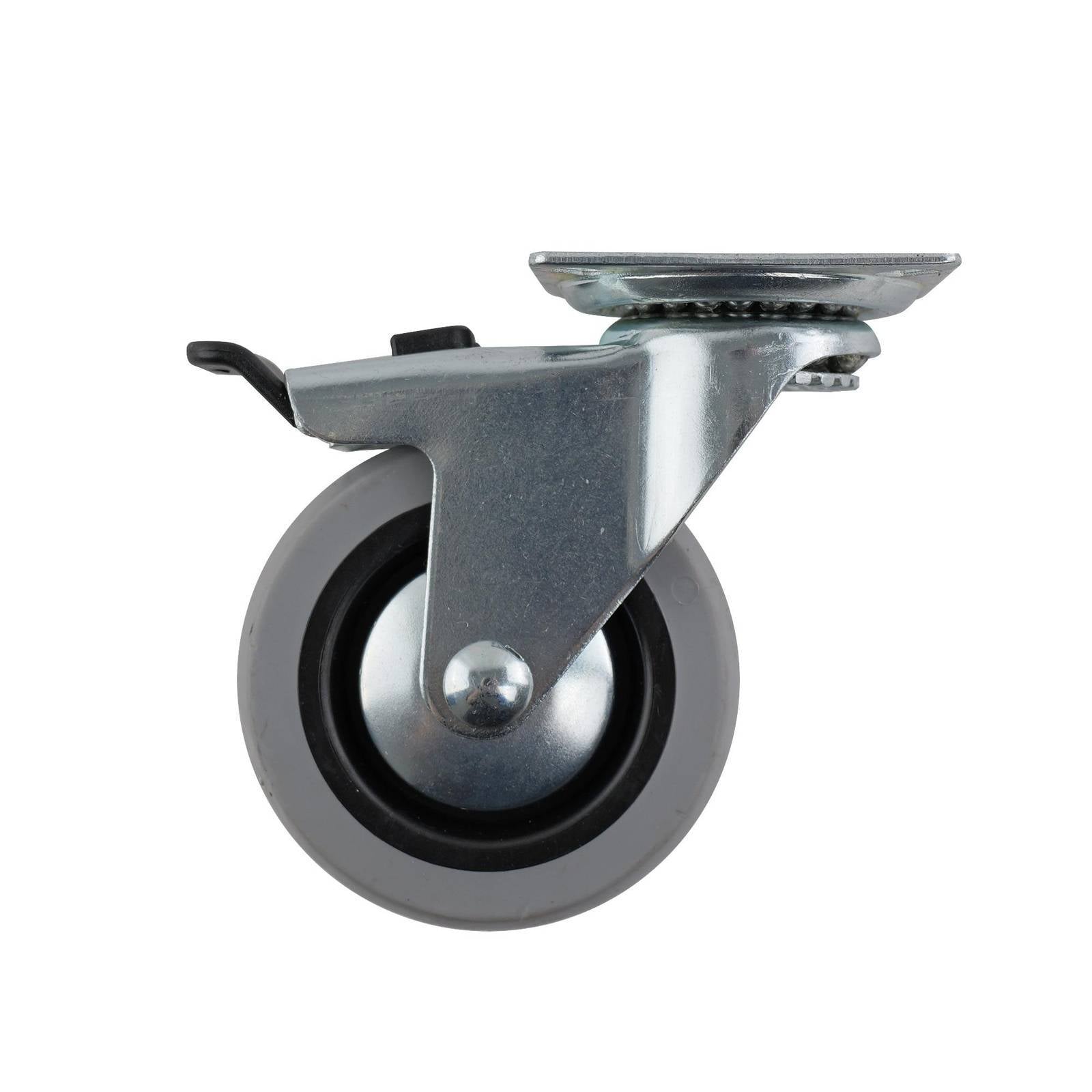

Easyroll 75mm Grey Rubber Swivel Plate Brake G1 Series Castor 55kg
Easyroll 75mm Grey Rubber Swivel Plate Brake G1 Series Castor 55kg features a fixed plate mount design with a robust steel housing and plain bearing system. It is constructed with a polypropylene wheel core and thermoplastic rubber wheels, ensuring smooth manoeuvrability and consistent performance. Designed for indoor use and practical trade applications, this castor offers technical precision and durable materials for effective movement support in various operational settings.
Couldn't load pickup availability
- Steel housing provides robust structural support
- Plain bearing design provides smooth swivel action
- Polypropylene wheel core ensures durability and load capacity
- Thermoplastic rubber wheel material offers reliable traction
- Plate mount fitting allows secure and rigid attachment
- Single raceway design simplifies maintenance and handling
- Indoor rated for focused use and controlled environments
- Thermoplastic rubber wheel offers quiet operation and smooth roll
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | No |
| Indoor Use | Yes |
| Bearing Type | Plain Bearing |
| Raceway Type | Single |
| Attachments | Plate Rigid |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Thermoplastic Rubber |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Grey/Black/Silver |

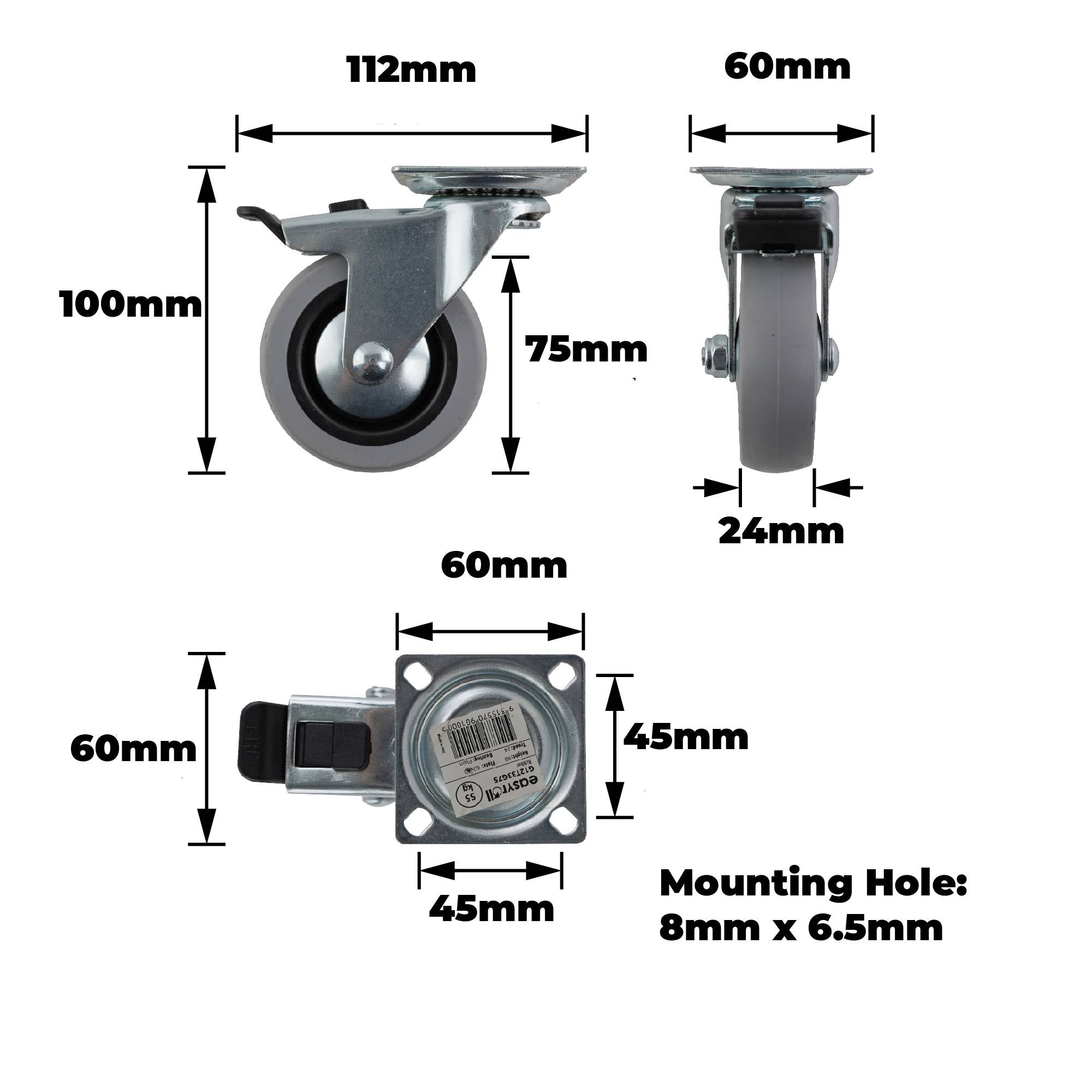

Dimensions
| Product Length (mm) | 112 |
| Product Width (mm) | 60 |
| Product Height (mm) | 100 |
| Wheel Diameter (mm) | 75 |
| Tread Width (mm) | 24 |
| Swivel Radius (mm) | 82 |
| Mounting Hole Dimensions (mm) | 8x6.5 |
| Hole Centre Dimensions (LxW) mm | 45X45 |
| Plate Dimensions (LxW) mm | 60X60 |
Weights
| Product Weight (grams) | 351 |
| Product Weight (kg) | 0.351 |
| Load Capacity (kg) | 55.0 |
