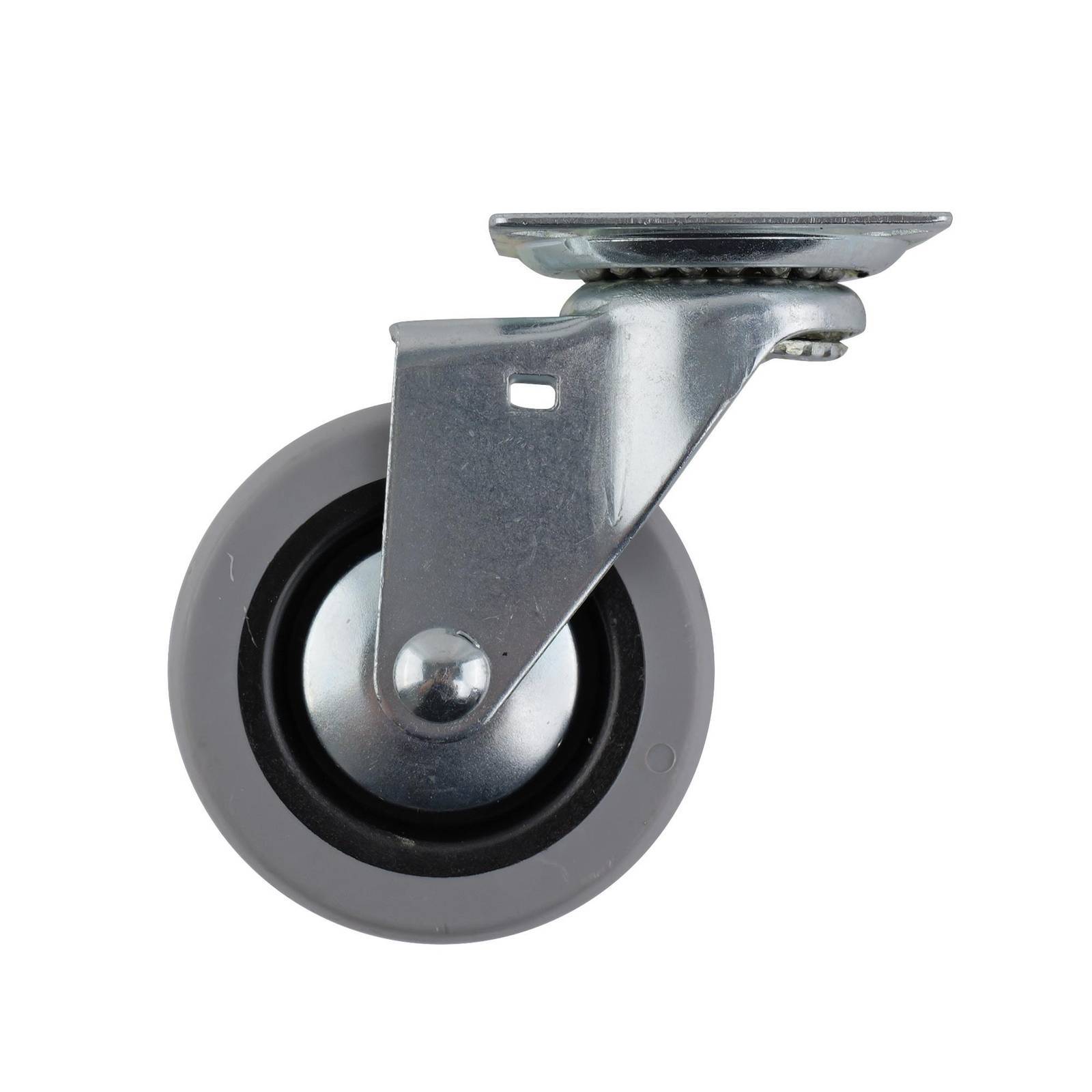

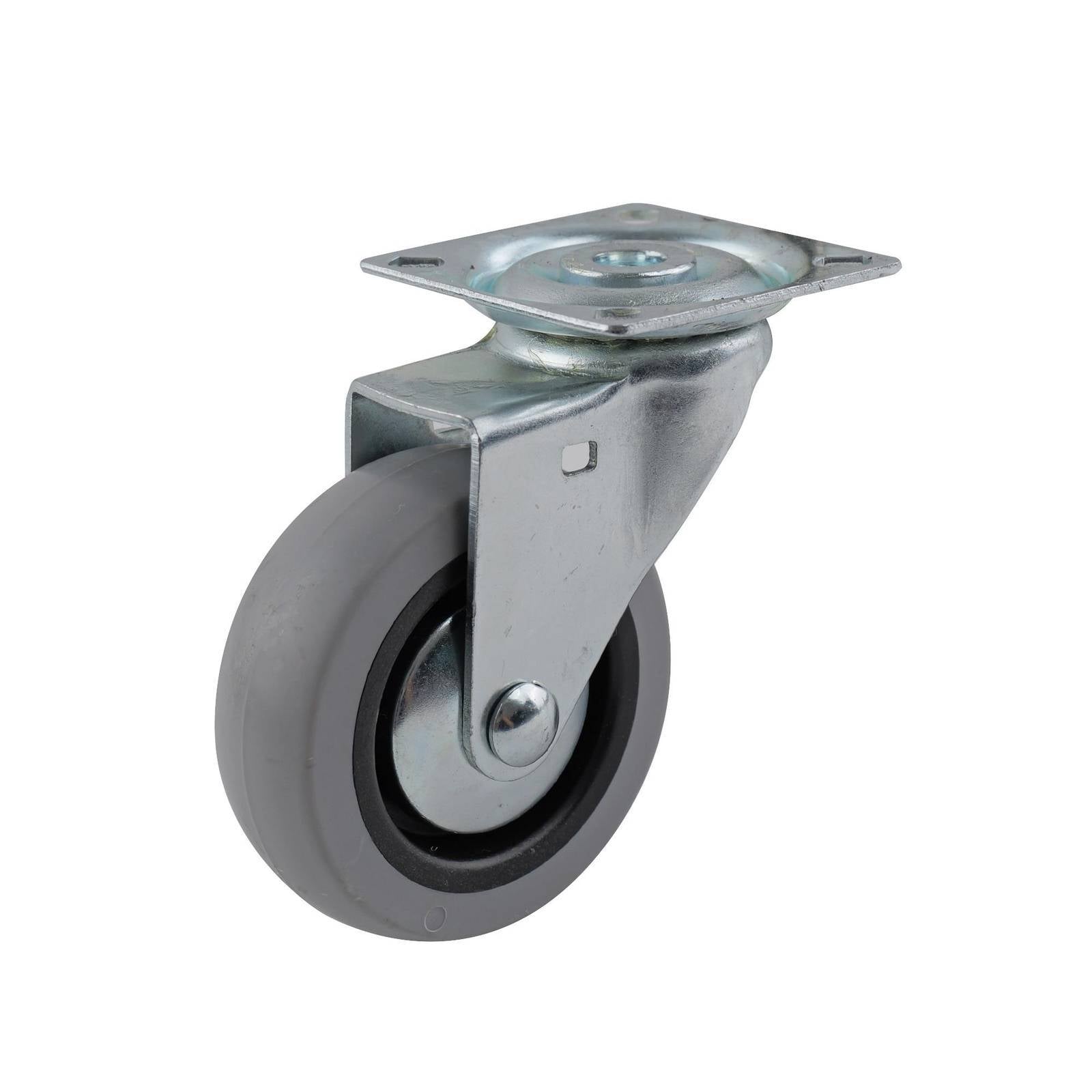

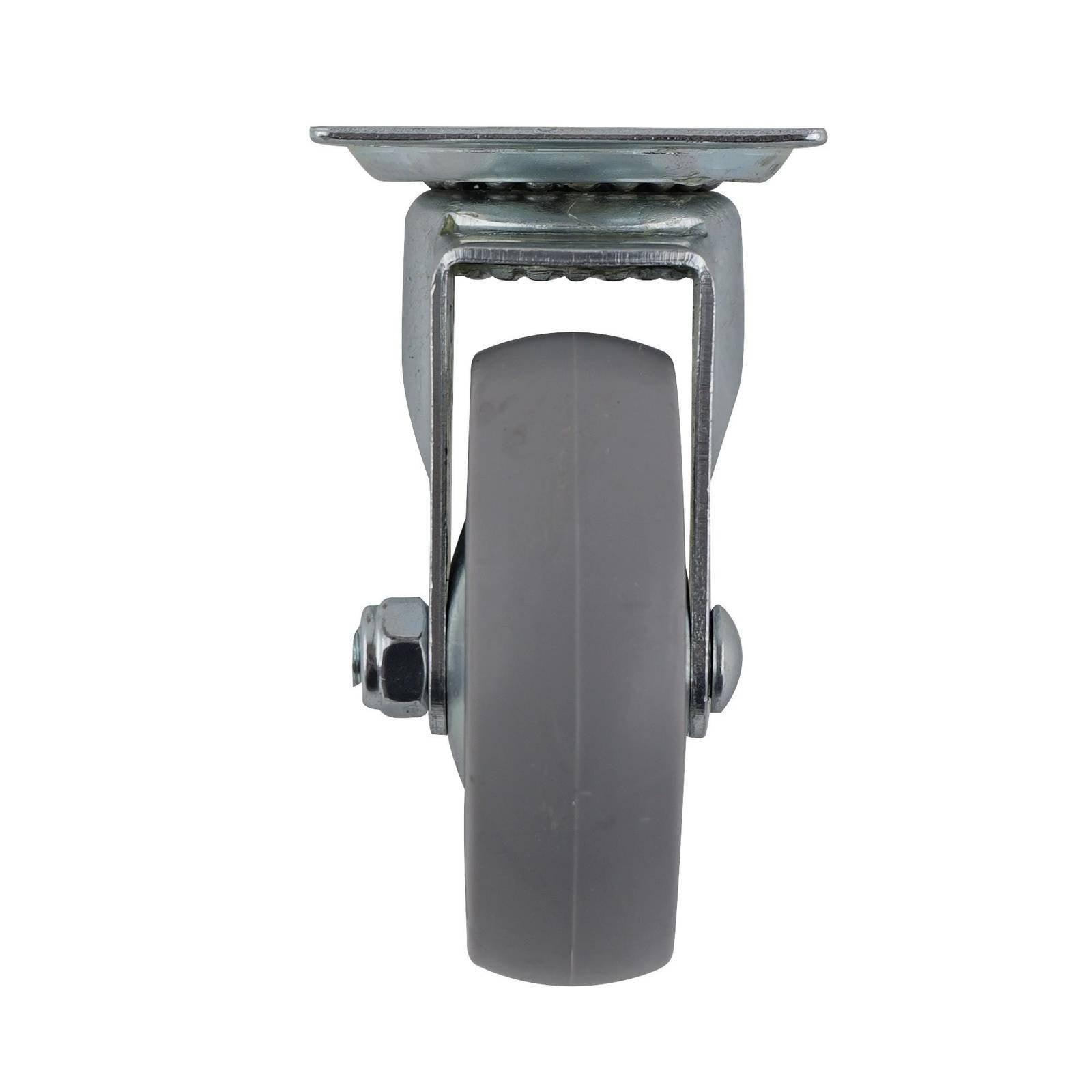

Easyroll 75mm Grey Rubber Swivel Plate G1 Series Castor 55kg
Easyroll 75mm Grey Rubber Swivel Plate G1 Series Castor 55kg is designed for indoor applications, providing a robust solution for controlled movement of equipment. The castor features a plate mount design with a thermoplastic rubber wheel and polypropylene wheel core, supported by a steel housing and plain bearing to deliver smooth operation. Its total brake function and secure attachment offer practical performance benefits for trade professionals managing movable installations.
Couldn't load pickup availability
- Constructed with steel housing and bearing materials
- Polypropylene wheel core for enhanced durability
- Thermoplastic rubber wheels deliver smooth, quiet rolling action
- Plain bearing design simplifies routine maintenance
- Single raceway supports stable motion and load distribution
- Plate mount configuration enables secure, rapid installation
- Swivel design enhances manoeuvrability in compact spaces
- Total brake system offers immediate, reliable stopping power
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | No |
| Indoor Use | Yes |
| Bearing Type | Plain Bearing |
| Raceway Type | Single |
| Brake Type | Total |
| Attachments | Plate Swivel Total Brake |
Construction
| Wheel Core Material | Polypropylene |
| Wheel Material | Thermoplastic Rubber |
| Housing Material | Steel |
| Bearing Material | Steel |
| Product Colour | Grey/Black/Silver |

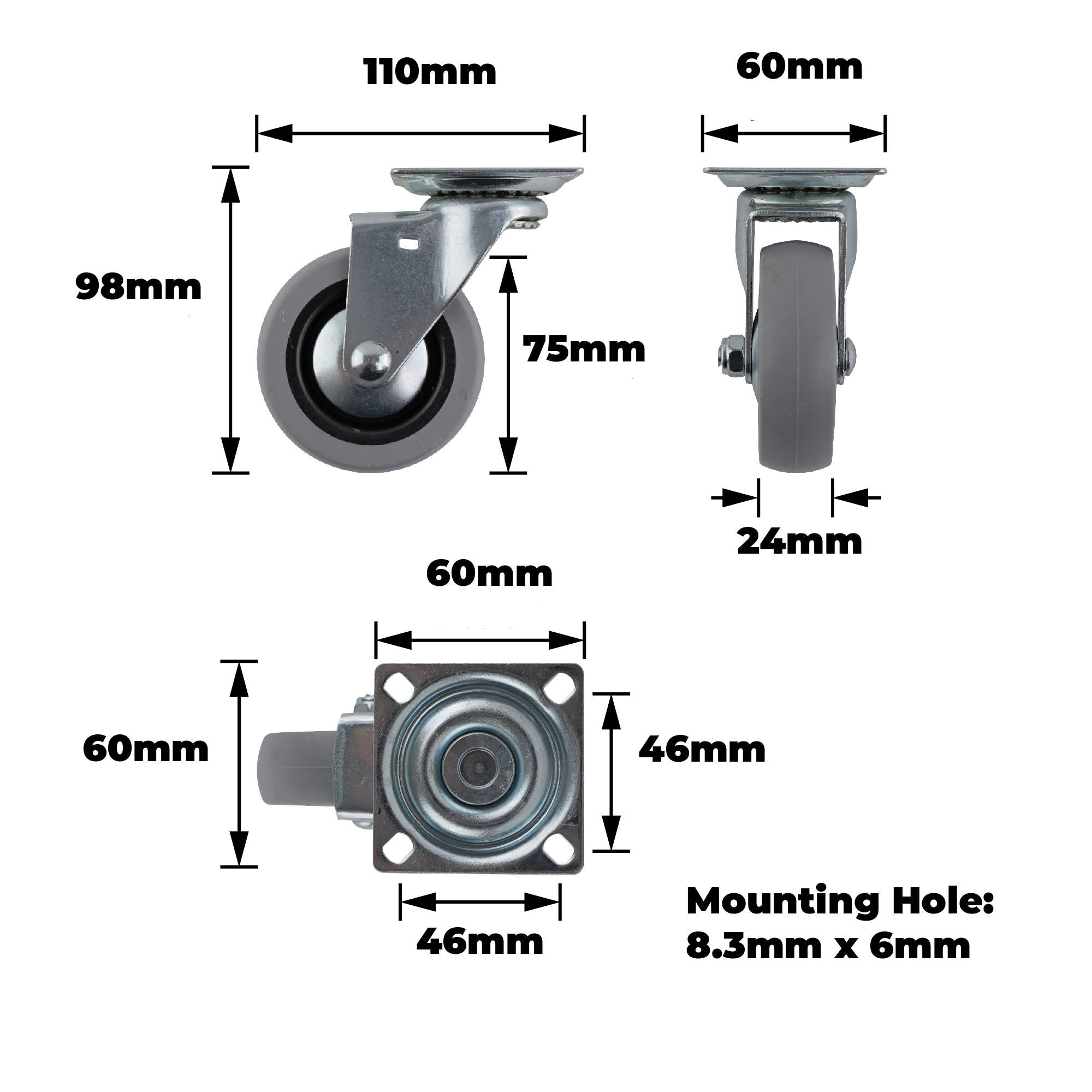

Dimensions
| Product Length (mm) | 110 |
| Product Width (mm) | 60 |
| Product Height (mm) | 98 |
| Wheel Diameter (mm) | 75 |
| Tread Width (mm) | 24 |
| Swivel Radius (mm) | 80 |
| Mounting Hole Dimensions (mm) | 8.3x6 |
| Hole Centre Dimensions (LxW) mm | 46x46 |
| Plate Dimensions (LxW) mm | 60x60 |
Weights
| Product Weight (grams) | 320 |
| Product Weight (kg) | 0.32 |
| Load Capacity (kg) | 55.0 |
