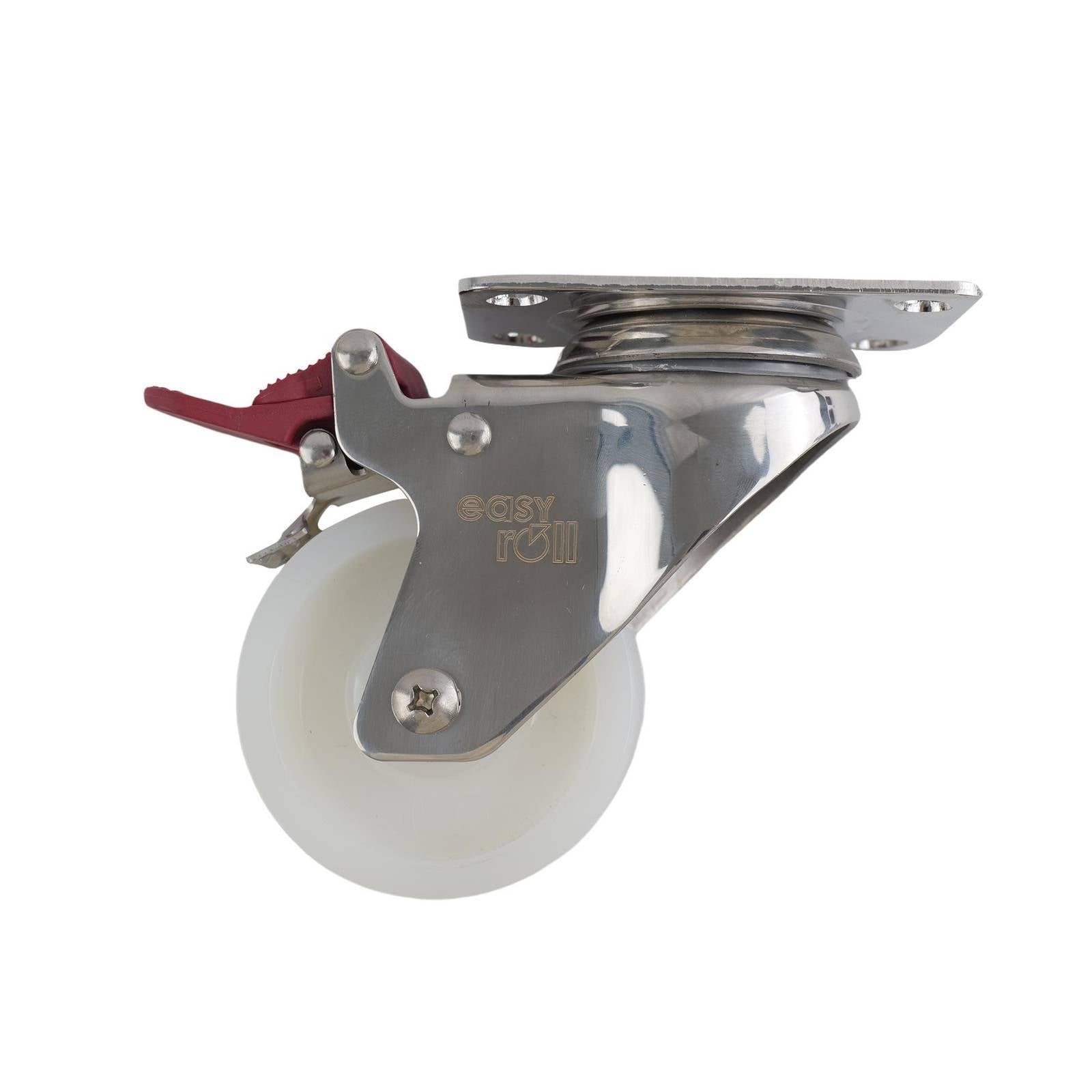

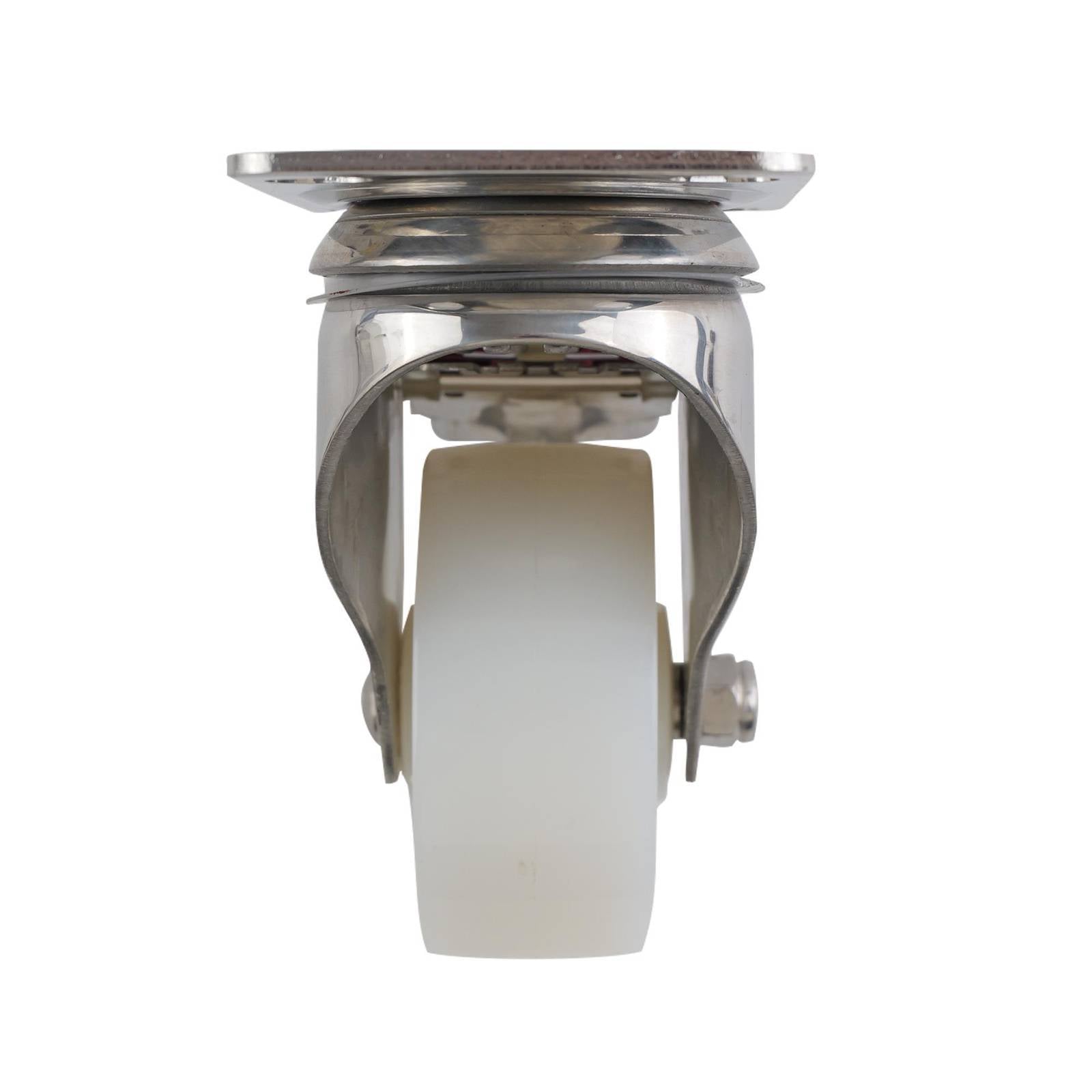

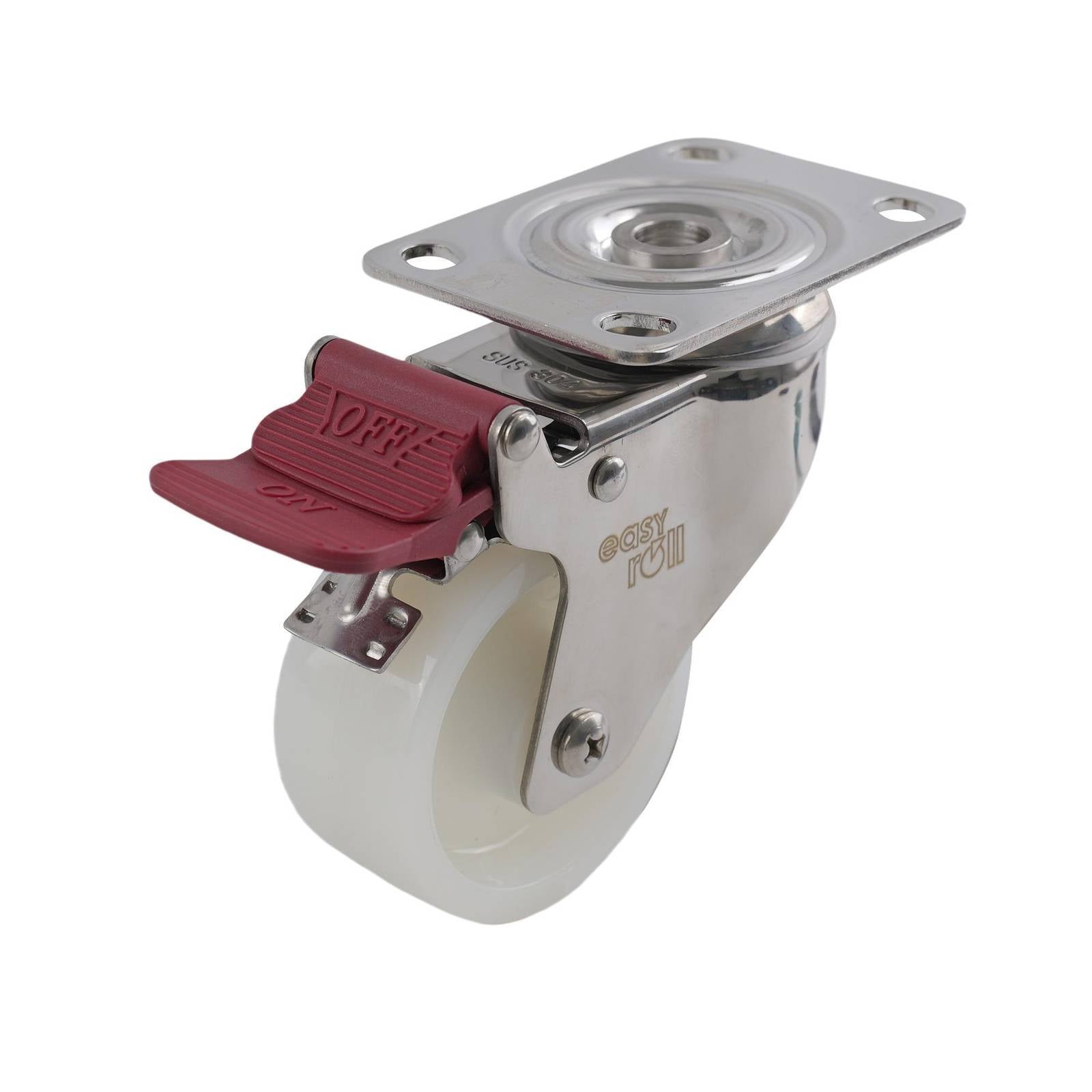

Easyroll 75mm White Nylon Swivel Plate Brake G7 Series Castor 80kg
Easyroll 75mm White Nylon Swivel Plate Brake G7 Series Castor 80kg delivers a dependable solution for trade professionals. Designed with a stainless steel 304 housing and plain bearing system, it provides smooth swivel performance and controlled braking for precise movement. The white and silver finish, coupled with a nylon wheel and core, ensures durability and ease of manoeuvring in various material handling applications, while the plate mount and dedicated swivel attachment support secure and efficient installations.
Couldn't load pickup availability
- Stainless steel 304 housing provides robust performance
- Nylon wheel core and wheel ensure smooth motion
- Integrated plain bearing offers reliable pivot operation
- Plate swivel attachment simplifies mounting installation process
- Suitable for indoor and outdoor applications
- White and silver finish delivers a professional appearance
- Plain bearing design enhances movement and control
- 80kg load capacity supports demanding transport tasks
Product Data Sheet (Download PDF)
Specifications
| Outdoor Use | Yes |
| Indoor Use | Yes |
| Bearing Type | Plain Bearing |
| Raceway Type | Single |
| Attachments | Plate Swivel |
Construction
| Wheel Core Material | Nylon |
| Wheel Material | Nylon |
| Housing Material | Stainless steel 304 |
| Bearing Material | Stainless Steel |
| Product Colour | White/Silver |
Dimensions
| Product Length (mm) | 155 |
| Product Width (mm) | 70 |
| Product Height (mm) | 136 |
| Wheel Diameter (mm) | 101 |
| Tread Width (mm) | 34 |
| Swivel Radius (mm) | 107.5 |
| Mounting Hole Dimensions (mm) | 12.5x8.9 |
| Hole Centre Dimensions (LxW) mm | 74x48 |
| Plate Dimensions (LxW) mm | 95x70 |
Weights
| Product Weight (grams) | 604 |
| Product Weight (kg) | 0.604 |
| Load Capacity (kg) | 80.0 |
